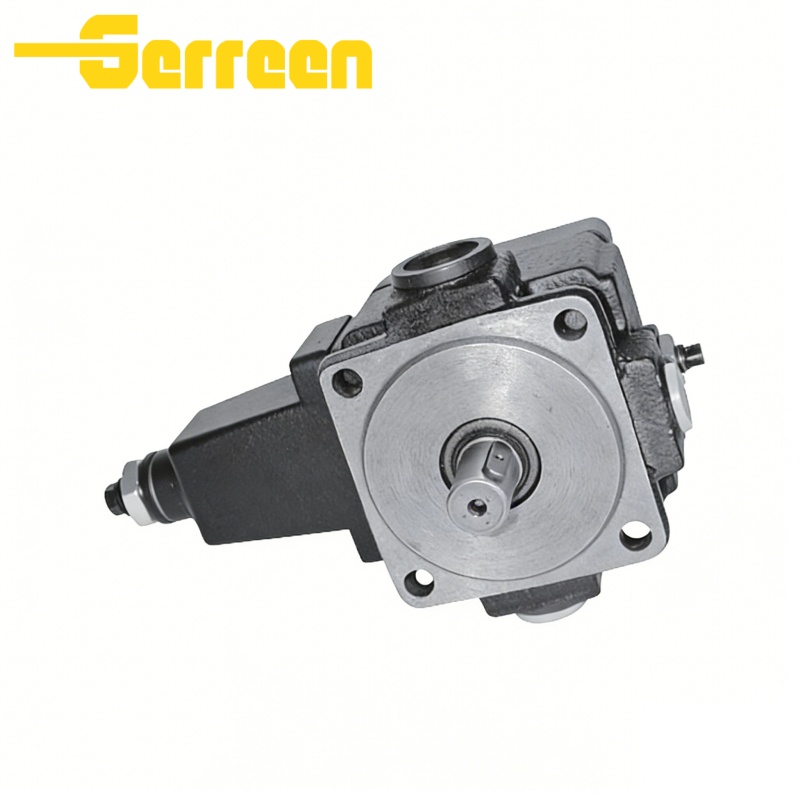

V3 Series Variable Vane Pumps

V3 Series Variable Vane Pumps Overview

The V3 Series Variable Vane Pumps are high-performance hydraulic pumps designed to deliver stable pressure, low noise operation, and excellent energy efficiency. Featuring a variable displacement design, the V3 series automatically adjusts output flow according to system demand, making it an ideal choice for modern hydraulic systems that require precision control and energy savings.

Application Advantages

• easy commissioning due to automatic bleed facility

• low noise level

• high bearing life because of hydrodynamically lubricated plain bearings

• bronze-faced starting and control plates, giving low friction characteristics during marginal lubrication conditions.

Technical Data

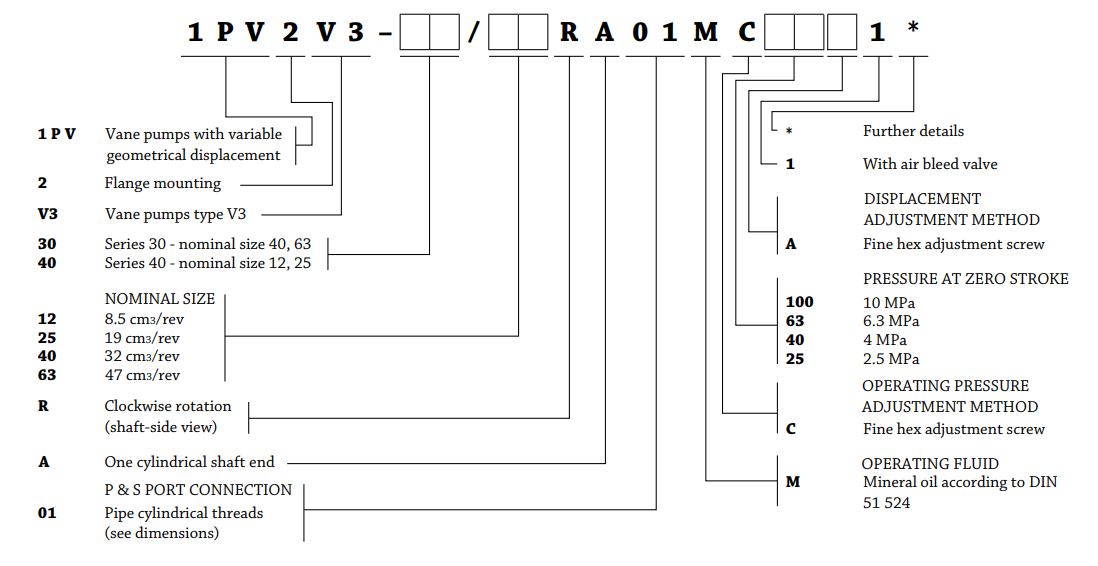

Model Codes

V3 Series Variable Vane Pumps Description

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

1. What is a V3 Series Variable Vane Pump?

The V3 Series is a variable displacement vane pump that automatically adjusts flow output based on system pressure, ensuring efficient and stable hydraulic performance.

2. How does the variable displacement mechanism work?

It uses a pressure-compensated control system that changes the eccentricity between the rotor and cam ring. When system pressure reaches a set value, the pump reduces flow to maintain constant pressure.

3. What are the main advantages of V3 Series pumps?

Key benefits include:

• Energy saving

• Low noise operation

• Stable pressure output

• Reduced heat generation

• Longer service life

4. What is the typical working pressure range?

The V3 Series typically operates in a medium pressure range, usually up to 140–160 bar, depending on the specific model and configuration.

5. In which applications are V3 Series pumps commonly used?

They are widely used in:

• Injection molding machines

• Machine tools

• Hydraulic power units

• Die casting machines

• Industrial automation systems

6. How does the V3 pump improve energy efficiency?

By adjusting flow output according to demand, the pump avoids unnecessary energy consumption compared to fixed displacement pumps, especially in systems with variable loads.

7. Is maintenance of the V3 Series pump easy?

Yes. The pump features a simple and modular design, making it easy to service, replace parts, and reduce downtime.

8. What should be considered when selecting a V3 Series pump?

Key selection factors include:

• Required flow rate

• Operating pressure

• Speed range

• Type of hydraulic system

• Installation space and mounting requirements

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
