4535VQSV10
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

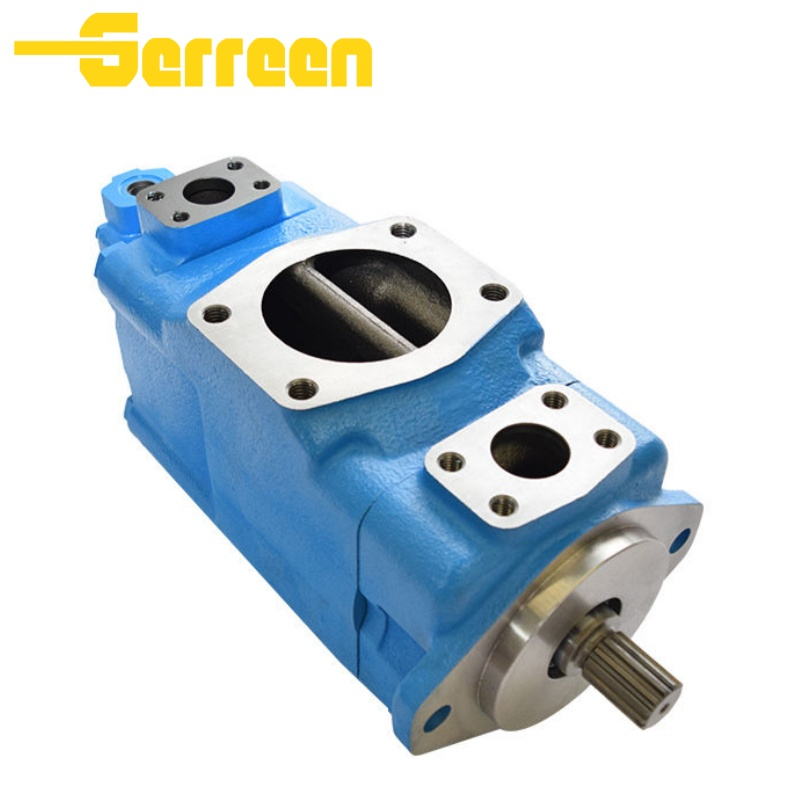

The 4535VQSV10 Fixed Displacement Vane Pump is a reliable and efficient hydraulic pump designed for stable flow output and consistent performance in industrial and mobile hydraulic systems. With its fixed displacement design, it delivers a constant oil flow proportional to speed, making it ideal for applications requiring steady and predictable hydraulic power.
High Volumetric Efficiency – Reduced internal leakage ensures maximum oil delivery.
Low Noise & Vibration – Optimized internal design for quiet operation.
Durable Construction – Wear-resistant vanes and high-strength materials extend service life.
Compact Design – Saves space and allows flexible installation.
Stable Performance – Maintains consistent flow and pressure under varying load conditions.
Flexible Compatibility – Works with standard hydraulic oils (ISO VG32–68).

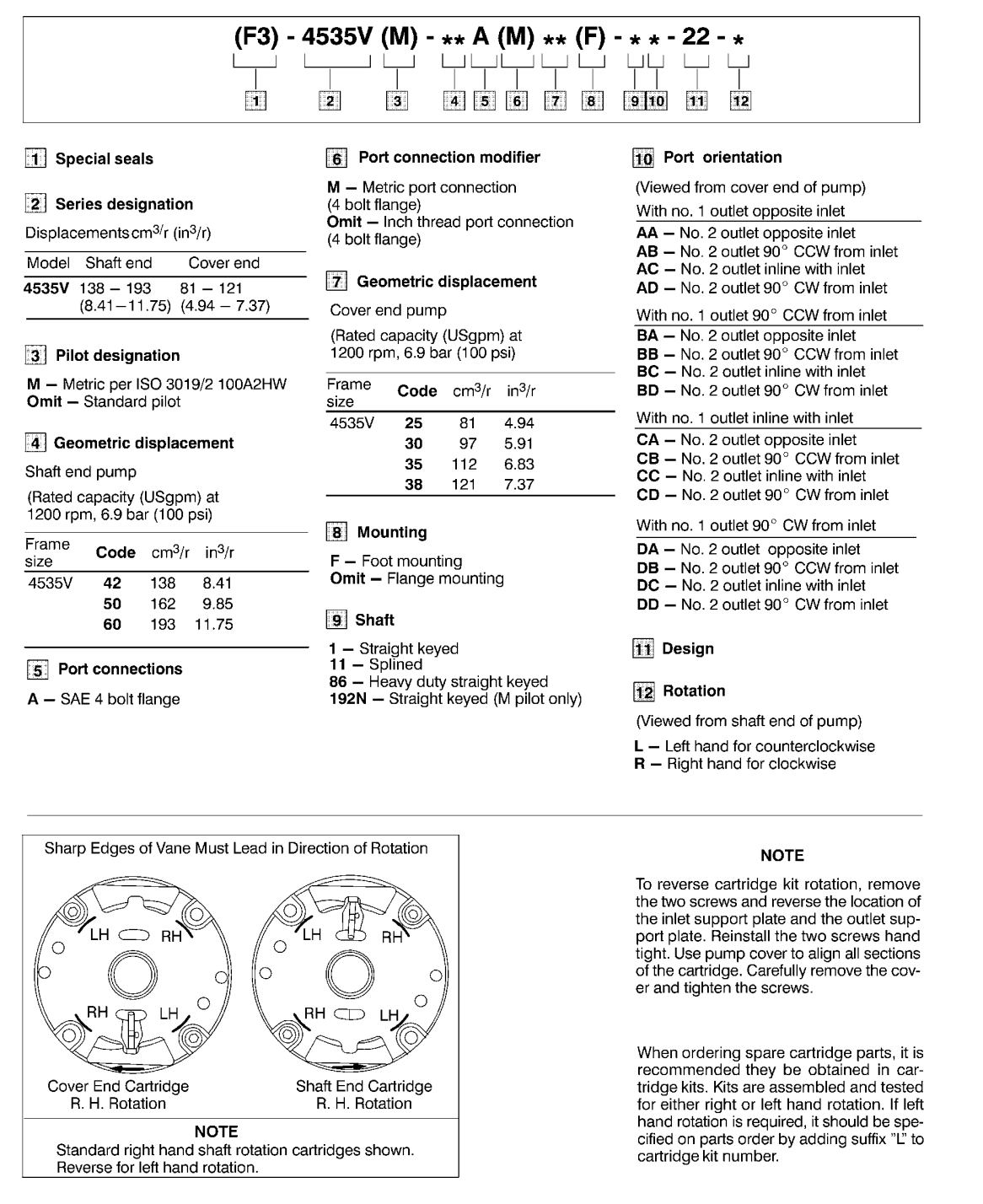

The 4535VQSV10 Fixed Displacement Vane Pump needs correct rotation for proper operation.
Direction: Follow the arrow on the pump (clockwise or counterclockwise)
Working: Rotor turns, vanes slide outward to move oil continuously
Feature: Fixed displacement = constant flow output
Tips: Check motor direction before start-up, avoid reverse running
Benefits: Smooth flow, low noise, less wear, longer life
Correct rotation ensures stable and reliable performance.
The 4535VQSV10 Fixed Displacement Vane Pump is suitable for hydraulic systems that require stable and constant flow output. It is widely used in:
Machine Tools – Lathes, milling machines, and grinding equipment
Injection Molding Machines – Consistent hydraulic pressure and flow
Hydraulic Power Units (HPU) – Centralized industrial hydraulic systems
Plastic & Rubber Machinery – Extrusion and forming equipment
Industrial Automation Equipment – Presses, conveyors, and assembly lines
Light Construction Machinery – Medium-duty hydraulic systems
It provides reliable, smooth, and efficient hydraulic performance for various industrial applications.
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
It is a fixed displacement vane pump, delivering constant flow based on speed.
2. What is the advantage of fixed displacement?
It provides stable and predictable flow, ideal for systems requiring consistent performance.
3. What is the maximum operating pressure?
Typically up to 16–20 MPa, depending on working conditions.
4. What hydraulic oil is recommended?
Use anti-wear hydraulic oil such as ISO VG32, VG46, or VG68.
5. Can the pump run continuously?
Yes, it is designed for continuous operation with stable output.
6. Is rotation direction important?
Yes, correct rotation is essential. Reverse rotation may cause poor performance or damage.
7. What are the main applications?
Machine tools, injection molding machines, hydraulic power units, and industrial automation equipment.
8. Is maintenance complicated?
No, the pump has a simple and durable structure, making maintenance easy and cost-effective.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
