2520v 3520v 3525v 4520v 4525v 4535v Double Vane Hydraulic Pump Overview

The 2520V / 3520V / 3525V / 4520V / 4525V / 4535V Double Vane Hydraulic Pump is a high-performance pump designed for reliable hydraulic power delivery in industrial and mobile applications. Its double-vane design provides dual-flow output, making it suitable for systems requiring multiple circuits or higher flow capacity.

Features

• Dual Pump Design – Two vane pump sections for independent or combined flow output

• High Efficiency – Optimized internal structure reduces leakage and energy loss

• Stable & Smooth Operation – Balanced vanes minimize vibration and noise

• Durable Construction – Wear-resistant components ensure long-term reliability

• Compact & Space-Saving – Suitable for equipment with limited installation space

• Flexible Application – Supports industrial machinery, hydraulic power units, and mobile equipment

2520v 3520v 3525v 4520v 4525v 4535v Double Vane Hydraulic Pump Specifications

The 2520V–4535V Double Vane Hydraulic Pump is a dual-pump unit designed for stable and efficient hydraulic performance.

• Pump Type: Double vane (two pump sections)

• Displacement Options:

  • 2520V: 25/20 cc

  • 3520V: 35/20 cc

  • 3525V: 35/25 cc

  • 4520V: 45/20 cc

  • 4525V: 45/25 cc

  • 4535V: 45/35 cc

• Max Pressure: 16–20 MPa

• Max Speed: 3000–3500 RPM

• Oil Temp Range: -20°C to +80°C

• Mounting: Foot or flange

• Fluid: Mineral or synthetic oil (ISO VG32–68)

• Features: High efficiency, low noise, compact and durable design

This series is ideal for dual-circuit hydraulic systems, offering reliable, smooth, and energy-efficient performance.

Technical Data

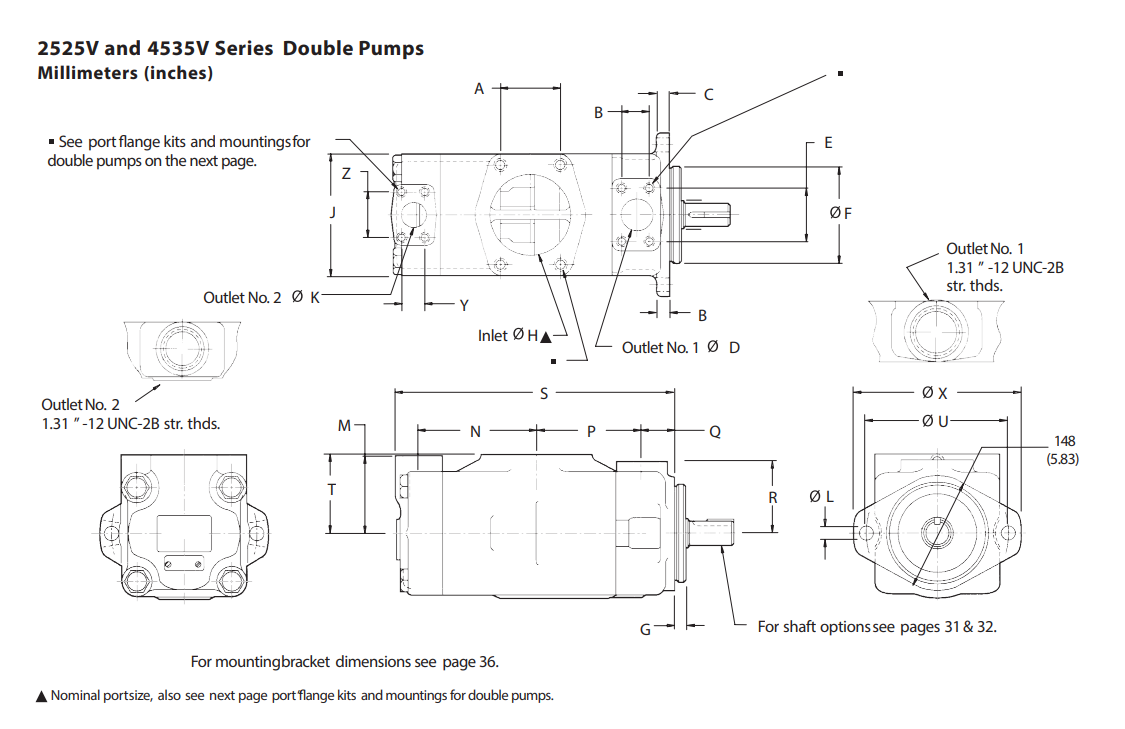

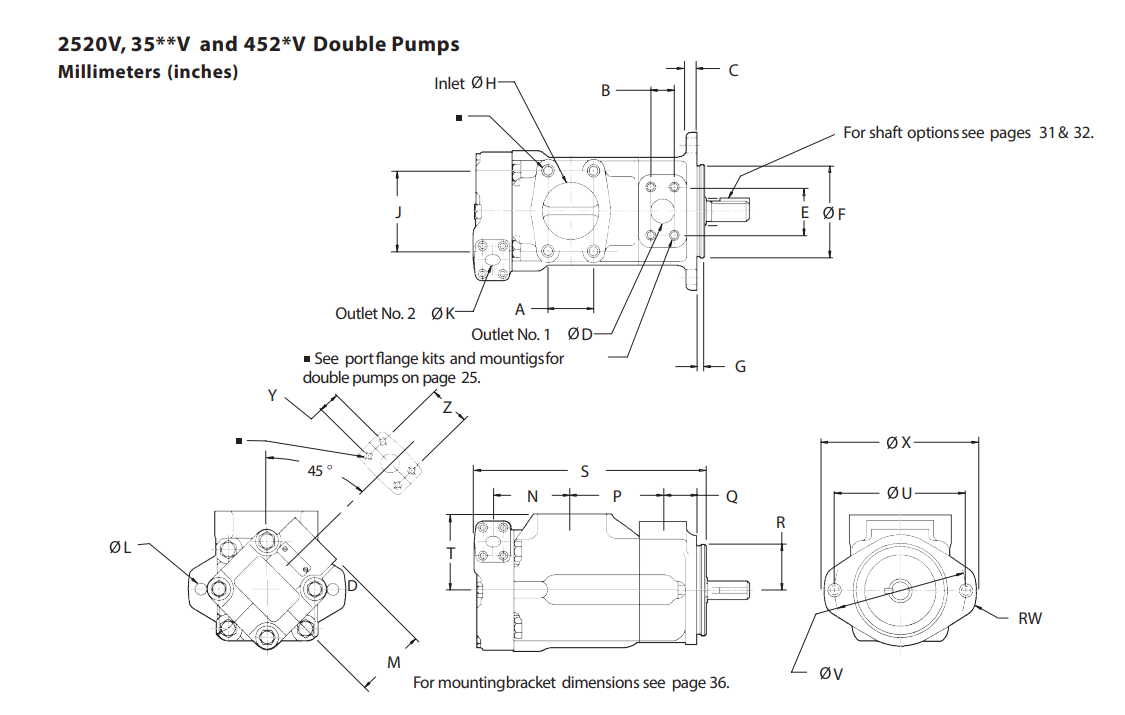

2520v 3520v 3525v 4520v 4525v 4535v Double Vane Hydraulic Pump Installation Dimensions

Applications

The 2520V–4535V Double Vane Hydraulic Pump is designed for dual-flow hydraulic systems and is widely used in industrial and mobile applications:

• Machine Tools – Lathes, milling machines, and presses requiring dual hydraulic circuits

• Injection Molding Machines – Smooth and precise dual-flow hydraulic control

• Hydraulic Power Units (HPU) – Dual-circuit or high-flow systems

• Plastic & Rubber Machinery – Extrusion, molding, and forming equipment

• Construction & Mobile Equipment – Small to medium hydraulic systems with dual-flow needs

• Industrial Automation – Presses, conveyors, and assembly lines requiring stable hydraulic operation

These pumps provide stable, efficient, and reliable dual-flow output for a wide range of hydraulic systems.

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

2520V / 3520V / 3525V / 4520V / 4525V / 4535V Double Vane Hydraulic Pump FAQ

1. What is a double vane hydraulic pump?

It is a pump with two vane pump sections in one unit, providing dual-flow output for independent or combined hydraulic circuits.

2. What are the main differences between the models (2520V–4535V)?

The differences are in displacement combinations, e.g., 2520V = 25/20 cc, 4535V = 45/35 cc, allowing different flow rates.

3. What type of hydraulic fluid should be used?

Mineral or synthetic hydraulic oil with ISO VG32–68 is recommended for optimal performance.

4. What is the maximum operating pressure?

The pumps can handle pressures up to 16–20 MPa, depending on the model.

5. Can the pump operate continuously?

Yes, it is designed for continuous operation with stable performance and low wear.

6. How does the double vane design benefit the system?

It allows dual-flow supply, supporting multi-circuit systems or higher flow requirements while maintaining smooth operation.

7. Is it suitable for mobile equipment?

Yes, it can be used in construction machinery and mobile hydraulic systems needing dual-flow output.

8. How easy is maintenance?

The pump has a durable and compact structure, making it easy to service and replace parts, reducing downtime.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
