3525VQSV10
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

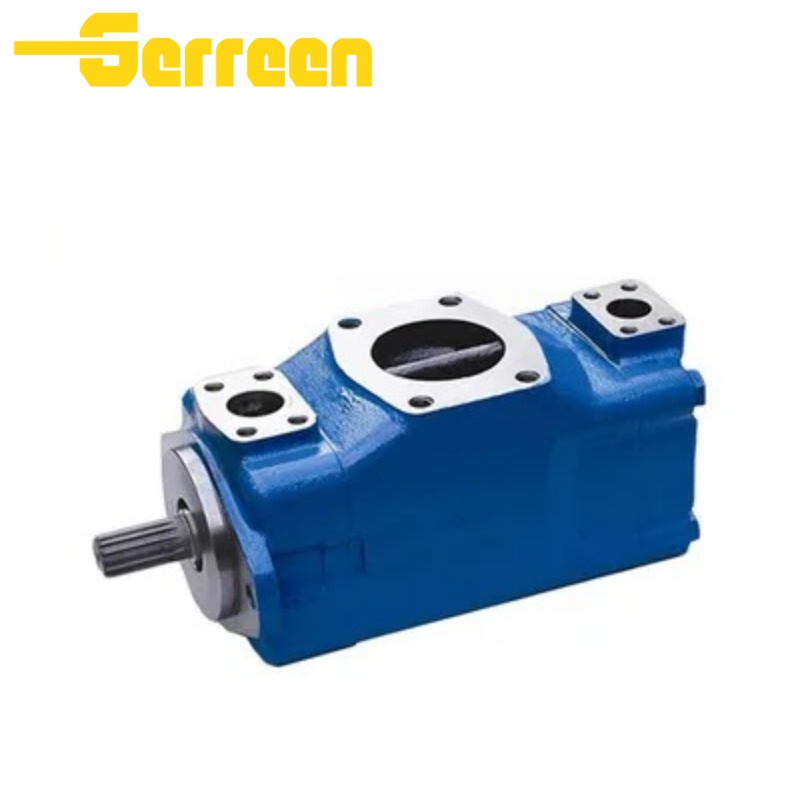

The 3525VQSV10 Double Vane Pump is a high-performance hydraulic pump designed for industrial and mobile applications that require dual-flow output and reliable hydraulic power. Its dual-section vane design ensures stable pressure, smooth flow, and long service life, making it ideal for multi-circuit systems and high-demand hydraulic machinery.
High Volumetric Efficiency – Reduced internal leakage ensures maximum oil delivery.
Low Noise & Vibration – Optimized internal design for quiet operation.
Durable Construction – Wear-resistant vanes and high-strength materials extend service life.
Compact Design – Saves space and allows flexible installation.
Stable Performance – Maintains consistent flow and pressure under varying load conditions.
Flexible Compatibility – Works with standard hydraulic oils (ISO VG32–68).
The 3525VQSV10 Double Vane Pump relies on correct rotation for stable hydraulic performance.
Rotation Direction: Must follow the manufacturer’s arrow (clockwise or counterclockwise) for proper flow and pressure.
Vane Movement: As the rotor turns, vanes slide outward, creating sealed chambers to draw and discharge oil.
Dual-Pump Coordination: Both pump sections rotate together to deliver balanced dual-flow output.
Tips: Check shaft alignment and drive direction before start-up; do not run in reverse unless specified.
Benefits: Ensures smooth operation, low noise, reduced wear, and long pump life.
The 3525VQSV10 Double Vane Pump is designed for dual-flow hydraulic systems and is widely used in industrial and mobile applications:
Machine Tools – Lathes, milling machines, and presses needing dual hydraulic circuits
Injection Molding Machines – Smooth and precise dual-flow hydraulic control
Hydraulic Power Units (HPU) – High-flow or dual-circuit systems
Plastic & Rubber Machinery – Extrusion, molding, and forming equipment
Construction & Mobile Equipment – Small to medium hydraulic systems requiring dual-flow
Industrial Automation Equipment – Presses, conveyors, and assembly lines
These pumps provide stable, efficient, and reliable dual-flow output for a wide range of hydraulic systems.
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
It is a dual-section vane pump designed for delivering stable dual-flow output in industrial and mobile hydraulic systems.
It allows dual-flow supply, supports multi-circuit systems, reduces pulsation, and improves system flexibility.
3. What hydraulic fluids are recommended?
The pump works with mineral or synthetic hydraulic oils (ISO VG32–68).
4. What is the maximum operating pressure?
It can operate up to 16–20 MPa, depending on the application.
5. Can it run continuously?
Yes, it is designed for continuous duty with stable flow and long service life.
6. How important is rotation direction?
Correct rotation is essential; running the pump in reverse can reduce performance or damage components.
7. What are typical applications?
Machine tools, injection molding machines, hydraulic power units, plastic & rubber machinery, construction equipment, and industrial automation systems.
8. Is maintenance difficult?
No, the pump has a durable and compact structure, making it easy to service and reducing downtime.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
