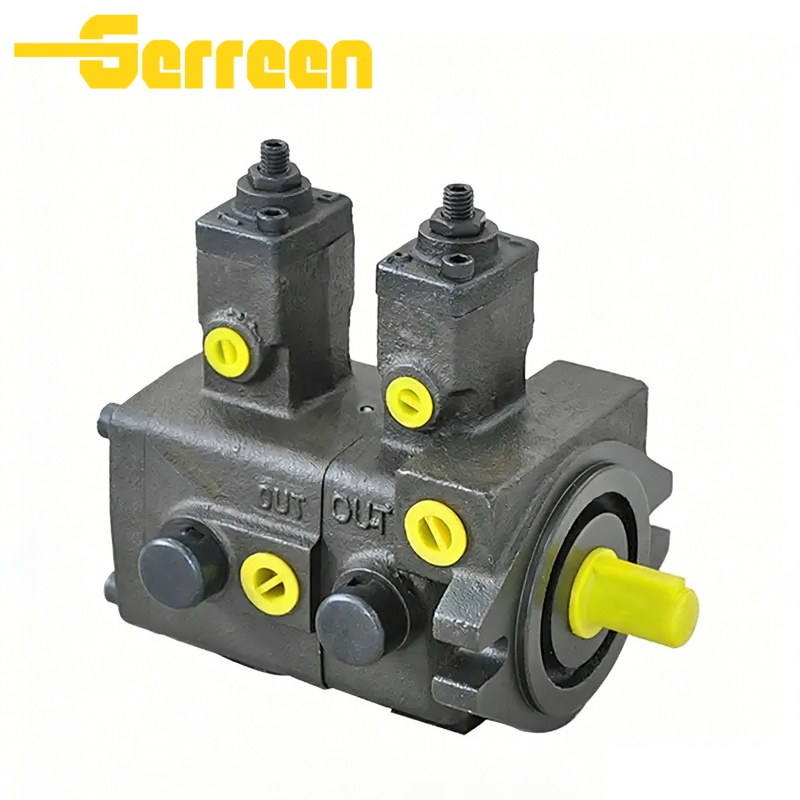

VVP1/VVP2/VVP3
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
VVP1/VVP2/VVP3
The VVP1, VVP2, and VVP3 hydraulic variable vane pumps are engineered for high efficiency, stable pressure control, and long service life. Designed with a pressure-compensated variable displacement mechanism, these pumps automatically adjust output flow according to system demand, making them an ideal solution for modern energy-saving hydraulic systems.
• Long pump life resulting from manufacturing material characteristics, hydrodynamic lubrication of bearings, and hydrostatic balancing of distribution plates.
• Quiet pump operation from 55 to 73 dB(A).
• Simplifies hydraulic circuit by eliminating maximum pressure relief valves and heat exchangers. Pumps can be supplied with various pressure regulators to control the maximum system pressure.
• Standard ISO and SAE mountings.
• Combinations of standard pumps provide flexibility and cost effective pump packages.
Nominal size | Size 1 | Size 2 | Size 3 |
Displacement according to ISO 3662 - cm³/r (in⊃3;/r) | 16 (0.976) | 31.5 (1.922) | 63 (3.844) |
20 (1.220) | 40 (2.441) | 80 (4.882) | |
25 (1.526) | 50 (3.051) | 100 (6.102) | |
Actual displacement - cm³/r (in⊃3;/r) | 17.9 (1.092) | 34.5 (2.105) | 69 (4.211) |
22.1 (1.349) | 42.8 (2.612) | 86.2 (5.260) | |
26.9 (1.642) | 53.1 (3.240) | 105.5 (6.438) | |

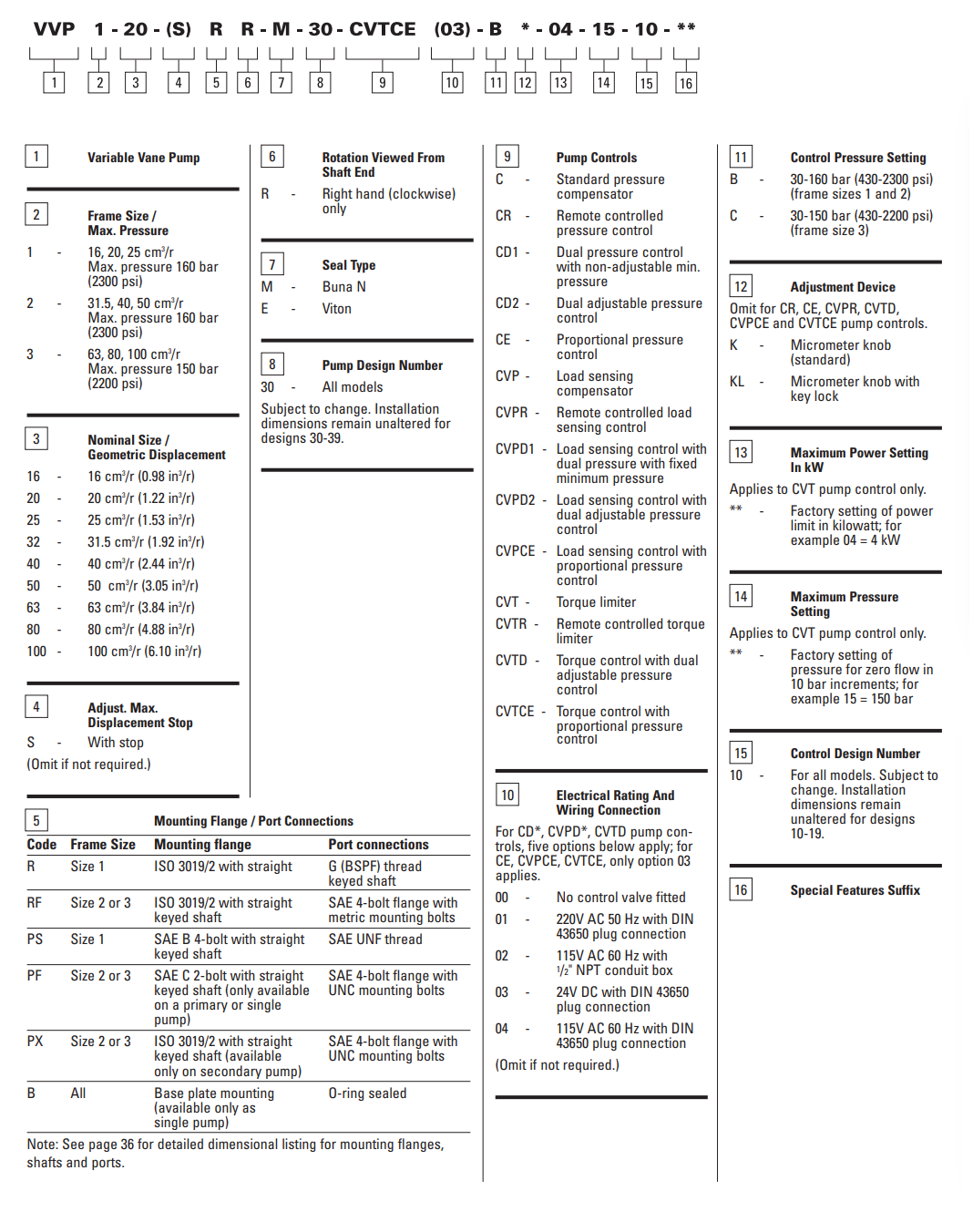

Mounting flange type (See model code, page 15.) | ISO 3019/2 | ISO 3019/2 | ISO 3019/2 |
SAE 4-bolt | SAE C 2-bolt | SAE C 2-bolt | |
Base plate | Base plate | Base plate | |
Maximum working pressure - bar (psi) | 160 (2300) | 160 (2300) | 150 (2200) |
Allowed maximum drain port pressure - bar (psi) | 1 (15) | ||
Inlet pressure (absolute) - bar (psi) | 0.8 to 1.5 [11.6 to 21.8] | ||
Speed range - r/min | 800 to 1800 | ||
Rotation direction (viewed from shaft end) | Right-hand (clockwise) | ||
Loads on drive shaft | No radial or axial loads allowed | ||
Maximum torque on primary shaft - Nm (lbf-in) | 197 (1744) | 400 (3540) | 740 (6550) |
(See pages 28 and 30 for torque requirements of combined pumps.) | |||
Hydraulic fluid | Mineral oil - HM according to ISO 6743/4 - HLP according to DIN 51524/2 | ||
Viscosity range at working pressure - mm²/s (cSt) | 22 to 68 | ||
Recommended viscosity - mm²/s (cSt) at 50°C (122°F) | 32 | ||
Viscosity index | 100 minimum | ||
Fluid temperature range - °C (°F) | -10/+50 [14/122] | ||
Maximum fluid contamination level | Class 9 per NAS 1638, or class 18/15 per ISO 4406 | ||
Weight - kg (lb) | 13 (28.7) | 33 (72.8) | 45 (99.2) |
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The VVP series is a variable displacement vane pump with a built-in pressure compensator. It automatically adjusts flow output according to system demand, helping improve efficiency and reduce energy consumption. If you are upgrading from a fixed pump, feel free to contact us for matching models.
The difference mainly lies in flow capacity and application range:
VVP1: Small to medium systems
VVP2: Medium industrial applications
VVP3: High flow and heavy-duty systems
Send us your technical requirements, and we can recommend the most suitable model.
VVP pumps are designed for medium pressure hydraulic systems, typically up to 70–140 bar depending on the model. For exact specifications, please share your working conditions with us.
Yes, VVP pumps can replace many well-known brands such as Yuken and Daikin Industries vane pumps. Provide your original model number, and we will confirm compatibility.
VVP pumps are compatible with:
Mineral hydraulic oil (ISO HM / DIN HLP)
Equivalent industrial hydraulic fluids
Using clean and proper oil will extend pump life. Contact us if you need oil recommendations.
The recommended operating speed is 800–1800 rpm. For special applications, we can help you confirm the correct speed range.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
