4520VQSV10
Green Hydraulic
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

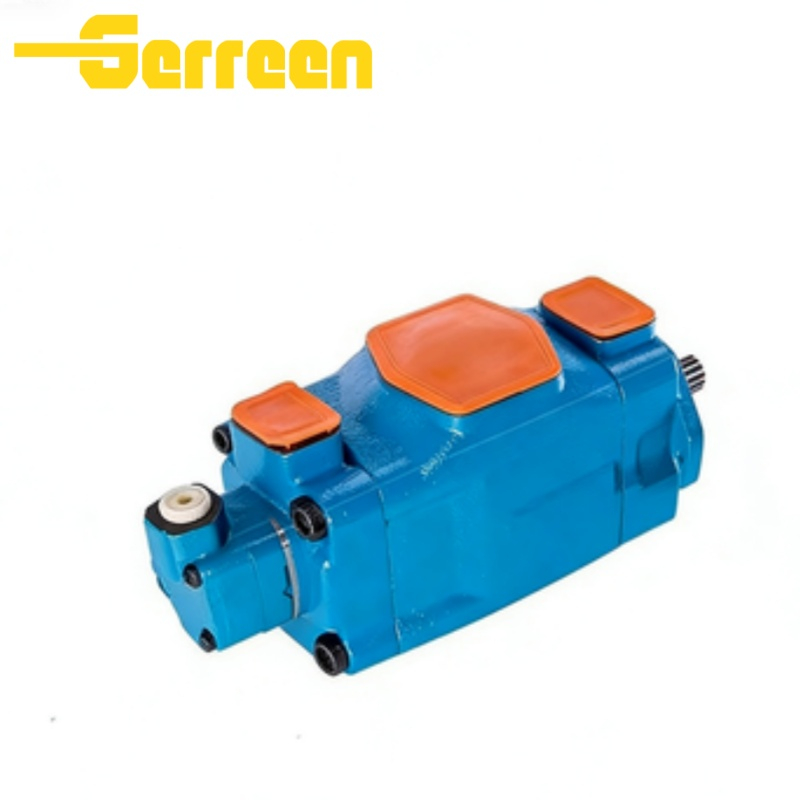

The 4520VQSV10 China Double Vane Pump is a high-performance hydraulic pump designed for industrial and mobile hydraulic systems requiring dual-flow output and reliable operation. Its robust construction and precision components ensure stable pressure, smooth flow, and long service life, making it ideal for multi-circuit systems and demanding hydraulic applications.
High Volumetric Efficiency – Reduced internal leakage ensures maximum oil delivery.
Low Noise & Vibration – Optimized internal design for quiet operation.
Durable Construction – Wear-resistant vanes and high-strength materials extend service life.
Compact Design – Saves space and allows flexible installation.
Stable Performance – Maintains consistent flow and pressure under varying load conditions.
Flexible Compatibility – Works with standard hydraulic oils (ISO VG32–68).
The 4520VQSV10 Double Vane Pump needs correct rotation for stable and efficient operation.
Direction: Follow the arrow on the pump (clockwise or counterclockwise).
Vane Movement: Vanes slide outward as the rotor turns, creating sealed chambers for continuous oil flow.
Dual-Pump Sections: Both sections rotate together for balanced dual-flow output.
Tips: Check shaft alignment and drive direction before start-up; do not run in reverse unless allowed.
Benefits: Ensures smooth flow, low noise, reduced wear, and long service life.
Correct rotation is essential for reliable dual-flow hydraulic performance.
Series | Flow code (USgpm) | Grometric displacement | Max.operating pressure (Mpa) | Max.speed (r/min) | Min.speed (r/min) |
mL/r (in3/r) | |||||
45VQ | 42 | 134(8.17) | 17.5 | 2400 | 600 |
45 | 143(8.72) | 2200 | |||
50 | 159(9.70) | ||||
57 | 181(11.05) | ||||
60 | 189(11.53) | ||||
66 | 210(12.81) | ||||
75 | 237(14.46) | 14 |
The 4520VQSV10 China Double Vane Pump is designed for dual-flow hydraulic systems and is widely used in:
Machine Tools – Lathes, milling machines, and presses with dual hydraulic circuits
Injection Molding Machines – Smooth and precise dual-flow control
Hydraulic Power Units (HPU) – Dual-circuit or high-flow systems
Plastic & Rubber Machinery – Extrusion and molding equipment
Construction & Mobile Equipment – Medium-duty hydraulic systems
Industrial Automation Equipment – Presses, conveyors, and assembly lines
It provides stable, efficient, and reliable dual-flow output for various industrial and mobile hydraulic applications.
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
It is a double vane hydraulic pump with two pump sections, providing dual-flow output.
2. What are the advantages of the double vane design?
It allows independent or combined flow, supports dual circuits, and improves system efficiency.
3. What hydraulic oil is recommended?
Use anti-wear hydraulic oil such as ISO VG32, VG46, or VG68.
4. What is the maximum working pressure?
Typically up to 16–20 MPa, depending on operating conditions.
5. Can the pump run continuously?
Yes, it is designed for continuous operation with stable performance.
6. Is rotation direction important?
Yes, correct rotation is critical. Wrong direction may cause low performance or damage.
7. What are the main applications?
Widely used in machine tools, injection molding machines, hydraulic power units, and industrial automation systems.
8. Is it a good replacement for original pumps?
Yes, it can be a cost-effective alternative to many standard vane pumps with similar specifications.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
