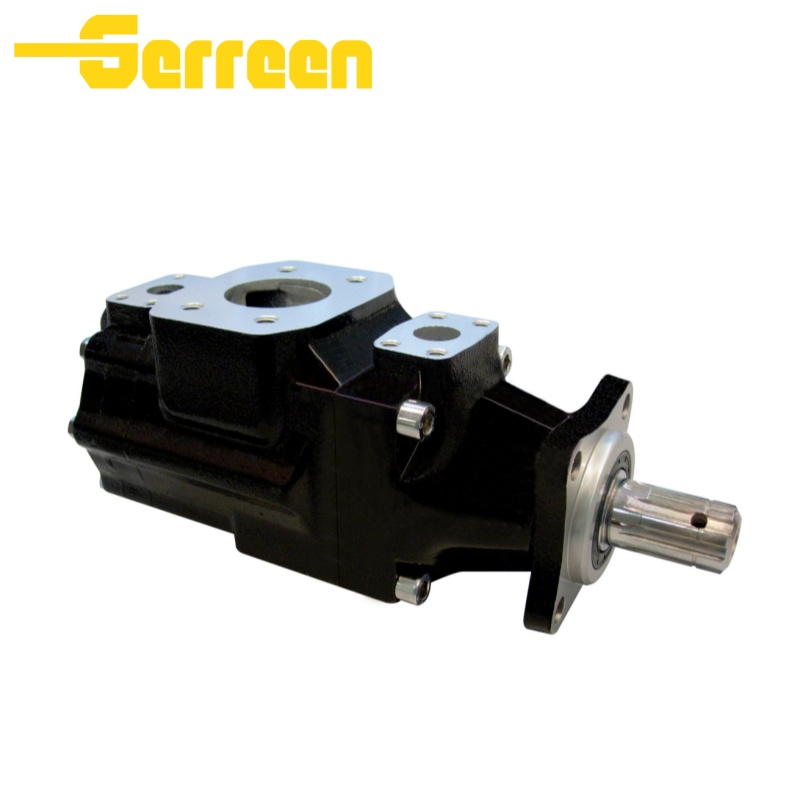

Parker T6G, T67G, T6ZC Series Hydraulic Vane Pump Types

T6G, T67G, T6ZC Series Hydraulic Vane Pump Types Overview

The T6G, T67G, and T6ZC Series Hydraulic Vane Pumps are a range of high-performance fixed displacement vane pumps designed for medium to high-pressure hydraulic systems. These pumps are engineered to deliver stable flow, high efficiency, and long service life in both industrial and mobile equipment.

As reliable alternatives interchangeable with Parker Denison vane pumps, these models feature standardized mounting dimensions, shaft configurations, and port layouts, allowing easy replacement without system modification.

The combination of advanced vane design and rugged construction ensures low noise operation, reduced pulsation, and consistent performance under demanding working conditions.

Application Advantages

• High pressure capability up to 275 bar, in a small envelope, reduces the installation costs.

• High mechanical efficiency, typically 94%. Reduced heat generation.

• Wide speed range. Large size cartridge displacements. Lowest noise level.

• Low ripple pressure reduces the piping noise and increases the life time of other components in the circuit.

• High resistance to particle contamination and increased pump life thanks to the double lip vanes.

• Many of options (cam displacement, shaft, porting) for customized installation.

Technical Data

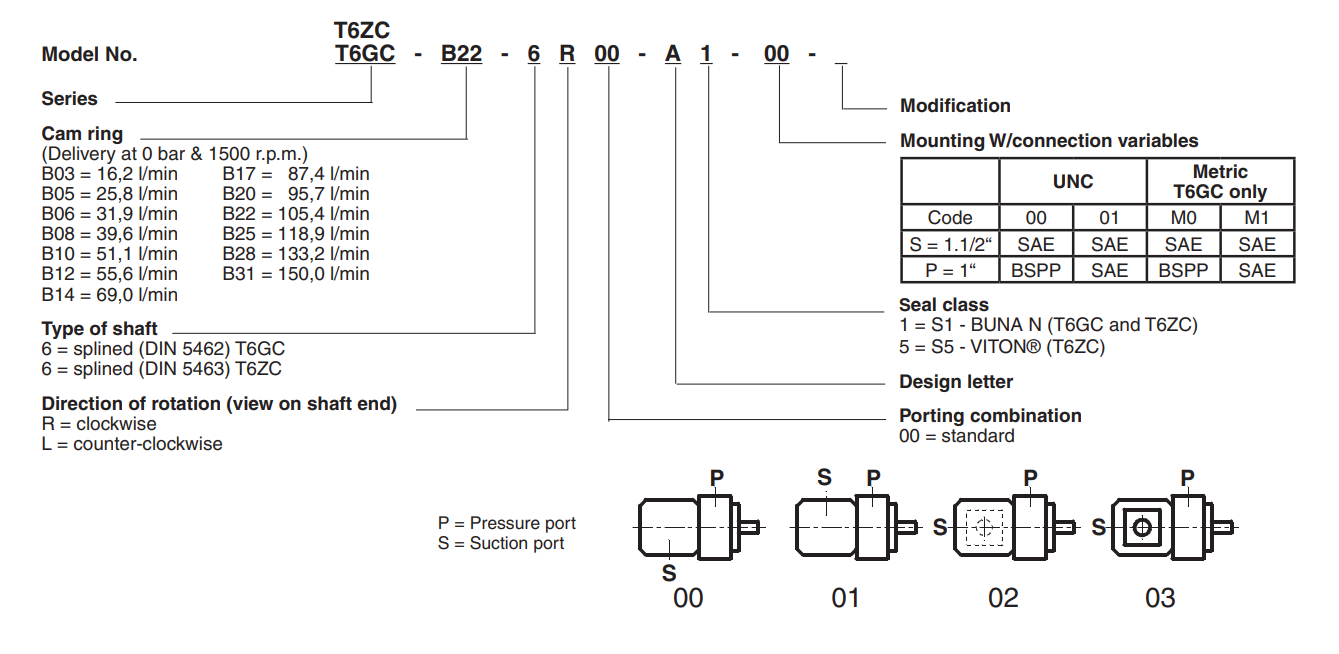

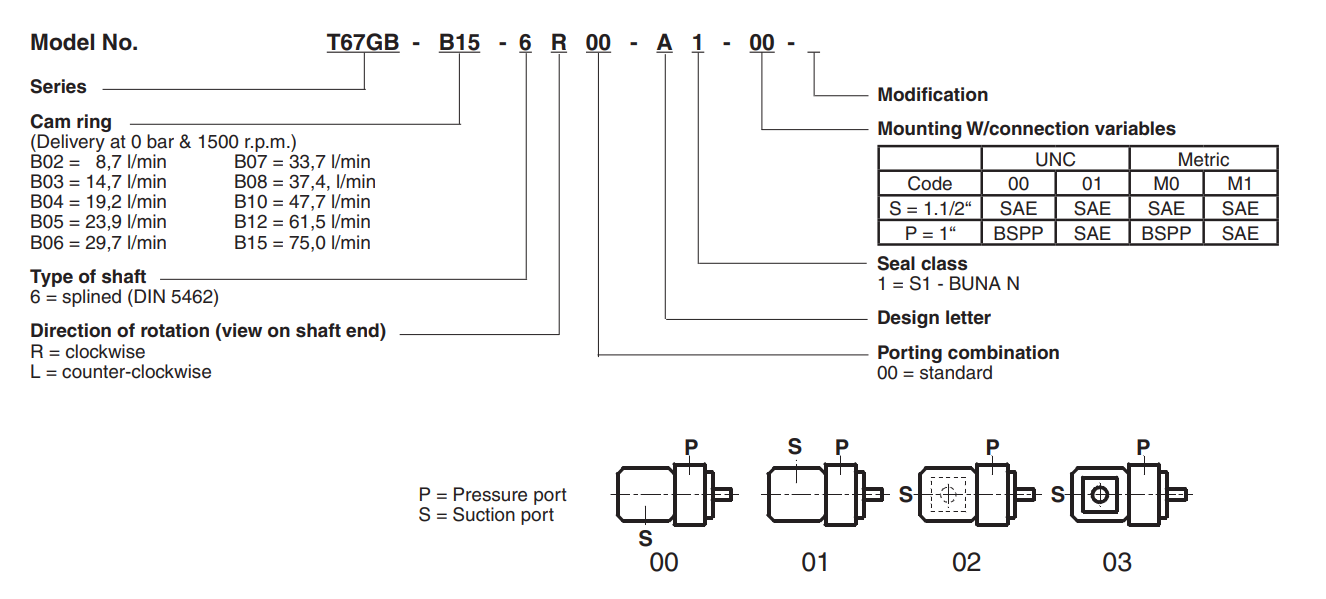

Model Codes

T6GT6G, T67G, T6ZC Series Hydraulic Vane Pump Types Description

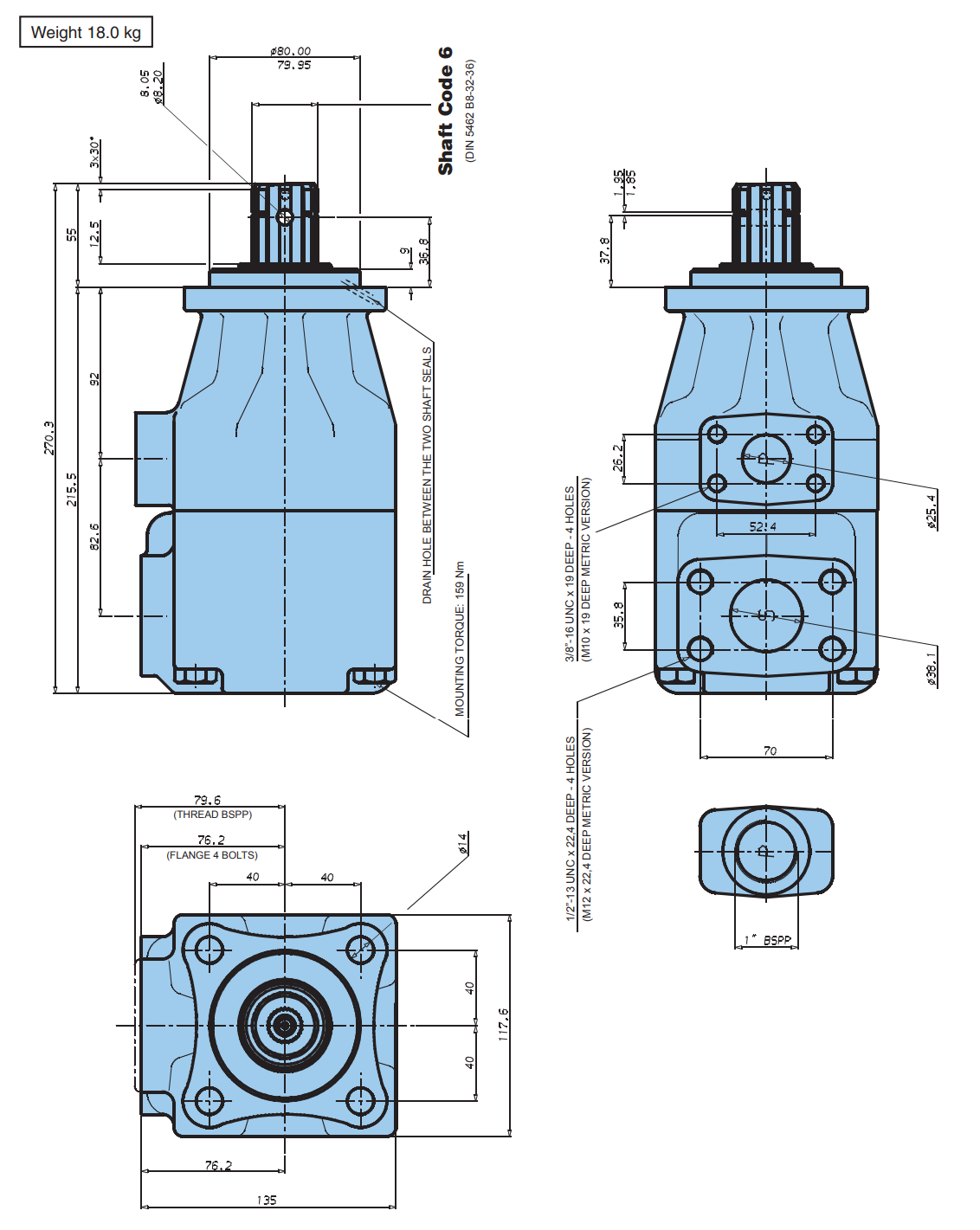

Series T67GB, T6GC

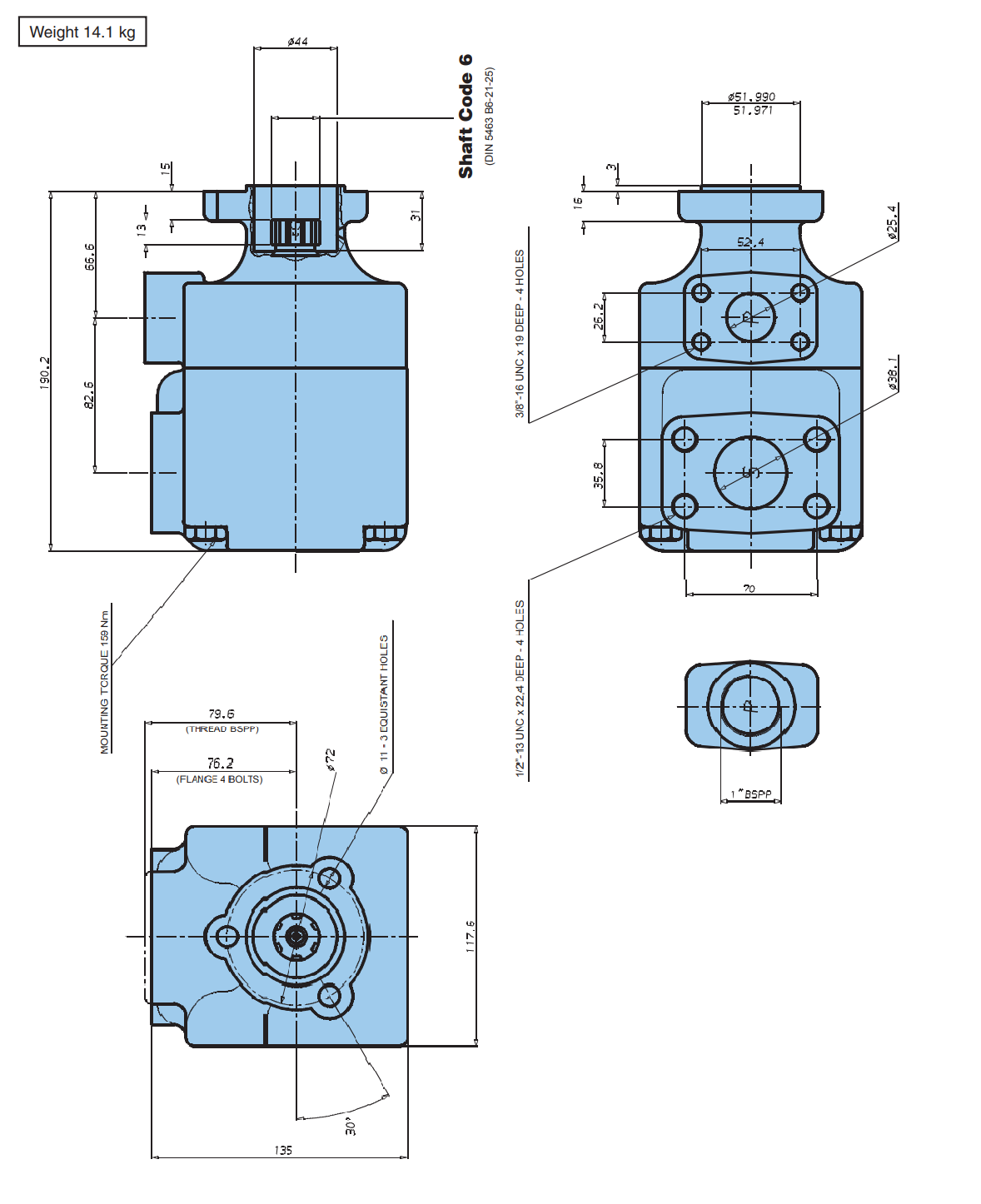

Series T6ZC

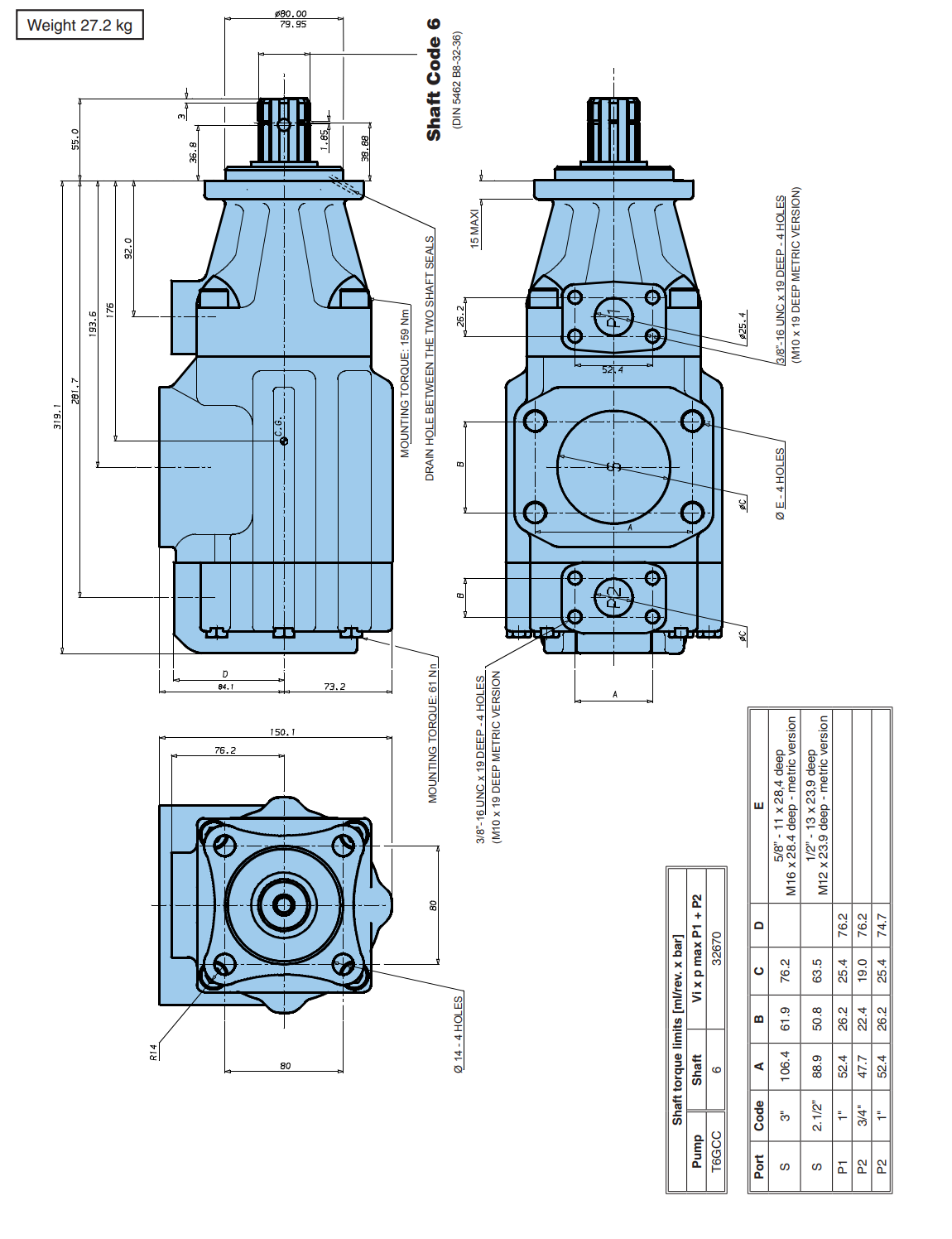

Series T6GCC

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

T6CRM T6DRM T6ERM Vane Pump Hydraulic – FAQ

1. What is the difference between T6G, T67G, and T6ZC vane pumps?

T6G is a single pump, while T67G and T6ZC are double vane pumps. T67G allows flexible displacement combinations, and T6ZC supports higher flow configurations with larger cartridge options.

2. What is the maximum operating pressure of this series?

The maximum working pressure can reach up to 300 bar, depending on the cartridge type (B or C series).

3. What displacement ranges are available?

Typical displacement ranges include:

• B series cartridge: approx. 5.8 to 50 ml/rev

• C series cartridge: approx. 10.8 to 100 ml/rev

4. Can these pumps be configured as double pumps?

Yes. T67G and T6ZC are designed as double pumps, allowing different displacement combinations to meet various system requirements such as high-low pressure circuits.

5. What are the typical applications of this pump series?

These pumps are widely used in:

• Dump trucks

• Refuse trucks

• Cranes

• Mobile hydraulic equipment

6. How efficient are T6G/T67G/T6ZC vane pumps?

They offer high overall efficiency, typically around 94%, which helps reduce energy consumption and heat generation.

7. What is the operating speed range?

The typical speed range is:

• Minimum: around 300–400 rpm

• Maximum: up to 3000–3600 rpm

8. What installation options are available?

• Single pumps offer multiple mounting positions

• Double pumps provide highly flexible configurations (up to dozens of mounting combinations)
  This makes them ideal for compact PTO installations.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
