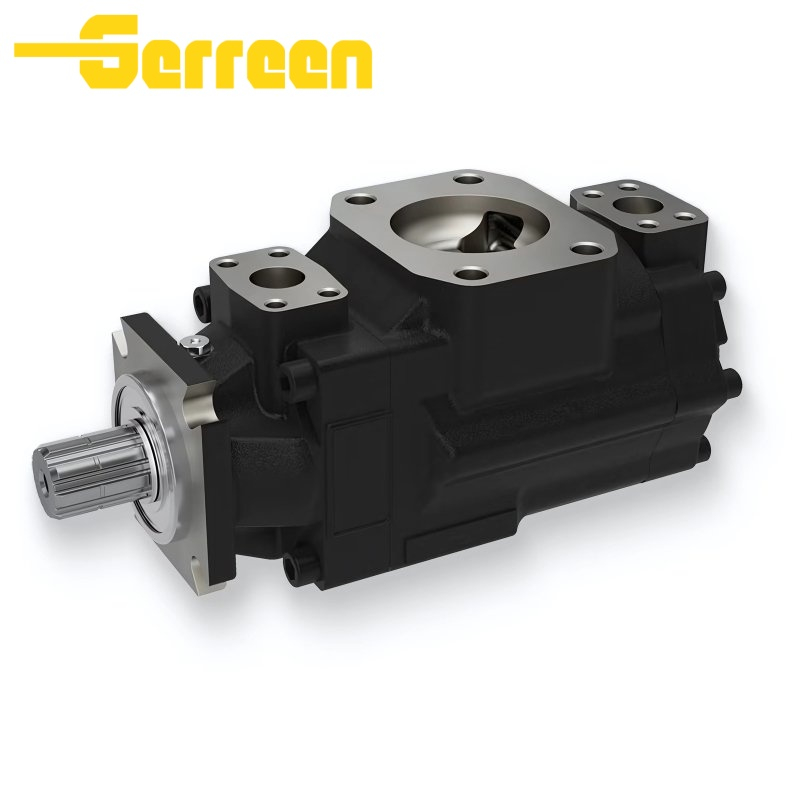

T7G Triple Vane Pump

T7G Triple Vane Pump Overview

The T7G Series Hydraulic Vane Pump is a high-performance, heavy-duty industrial pump designed for high-pressure hydraulic systems. As a reliable alternative interchangeable with Parker T7G series pumps, it offers identical installation dimensions, port configurations, and performance standards, enabling seamless replacement without system modification.

Engineered with advanced vane technology, the T7G pump delivers stable flow, low noise operation, and excellent durability, making it ideal for demanding industrial and mobile applications.

Core Features & Advantages

• Compact Structure
  Designed with a small footprint, the T8 MINI is ideal for installations with limited mounting space.

• Stable Flow Output
  Fixed displacement ensures consistent oil delivery, improving system stability.

• Low Noise Operation
  Optimized vane design reduces vibration and noise, suitable for noise-sensitive environments.

• High Efficiency
  Excellent volumetric efficiency helps reduce energy consumption and operating costs.

• Reliable Performance
  Durable internal components ensure long service life and reduced maintenance.

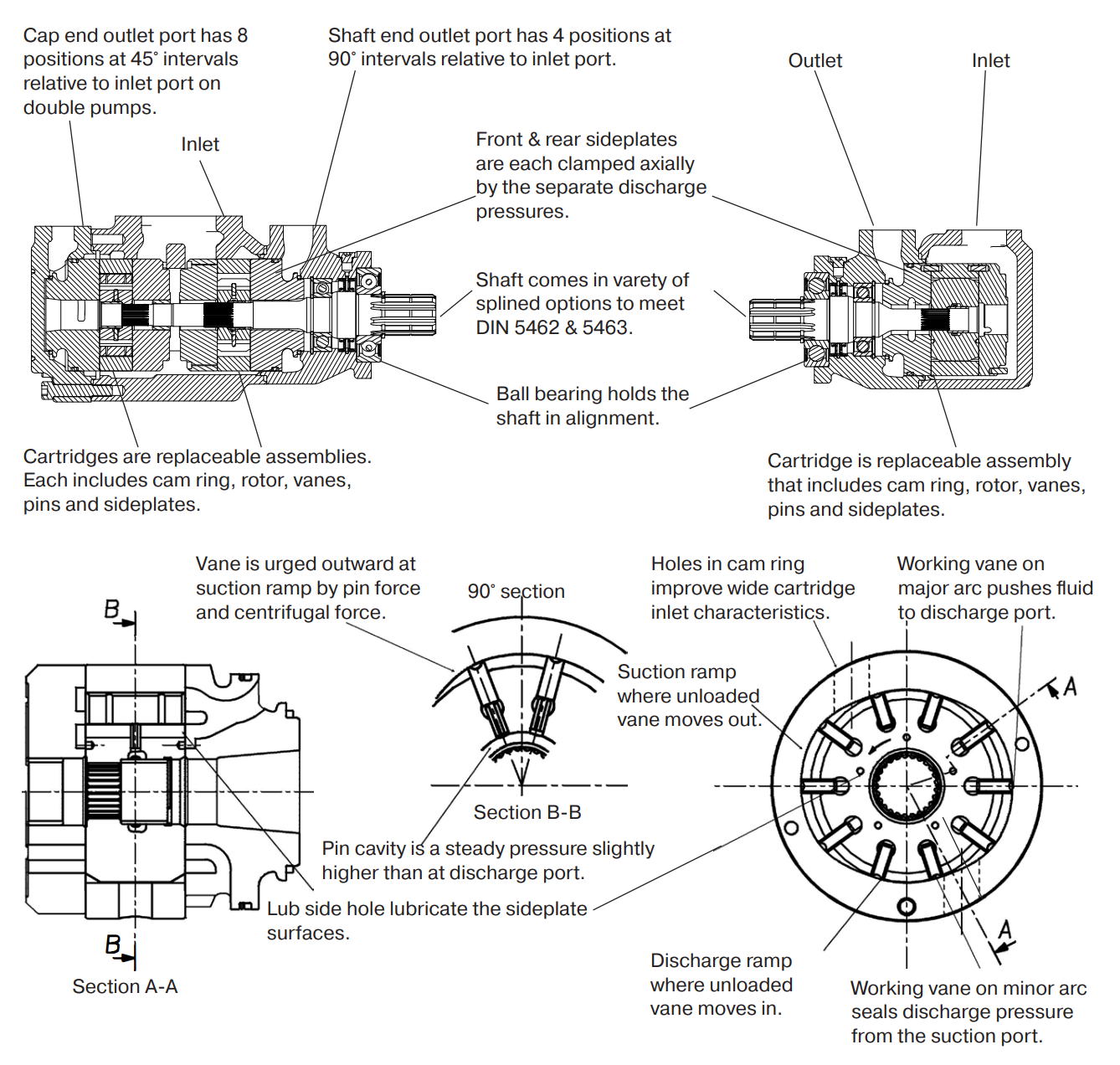

Description of the T7G Parker Hydraulic Vane pumps

Technical Data

Model Codes

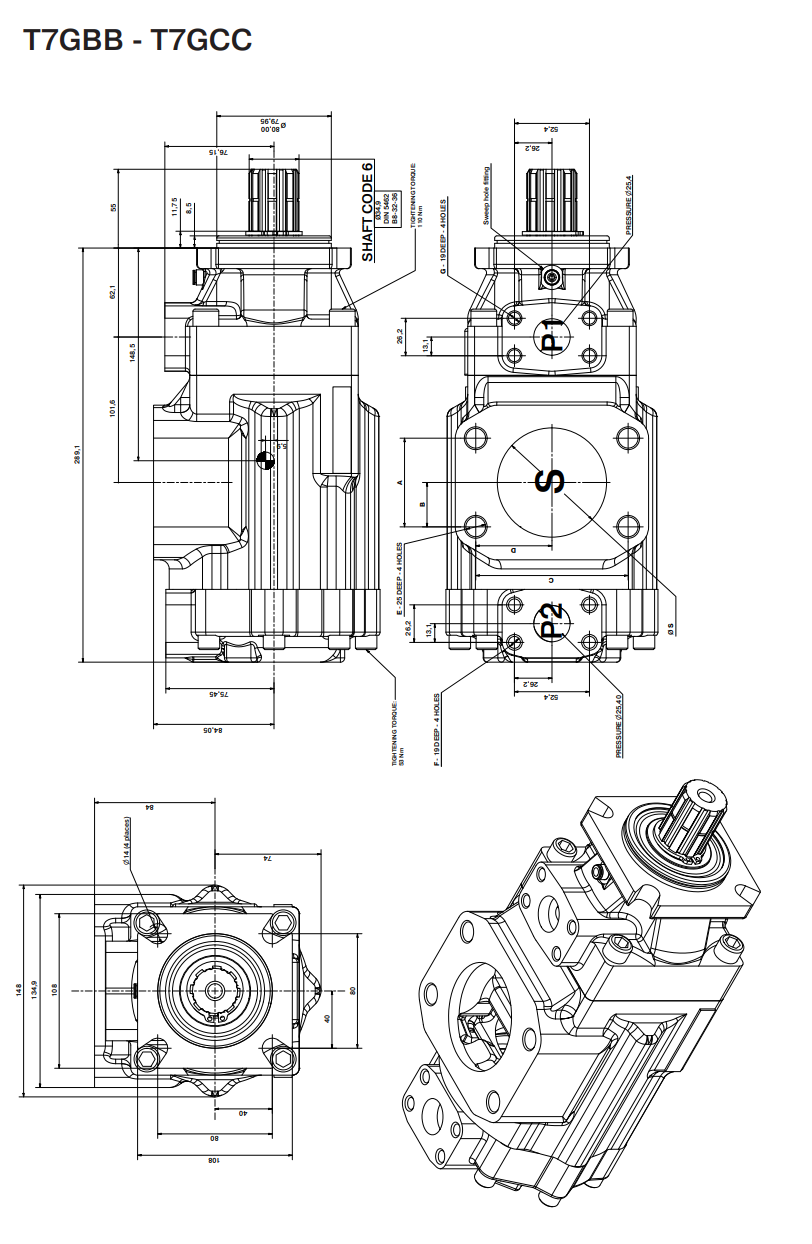

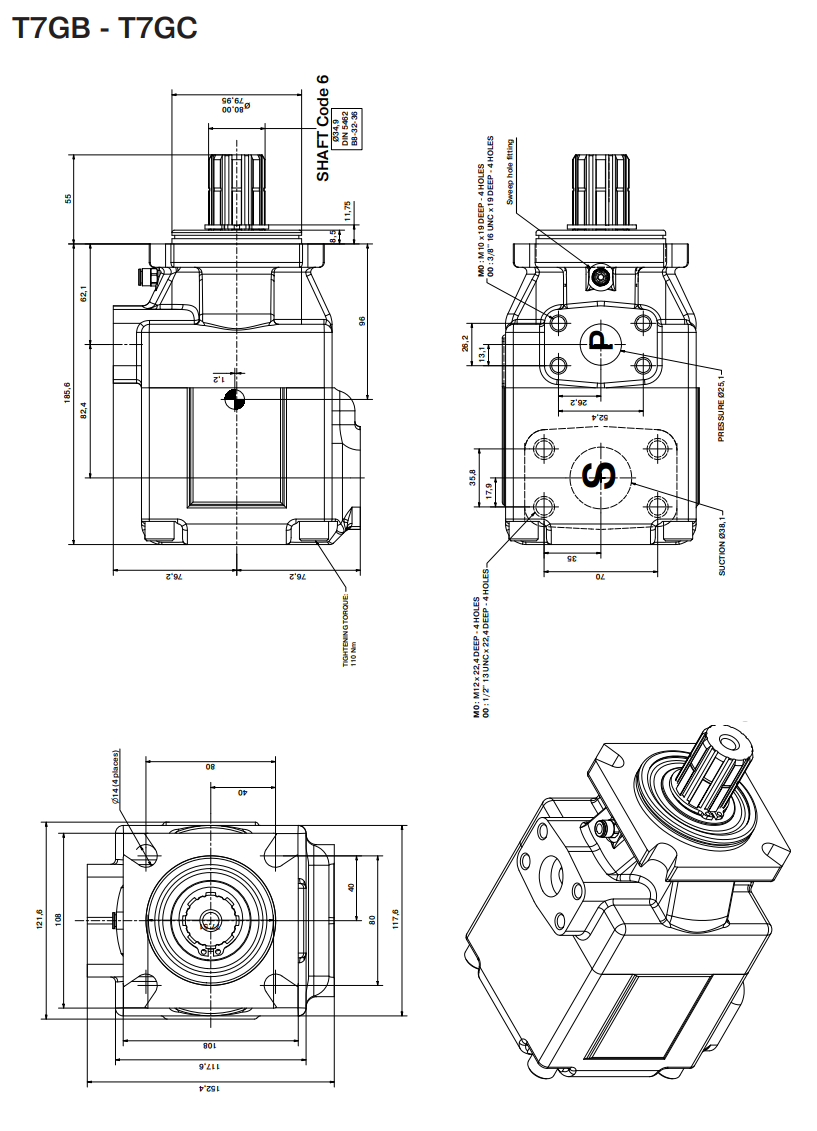

T7G Parker Hydraulic Vane pumps Installation Dimensions

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

T7G Parker Hydraulic Vane Pump – FAQ

1. What are the main features of the T7G vane pump?

The T7G series offers high pressure capability, low noise operation, stable flow output, and long service life, making it ideal for heavy-duty hydraulic systems.

2. What is the maximum operating pressure of the T7G pump?

The T7G vane pump typically supports continuous pressure up to 240–280 bar and peak pressure up to approximately 300 bar, depending on the model and working conditions.

3. Is the T7G pump interchangeable with original Parker pumps?

Yes, it is designed to be fully interchangeable, including mounting dimensions, shaft size, and port configuration, allowing direct replacement without system modification.

4. What types of hydraulic fluids can be used?

The pump is compatible with:

• Anti-wear hydraulic oil (ISO VG32, VG46, VG68)

• Some fire-resistant fluids (depending on seal material)

Proper fluid selection is essential for optimal performance and durability.

5. What are common causes of noise or vibration?

Noise and vibration may result from:

• Air entering the system (aeration)

• Cavitation due to poor suction conditions

• Misalignment of pump and motor

• Excessive wear of internal components

6. What is the recommended filtration level?

A filtration level of ≤25 μm (preferably 10–15 μm) and cleanliness level of ISO 4406 18/16/13 or better is recommended to protect internal components.

7. How can cavitation be prevented in T7G pumps?

To avoid cavitation:

• Ensure sufficient inlet pressure

• Use properly sized suction lines

• Minimize suction resistance

• Maintain proper oil level in the tank

• Avoid excessive pump speed

8. How to extend the service life of the T7G vane pump?

Best practices include:

• Keep hydraulic oil clean and within proper viscosity range

• Avoid operation beyond rated pressure

• Ensure correct installation and shaft alignment

• Regularly inspect seals and internal wear parts

• Maintain stable operating temperature

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
