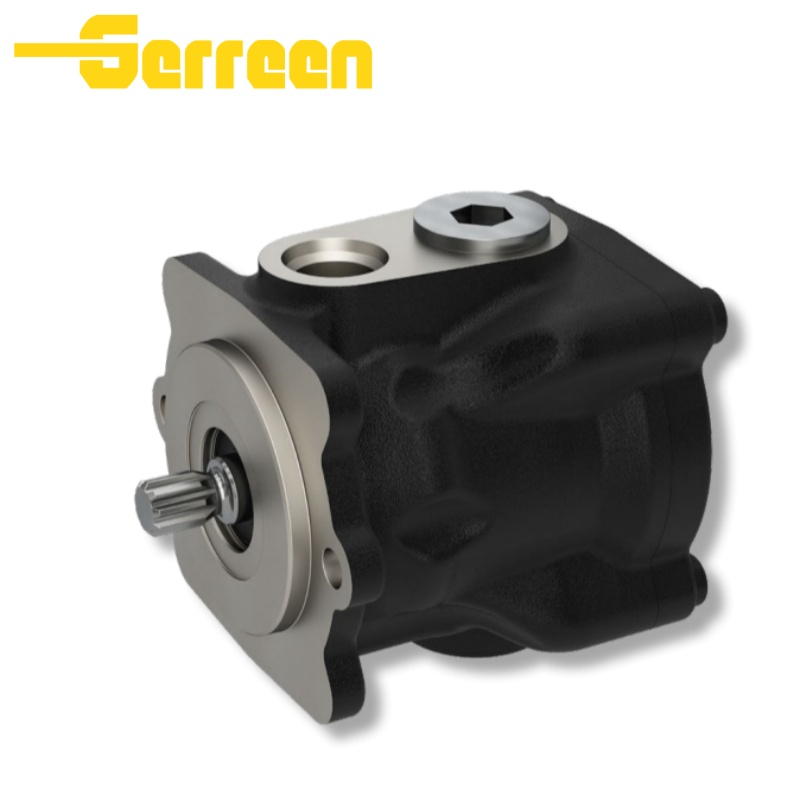

T8 MINI Fixed Vane Pump

T8 MINI Fixed Vane Pump Overview

The T8 MINI Fixed Vane Pump is a compact and high-efficiency hydraulic pump designed for applications where space is limited but stable performance is essential. With its fixed displacement structure and vane-type design, the T8 MINI delivers consistent flow output, smooth operation, and reliable pressure performance across a wide range of working conditions.

Core Features & Advantages

• Compact Structure
  Designed with a small footprint, the T8 MINI is ideal for installations with limited mounting space.

• Stable Flow Output
  Fixed displacement ensures consistent oil delivery, improving system stability.

• Low Noise Operation
  Optimized vane design reduces vibration and noise, suitable for noise-sensitive environments.

• High Efficiency
  Excellent volumetric efficiency helps reduce energy consumption and operating costs.

• Reliable Performance
  Durable internal components ensure long service life and reduced maintenance.

T8 MINI Fixed Vane Pump Efficiency

The T8 MINI Fixed Vane Pump is designed to deliver high efficiency in compact hydraulic systems. Thanks to its optimized vane structure and precision manufacturing, the pump achieves high volumetric efficiency, ensuring stable and consistent oil flow with minimal internal leakage.

Its balanced design reduces energy loss and friction, allowing the pump to maintain excellent mechanical efficiency even under continuous operation. This results in lower energy consumption, reduced heat generation, and longer service life.

In addition, the smooth flow characteristics of the vane mechanism help minimize pressure fluctuations, further improving overall system efficiency and performance.

Overall, the T8 MINI pump provides a cost-effective and energy-efficient solution for applications requiring reliable and stable hydraulic output.

Technical Data

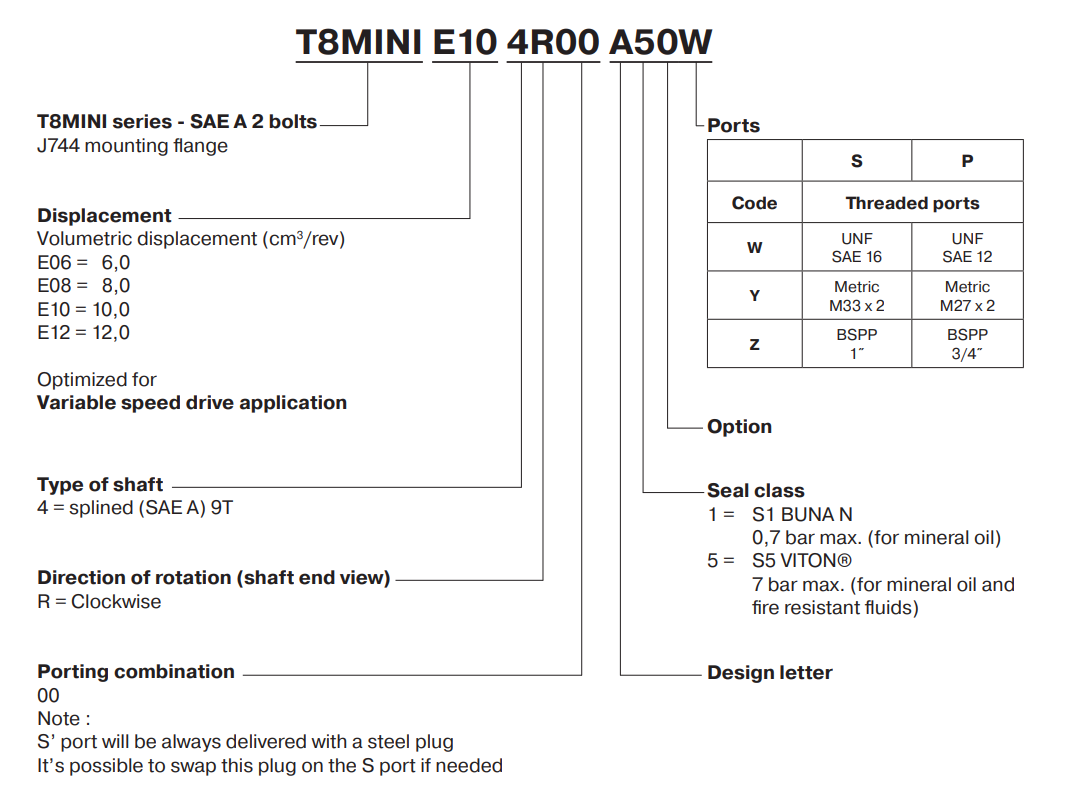

Model Codes

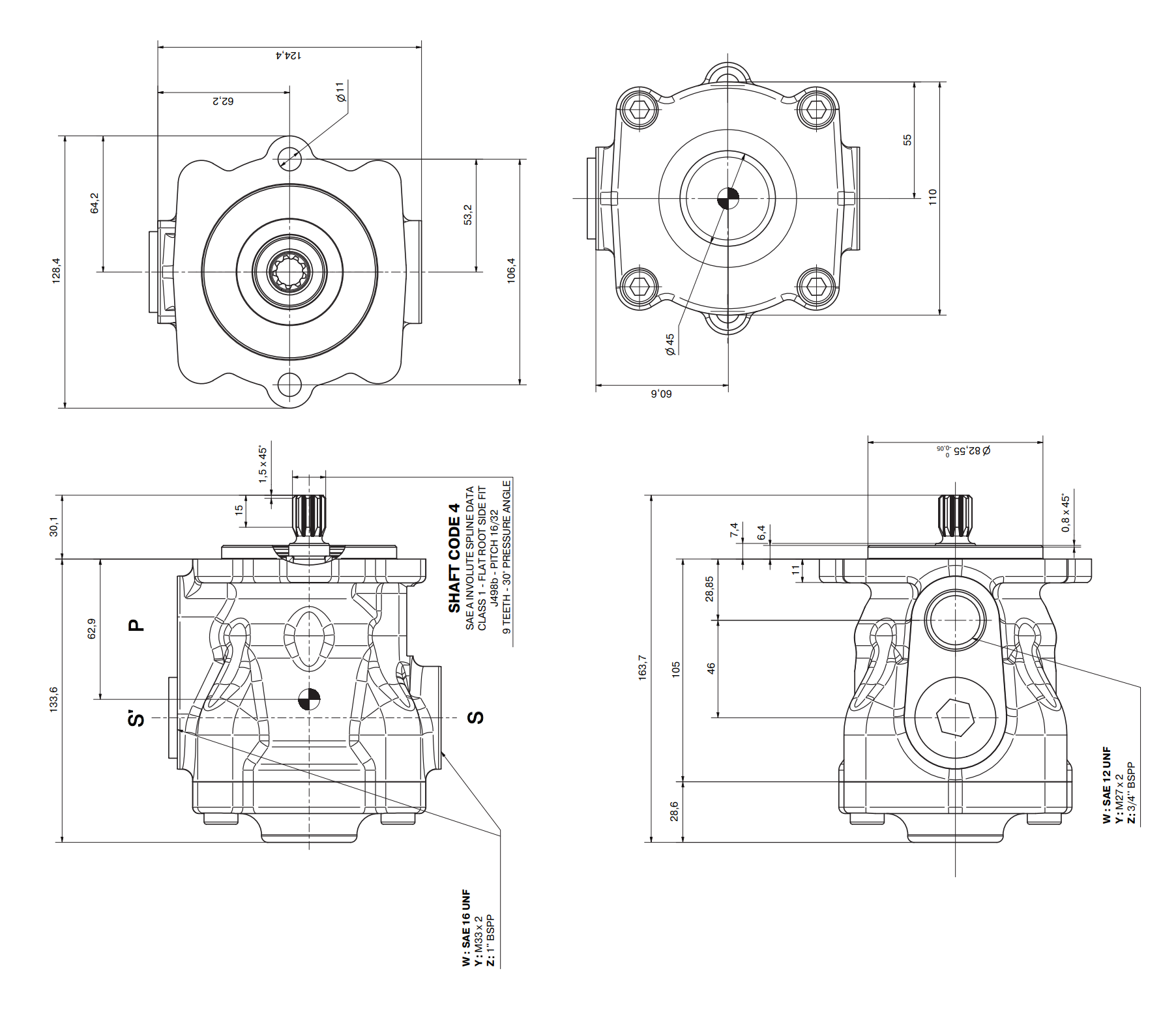

T8 MINI Fixed Vane Pump Installation Dimensions

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
