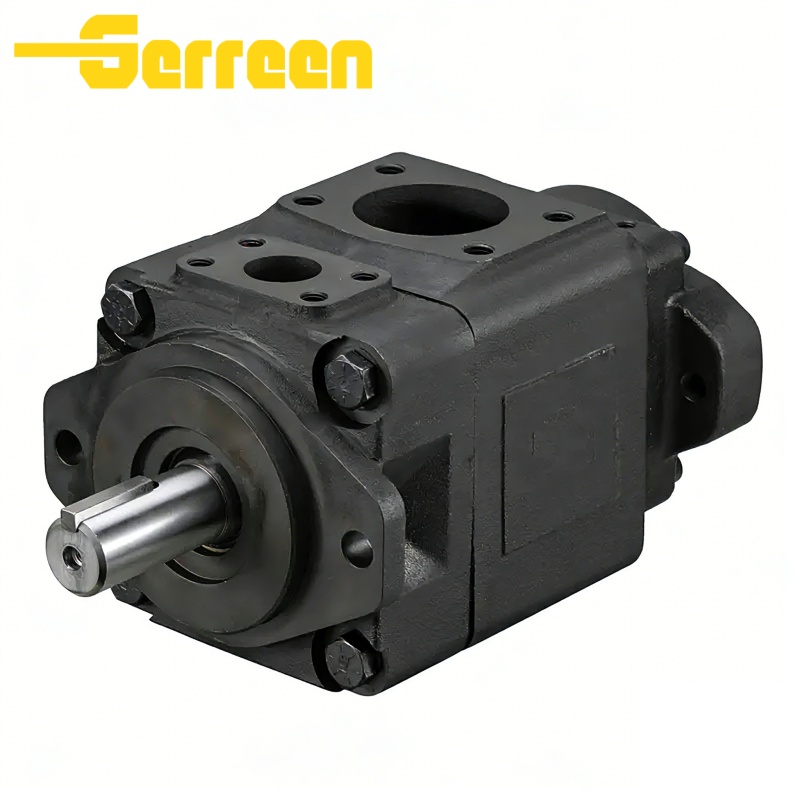

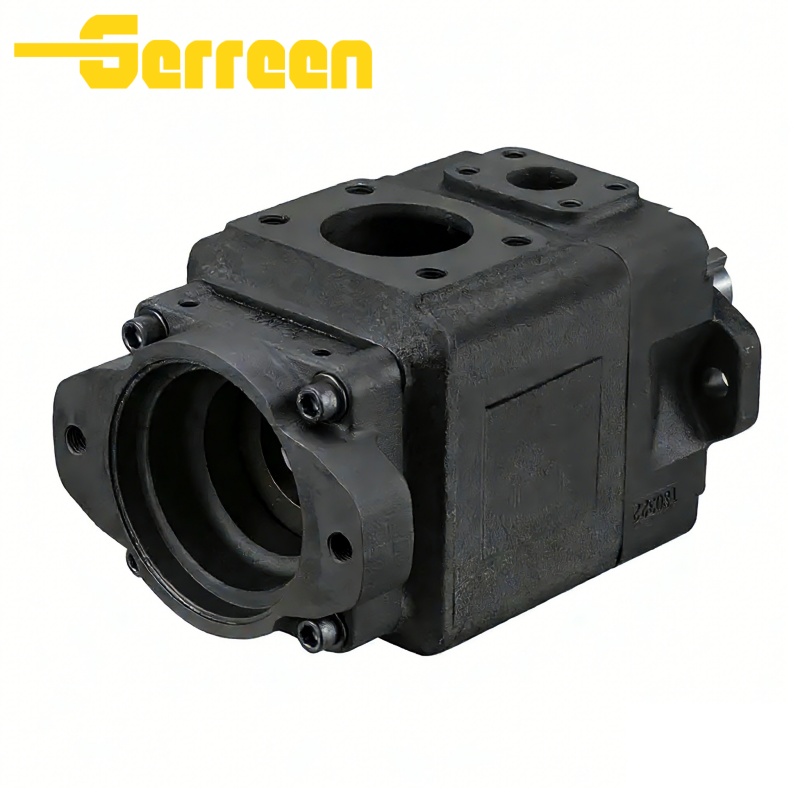

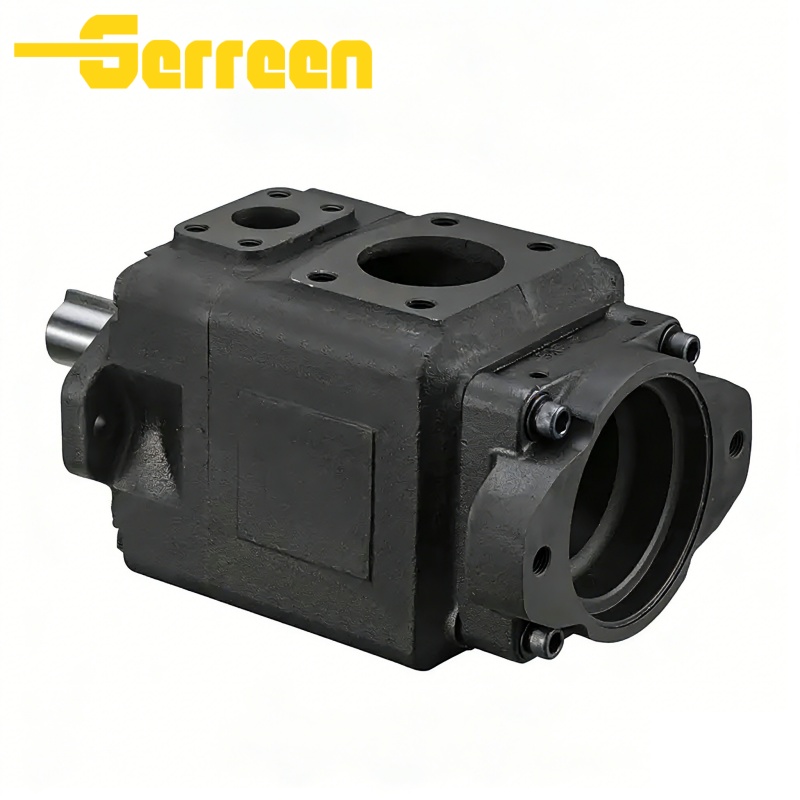

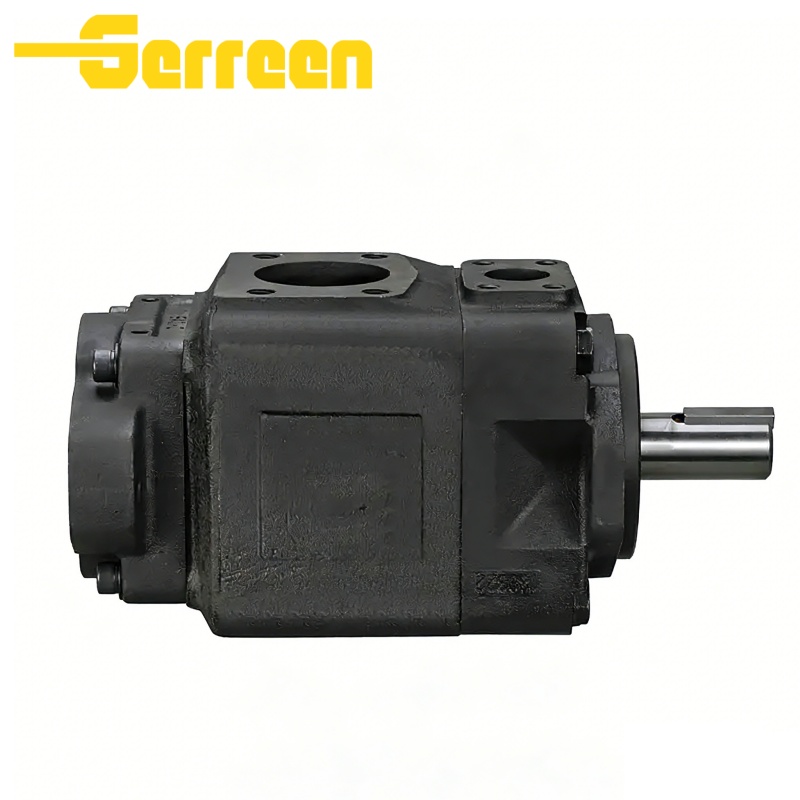

T6CRM T6DRM T6ERM Vane Pump Hydraulic

T6CRM T6DRM T6ERM Vane Pump Hydraulic Overview

The T6CRM, T6DRM, and T6ERM Series Hydraulic Vane Pumps are high-performance, fixed displacement vane pumps designed for medium to high-pressure hydraulic systems. These models are enhanced versions of the standard T6C, T6D, and T6E series, offering improved durability and optimized performance for demanding applications.

As reliable alternatives interchangeable with Parker Denison vane pumps, they feature identical mounting dimensions, shaft configurations, and port layouts, ensuring easy installation and seamless replacement without system modification.

With advanced vane design and precision manufacturing, these pumps provide stable flow output, low noise, high efficiency, and long service life.

Application Advantages

• High pressure capability up to 275 bar, in a small envelope, reduces the installation costs.

• High mechanical efficiency, typically 94%. Reduced heat generation.

• Wide speed range. Large size cartridge displacements. Lowest noise level.

• Low ripple pressure reduces the piping noise and increases the life time of other components in the circuit.

• High resistance to particle contamination and increased pump life thanks to the double lip vanes.

• Many of options (cam displacement, shaft, porting) for customized installation.

Technical Data

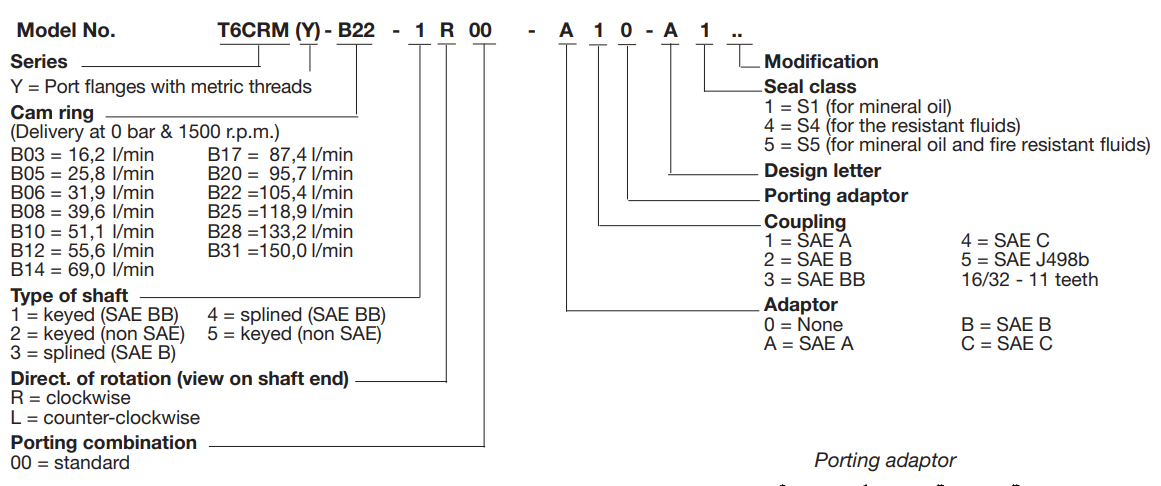

Model Codes

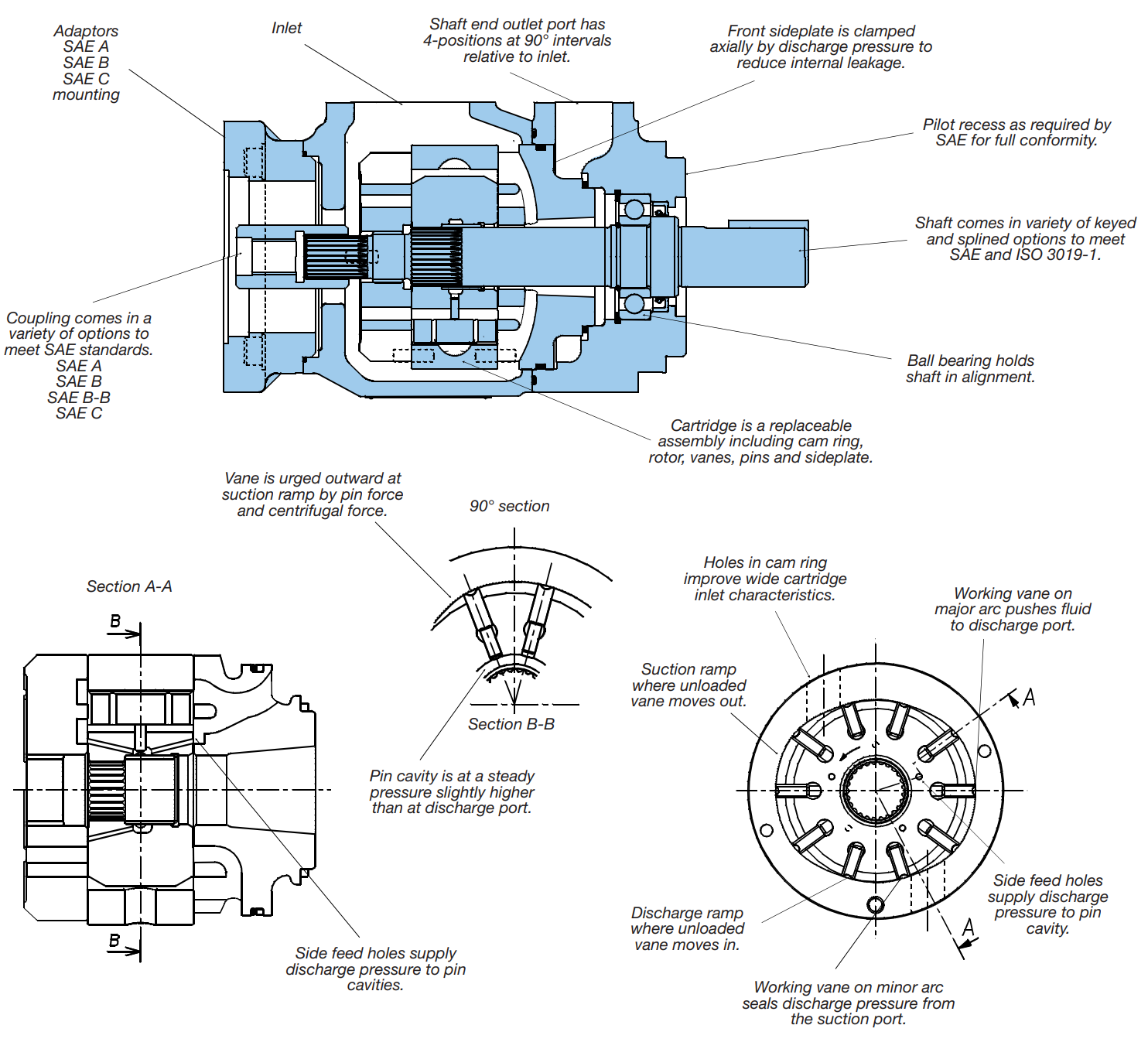

T6CRM T6DRM T6ERM Vane Pump Hydraulic Description

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

T6CRM T6DRM T6ERM Vane Pump Hydraulic – FAQ

1. What does the “M” in T6CRM, T6DRM, and T6ERM stand for?

The “M” indicates an enhanced or upgraded version of the standard T6 series, featuring improved internal design, wear resistance, and higher reliability under demanding operating conditions.

2. Are these pumps interchangeable with Parker Denison T6 series pumps?

Yes, they are designed to be fully interchangeable with Parker Denison T6C, T6D, and T6E series pumps, including mounting dimensions, shafts, and port connections.

3. What is the typical operating pressure range?

These pumps typically operate at:

• Continuous pressure: 210–280 bar

• Peak pressure: Up to approx. 300 bar
  Actual limits depend on model and working conditions.

4. What are the main differences between T6CRM, T6DRM, and T6ERM?

• T6CRM: Compact, medium displacement for general applications

• T6DRM: Higher pressure and flow capacity

• T6ERM: Large displacement for heavy-duty systems

5. What type of hydraulic fluid is recommended?

Recommended fluids include:

• Anti-wear hydraulic oils (ISO VG32, VG46, VG68)

• Compatible fire-resistant fluids (depending on seal materials)

Maintaining correct viscosity is essential for optimal performance.

6. What are the main causes of vane wear in these pumps?

Common causes include:

• Contaminated hydraulic oil

• Low viscosity or poor lubrication

• High operating temperature

• Cavitation due to insufficient inlet pressure

• Overpressure or shock loading

7. How can cavitation be avoided in T6 “M” series pumps?

To prevent cavitation:

• Ensure adequate suction pressure

• Use properly sized and short inlet pipelines

• Avoid air leakage in suction lines

• Maintain proper oil level and temperature

• Limit excessive pump speed

8. How to maximize the service life of T6CRM / T6DRM / T6ERM pumps?

Best practices include:

• Maintain oil cleanliness (≤25 μm filtration, ISO 4406 standard)

• Operate within rated pressure and speed limits

• Ensure correct shaft alignment during installation

• Regularly inspect seals and internal components

• Keep operating temperature within recommended range

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
