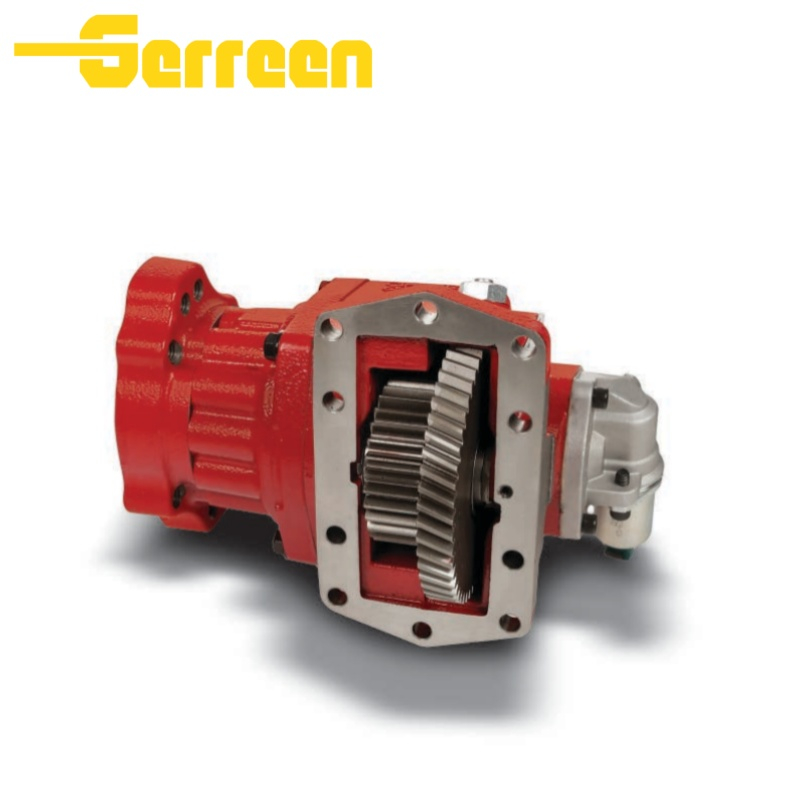

PTO 281 Series Hydraulic PowerShift

PTO 281 Series Hydraulic PowerShift  Overview

Product Features and Benefits:

• Ductile Iron Bearing Cap – 117% stronger than gray iron.

• Improved Seal – O-ring sealing configuration to reduce vibrational effects and improve clamp load.

• Enhanced Clutch Pack – 80% thicker steel disks in the clutch pack to resist premature tooth wear.

• Torque – Single, continuous duty torque rating.

• Clearance – Rotatable cast iron flanges to improve pump clearance.

• Positive Stop for Driveline Outputs – Eliminates oil seal damage from coupling.

• Special Spline Lubrication Option – Provides 7 to 10 times greater shaft life.

• Speeds – Nine speed ratios including low and high-speeds.

• SmartStart – Reduces shock load at start-up for certain applications.

• Insurance – Electronic Overspeed Control (EOC) protects driven equipment.

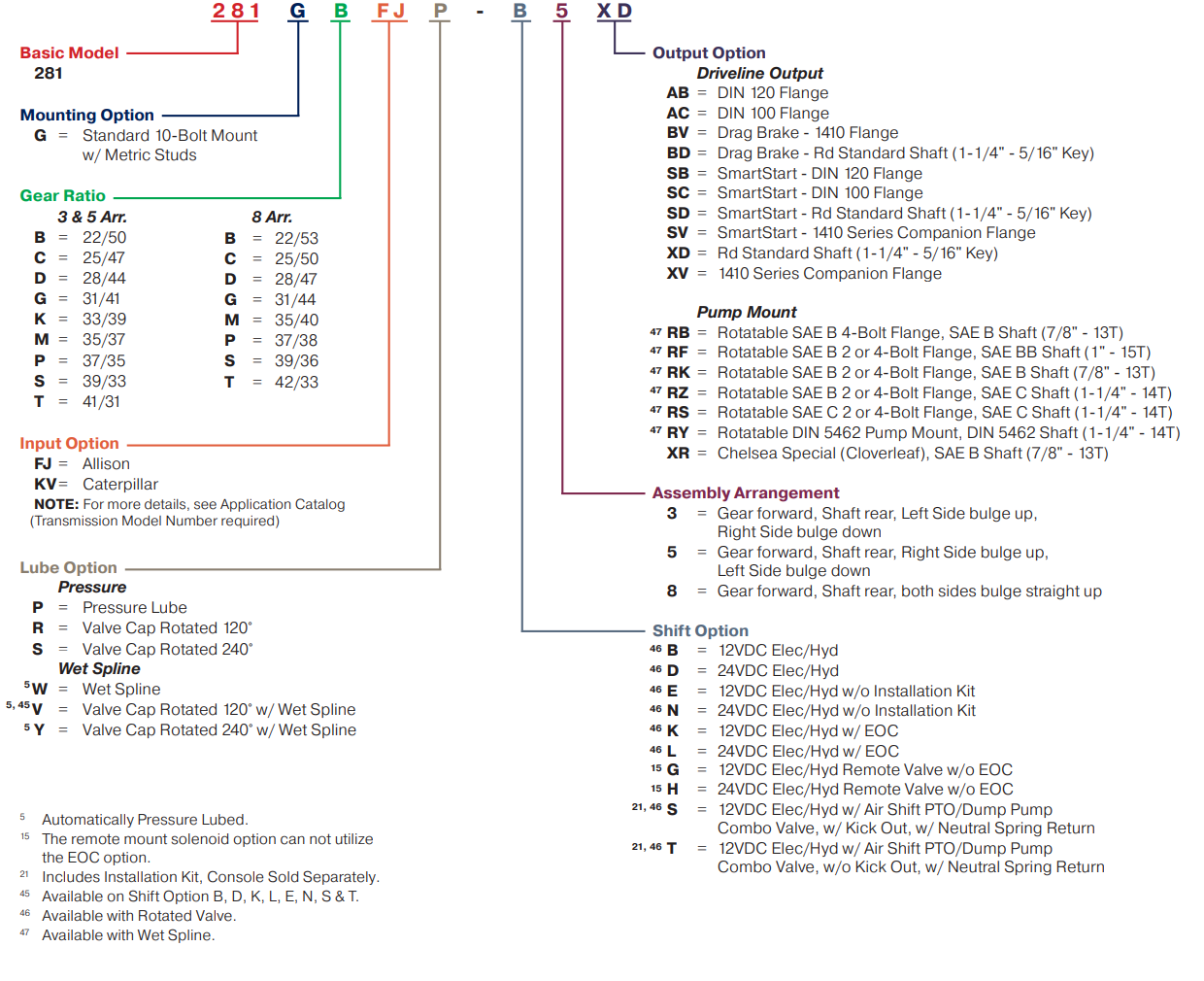

Model Codes

Specifications

siz		281*B	281*C	281*D	281*G	281*K	281*M	281*P	281*S	281*T
Continuous Torgue Rating(lb-ft)		300[407]	390[529]	390[529]	360[488]	340[461]	318[431]	290[393]	265[359]	240[325]
HP Rating for Continuous Duy
At 500 RPM of Output Shaft(HP)		29[22]	37[28]	37[28]	34[25]	32[24]	30[22]	28[21]	25[19]	23[17]
At 1000 RPM of Output Shaft(HP)		57[43	74[55]	74[55]	69[51]	65[48]	61[45]	55[41]	50[37]	46[34]

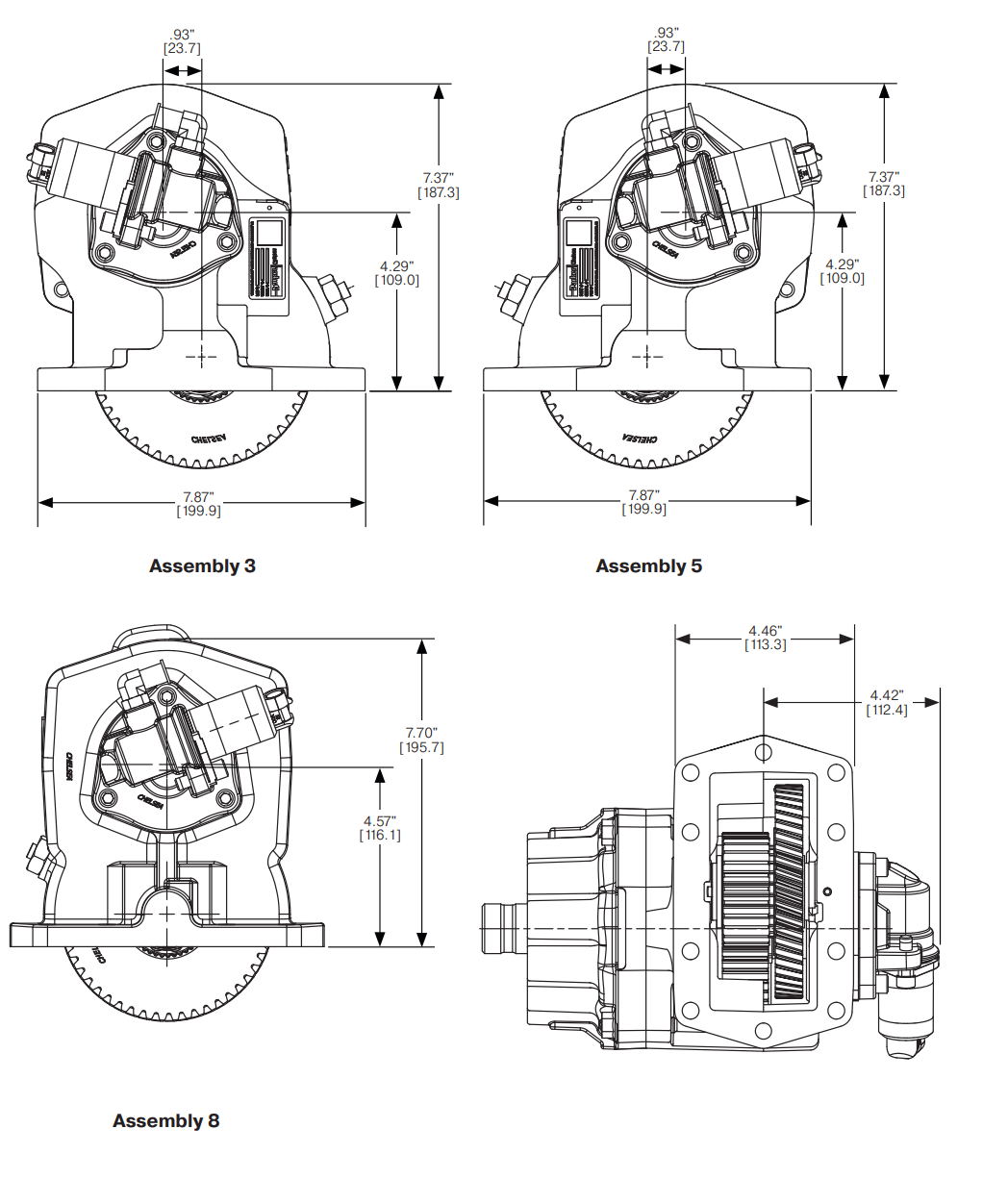

Dimensions — For PTO output information see application catalog

Applications

• Fire & Rescue

• Pumper Cleaner

• Truck Cranes

• Refuse

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.Are you a manufacture for the vane pump or a wholesale ?

We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

3.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

4.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

5.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

6.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).
