CBN-G300 Series
Green Hydraulic
CBN-G300 Series
Standard export carton/plywood case
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment 3. Agricultural Machinery 4. Material Handling Vehicles
1.Agricultural Equipment 2.Industrial Machinery 3.Construction Equipment 4.Material Handling
Key Shaft and Spline shaft
1 set
Product Description
If you are looking for the CBN-G300 Series internal hydraulic gear pump, you can search for "Green Hydraulic"—we ship directly from the manufacturer.
Compact internal gear structure, saves installation space
Low noise operation, reduces equipment running vibration
Stable oil output flow, ensures consistent working performance
High volumetric efficiency, improves hydraulic system efficiency
Excellent wear resistance, extends service lifespan
Strong pressure bearing capacity, suitable for continuous heavy load
Simple structure, convenient installation and daily maintenance
Fine sealing design, effectively prevents internal and external oil leakage
Specifications
| Model | Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Efficiency | Power (kW) |
|---|---|---|---|---|---|
| CBN-G304 | 4 | 25 / 31.5 | 2000 / 3000 | ≥92% | 4.7 |
| CBN-G306 | 6 | 25 / 31.5 | 2000 / 3000 | ≥92% | 7.1 |
| CBN-G308 | 8 | 25 / 31.5 | 2000 / 3000 | ≥92% | 9.5 |
| CBN-G310 | 10 | 25 / 31.5 | 2000 / 3000 | ≥92% | 12 |
| CBN-G312 | 12 | 25 / 31.5 | 2000 / 3000 | ≥92% | 13.5 |
| CBN-G314 | 14 | 25 / 31.5 | 2000 / 3000 | ≥92% | 15.6 |
| CBN-G316 | 16 | 25 / 31.5 | 2000 / 3000 | ≥92% | 18.7 |
| CBN-G320 | 20 | 25 / 31.5 | 2000 / 3000 | ≥92% | 25 |
| CBN-G325 | 25 | 25 / 31.5 | 2000 / 3000 | ≥92% | 26 |
Applications
Applications
Factory&FAQ
CBN-G300 Series Internal Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CBN-G300 Series Internal Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

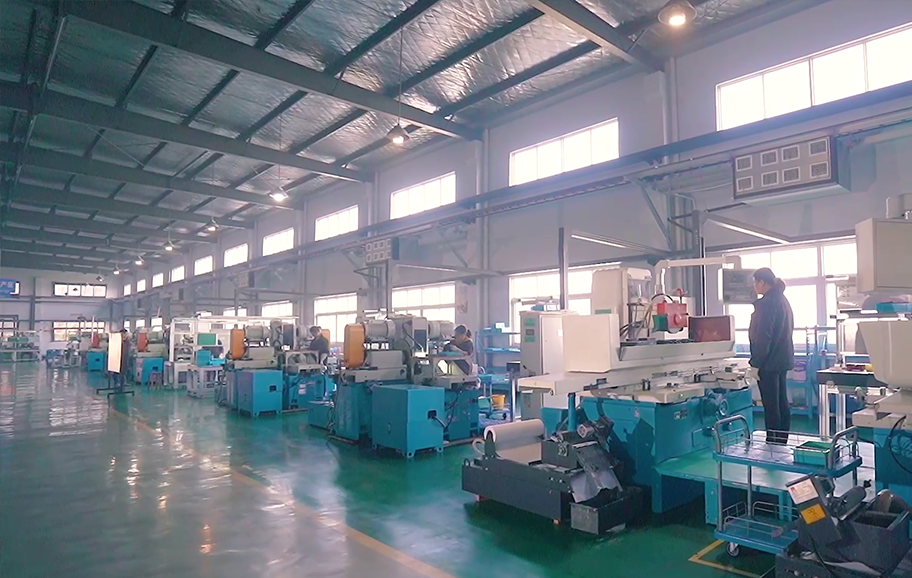

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
