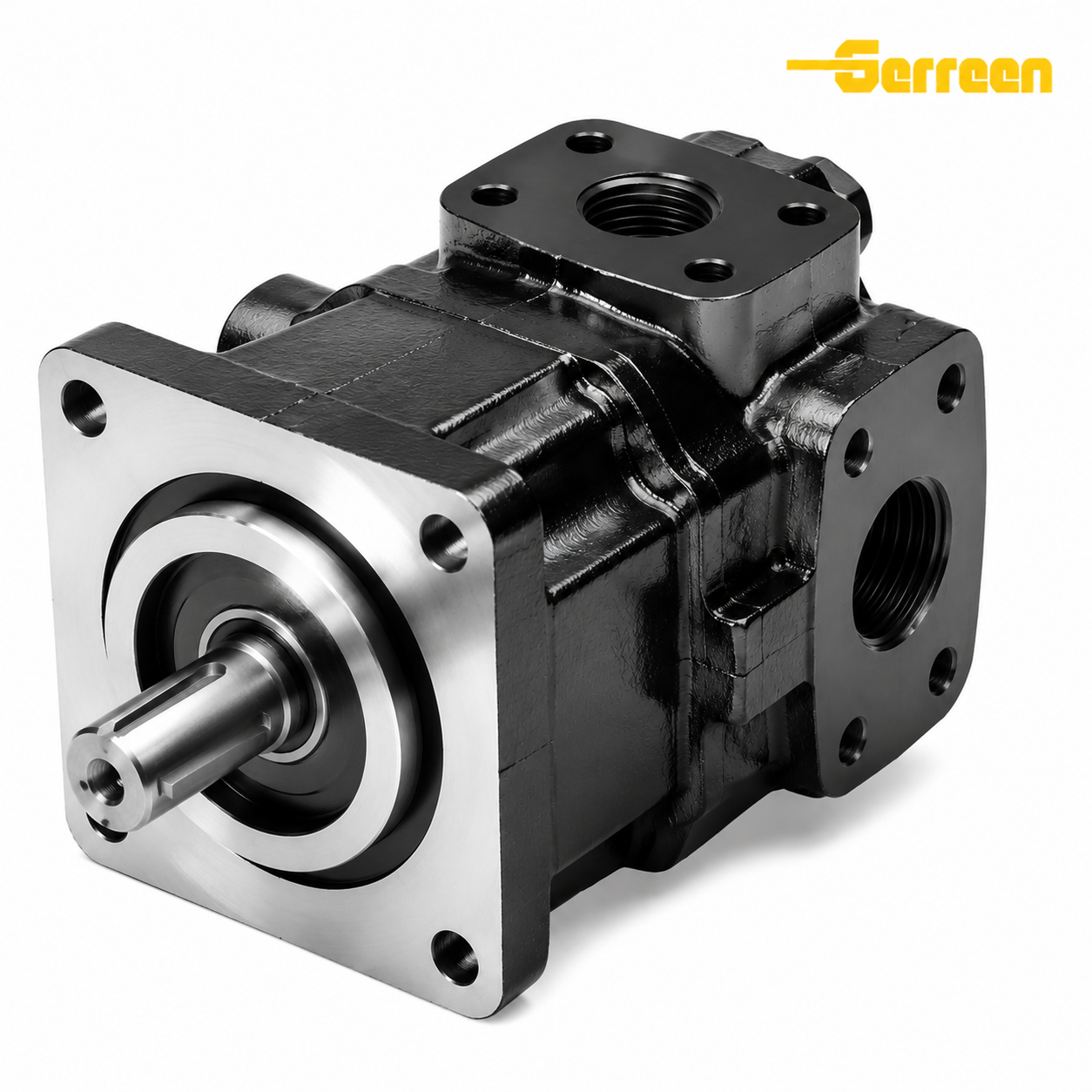

NCB Series Hydraulic Internal Gear Pump

NCB Series Hydraulic Internal Gear Pump Overview

NCB Series Hydraulic Gear Pumps are developed by our company and American Albert Fluid Power Co., LTD. (Ningbo NVICKS Hydraulic Co.,LTD., a wholly owned subsidiary; short for ABT) , cooperated with Zhejiang University . They're high performance internal gear pumps. The technology on the basis of the introduction of Germany to be improved,and we introduced a number of foreign advanced production and testing equipments, to make a pump of high pressure, low noise and low pulse.
Our company has independent intellectual property rights and National Innovation Fund support, widely used in rubber and plastic, die casting, shoe leather, forging, extrusion, bending, plate Shearing machinery and other servo hydraulic system.

Features and Benefits

• Pressure-Compensated Design
  Adopts axial and radial pressure compensation to maintain high volumetric efficiency even at low speed and low viscosity. The pump operates quietly with low internal noise, ensuring stable performance under varying conditions.

• Low Flow and Pressure Pulsation
  Very low flow and pressure pulsation, providing stable output at low speeds. The design allows working pressures up to 35 MPa, suitable for demanding hydraulic applications.

• Wide Speed Range & Modular Design
  Operates efficiently over a wide speed range, up to 3000 r/min. Multiple units can be combined to form double or multi-pump assemblies for flexible system integration.

• Dual Pump Capability
  Can be configured as a double pump, enabling versatile system operation and multi-function integration for complex hydraulic circuits.

• Contamination Resistance & Long Service Life
  Resistant to oil contamination, ensuring reliable performance in harsh environments. The robust design delivers a long service life and consistent efficiency.

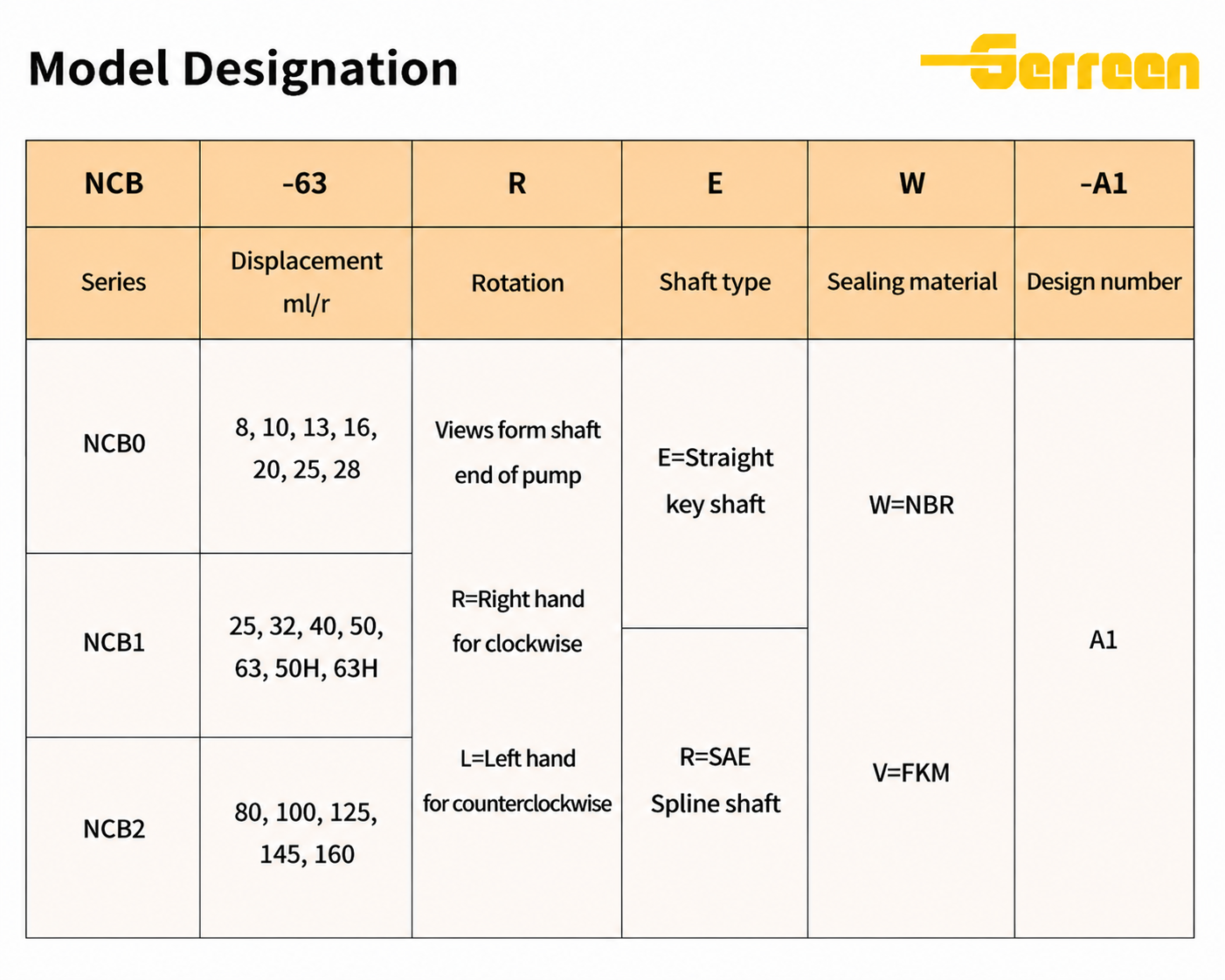

Model Codes

gear pump.pdf

Applications

The NCB Series Internal Gear Pump provides a reliable, high-efficiency hydraulic solution for industrial and mobile systems where consistent flow, durability, and compact installation are critical:

• Construction Machinery: Suitable for excavators, loaders, and aerial work platforms, delivering smooth hydraulic power for both travel and work circuits from a single drive source.

• Injection Molding Machines: Ideal for dual-loop hydraulic systems, supplying dedicated flow to clamping and injection functions for precise, repeatable molding cycles.

• Agricultural Equipment: Used in tractors, harvesters, and sprayers to drive steering, lifting, and auxiliary circuits simultaneously, ensuring robust performance in field conditions.

• Material Handling Systems: Perfect for forklifts, pallet jacks, and conveyor systems, providing independent flow for lifting and propulsion tasks while maintaining efficiency under load.

• Machine Tools & Automation: Applied in CNC machines, press brakes, and assembly lines to operate clamping, feeding, and auxiliary systems with low pulsation, ensuring smooth and reliable operation.

• Mobile Hydraulic Systems: Installed in utility vehicles, garbage trucks, and snow plows to power multiple functions (lifting, compaction, auxiliary hydraulics) from a single compact pump unit.

•


Packaging & Delivery

NCB Series Internal Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

NCB Series Internal Gear Pump FAQ:

1. What is the NCB Series Internal Gear Pump?

The NCB Series is a high-performance, fixed-displacement internal gear pump designed for industrial and mobile hydraulic systems, delivering reliable and smooth flow across multiple applications.

2. What makes the NCB Series different from standard single gear pumps?

• High Efficiency & Low Noise: Its internal gear design reduces pulsation and noise while maintaining high volumetric efficiency, even at low speeds.

• Compact & Durable Construction: Built with robust cast iron housing and pressure-balanced wear plates, the NCB Series offers long service life under continuous heavy-duty operation.

• Versatile Operation: Multiple displacements and rotation options allow flexible integration into diverse hydraulic systems.




3. What is the working pressure range of NCB Series pumps?

The NCB Series is designed for demanding hydraulic applications. Depending on model and displacement:

• Continuous Pressure: Up to 20 MPa (≈ 2900 PSI).

• Maximum Pressure: Up to 25 MPa (≈ 3600 PSI).
  This pressure capability makes it suitable for construction, industrial, and mobile machinery.




4. Can NCB Series pumps replace other brands?

Yes, the NCB Series can serve as a high-quality replacement or upgrade for other internal gear pumps, including:

• Parker PGP / PVP Series

• Rexroth A10V / 2FR Series

• Nachi VDR Series
  Verify mounting flange, shaft type, and displacement to ensure compatibility with existing systems.




5. What hydraulic oil is recommended for NCB Series pumps?

To maintain optimal performance and protect internal gears, wear plates, and bearings:

• Oil Type: Premium mineral-based hydraulic fluids with anti-wear (AW) additives.

• Viscosity: ISO VG32 to VG68 (20–30 cSt), suitable for most operating temperatures.

• Filtration: Clean oil is critical; use minimum ISO 4406 18/16/13 to prevent abrasive wear.




6. What is the typical speed range of NCB Series pumps?

The NCB Series is designed for flexible operation across a wide speed range:

• Minimum Speed: 800 RPM (for low-noise, low-pressure applications).

• Maximum Continuous Speed: 3,000 RPM (may vary slightly by displacement).

• Peak Intermittent Speed: Up to 3,500 RPM for short-duration high-demand cycles.




7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

NCB Series Internal Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
