QT Series
Green Hydraulic
QT Series
Standard export carton/plywood case
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment 3. Agricultural Machinery 4. Material Handling Vehicles
1. Industrial Hydraulic Systems 2. Mobile Equipment 3. Agricultural Machinery 4. Material Handling Vehicles
Key Shaft and Spline shaft
1 set
Product Description

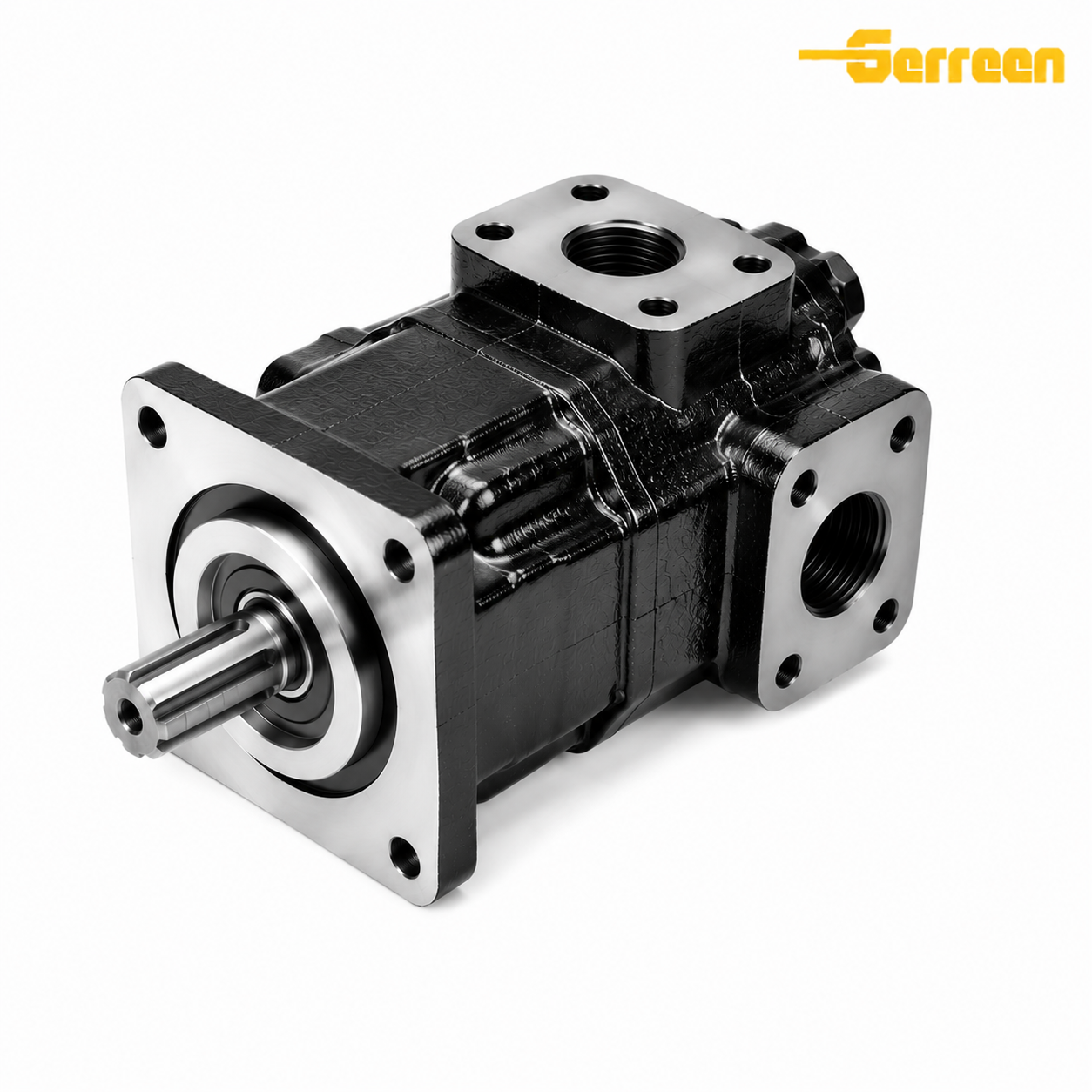

QT Series Hydraulic Pump Gear Shaft Gear Pumps are developed by our company and American Albert Fluid Power Co., LTD. (Ningbo NVICKS Hydraulic Co.,LTD., a wholly owned subsidiary; short for ABT) , cooperated with Zhejiang University . They're high performance internal gear pumps. The technology on the basis of the introduction of Germany to be improved,and we introduced a number of foreign advanced production and testing equipments, to make a pump of high pressure, low noise and low pulse.
Our company has independent intellectual property rights and National Innovation Fund support, widely used in rubber and plastic, die casting, shoe leather, forging, extrusion, bending, plate Shearing machinery and other servo hydraulic system.
Pressure-Compensated Design
Adopts axial and radial pressure compensation to maintain high volumetric efficiency even at low speed and low viscosity. Ultra-low noise ensures smooth and stable operation in various hydraulic systems.
Low Flow and Pressure Pulsation
Very low flow and pressure pulsation, providing stable output at low speeds. High-pressure design allows working pressures up to 35 MPa for demanding applications.
Wide Speed Range & Modular Design
Operates efficiently over a wide speed range, up to 3000 r/min. Multiple units can be combined to form double or multi-pump assemblies for flexible system integration.
Dual Pump Capability
Can be configured as a double pump, enabling versatile system operation and multi-function integration in complex hydraulic circuits.
Contamination Resistance & Long Service Life
Resistant to oil contamination and wear, ensuring reliable performance and long service life in harsh industrial or mobile environments.
Specifications
| Model | Displacement (mL/r) | Rated Pressure (MPa) | Max. Pressure (MPa) | Speed Range (r/min) | Weight (kg) |
|---|---|---|---|---|---|
| QT-16 | 16 | 16 | 20 | 600–3000 | 4.2 |
| QT-20 | 20 | 16 | 20 | 600–3000 | 4.5 |
| QT-25 | 25 | 16 | 20 | 600–2800 | 4.8 |
| QT-32 | 32 | 16 | 20 | 600–2500 | 5.2 |
| QT-40 | 40 | 16 | 20 | 600–2200 | 5.8 |
| QT-50 | 50 | 16 | 20 | 600–2000 | 6.4 |
| QT-63 | 63 | 16 | 20 | 600–1800 | 7.1 |
| QT-80 | 80 | 16 | 20 | 600–1500 | 8.3 |
Applications
Applications
The QT Series Hydraulic Pump Gear Shaft Gear Pump provides a reliable and efficient hydraulic solution for industrial and mobile equipment where stable flow, durability, and compact structure are required:
Construction Machinery: Suitable for loaders, excavators, and road machinery, delivering stable hydraulic power for lifting and steering systems.
Agricultural Equipment: Widely used in tractors, harvesters, and sprayers for hydraulic transmission and auxiliary functions.
Industrial Hydraulic Systems: Applied in machine tools, hydraulic presses, and automated production equipment requiring continuous hydraulic flow.
Material Handling Equipment: Ideal for forklifts, lifting platforms, and warehouse machinery, ensuring smooth hydraulic operation under varying loads.
Mobile Hydraulic Vehicles: Installed in dump trucks, garbage trucks, and utility vehicles to power tipping, lifting, and auxiliary hydraulic systems.
General Hydraulic Power Units: Suitable for compact hydraulic stations and power packs requiring reliable and low-noise hydraulic performance.
Factory&FAQ

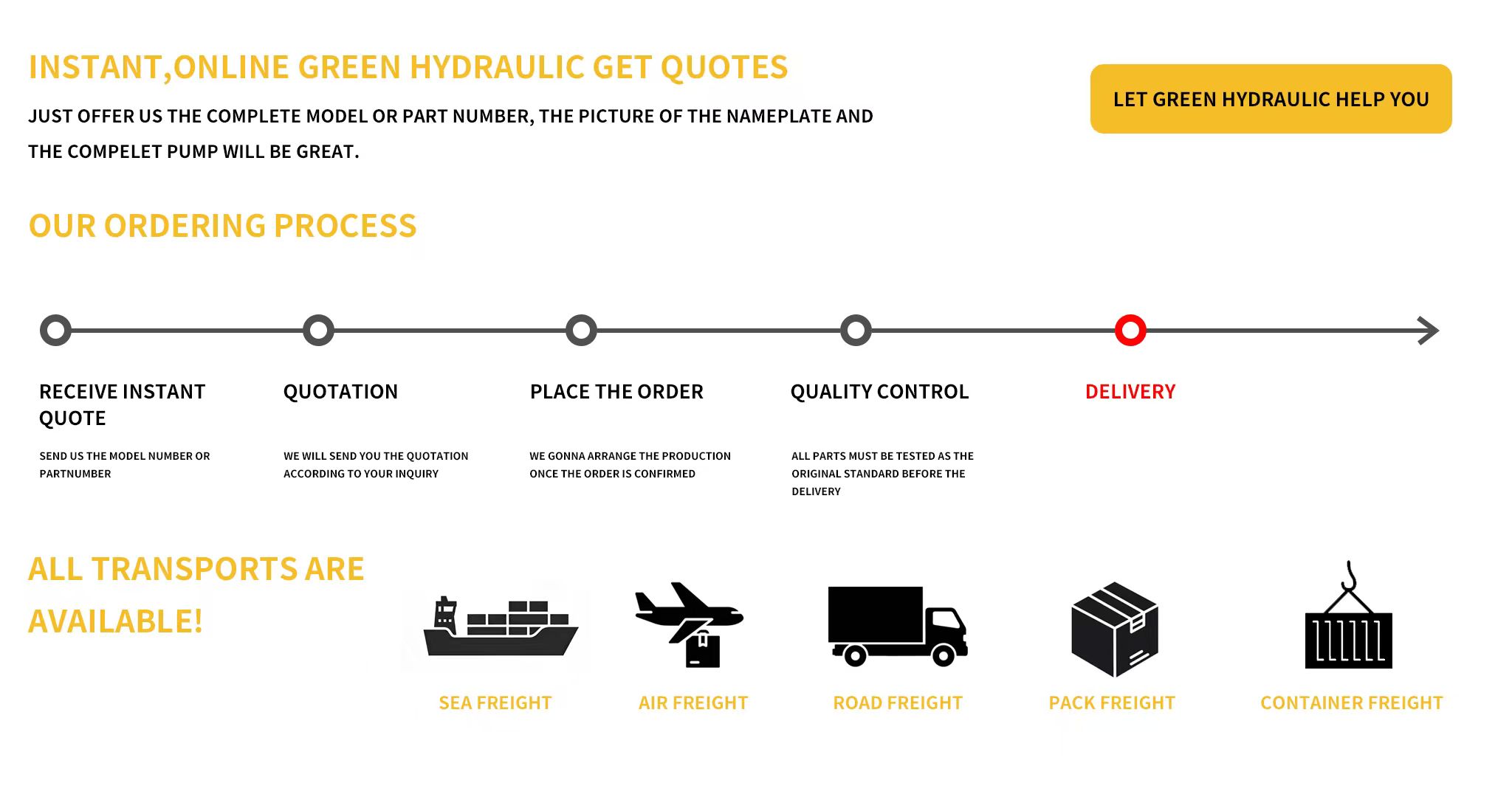

QT Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
QT Series Hydraulic Pump Gear Shaft Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
