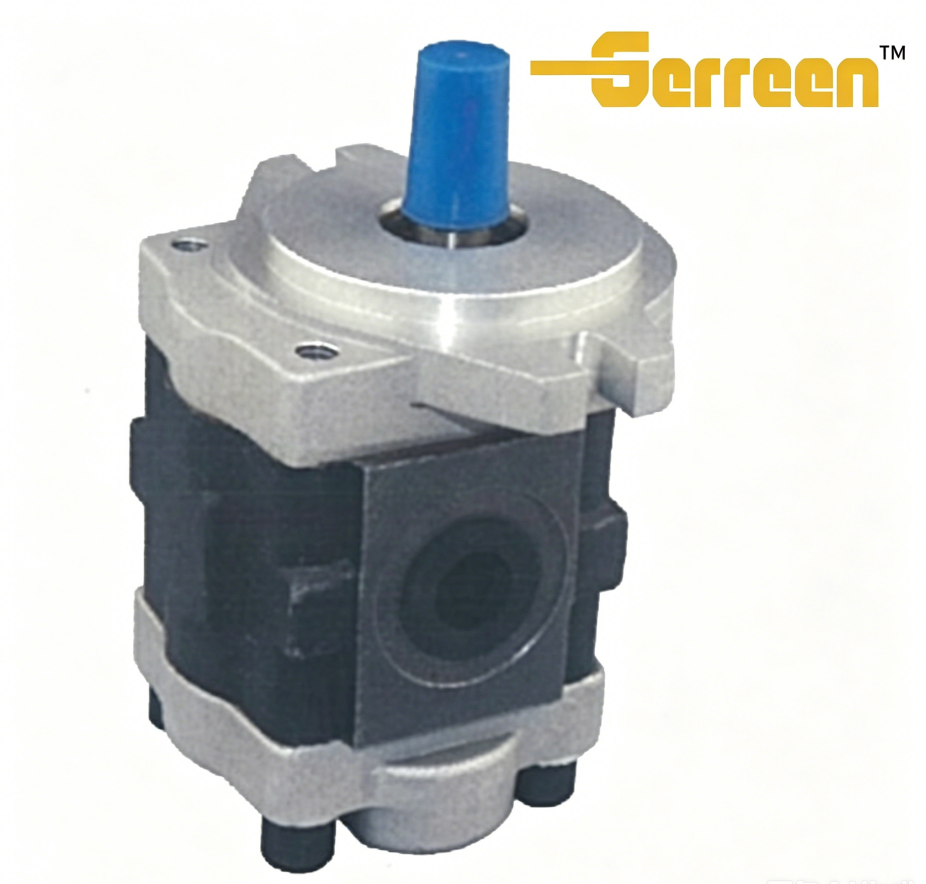

GBHC-F Series Gear Pump
Green Hydraulic
GBHC-F Series Gear Pump
Yes
ISO9001, CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
Specifications
| Models | 排量 cc/rev (Displacement) | 额定压力 MPa - Rated | 额定压力 MPa - Max | 转速 Speed (r/min) - Min | 转速 Speed (r/min) - Rated | 转速 Speed (r/min) - Max | Volumetric Efficiency (≥%) | L1 | L | 重量 kg (Weight) |
| CBHC-F11-AL** | 10 | 20 | 25 | 500 | 2000 | 3000 | 90 | 57 | 123 | 3.5 |
| CBHC-F12-AL** | 12 | 20 | 25 | 500 | 2000 | 3000 | 90 | 57.5 | 124 | 3.6 |
| CBHC-F14.5-AL** | 14.5 | 20 | 25 | 500 | 2000 | 3000 | 90 | 59.5 | 128 | 3.7 |
| CBHC-F16-AL** | 16 | 20 | 25 | 500 | 2000 | 3000 | 90 | 60.5 | 130 | 3.8 |
| CBHC-F18-AL** | 18 | 20 | 25 | 500 | 2000 | 3000 | 90 | 62 | 133 | 3.9 |
| CBHC-F20-AL** | 20 | 20 | 25 | 500 | 2000 | 3000 | 90 | 63.5 | 136 | 4 |
Applications
GBHC-F Series Gear Pump is widely applicable to various hydraulic equipment:
Engineering machinery, agricultural machinery, forklifts and loaders, hydraulic lifting platforms, sanitation vehicles, hydraulic presses, injection molding machines, textile machinery, mining auxiliary equipment, hydraulic power units and other industrial hydraulic system supporting fields.
Factory&FAQ
A1: This series adopts floating side plate compensation structure, with higher volumetric efficiency, lower noise and smaller pressure loss. It can work stably under high pressure for a long time, with lower failure rate and longer service life than ordinary gear pumps.
A2: Yes. We support custom rotation direction, shaft size, mounting flange, oil port thread and special specification parameters. OEM logo and packaging customization are also available.
A3: We provide 12 months factory warranty for all GBHC-F series pumps. During the warranty period, non-human damaged products can enjoy free repair and replacement services.
A4: Conventional standard models are in stock and can be delivered within 3-5 working days. For bulk orders or customized products, the delivery cycle is 7-15 working days according to the order quantity.
A5: It is recommended to use anti-wear hydraulic oil with viscosity of 10~200 mm²/s. Clean hydraulic oil can effectively extend the service life of the pump. It is forbidden to use inferior and impurity-containing hydraulic oil.
