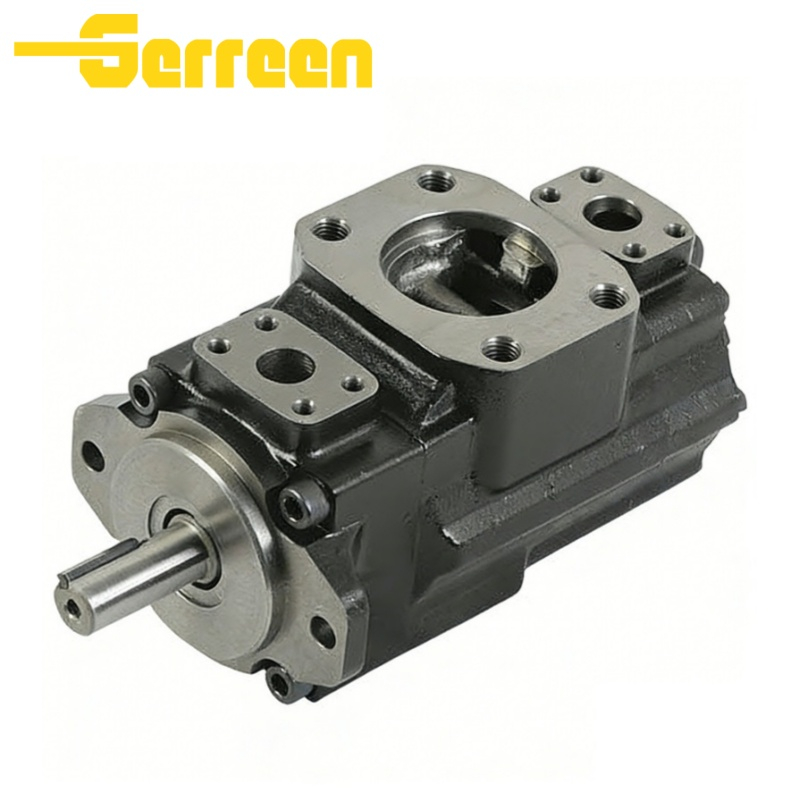

T6cc Denison Vane Pump

T6cc Denison Vane Pump Overview

The T6CC Denison Vane Pump is a high-performance double vane pump designed for medium to high-pressure hydraulic systems. As part of the well-known Denison T6 series, it integrates two pumping elements into one compact housing, providing flexible dual-flow output for complex hydraulic circuits.

With its balanced vane design, the T6CC ensures low noise, high efficiency, and long service life, making it an ideal choice for both industrial and mobile applications.

Application Advantages

T6CC, T6DC, T6EC, T6ED, etc. Series are fixed displacement and balanced type double hydraulic vane pumps. The pump is designed for higher operating pressure and greater flow at the same housing size.

With a balanced pin-vane design, outlet pressure is continuously applied only to the pin. The pin provides the steady light force against the vane. Top and bottom areas of the vane are subject to the same pressure, either inlet or outlet pressure, depending on the vane’s location during rotor rotation. This pin-vane design minimizes noise level and improves volumetric efficiency.

easy change of flow capacity and field servicing without With the cartridge independent of the shaft, allowing for removing the pump from its mounting.

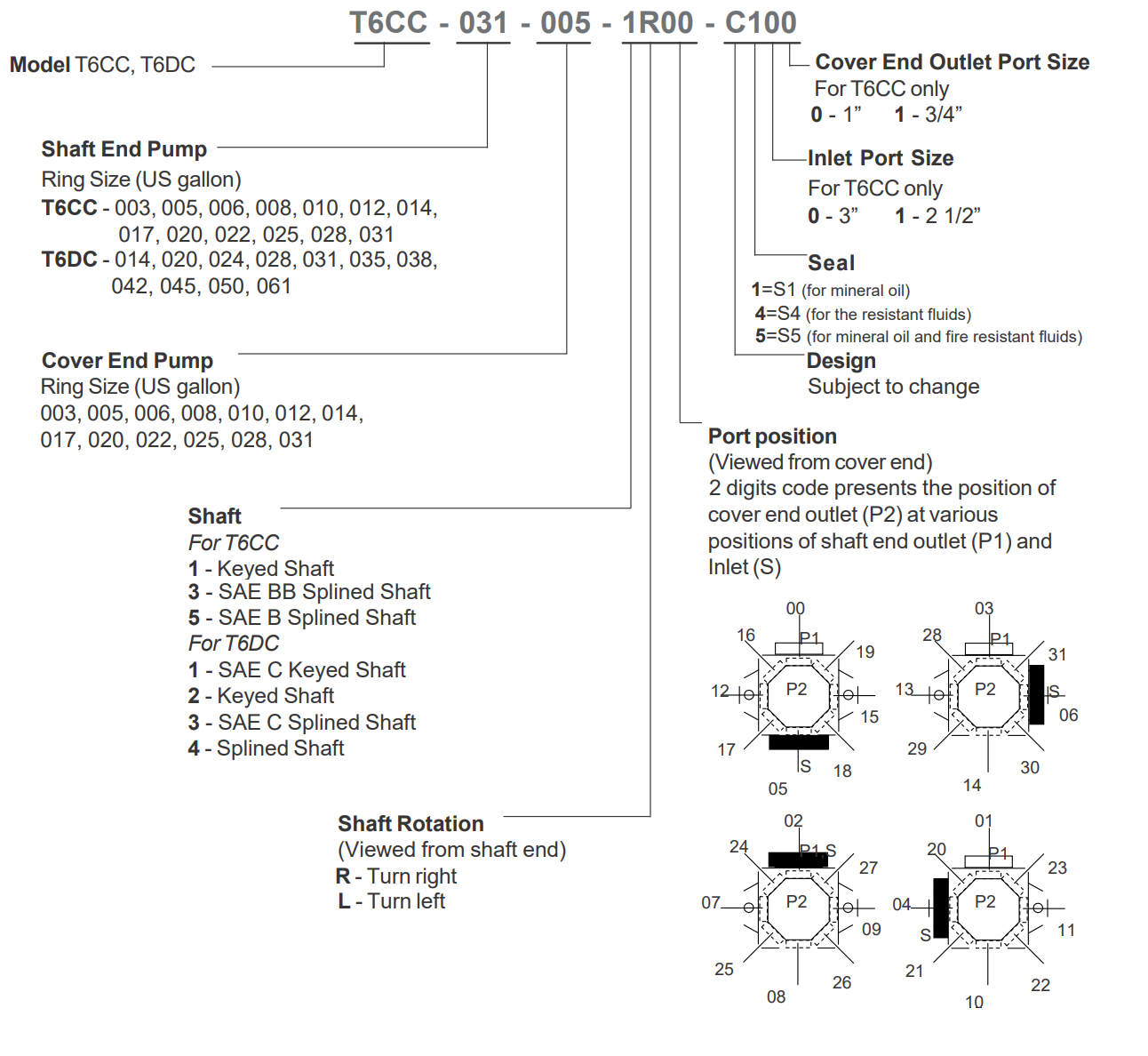

Model Codes

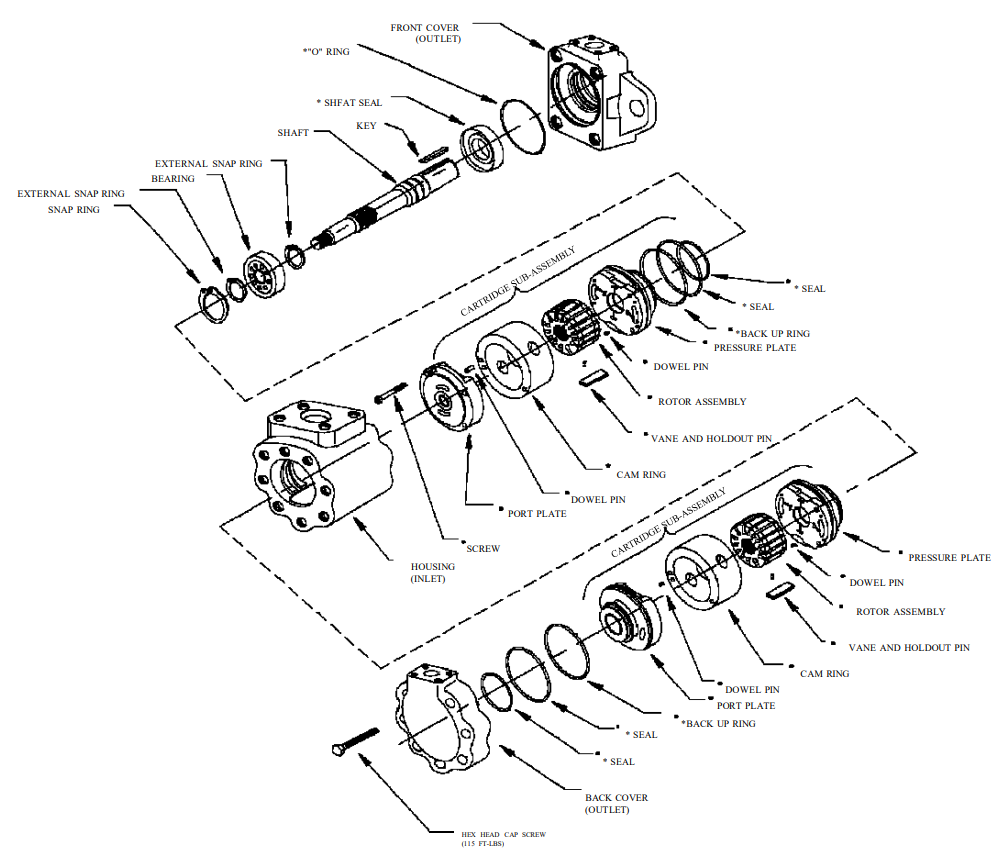

T6cc Denison Vane Pump Parts Information

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

T6cc Denison Vane Pump FAQ

1. What type of pump is the T6CC Denison?

The T6CC is a double vane pump from the Denison T6 series, combining two pumping sections in one housing to deliver dual flow output.

2. What are the main applications of the T6CC vane pump?

It is widely used in construction machinery, injection molding machines, agricultural equipment, and industrial hydraulic systems requiring dual circuits.

3. What are the advantages of a double vane pump like T6CC?

The dual-pump design allows independent or combined flow output, improving system flexibility and reducing installation space.

4. What is the maximum operating pressure of the T6CC pump?

The maximum operating pressure typically reaches up to 240 bar (3500 psi), depending on the specific model and working conditions.

5. What type of hydraulic fluids can be used?

The pump supports a wide range of fluids, including:

• Anti-wear hydraulic oil

• Fire-resistant fluids (such as phosphate esters)

• Water glycol fluids

6. What are the key features of the T6CC Denison vane pump?

Key features include high pressure capability, low noise operation, cartridge design, high efficiency, and long service life.

7. Is the T6CC pump interchangeable with original Denison pumps?

Yes, it is designed to be fully interchangeable with Denison T6CC series pumps, making it suitable for replacement and maintenance.

8. What are common maintenance considerations?

Regularly check oil cleanliness, shaft alignment, pressure settings, and seal condition to prevent premature wear and ensure reliable operation.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
