101-1004-009 1011004009 Hydraulic Motor Overview

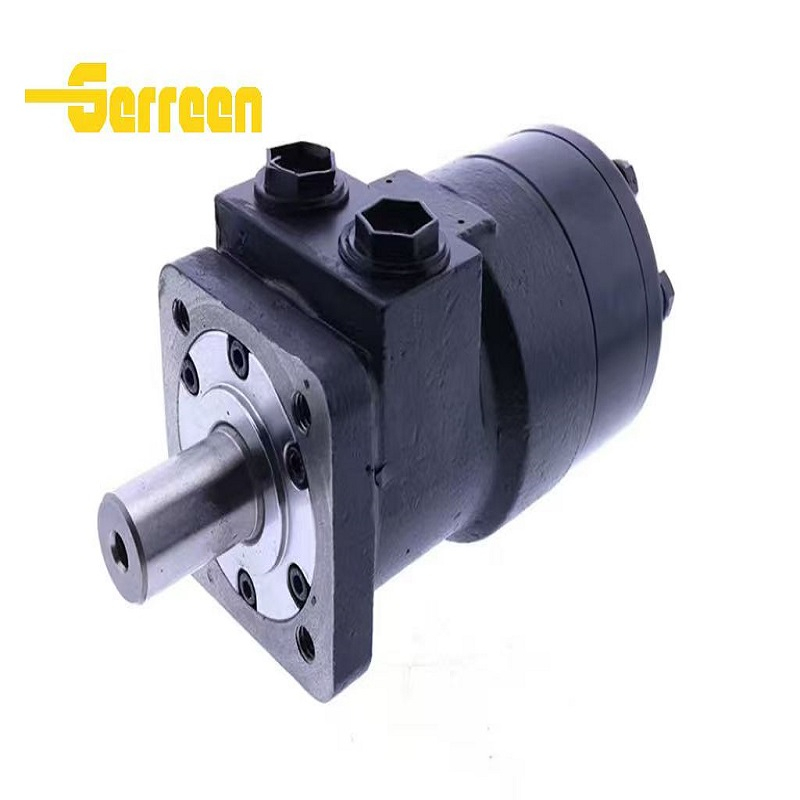

The 101-1004-009 (1011004009) is a low-speed, high-torque gerotor hydraulic motor designed as a direct replacement for the Eaton Char-Lynn H Series motors. It features solid construction and precise internal components, delivering reliable, smooth power output for heavy-duty mobile and industrial applications. With fully matched installation dimensions and performance parameters, it can be mounted directly without any modification, ensuring stable operation and long service life in harsh working conditions.

Features and Benefits

• Direct drop-in replacement for Eaton Char-Lynn H Series, perfectly matching original dimensions and specifications, no modification required.

• Low-speed high-torque design, delivers stable and powerful torque with smooth operation and low vibration.

• Premium gerotor components and reliable sealing structure effectively prevent oil leakage and extend service life.

• Robust overall construction, excellent wear resistance, suitable for long-term use in harsh working environments.

• High working efficiency, maintains steady performance under heavy load conditions.

• Simple installation and easy maintenance, helping reduce your operating and replacement costs.

• Reversible rotation, flexible to adapt to various hydraulic system demands.

Specifications of 101-1004-009 - Hydraulic Motor

• Motor Type: Low-speed high-torque gerotor hydraulic motor

• Compatible Model: Eaton Char-Lynn H Series

• Continuous Pressure: 114 bar (1650 psi)

• Continuous Speed: 243 RPM

• Intermittent Max Speed: 353 RPM

• Continuous Torque: 2059 in-lb (233 Nm)

• Max Continuous Flow: 15 GPM

• Displacement: 9.7 cu in/rev (159 cm³/rev)

• Rotation: Bi-directional

• Mounting: 4-bolt standard flange

• Shaft: 1 in diameter with keyway

• Port Size: 1/2 in NPT side ports

• Recommended Oil: ISO VG 46 / VG 68 anti-wear hydraulic oil

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1004-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1004-009 Hydraulic Motor FAQ:

1. What is the 101-1004-009 Hydraulic Motor ?

The 101-1004-009 (1011004009) is a low-speed, high-torque gerotor hydraulic motor designed as a direct replacement for the Eaton Char-Lynn H Series motors. It delivers reliable, smooth power output for heavy-duty mobile and industrial applications. With precisely matched mounting size, shaft and performance parameters, it can be installed directly without any alterations. Built with high-strength materials and premium internal parts, it runs stably with low vibration and excellent wear resistance, capable of performing consistently even in tough working conditions.

2. What makes the 101-1004-009 Hydraulic Motor ?

• Perfect interchangeable replacement for Eaton Char-Lynn H Series, no modification needed.

• Low-speed high-torque performance with smooth operation and low vibration.

• Durable structure and premium seals for anti-leakage and long service life.

• Stable output under heavy loads, suitable for harsh working environments.

• Easy installation and simple daily maintenance to cut operating costs.

• Bi-directional rotation to meet various application requirements.



3. What is the working pressure range of 101-1004-009 Hydraulic Motor ?

• Continuous working pressure: 114 bar (1650 psi)


4. Can 101-1004-009 Hydraulic Motor replace other brands?

• Yes, it is a direct interchangeable part for Eaton Char-Lynn H Series hydraulic motors. It matches the original dimensions, shaft size and performance, so it can be installed directly without any changes.

5. What hydraulic oil is recommended for 101-1004-009 Hydraulic Motor ?

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1004-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
