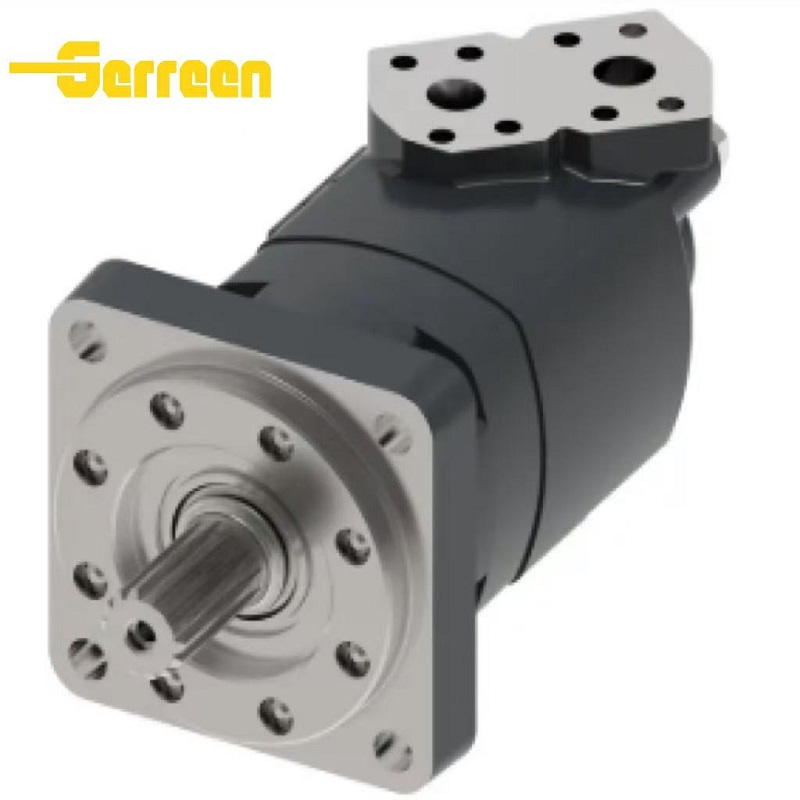

109-1246-006 1091246006 Hydraulic Orbit Motor Overview

Features and Benefits

• Robust cast iron housing ensures high durability and long service life under heavy loads.

• Low-speed high-torque design provides powerful output for demanding working conditions.

• Premium sealing structure effectively prevents oil leakage and reduces maintenance costs.

• Excellent wear resistance enables stable performance in harsh environments.

• Standard mounting and port design for easy installation and direct replacement.

• Smooth operation with low vibration, improving overall equipment running stability.

• Reversible rotation meets diverse application requirements.

Specifications of 109-1246-006- Hydraulic Motor

• Model: 109-1246-006 / 1091246006

• Series: Eaton Char-Lynn 4000 Series

• Type: Low-Speed High-Torque (LSHT) Orbital Motor

• Displacement: 311.8 cm³/rev

• Continuous Speed: 5 – 303 rpm

• Continuous Pressure: 210 bar

• Intermittent Peak Pressure: 310 bar

• Max Output Torque: 850 Nm

• Flange: Square 4-bolt flange

• Oil Port: G3/4

• Shaft: 40mm straight keyed shaft

• Rotation: Reversible (CW / CCW)

• Housing Material: Cast iron

• Weight: Approx. 19 kg

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

109-1246-006 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

109-1246-006 Hydraulic Motor FAQ:

1. What is the 109-1246-006 Hydraulic Motor ?

This 109-1246-006 hydraulic motor is a high-performance Low-Speed High-Torque (LSHT) orbital motor compatible with the Eaton Char-Lynn 4000 Series. It adopts premium gerotor structure and durable cast iron housing, featuring excellent wear resistance and reliable sealing performance. It can deliver stable and powerful torque output under heavy-load and harsh working conditions. With standard mounting size, reversible rotation and simple structure, it is easy to install, replace and maintain. This motor is widely applied to agricultural machinery, construction equipment and general industrial hydraulic systems.

2. What makes the 109-1246-006 Hydraulic Motor ?

• Bidirectional rotation fits various operating requirements.


• Universal dimensions enable quick installation and direct replacement.


• The motor operates quietly and steadily with minimal vibration.


• Advanced sealing design effectively stops hydraulic oil leaks.


• High torque is generated at low speeds to handle heavy workloads.


• Built with heavy-duty cast iron, it ensures extended service time.




• Continuous rated pressure: 210 bar (3045 psi)


• Maximum intermittent pressure: 310 bar (4496 psi)
  It is not recommended to operate continuously at intermittent pressure.

4. Can 109-1246-006 Hydraulic Motor replace other brands?

• Yes, it is fully interchangeable with Eaton Char-Lynn 4000 Series motors. It shares identical mounting dimensions, ports and performance parameters, enabling direct replacement without modifying equipment.



5. What hydraulic oil is recommended for 109-1246-006 Hydraulic Motor ?

7. Do you provide OEM or customized services?

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

109-1246-006 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
