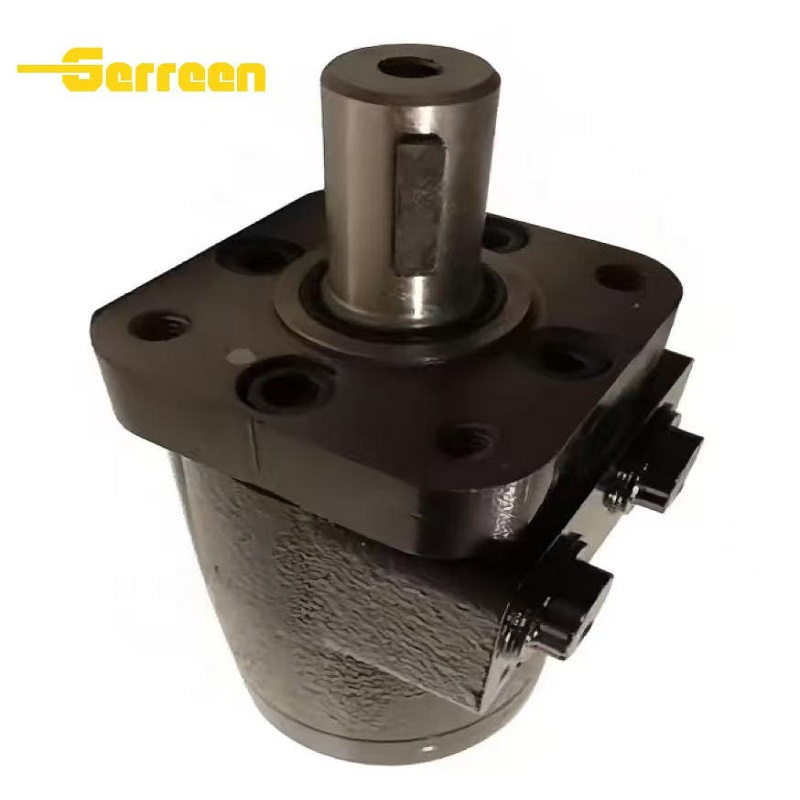

101-1016-009 1011016009 Hydraulic Orbit Motor Overview

This 101-1016-009 orbital hydraulic motor serves as a perfect drop-in replacement for Eaton Char-Lynn H Series motors. With large displacement and strong torque performance, it runs steadily under medium loads. The optimized internal gerotor structure ensures high efficiency and low vibration. Adopting high-quality seals and wear-resistant parts, it effectively prevents oil leakage and adapts to various harsh working conditions. Standard mounting and port design enable direct installation without modification. It is widely applied to winches, conveyors, farm machinery and other low-speed hydraulic equipment.

Features and Benefits

• Fully interchangeable with Eaton Char-Lynn H Series, direct installation without modification.

• Low-speed high-torque design provides powerful and steady torque output.

• Optimized internal structure ensures smooth operation, low noise and slight vibration.

• High-quality sealing components deliver excellent anti-leakage performance.

• Wear-resistant parts and solid construction extend overall service life.

• Standard 4-bolt flange, keyed shaft and O-ring ports for easy mounting and maintenance.

• Compact layout saves installation space.

• Great adaptability, suitable for agricultural machinery, construction equipment and industrial facilities.

Specifications of 101-1016-009- Hydraulic Motor

• Model: 101-1016-009 / 1011016009

• Type: Low Speed High Torque Orbital Hydraulic Motor

• Compatible: Eaton Char-Lynn H Series

• Displacement: 22.6 cu in/r

• Continuous Speed: 152 rpm

• Max Intermittent Speed: 180 rpm

• Continuous Working Pressure: 1800 psi (124 bar)

• Intermittent Working Pressure: 2100 psi (145 bar)

• Continuous Torque: 3604 in-lb

• Intermittent Torque: 4210 in-lb

• Mounting: 4-bolt flange

• Shaft: 1" standard keyed shaft

• Port: 7/8″-14 O-ring port

• Rotation: Bi-directional

• Seal Material: Buna-N

• Application: Medium-duty low-speed hydraulic equipment

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools
