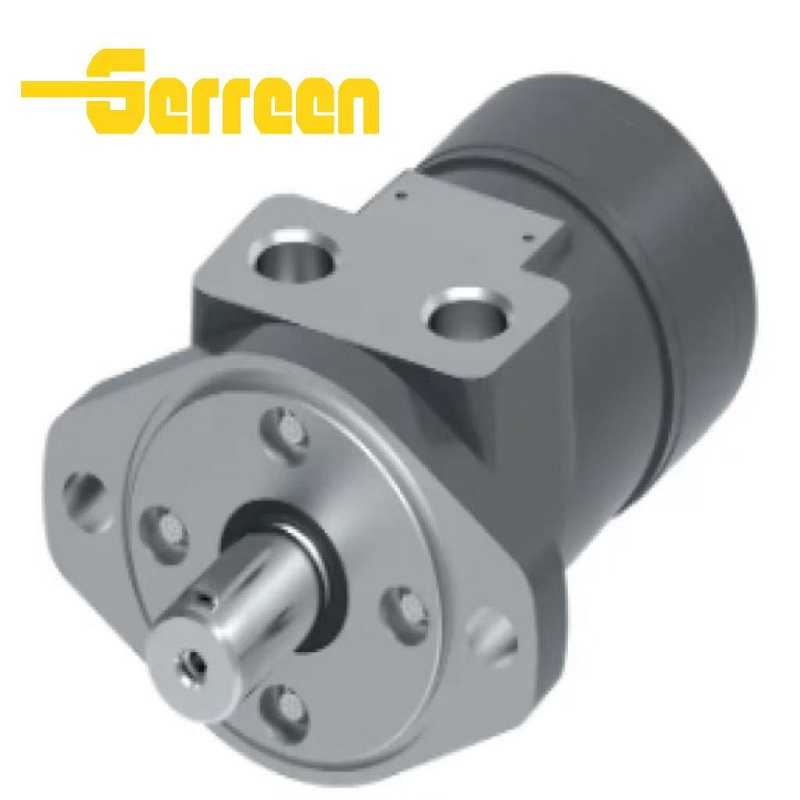

101-1029-009 1011029009 Hydraulic Motor Overview

This 101-1029-009 orbital hydraulic motor is an ideal drop-in replacement for Eaton Char-Lynn H Series products. Designed with mature internal structure and high-quality components, it delivers consistent power, outstanding durability and long service life. The motor operates smoothly under medium load, with good sealing performance to prevent fluid leakage. Its compact and lightweight design allows easy mounting and maintenance. Suitable for various working conditions, it is widely used on farm machinery, material handling devices, mixers, winches and other mobile and industrial hydraulic systems.

Features and Benefits

• Direct drop-in replacement for Eaton Char-Lynn H Series, no modification required for easy installation.

• Low-speed high-torque design delivers stable power output for medium-load operations.

• Optimized internal structure ensures smooth running, low noise and minimal vibration.

• Robust build and precision components provide great wear resistance and long service life.

• Premium sealing system effectively prevents hydraulic oil leakage.

• Supports bi-directional rotation to meet diverse working requirements.

• Compact and lightweight structure saves space and simplifies maintenance.

• Reliable performance, widely applicable to agricultural, construction and industrial equipment

Specifications of 101-1029-009 - Hydraulic Motor

• Model: 101-1029-009 / 1011029009

• Type: Low Speed High Torque Orbital Hydraulic Motor

• Compatible Series: Eaton Char-Lynn H Series

• Displacement: 3.20 in³/r (109.9 cm³/r)

• Continuous Speed: 520 rpm

• Max Intermittent Speed: 860 rpm

• Continuous Working Pressure: 1800 psi (124 bar)

• Intermittent Working Pressure: 2100 psi (145 bar)

• Continuous Torque: 740 in-lb (83.6 Nm)

• Intermittent Torque: 990 in-lb (111.9 Nm)

• Max Flow Rate: 13 gpm (49.2 L/min)

• Mounting: 4-bolt flange

• Shaft: Standard keyed shaft

• Port: SAE O-ring port

• Rotation: Bi-directional

• Standard Seal: Buna-N

• Weight: Approx. 16 lbs

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1029-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1029-009 Hydraulic Motor FAQ:

1. What is the 101-1029-009 Hydraulic Motor ?

This 101-1029-009 orbital hydraulic motor is an ideal drop-in replacement for Eaton Char-Lynn H Series products. Designed with mature internal structure and high-quality components, it delivers consistent power, outstanding durability and long service life. The motor operates smoothly under medium load, with good sealing performance to prevent fluid leakage. Its compact and lightweight design allows easy mounting and maintenance. Suitable for various working conditions, it is widely used on farm machinery, material handling devices, mixers, winches and other mobile and industrial hydraulic systems.

2. What makes the 101-1029-009 Hydraulic Motor ?

• Perfect direct replacement for Eaton Char-Lynn H Series without any modification.

• Excellent low-speed high-torque performance with stable power output.

• Smooth operation, low noise and vibration for comfortable working conditions.

• Durable construction and high-quality seals for anti-leakage and long service life.

• Bi-directional rotation to fit various operating demands.

• Compact structure, easy installation and simple daily maintenance.



3. What is the working pressure range of 101-1029-009 Hydraulic Motor ?

• Continuous rated pressure: 1800 psi (124 bar)


4. Can 101-1029-009 Hydraulic Motor replace other brands?

• Absolutely. It is fully interchangeable with Eaton Char-Lynn H Series orbital motors. Identical mounting size, shaft and port specifications ensure easy installation and reliable operation after replacement.

5. What hydraulic oil is recommended for 101-1029-009 Hydraulic Motor ?

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1029-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
