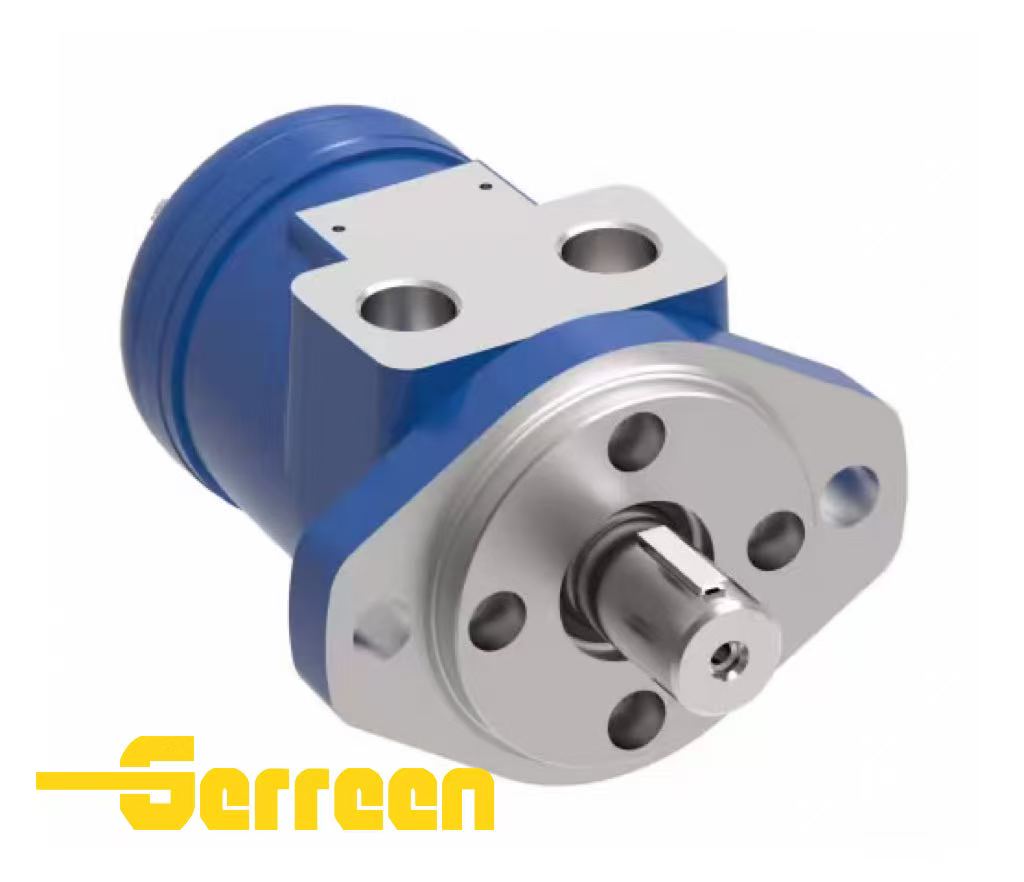

101-2160-009 1012160009 Hydraulic Orbital Motor Overview

101-2160-009 orbital motor replaces Eaton Char-Lynn H Series. It features low speed and high torque, solid structure and low leakage. Easy to install without modification, ideal for construction, agricultural and material handling equipment.

Features and Benefits

• Direct drop-in replacement for Eaton Char-Lynn 101-2160 H Series orbital motors, no modification required

• Low-speed, high-torque gerotor design delivers reliable performance under heavy loads

• Heavy-duty shaft and bearings extend service life and reduce maintenance

• Premium seals minimize leakage and ensure stable operation across wide temperature ranges

• Compact standard mounting with bi-directional rotation for versatile use

• Ideal for construction, agricultural, material handling, and industrial applications

Specifications of 101-2160-009 - Hydraulic Motor

• Part Number: 101-2160-009 / 1012160009

• Motor Type: Hydraulic Orbital / Gerotor Motor

• Continuous Working Pressure: 160 bar (2320 psi)

• Intermittent Peak Pressure: 200 bar (2900 psi)

• Maximum Rotation Speed: 320 rpm

• Continuous Output Torque: 570 N·m (420 lbf·ft)

• Mounting: Standard SAE 4-bolt flange

• Shaft: Keyed shaft, same as OEM standard

• Seal Material: Nitrile rubber (NBR), Viton optional

• Rotation Direction: Bi-directional

• Weight: 12.2 kg (26.9 lbs)

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1040-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-2160-009 Hydraulic Motor FAQ:

1. What is the 101-2160-009 Hydraulic Motor ?

This is a high-performance hydraulic orbital motor, a direct replacement for Eaton Char-Lynn H Series model 101-2160-009. It adopts low-speed high-torque gerotor structure, features compact size, low leakage and long service life. It can be installed directly without modification, suitable for construction, agricultural, material handling and other heavy-duty equipment.

2. What makes the 101-2160-009 Hydraulic Motor ?

• Delivers consistent low-speed torque to drive heavy-duty loads reliably

• Rugged construction ensures steady performance in tough operating conditions

• Precision-engineered seals effectively prevent internal and external leakage

• Fully drop-in compatible with original Eaton Char-Lynn H Series components

• Space-saving design fits easily into compact equipment layouts

• Smooth, low-vibration operation helps extend equipment uptime

• Optimized flow paths improve efficiency and reduce wear on internal parts



3. What is the working pressure range of 101-2160-009 Hydraulic Motor ?

4. Can 101-2160-009 Hydraulic Motor replace other brands?

• The 101-2160-009 hydraulic orbital motor is a direct, drop-in replacement for the original Eaton Char-Lynn H Series motor. It matches the original’s dimensions, specs, and performance exactly, so no modifications are needed for compatible equipment. It is not a universal replacement for all other brands or series, so always verify specifications before use.




5. What hydraulic oil is recommended for 101-2160-009 Hydraulic Motor ?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-2160-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
