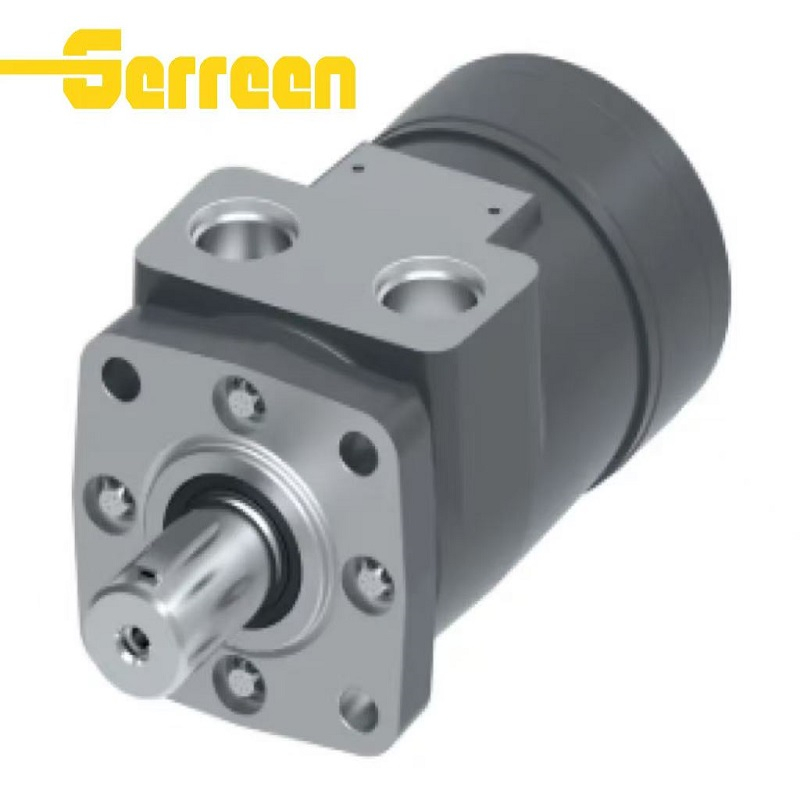

101-1012-009 1011012009 Hydraulic Orbit Motor Overview

Features and Benefits

• Low-speed high-torque output allows direct drive and simplifies hydraulic system setup.


Specifications of 101-1012-009- Hydraulic Motor

Model: 101-1012-009 / 1011012009
Series: Eaton Char-Lynn H-Series
Displacement: 9.70 in³/rev (159 cm³/rev)
Continuous Working Pressure: 1650 psi (114 bar)
Intermittent Peak Pressure: 2250 psi (155 bar)
Rated Continuous Speed: 353 rpm
Max Intermittent Speed: 585 rpm
Output Torque: 2059 in-lb (233 N·m)
Continuous Flow: 15 gpm (57 L/min)
Intermittent Flow: 20 gpm
Mounting Type: 4-bolt flange with 1.75 in pilot

Shaft: 1 in straight keyed shaft
Port Type: Side mounted No.10 SAE O-ring ports
Weight: 12.5 lbs (5.7 kg)
Housing Material: Cast iron
Operating Temperature: -34°C ~ 82°C (-30°F ~ 180°F)

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1012-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1012-009 Hydraulic Motor FAQ:

1. What is the 101-1012-009 Hydraulic Motor ?

The 101-1012-009 is a fixed-displacement, low-speed high-torque (LSHT) gerotor hydraulic motor from the Eaton Char-Lynn H-Series, widely used in medium-duty industrial and agricultural applications. Built with sturdy cast iron housing and precision internal components, it features stable performance, low noise and minimal internal leakage. It supports bidirectional rotation and adopts standard mounting dimensions, enabling easy installation and direct replacement for original parts.

2. What makes the 101-1012-009 Hydraulic Motor ?

• It features excellent low-speed high-torque performance for direct drive use.

• The sturdy cast iron housing provides high strength and great durability.

• Precision internal parts reduce leakage and ensure stable operation.

• It supports bidirectional rotation to meet diverse working demands.

• The standard SAE structure allows easy installation and direct replacement.

• The isolated drain system protects bearings and seals effectively.

• It adapts to a wide temperature range for various working environments.

• It is fully interchangeable with original Eaton Char-Lynn H-Series motors.



3. What is the working pressure range of 101-1012-009 Hydraulic Motor ?

• Continuous rated pressure: 114 bar (1650 psi)


• Maximum intermittent pressure: 155 bar (2250 psi)
  It is not recommended to operate continuously at intermittent pressure.

4. Can 101-1012-009 Hydraulic Motor replace other brands?

• Yes, it can serve as a direct replacement for original Eaton Char-Lynn H-Series motors. It features fully standard dimensions, mounting structure and performance parameters, so no modification is needed during installation. It also works well as a compatible alternative for equivalent orbital motors of other mainstream brands in relevant applications.



5. What hydraulic oil is recommended for 101-1012-009 Hydraulic Motor ?

7. Do you provide OEM or customized services?

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1012-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
