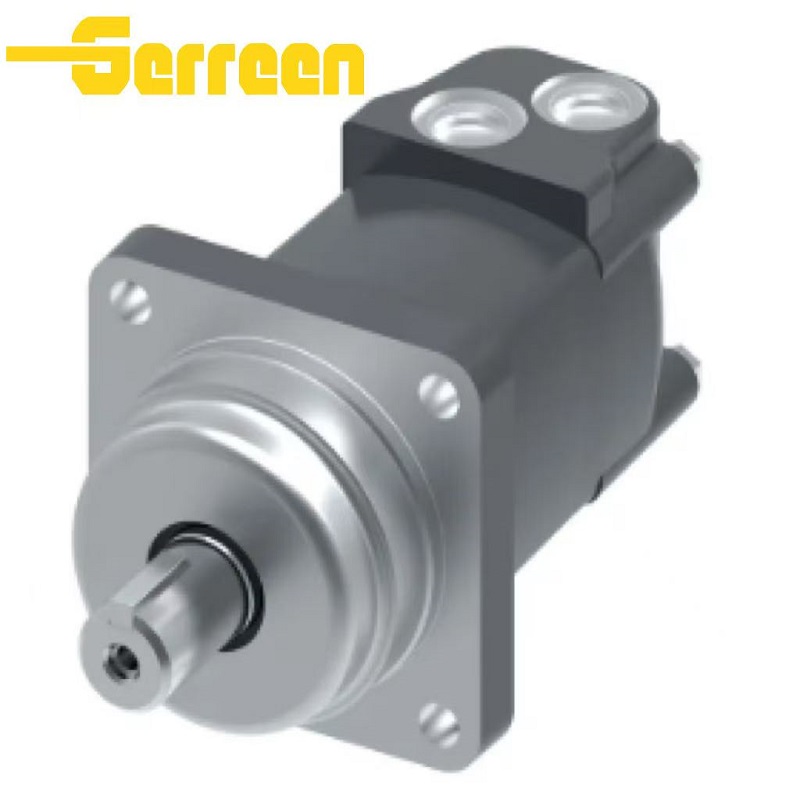

104-1420-006 1041420006  Hydraulic Orbit Motor Overview

The 104-1420-006 is a low-speed high-torque gerotor hydraulic motor compatible with Eaton Char-Lynn 2000 Series. It serves as a perfect direct replacement, delivering steady power and outstanding durability for various heavy-duty machinery. Designed with premium internal components, this motor features excellent load resistance and efficient hydraulic transmission. It supports bi-directional rotation to meet diverse operational demands, and its anti-leakage design greatly extends the overall service life. It is widely applicable to construction equipment, agricultural machines and other industrial hydraulic systems.

Features and Benefits

• Direct drop-in replacement for Eaton Char-Lynn 2000 Series.

• Low speed and high torque, smooth running with minimal vibration.

• High-quality internal parts and premium seals effectively prevent oil leakage.

• Robust construction adapts to complex and harsh working conditions.

• Bi-directional rotation, wide application range.

• Easy installation and low maintenance cost.

Specifications of 104-1420-006 - Hydraulic Motor

• Motor Type: Low-speed high-torque gerotor motor


• Model: 104-1420-006

• Displacement: 489 cm³/r (29.84 in³/r)

• Continuous Pressure: 2030 psi (14.0 MPa)

• Continuous Torque: 8053 in-lb (910 N·m)

• Intermittent Torque: 8225 in-lb (930 N·m)

• Max Continuous Speed: 153–155 rpm

• Continuous Flow: 19.8–20 gpm (75 L/min)

• Intermittent Flow: 30 gpm (114 L/min)

• Rotation: Bi-directional

• Mounting: 2-bolt SAE A flange, 3.25 in pilot

• Shaft: 1.25 in diameter, keyed

• Port Type: #12 SAE O-ring staggered ports

• Case Drain: #4 ORB

• Seal Material: Buna-N (Nitrile)

• Weight: 21.00 lbs (9.5 kg)

• Recommended Oil: ISO VG 46 / VG 68 anti-wear hydraulic oil

• Operating Temperature: -34°C ~ +82°C (-30°F ~ +180°F)

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

104-1420-006 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

104-1420-006 Hydraulic Motor FAQ:

1. What is the 104-1420-006 Hydraulic Motor ?

The 104-1420-006 is a low-speed high-torque gerotor hydraulic motor compatible with Eaton Char-Lynn 2000 Series. It serves as a perfect direct replacement, delivering steady power and outstanding durability for various heavy-duty machinery. With excellent torque performance and high transmission efficiency, it supports bi-directional rotation to meet diverse working demands. The optimized internal structure enhances wear resistance and anti-leakage capability, greatly extending service life. It is an ideal hydraulic drive solution for construction, agricultural and industrial equipment.

2. What makes the 104-1420-006 Hydraulic Motor ?

• Fully compatible with Eaton Char-Lynn 2000 Series, direct installation without modification.

• Excellent low-speed high-torque performance, running smoothly with low vibration and noise.

• Robust structure and premium seals prevent leakage and extend service life.

• Stable output under heavy loads, suitable for harsh working conditions.

• Bi-directional rotation to fit various application scenarios.

• Easy installation and low maintenance cost.



3. What is the working pressure range of 104-1420-006 Hydraulic Motor ?

• Continuous working pressure: 2030 psi (14.0 MPa)


4. Can 104-1420-006 Hydraulic Motor replace other brands?

• Yes. The 104-1420-006 is a direct aftermarket replacement for Eaton Char-Lynn 2000 Series motors. It also fits equivalent Danfoss, Vickers, and White gerotor motors with matching mounting and performance specs. It is designed for drop-in installation with no changes required.

5. What hydraulic oil is recommended for 104-1420-006 Hydraulic Motor ?

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

104-1420-006 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
