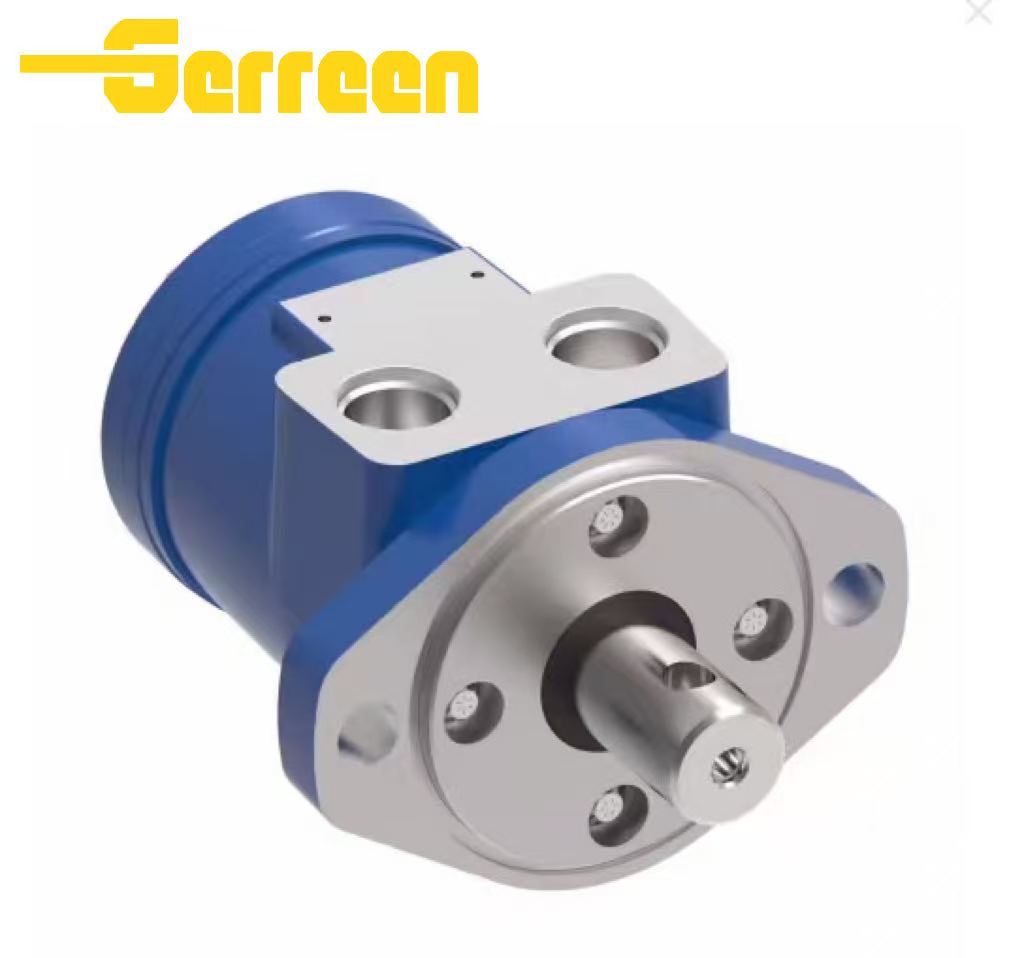

Hydraulic Motor for Eaton Char-Lynn H Series 101-1323-009, 101-1323 Overview

This 101-1323-009 Hydraulic Motor low-speed high-torque gerotor motor fits Eaton Char-Lynn H Series. Stable output, compact structure and fine sealing performance. Widely applied in construction, farm, handling and industrial machinery as reliable replacement parts.It features compact structure, stable running and low noise output. With reliable torque performance and strong load capacity, it is widely used in engineering machinery and hydraulic drive equipment. The motor meets original standard specifications, easy to install and replace, and delivers long durable service life under heavy working conditions.

Features and Benefits

• Compact orbit motor design with stable torque output, delivering consistent hydraulic power for low-speed, high-torque applications.

• High-strength construction and precision components ensure long service life under heavy-duty operating conditions.

• Low noise and smooth operation effectively reduce equipment vibration and failure rates.

• Standard mounting dimensions and interface, allowing direct drop-in installation without modification.

• Perfect compatibility with Eaton Char-Lynn H Series and matching replacement for part numbers 101-1323-009 / 101-1323.

• Excellent sealing performance prevents oil leakage, ensuring reliable operation in harsh environments.

Specifications of Hydraulic Motor for Eaton Char-Lynn H Series (101-1323-009 / 101-1323)

• Motor Type: Hydraulic orbit/gerotor motor (Eaton Char-Lynn H Series equivalent)

• Displacement: 2.8 in³/rev (≈46 cc/rev)

• Mounting Type: 2-bolt SAE A mount

• Rated Continuous Pressure: 145 bar (2100 psi)

• Maximum Intermittent Pressure: 210 bar (3000 psi)

• Rated Continuous Speed Range: 10–600 rpm

• Maximum Allowable Speed: 700 rpm (short-term only)

• Rated Torque: Up to 220 N·m (162 lbf·ft) at rated pressure

• Shaft Type: Standard keyed shaft

• Fluid Compatibility: ISO VG 32/46/68 anti-wear hydraulic oil

• Operating Temperature Range: -20°C to +80°C (-4°F to 176°F)

• Seal Material: Nitrile (NBR) standard (Viton optional for high-temperature use)

• Replacement Part Numbers: 101-1323-009, 101-1323, 1011323009, 1011323

Applications

• Construction machinery: Skid steer loader, road roller, small excavator

• Agricultural equipment: Harvester, farm tractor, fertilizer spreader

• Material handling: Winch, conveyor, forklift accessory drive

• Industrial machinery: Mixer, drilling device, rotary working mechanism




Packaging & Delivery

101-1323-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1323-009 Hydraulic Motor FAQ:

1. What is the 101-1323-009 Hydraulic Motor ?

This 101-1323-009 Hydraulic Motor low-speed high-torque gerotor motor fits Eaton Char-Lynn H Series. Stable output, compact structure and fine sealing performance. Widely applied in construction, farm, handling and industrial machinery as reliable replacement parts.

2. What makes the 101-1323-009 Hydraulic Motor ?

• Delivers outstanding low speed high torque power for heavy load operation

• Compact body saves installation space with stable running performance

• Premium sealing structure effectively prevents oil leakage

• Perfect interchangeable replacement for original Eaton Char-Lynn H series motor

• Durable construction adapts to various harsh working environments



3. What is the working pressure range of101-1323-009 Hydraulic Motor ?

• Continuous Pressure: Up to 21 MPa (≈ 3000 PSI).

• Maximum Intermittent Pressure: Up to 25 MPa (≈ 3600 PSI).

4. Can101-1323-009 Hydraulic Motor replace other brands?

Yes, the 101-1323-009 Hydraulic Motor can replace many standard internal and external gear pumps, including:

• Eaton Char-Lynn H Series Motors




• Oil Type: Anti-wear hydraulic oil (AW type).

• Viscosity: ISO VG32–VG68 recommended.

• Filtration: Clean hydraulic oil is essential to reduce wear and improve motor life.

6. What is the typical speed range of 101-1323-009 Hydraulic Motor ?

• Minimum Operating Speed: 10 RPM

• Continuous Operating Speed: 10–400 RPM

• Maximum Intermittent Speed: Up to 500 RPM (under light load conditions)

  This low-speed, high-torque range is ideal for applications requiring smooth, powerful rotation at low speeds, such as augers, winches, and agricultural implements.

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1323-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
