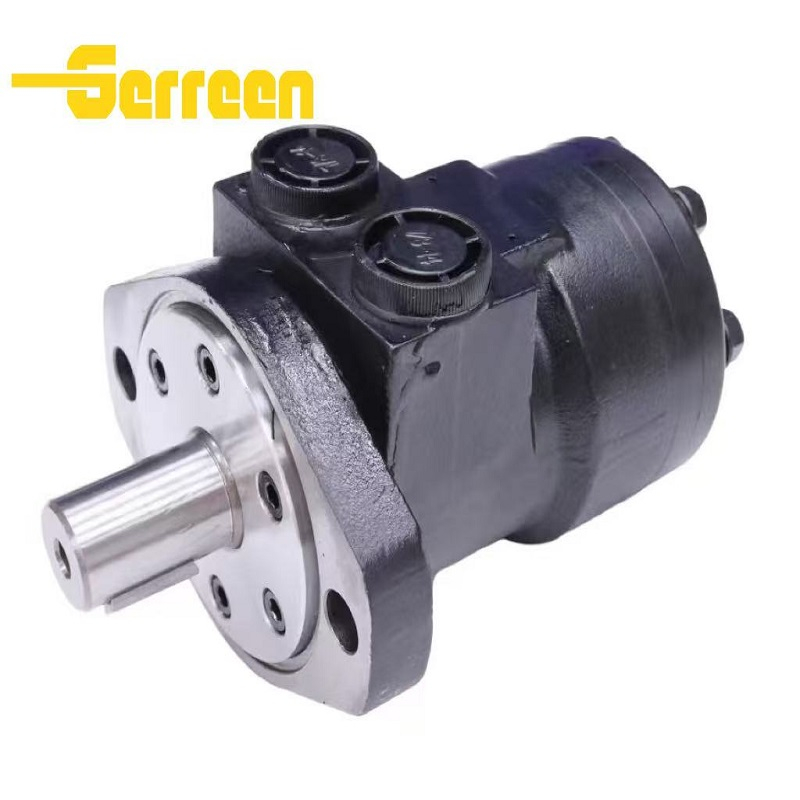

101-1033-009 1011033009 Hydraulic Orbit Motor Overview

101-1033-009 / 1011033009 orbital motor is a perfect replacement for Eaton Char-Lynn H Series hydraulic motors. Designed for low-speed and high-torque working conditions, it maintains excellent operating efficiency under medium loads. The optimized internal structure improves durability and adaptability to various working environments. Standard 2-bolt flange, 1-inch keyed shaft and SAE O-ring ports simplify installation and daily maintenance. Resistant to oil leakage and wear, it works steadily on farm equipment, material handling devices, road maintenance tools and other industrial machinery.

Features and Benefits

• Direct replacement for Eaton Char-Lynn H Series, fully interchangeable with no modification required.


Specifications of 101-1033-009- Hydraulic Motor

• Model: 101-1033-009 / 1011033009

• Type: Low Speed High Torque Orbital Hydraulic Motor

• Compatible Series: Eaton Char-Lynn H Series

• Displacement: 46 cm³/r

• Continuous Speed: 240 rpm

• Max Intermittent Speed: 280 rpm

• Continuous Working Pressure: 1800 psi (124 bar)

• Intermittent Working Pressure: 2100 psi (145 bar)

• Continuous Torque: 1420 in-lb

• Intermittent Torque: 1650 in-lb

• Mounting: 2-bolt flange

• Shaft: 1" standard keyed shaft

• Port: SAE O-ring port

• Rotation: Bi-directional

• Seal Material: Buna-N

• Application: Medium-duty agricultural, construction and industrial equipment

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1033-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1033-009 Hydraulic Motor FAQ:

1. What is the 101-1033-009 Hydraulic Motor ?

Compatible with Eaton Char-Lynn H Series, the 101-1033-009 / 1011033009 orbital motor is an excellent drop-in replacement. Built for low-speed high-torque operation, it runs efficiently under regular working loads. The upgraded internal design makes it more durable and suitable for diverse operating conditions. Thanks to standard mounting, shaft and port configurations, installation and maintenance are hassle-free. With great anti-wear and anti-leak capabilities, it operates reliably across farming equipment, handling tools, road service machines and general industrial units.

2. What makes the 101-1033-009 Hydraulic Motor ?

• Fully interchangeable with Eaton Char-Lynn H Series for direct replacement

• Great low-speed high-torque performance with stable power output

• Compact & rugged structure, quiet operation

• High-quality seals for effective anti-leakage

• Standard 2-bolt flange and shaft for easy installation and maintenance

• Ideal for agricultural, construction and industrial equipment



3. What is the working pressure range of 101-1033-009 Hydraulic Motor ?

• Continuous rated pressure: 1800 psi (124 bar)


4. Can 101-1033-009 Hydraulic Motor replace other brands?

• Yes, it is a direct drop-in replacement for Eaton Char-Lynn H Series with full compatibility, no modifications needed.




5. What hydraulic oil is recommended for 101-1033-009 Hydraulic Motor ?

7. Do you provide OEM or customized services?

Certainly. We offer professional OEM and custom solutions, including specifications, logos and packaging customization.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1033-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
