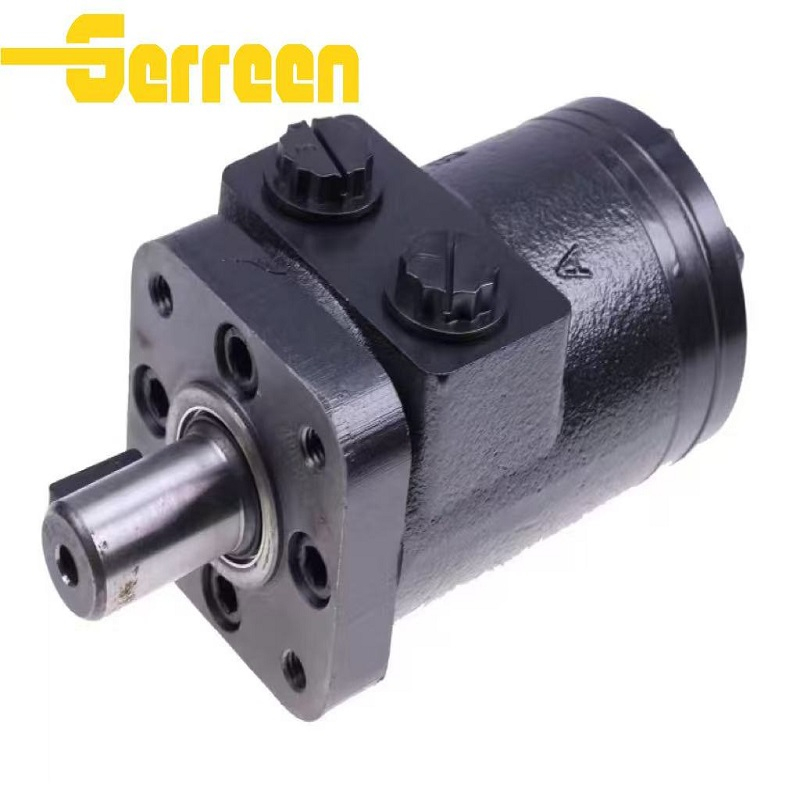

101-1009-009 101100900 Hydraulic Motor Overview

Features and Benefits

• Perfect OEM Replacement: It serves as a direct drop-in replacement for Eaton Char-Lynn H Series with full specification compatibility for tool-free installation.

Specifications of 101-1009-009 - Hydraulic Motor

• Model Number: 101-1009-009 / 101100900

• Series: Eaton Char-Lynn H Series

• Type: Low Speed High Torque Orbital Hydraulic Motor

• Displacement: 2.80 in³/r (96.9 cm³/r)

• Rated Continuous Speed: 585 rpm

• Maximum Intermittent Speed: 969 rpm

• Continuous Working Pressure: 1800 psi (124 bar)

• Continuous Torque: 650 in-lb (73.4 Nm)

• Intermittent Torque: 876 in-lb (98.9 Nm)

• Max Flow Rate: 12 gpm (45.4 L/min)

• Mounting: 4-bolt flange, 1.75 inch pilot

• Shaft: 1 inch straight keyed shaft

• Port Type: 7/8-14 UNF O-ring port (SAE J1926)

• Rotation: Bi-directional

• Standard Seal Material: Buna-N

• Weight: Approx. 15 lbs

Applications

• Construction Machinery: Skid steer loaders, excavator attachments, compact equipment

• Agricultural Equipment: Combine harvesters, fertilizer spreaders, auger drives, hay balers

• Material Handling: Conveyor systems, forklift attachments, winches, turntables

• Industrial Machinery: Mixers, rotary indexers, drilling rigs, and process equipment

• Utility & Ground Care: Sweepers, snow blowers, mowers, and road maintenance tools

Packaging & Delivery

101-1009-009 Hydraulic Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

101-1009-009 Hydraulic Motor FAQ:

1. What is the 101-1009-009 Hydraulic Motor ?

101-1009-009 is a high-performance low-speed high-torque hydraulic motor. It is fully interchangeable with Eaton Char-Lynn H Series, easy to install without modification. With steady output and long service life, it delivers dependable power for various mobile machinery and industrial devices.

2. What makes the 101-1009-009 Hydraulic Motor ?

• Perfect interchangeable replacement for Eaton Char-Lynn H Series, no modification needed.

• Low-speed high-torque performance with smooth operation and low vibration.

• Durable structure and premium seals for anti-leakage and long service life.

• Stable output under heavy loads, suitable for harsh working environments.

• Easy installation and simple daily maintenance to cut operating costs.

• Bi-directional rotation to meet various application requirements.

• Compact, lightweight design that fits most medium-duty mobile and industrial equipment.



3. What is the working pressure range of 101-1009-009 Hydraulic Motor ?

4. Can 101-1009-009 Hydraulic Motor replace other brands?

Yes, it can serve as a perfect drop-in replacement for the Eaton Char-Lynn H Series motors. It shares the same installation size, shaft, port specifications and performance standards, so no modification is needed during replacement.

5. What hydraulic oil is recommended for 101-1009-009 Hydraulic Motor ?

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

101-1009-009 Hydraulic Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
