6000 Series
Green Hydraulic
6000 Series
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
High Torque & High Power Density: Max output torque up to 1685Nm, supports continuous flow 150L/min, delivers strong driving power with small volume.
Disc Valve Wear Compensation: Precision disc distribution flow design automatically compensates internal wear, effectively reducing efficiency attenuation and extending service life.
Superior Load Resistance: Equipped with double taper roller bearings, it bears ultra-high radial and axial loads, suitable for harsh working conditions.
Stable Low-speed Performance: No crawling at ultra-low speed, smooth and steady operation, precise speed and rotation control.
High Efficiency & Energy Saving: Industry-leading low pressure drop, high mechanical and volumetric efficiency, effectively reducing system energy consumption.
Strong Versatility & Replaceability: Fully compatible with original Eaton Char-Lynn 6000 series, direct drop-in replacement, no modification needed.
Specifications

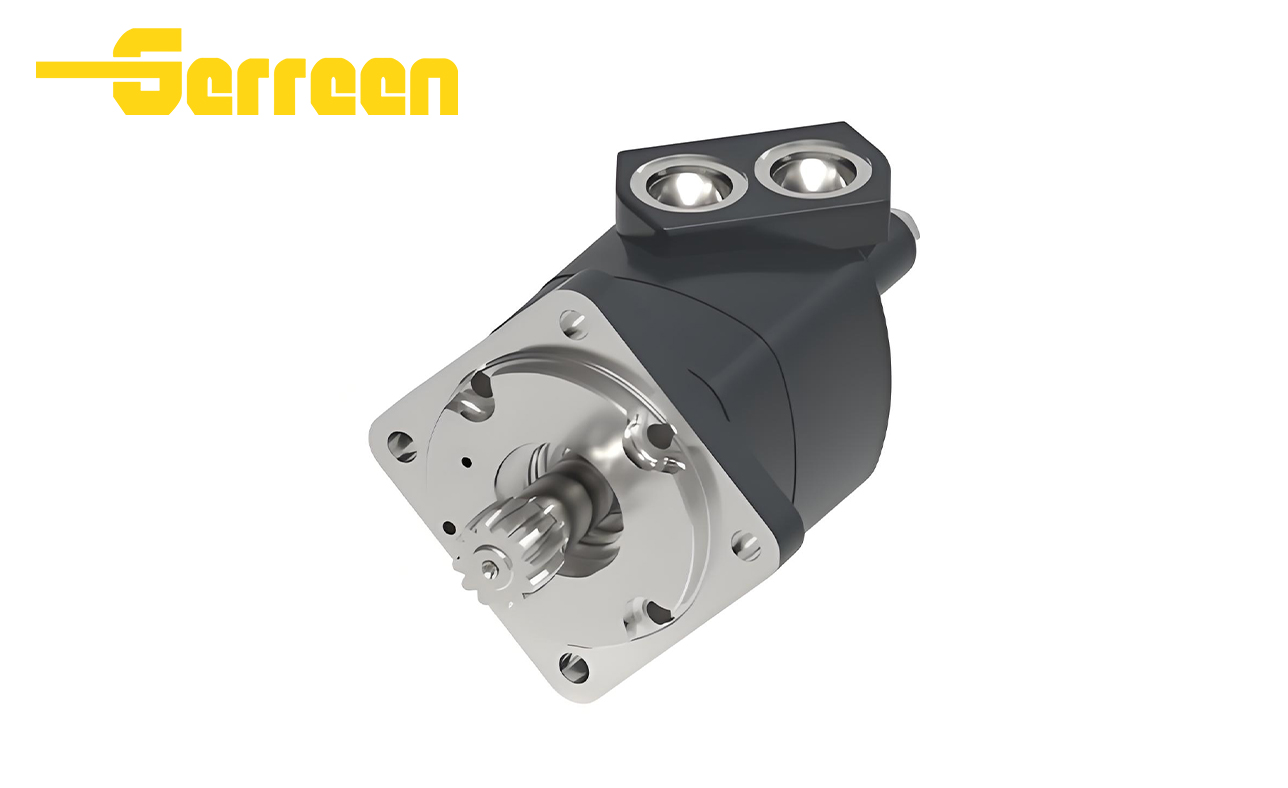

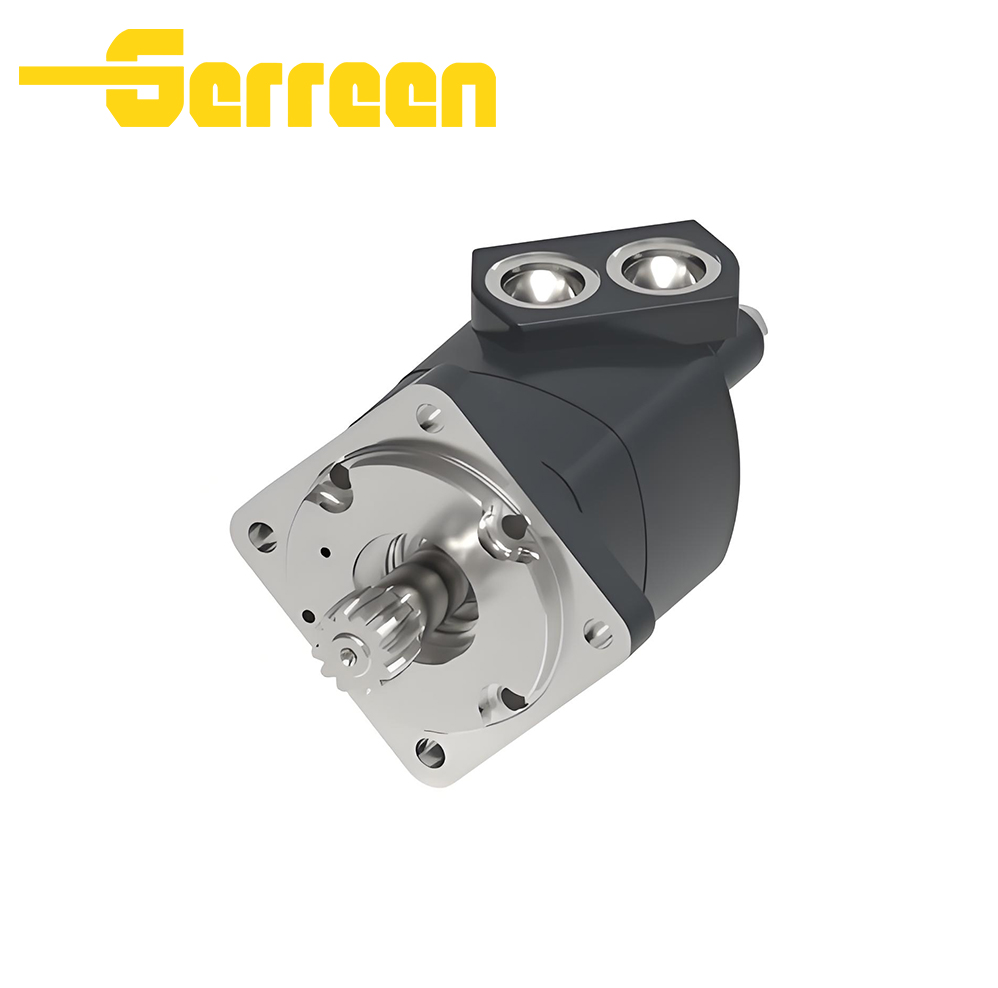

Motor Type: Low Speed High Torque (LSHT) Geroler Orbit Motor
Valve Structure: Precision disc valve with automatic wear compensation
Compatible: 100% interchangeable with Eaton Char-Lynn 6000 Series
Rotation: Bi-directional
Bearing System: Double tapered roller bearings (high radial & axial load capacity)
Pressure & Torque Performance
Continuous Pressure: 200 bar (3000 PSI)
Intermittent Pressure: 300 bar (4500 PSI)
Intermittent Torque: Up to 1875 Nm
Max Continuous Speed: 775 rpm
Max Continuous Flow: 150 L/min
310 / 390 / 500 / 630 / 800 / 1000 / 1250 / 1600 ml/r
High volumetric & mechanical efficiency, anti-crawling at ultra-low speed
Heavy-duty cast iron housing, durable for harsh working conditions
Applications
Agricultural machinery: rotary tillers, harvesters, hay balers, fertilizer spreaders, tractor auxiliary drives
Construction equipment: auger drills, small loaders, road sweepers, concrete mixers, road rollers
Forestry machines: log grapples, wood splitters, timber transport winches, brush cutters
Sanitation vehicles: street sweepers, garbage compactors, sewer cleaning equipment
Mining & port auxiliary gear: light-duty winches, conveyor rollers, underground small rotary devices
Special hydraulic tools: rotary actuators for drilling rigs, marine small propulsion units, lawn care machinery
Factory&FAQ
6000 Series Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the 6000 Series Orbit Motor?
Advanced disc valve design with built-in wear compensation, maintaining high efficiency after long heavy-duty running.
Double tapered roller bearings support extreme radial and axial loads, fit harsh heavy-load scenarios.
Smooth low-speed operation without crawling, precise rotation control for rotary working devices.
Wide displacement range and multiple shaft/flange/port options for flexible installation matching.
Fully interchangeable with Eaton Char-Lynn 6000 series, direct replacement without modification.
Thick cast iron housing and reliable high-pressure shaft seal to reduce oil leakage and extend service life.
3. What is the working pressure range of 6000 Series Orbit Motor ?
Continuous rated working pressure: 200 bar (3000 PSI)
Intermittent peak working pressure: 300 bar (4500 PSI)
4. Can 6000 Series Orbit Motor replace other brands?
It is fully dimensionally and structurally interchangeable with Eaton Char-Lynn 6000 series orbit motors, can be directly installed without modifying pipelines, mounting brackets or control systems.
It matches most same-spec LSHT geroler motors from mainstream hydraulic brands, including Danfoss, White, Parker equivalent 6000-type models with same displacement, flange and shaft configuration.
As long as displacement, mounting flange, shaft size and pressure rating are consistent, this motor works as a drop-in replacement to cut your maintenance and procurement cost.
Reminder: Confirm shaft spline type, port position and maximum working pressure before replacement to avoid mismatching.
6. What is the typical speed range of 6000 Series Orbit Motor ?
Max continuous operating speed: 775 rpm
Max intermittent short-time speed: 866 rpm
Stable low operating speed: 5–100 rpm (no crawling, smooth rotation)
7. Do you provide OEM or customized services?
MOQ reminder: Small MOQ is available for standard customized requests; special non-standard structure modifications require negotiated minimum order quantity.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
6000 Series Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
