TL Series
Green Hydraulic
TL Series
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description

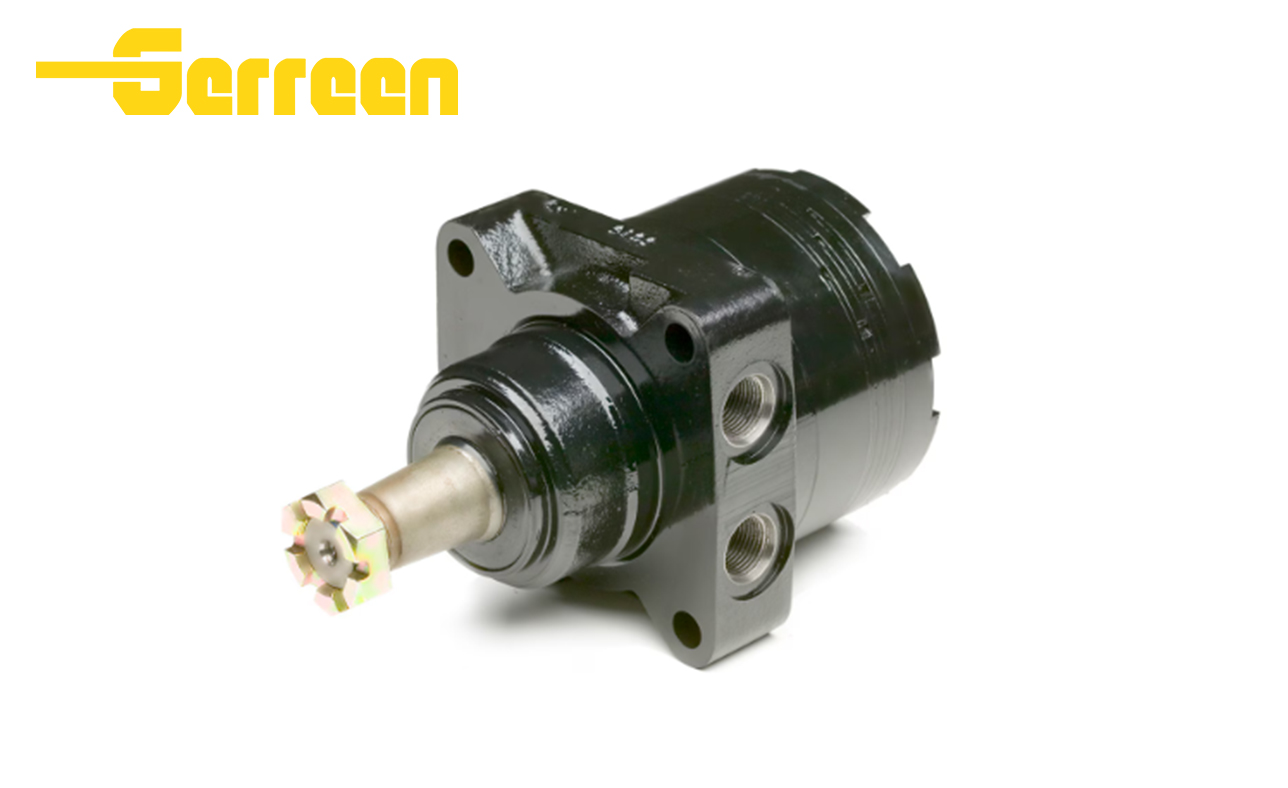

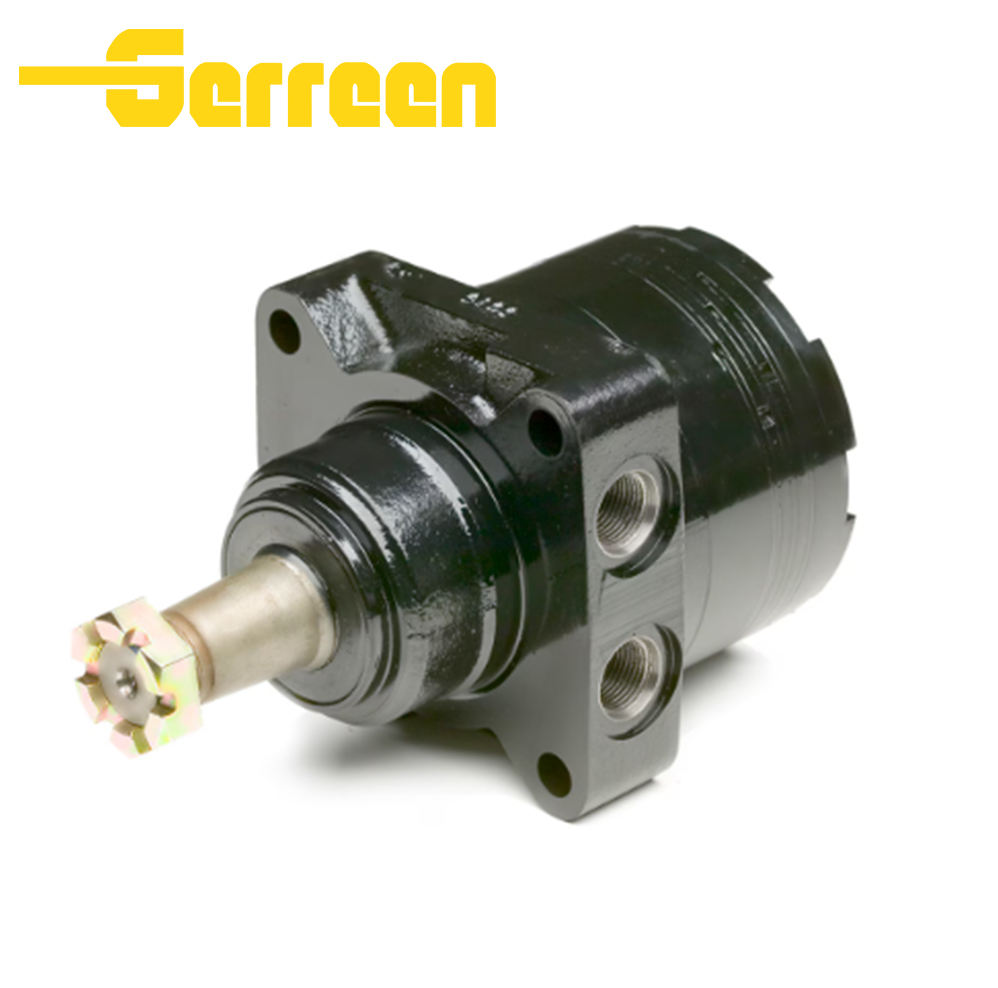

TL Series orbital hydraulic motor is a compact medium-duty Low Speed High Torque (LSHT) Geroler motor, shortened optimized structure based on TG series, saving installation space while maintaining stable power output.
It adopts reinforced roller gerotor assembly and integrated high-pressure shaft seal without extra case drain pipeline, with continuous spline oil flushing to reduce internal wear. Max intermittent pressure reaches 241 bar, dynamic side load capacity up to 16013 N, featuring ultra-smooth low-speed rotation, low vibration and high volumetric efficiency.
Multiple displacements, SAE flange & wheel hub mounting, key/spline shaft options support full interchange with Parker TL series, widely applied to turf equipment, agricultural machinery, aerial work platforms, small construction and transport vehicles.
Shortened compact body design, suitable for limited installation space
Reinforced roller gerotor minimizes friction loss, improves mechanical efficiency
Standard integrated high-pressure shaft seal, eliminates extra drain port & auxiliary piping
Built-in spline circulating oil lubrication system, greatly extend service life
Super strong radial side load bearing capacity, adapts to impact working conditions
Zero-leakage orbital commutator, stable torque output at ultra-low speed
Hardened core components & thick cast iron housing, outstanding wear & corrosion resistance
Full interchangeable with original Parker TL motors, no equipment modification needed
Specifications
Max continuous pressure: 172 bar (2500 PSI)
Max intermittent peak pressure: 241 bar (3500 PSI)
Max continuous flow: 151 LPM
Max intermittent flow: 255 LPM
Max allowable operating speed: 620 RPM
Max continuous torque: 778 N·m
Max intermittent peak torque: 1163 N·m
Max dynamic side load on shaft: 16013 N
Reinforced roller gerotor design, compact cast iron housing
Integrated high-pressure shaft seal, no separate case drain line required
Built-in spline circulating oil flushing for wear reduction
Applicable hydraulic oil viscosity: 20–43 mm²/s (50℃)
Required oil filtration standard: ≥20/18/15
Shaft types: 1-1/4" straight key shaft / multi-splined shaft
Port layout: side radial port / rear manifold port
Mount forms: standard SAE 4-bolt flange / wheel hub mount
Low vibration, stable bidirectional torque output
Standard warranty: 12 months under normal medium-load working conditions
Applications
Heavy-duty lawn mowers
Soil augers & aerators
Golf course maintenance machines
Leaf sweepers and road sweepers
Small combine harvesters
Grain & feed auger conveyors
Orchard rotary tillers
Mini irrigation drive units
Boom lift rotation drive motors
Scissor lift wheel travel motors
Auxiliary rotary devices for aerial work platforms
Mini post hole diggers
Small trenchers
Light-duty road rollers
Compact hydraulic winches
Conveyor belt drive motors
Wheel drive motors for small transport vehicles
Low-speed rotating auxiliary mechanisms
Factory&FAQ
TL Series Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the TL Series Orbit Motor ?
Compact shortened body design, perfectly fitting equipment with narrow installation space.
Reinforced roller gerotor structure cuts friction loss and delivers steady high torque at ultra-low speed.
Integrated high-pressure shaft seal removes extra drain ports and simplifies overall hydraulic piping layout.
Built-in spline circulating oil lubrication system effectively lowers internal abrasion and extends service life.
It bears up to 16013N radial side load, suitable for working conditions with moderate impact load.
Fully sealed commutator reduces internal leakage and improves volumetric efficiency.
Hardened core components and thick cast iron housing ensure low vibration, low noise and great wear resistance.
Various customizable shafts, ports and flanges enable direct interchange with original Parker TL orbit motors.
3. What is the working pressure range of TL Series Orbit Motor ?
The maximum continuous working pressure of TL Series Orbit Motor is 172 bar (2500 PSI).
Its maximum intermittent peak pressure can reach 241 bar (3500 PSI).
Long-term operation under intermittent peak pressure is not advised.
This practice can effectively prolong the motor’s service life.
4. Can TL Series Orbit Motor replace other brands?
Our TL series orbit motor is fully mechanically interchangeable with original Parker TL Torqmotor series. Same displacement, flange, shaft, port dimensions allow direct installation without equipment modification.
It matches the original pressure, torque and speed performance to meet the power demand of the host machine.
For other brands’ orbital motors, replacement is available after checking key parameters including displacement, mounting flange, shaft spline, working pressure and port layout. Custom shafts or flanges can be supplied if size mismatch occurs.
The built-in high-pressure shaft seal and spline oil flushing design keep consistent service life and reliability as imported original motors.
We offer customized mounting and shaft options to realize replacement for most mainstream medium-duty orbit motor brands in the market.
The maximum allowable operating speed of TL Series Orbit Motor is 620 RPM.
Its actual working speed depends on input flow and displacement.
It can run stably at ultra-low speed without obvious torque drop.
It maintains smooth rotation under low-speed heavy-load conditions.
7. Do you provide OEM or customized services?
Yes, we offer full OEM and customized services for TL Series orbit motors.
Multiple shaft choices: straight key shaft and multi-splined shaft are available.
Optional port layouts: side radial port or rear manifold port.
Standard SAE flange and wheel hub mount can be selected as required.
Extra accessories like built-in relief valve and anti-reverse valve can be equipped on demand.
Custom housing color, laser customer logo and neutral export packaging are supported.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
TL Series Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
