TC Series
Green Hydraulic
TC Series
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description

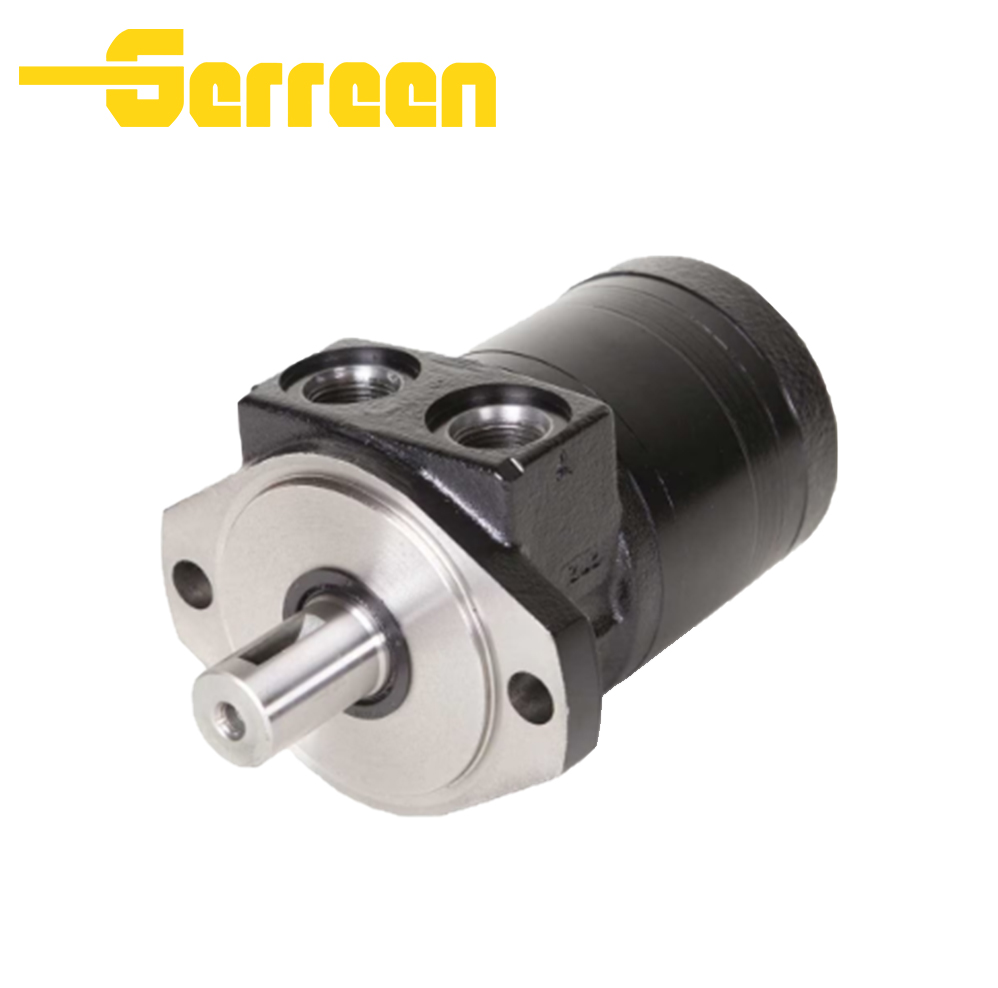

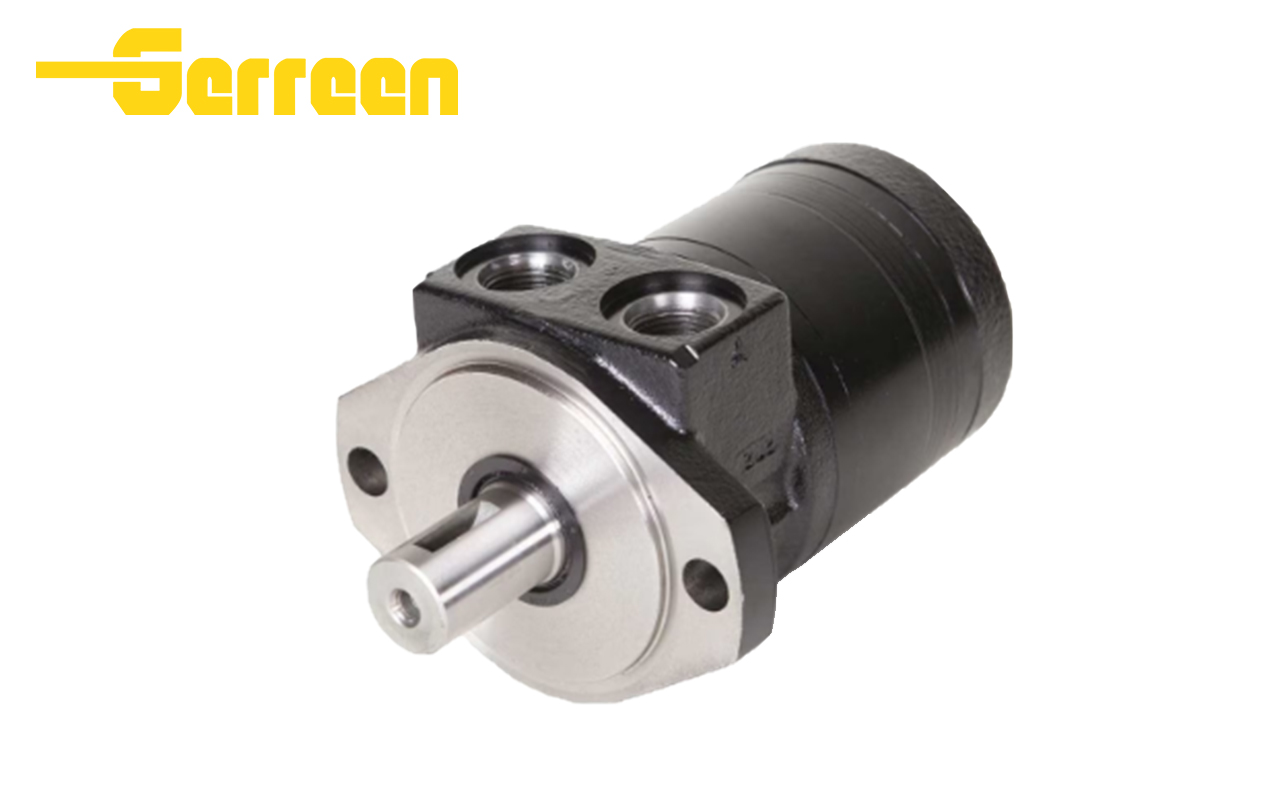

TC Series orbit motor is a compact LSHT (Low Speed High Torque) hydraulic orbital motor designed for light-duty mobile machinery. Built with roller gerotor set and sealed commutator, it delivers stable low-speed rotation, high volumetric efficiency and outstanding side load resistance. Multiple displacements from 36cc to 392cc are available, with sturdy cast iron housing and wear-resistant shaft bushings, realizing long service life under continuous working conditions. It features simple installation, smooth bidirectional rotation and wide speed regulation, perfectly matching agricultural equipment, small construction machines and conveying systems.
Roller stator-rotor structure reduces friction loss, improves starting efficiency and maintains steady torque at ultra-low speed
Reinforced sintered metal bushings support large radial side loads, effectively resisting impact load during operation
Integrated sealed flow distribution design minimizes internal leakage, high efficiency and low energy consumption
Compact lightweight structure, saves installation space, easy to replace and maintain
Wide displacement range, customizable shaft, port and mounting flange options
Stable bidirectional output torque, stepless speed control, low vibration & noise
Hardened core components, anti-corrosion housing, adapts to dusty, humid outdoor working environments
Specifications
Applications
Mini transport vehicles, marine small propeller drives, light lifting rotary mechanisms
Factory&FAQ
TC Series Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the TC Series Orbit Motor ?
Roller gerotor structure cuts friction loss, delivering stable torque at ultra-low speed and high starting efficiency.
Reinforced sintered bushings support heavy side loads and resist impact during operation.
Sealed flow distribution design lowers internal leakage for high efficiency and low energy consumption.
Compact cast iron housing saves installation space with easy maintenance.
Multiple customizable options for shaft, ports and flanges to match diverse machinery demands.
Low vibration, low noise and bidirectional steady rotation for long service life outdoors.
3. What is the working pressure range of TC Series Orbit Motor ?
Max continuous working pressure is 121 bar (1750 PSI)
4. Can TC Series Orbit Motors replace other brands?
Identical mounting flange, shaft size, port layout and displacement specifications, which allows direct installation without modifying machine frames or hydraulic pipelines.
Matching pressure, torque and speed performance parameters, capable of meeting the same power output requirements of agricultural, municipal and small construction equipment.
Customizable shafts, oil ports and reinforced flanges are available to match special brand original models.
Note: For heavy-duty high-pressure continuous operation scenarios, confirm original motor pressure ratings first to select matched TC displacement models for stable long-term replacement.
6. What is the typical speed range of TC Series Orbit Motors ?
The maximum allowable speed of TC Series orbit motors is 900 RPM.
The regular working speed range for daily equipment operation is 10–600 RPM.
Stable low-speed high-torque output can be maintained within this interval.
7. Do you provide OEM or customized services?
Yes, we support OEM and customized services for TC series orbit motors.
Customizable shafts: straight key shaft and splined shaft optional.
Optional port types: side port and rear port.
Standard or reinforced mounting flanges are available to choose.
Built-in relief valve and anti-backflow structure can be equipped as required.
Custom logo, outer packaging and color are acceptable.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
TC Series Orbit Motors are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
