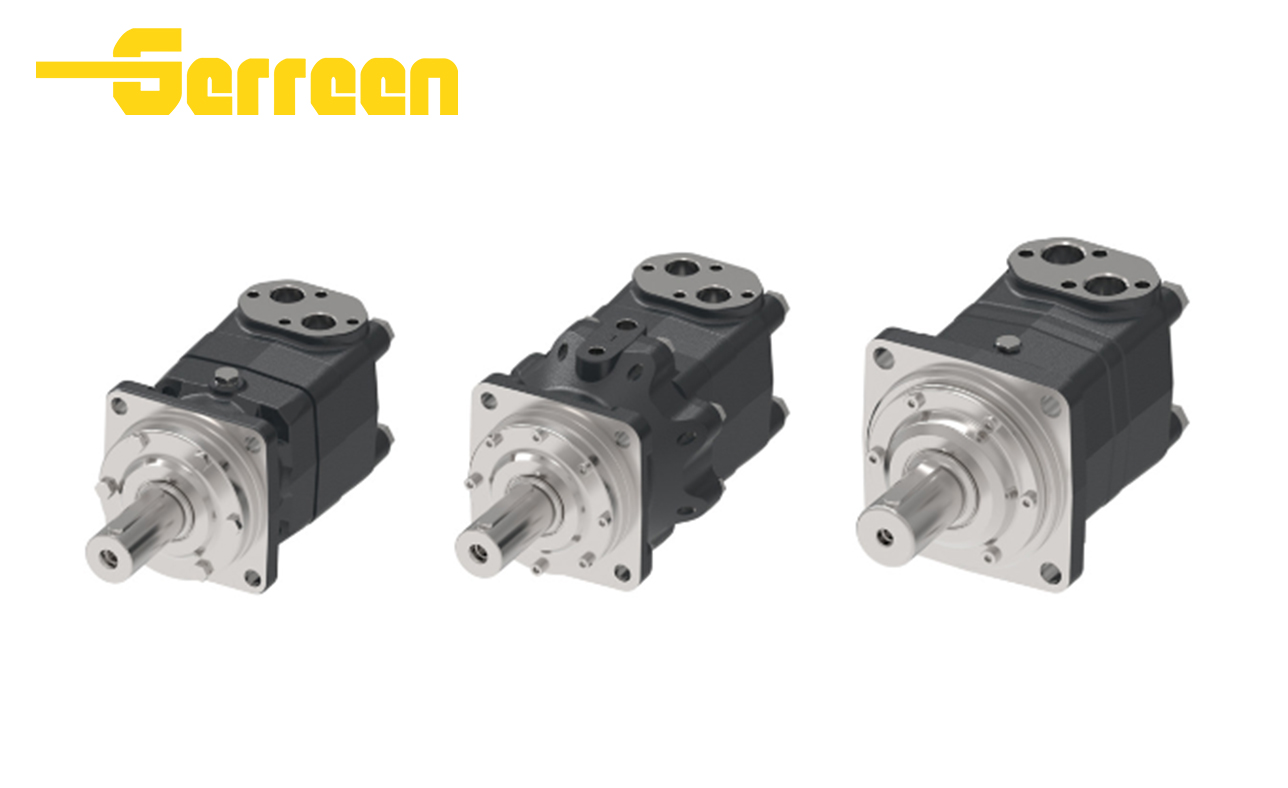

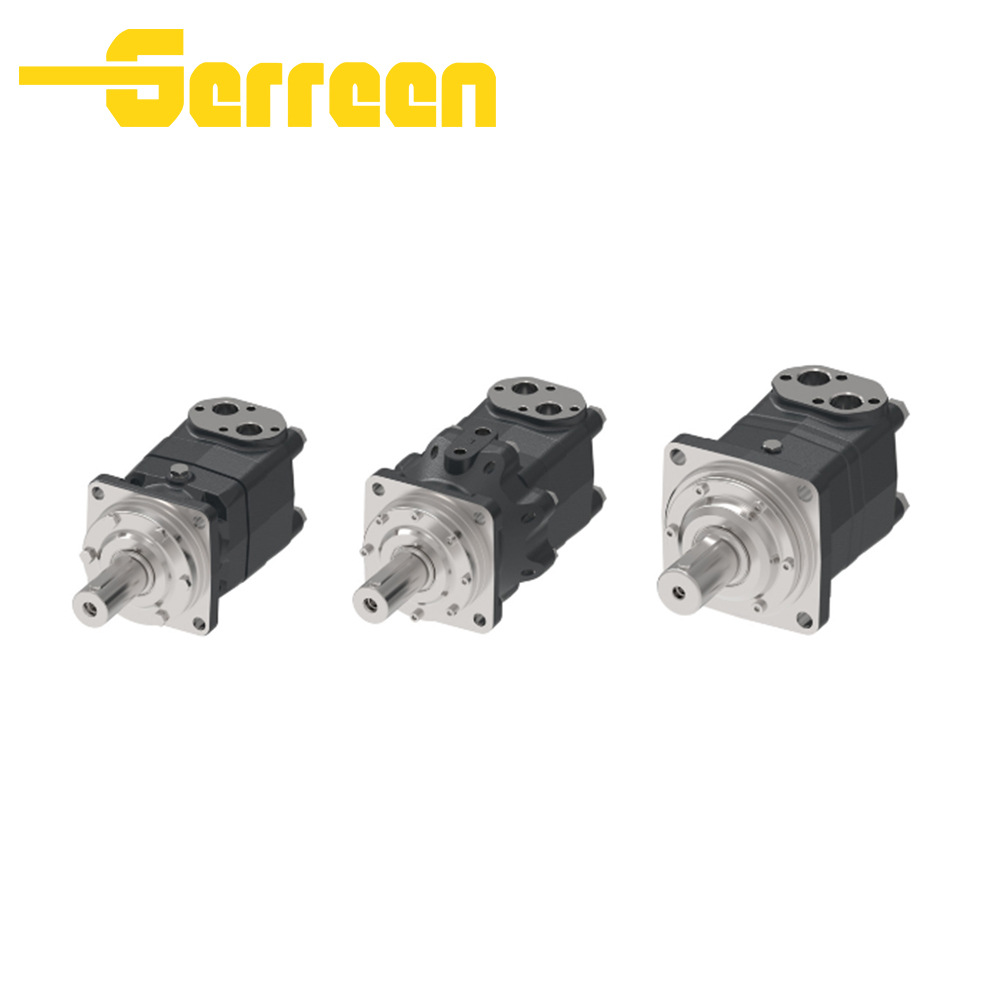

OMT OMV Series Orbital Motors OVERVIEW

Features and Benefits

• Extra Large Output Torque

  Larger geroller rotor assembly generates massive constant torque, ideal for heavy wheel drive, large winches and heavy slewing mechanisms.

• Heavy-Duty Reinforced Structure

  Thickened ductile iron housing + double-row tapered roller bearings withstand heavy radial impact loads, no extra reducer required for heavy loads.

• Stable Low-Speed Performance

  Disc valve with automatic wear compensation eliminates low-speed jitter; smooth bi-directional rotation even under extreme heavy load.

• High Pressure Resistance

  Max continuous working pressure 210 bar, intermittent peak pressure up to 275 bar, fits high-pressure hydraulic systems.

• Complete Modular Customization

  Multiple flanges, port layouts, spline shafts, optional integrated multi-disc brake and speed sensor; OEM logo & custom packaging supported.

• Perfect Interchangeability

  Identical mounting dimensions, port positions and performance parameters with Danfoss OMT/OMV series, direct plug-and-play replacement.

Specifications OMT OMV Series Orbital Motors

Applications

Packaging & Delivery

OMT OMV Series Orbital Motors are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

OMT OMV Series Orbital MotorsFAQ:

1. What is the OMT OMV Series Orbital Motors ?

• Heavy-duty reinforced structure: Thickened ductile iron housing + double-row tapered roller bearings for huge radial loads, suitable for heavy wheel and winch drive without extra reducers.

• Disc valve with auto wear compensation: Stable volumetric efficiency, smooth low-speed rotation without crawling under heavy loads.

• High pressure resistance: 210 bar continuous pressure, peak 275 bar, fits heavy high-pressure hydraulic circuits.

• Large displacement & ultra-high torque: OMT 160–500cc, OMV 315–800cc, maximum torque up to 1950 N·m.

• Full interchangeability: 1:1 match Danfoss OMT/OMV, modular flanges, shafts and optional integrated brakes.



3. What is the working pressure range of OMT OMV Series Orbital Motors ?

4. Can OMT OMV Series Orbital Motors replace other brands?

Our OMT & OMV heavy-duty orbital motors serve as cost-effective direct replacements for multiple well-known hydraulic brands:

1. Sauer Danfoss OMT & OMV Series (Primary Matching Model)

   All displacement ranges (OMT 160–500cc, OMV 315–800cc) share identical flange hole spacing, oil port layout, spline shaft size and pressure/torque parameters with original Danfoss OMT/OMV motors. Plug-and-play installation without cutting hoses or reworking equipment frames, ideal for machine repair and aftermarket upgrades.

2. Eaton Char-Lynn 6000 Heavy-Duty Series

   They match the outline, load capacity and working pressure of Eaton 6000 orbital motors, widely substituted on large harvesters, heavy rollers and industrial winches.

3. Other Interchangeable Brands

   Also fully compatible with M+S MT/MLHT & MV/MLHV series, White heavy-duty orbital motors. Consistent torque, speed and pressure performance fits all heavy mobile machinery.

Core Interchange Advantages

• Uniform overall outline, mounting flange and output spline standards

• Matched continuous 210 bar & peak 275 bar pressure performance

• Optional integrated brake, speed sensor and port layouts to match original factory configurations

• Shorter lead time and lower cost compared with imported original motors

5. What hydraulic oil is recommended for OMT OMV Series Orbital Motors ?

• Premium anti-wear mineral hydraulic oil ISO VG32 (HM/AW32) or ISO VG46 (HM/AW46) is the standard recommended fluid for OMT & OMV heavy-duty orbital motorsassets.dan....

• • ISO VG46 is the universal first choice for heavy-load, high-temperature construction, forestry and large agricultural machinery.

  • ISO VG32 fits mild climate and medium-load equipment.

    Oil cleanliness must reach ISO 4406 22/20/16 (NAS 8) or higher.

6. What is the typical speed range of OMT OMV Series Orbital Motors ?

• Low-speed limit

  OMT minimum stable speed is 10 rpm; OMV ultra-large displacement motors reach 8 rpm. Both maintain steady torque without jitter even under full heavy load, perfect for heavy wheel hubs, large winches and heavy slewing drives.


• Maximum continuous rated speed
  OMT (160–500cc/rev): Max continuous speed 1600 rpm; short intermittent speed up to 1800 rpm
  OMV (315–800cc/rev): Max continuous speed 1400 rpm; short intermittent speed up to 1600 rpm

• Do not run continuously above the rated max speed, otherwise overheating and accelerated wear of internal geroller and bearings will occur.

• Practical common working speed

  For heavy agricultural, construction and forestry machinery, long-term stable operating speed usually falls within 30–800 rpm. Larger displacement OMV models mostly work below 500 rpm for maximum torque output.



8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

OMT OMV Series Orbital Motors are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
