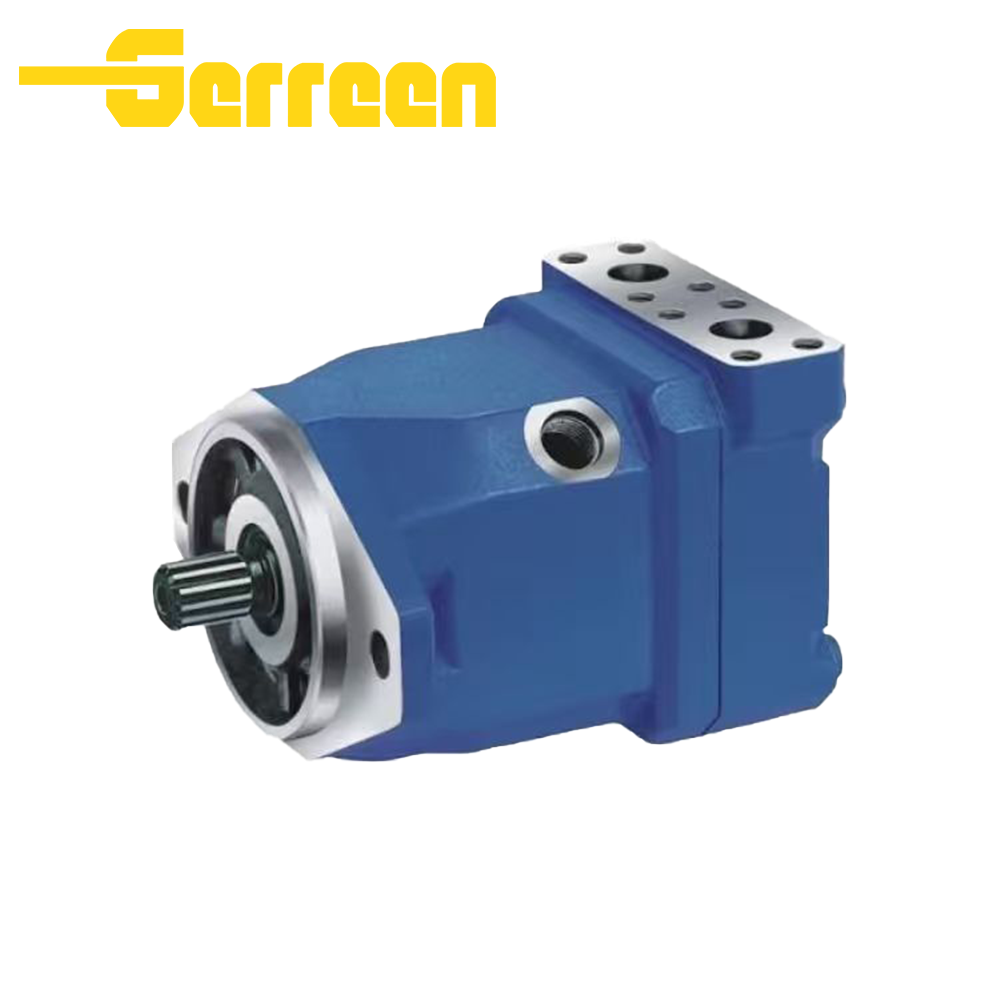

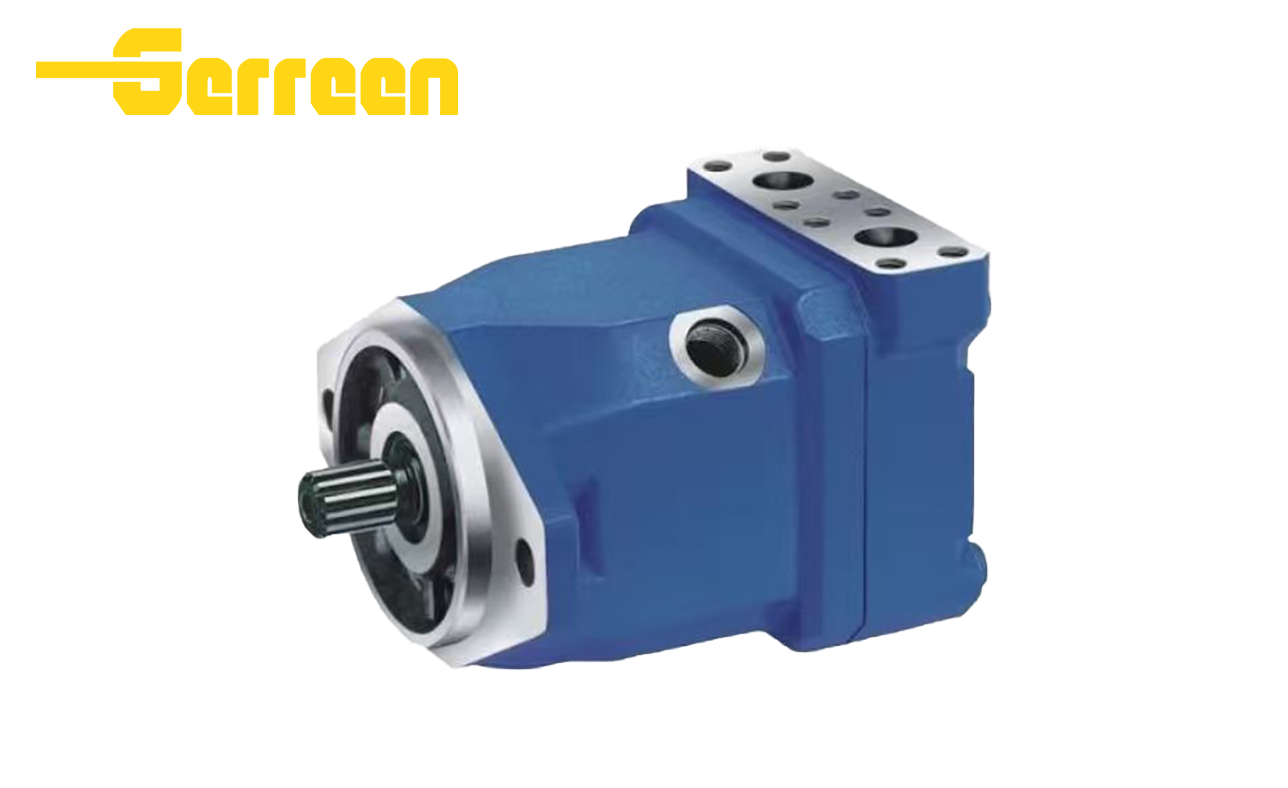

A10FM63 A10FM80 A10FM90 Hydraulic Motor OVERVIEW

Features and Benefits

• OEM Interchangeability: Strictly follow Rexroth original dimensional standards, perfect fit for equipment overhaul replacement.

• High Pressure Resistance: 280bar continuous working pressure, reliable under heavy-duty construction working conditions.

• High Speed & Low Noise: Optimized piston and swashplate friction pair, low vibration, stable fan speed control.

• Compact Layout: Small volume with high power density, easy installation in limited engine compartment space.

• Long Service Life: Quenched alloy steel core components, low internal leakage, excellent efficiency under partial and full load.

• Complete Customization: Support OEM logo, special spline shafts, customized port connectors and neutral packaging.

Specifications A10FM63 A10FM80 A10FM90 Hydraulic Motor

Applications

Packaging & Delivery

A10FM63 A10FM80 A10FM90 Hydraulic Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A10FM63 A10FM80 A10FM90 Hydraulic Motor FAQ:

1. What is the A10FM63 A10FM80 A10FM90 Hydraulic Motor ?

• A10FM63/A10FM80/A10FM90 adopt mature swashplate fixed axial piston structure with proven A10 rotary group technology.

• High pressure resistance: 280 bar nominal continuous pressure, 350 bar peak pressure, stable under heavy construction loads.

• Ultra-high speed performance: Max 3000–5000 rpm, specially optimized for radiator fan drive, smooth and low-noise operation.

• Wide circuit compatibility: Fits both open and closed hydraulic circuits, bidirectional rotation available.


• Optional practical functions: Built-in anti-cavitation valve, speed sensor interface for fan systems.

• Durable & easy maintenance: Hardened alloy steel core wear parts, long service life; full interchangeable with original Rexroth A10FM series, complete spare parts supply for overhaul.


• Customizable service: Support OEM logo, special spline shafts and neutral packaging.



3. What is the working pressure range of A10FM63 A10FM80 A10FM90 Hydraulic Motor ?

4. Can A10FM63 A10FM80 A10FM90 Hydraulic Motor replace other brands?

• Our A10FM63, A10FM80, A10FM90 hydraulic motors are fully dimensionally interchangeable with original Bosch Rexroth A10FM Series 52 motors of the same displacement, no modification required for direct replacement.

• Equivalent replacement: It can substitute domestic copy A10FM fan motors with identical flange, spline shaft, displacement and pressure parameters.

• Not directly interchangeable: Cannot replace motors of different structures or mounting standards, such as A2FM, A6VM, bent-axis piston motors, Eaton fan motors, Kawasaki fan motors and orbital gerotor motors.

  If you provide the original part number and equipment model, we can verify matching specifications to realize seamless replacement.

5. What hydraulic oil is recommended for A10FM63 A10FM80 A10FM90 Hydraulic Motor ?

• We recommend ISO VG32 or ISO VG46 anti-wear hydraulic oil for A10FM63, A10FM80, A10FM90 hydraulic motors.

• Working viscosity range: 10–100 mm²/s, operating temperature from -20℃ to +80℃.

• Standard motors adopt NBR seals; Viton fluorine rubber seals are optional for high-temperature environments. Keep hydraulic oil clean to reduce wear of piston components and extend service life.

6. What is the typical speed range of A10FM63 A10FM80 A10FM90 Hydraulic Motor ?

• The typical working speed range of A10FM63 / A10FM80 / A10FM90 hydraulic motors is 500 ~ 5000 rpm.

• The recommended stable operating speed for radiator fan drive is 1500 ~ 3000 rpm.

• Do not run continuously at the maximum 5000 rpm for a long time to avoid accelerated wear of internal rotary parts.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A10FM63 A10FM80 A10FM90 Hydraulic Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
