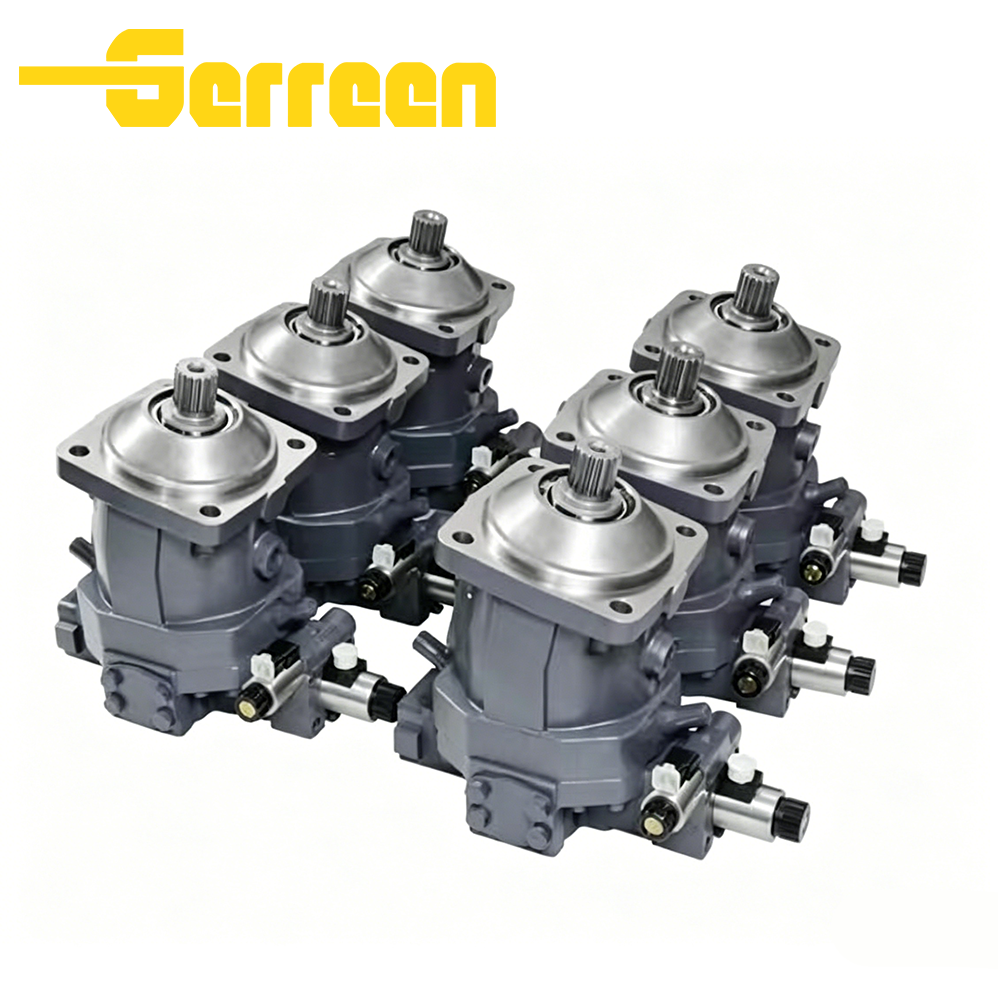

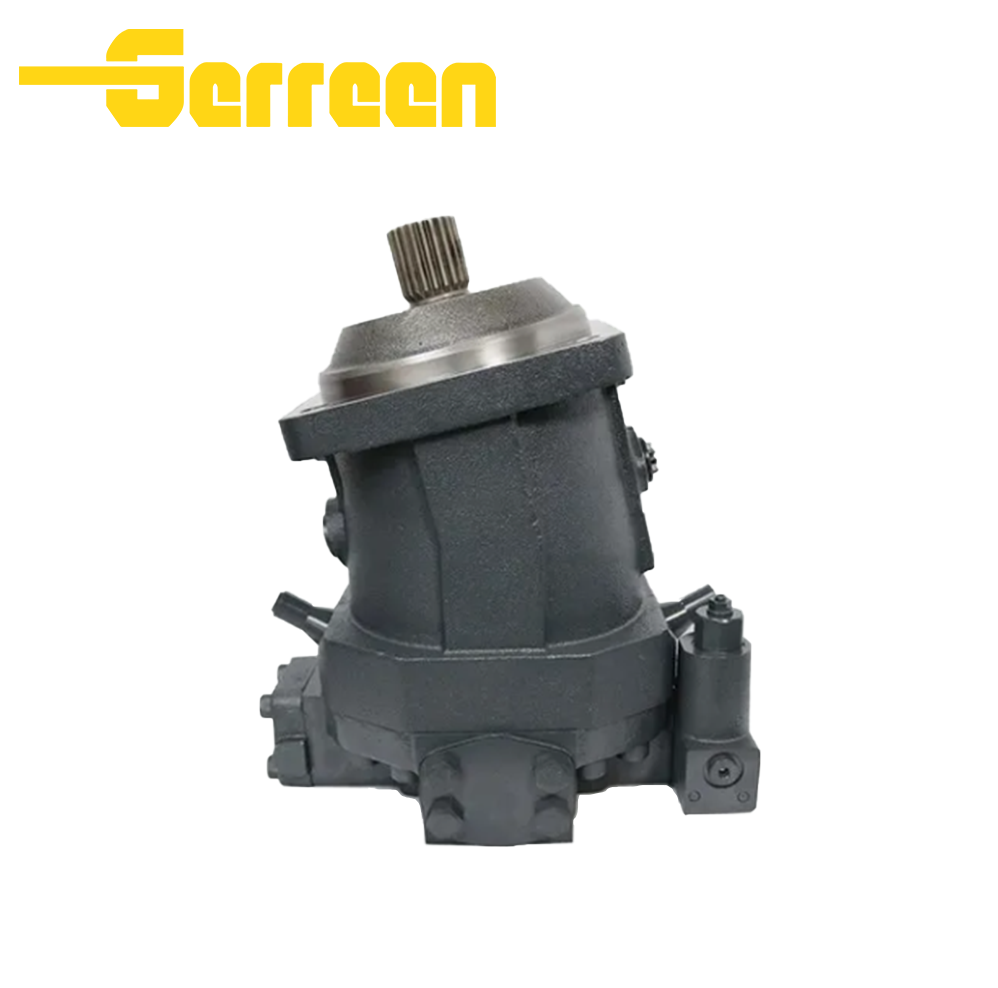

A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor OVERVIEW

Features and Benefits

• Complete displacement lineup: 85, 107, 115, 160, 170 cc/rev to match different power & torque demands

• Bent-axis design, high mechanical efficiency, strong low-speed high-torque performance

• Full variable displacement (0~max cc/rev), stepless speed regulation without extra transmission

• Multiple control types available: HD, EP, DA, HV, HA for different operation logic

• Identified mounting size, spline shaft and oil port layout with original Rexroth A6VM motors, zero modification for replacement

• Wear-resistant valve plate and piston assembly, excellent anti-pollution capacity, long service life

• Low vibration and noise during continuous heavy-duty operation

Specifications A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor

Applications

Packaging & Delivery

A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor FAQ:

1. What is the A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor ?

• Complete bent-axis variable motor lineup with 5 displacements (85/107/115/160/170cc/rev), matching different torque and power requirements of heavy machinery.

• Excellent low-speed high-torque performance, stepless displacement adjustment from maximum to zero for flexible speed control.

• Rated working pressure up to 400 bar and peak pressure 450 bar, capable of long-term continuous heavy-duty operation.

• Multiple optional control modes including HD, EP, DA, HA to meet diverse working logic of construction, agricultural and mining machines.

• Fully interchangeable mounting dimensions, spline shaft and oil ports with original Rexroth A6VM motors, no mechanical modification needed during replacement.

• Wear-resistant valve plate and piston assembly, strong anti-pollution capacity, extending service life under dusty harsh working environments.

• Low vibration and noise, high mechanical & volumetric efficiency to reduce equipment energy consumption.



3. What is the working pressure range of A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor ?

4. Can A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor replace other brands?

Yes, this A6VM85/107/115/160/170 variable piston motor can fully replace original Rexroth A6VM motors of matching specifications.
1. Identical mounting flange, spline output shaft, oil port layout and overall external dimensions, no mechanical modification required during replacement.

2. Consistent pressure, torque, displacement and control performance, perfectly compatible with the original closed/open hydraulic drive systems of construction, agricultural and mining machinery.

3. Multiple control valve options (HD, EP, DA, HA) match the original control functions completely.
Limitations:It cannot replace hydraulic motors of different series (such as A6VE, A2FM) or other brands with inconsistent structural sizes and internal parameters.

5. What hydraulic oil is recommended for A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor ?

• Recommended hydraulic oil type: Anti-wear mineral hydraulic oil that complies with ISO standard.

• Preferred viscosity grades: ISO VG46, ISO VG68 anti-wear hydraulic oil.

• Working kinematic viscosity range: 16 ~ 36 mm²/s under normal operating temperature; cold startup allowable viscosity up to 1000 mm²/s.

• Temperature requirement: Continuous working oil temperature -20℃ ~ +80℃, transient peak temperature ≤95℃.

• Cleanliness standard: Oil cleanliness must reach ISO 4406 class 20/18/15 or higher to protect piston and valve plate friction pairs.

• Extra requirement: The oil shall contain anti-wear, anti-oxidation and anti-rust additives.

6. What is the typical speed range of A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor ?

• Minimum stable operating speed: ≤100 rpm, outstanding low-speed torque output without crawling.

• Maximum continuous rated speed:

• A6VM85 / A6VM107 / A6VM115: up to 3000 rpm

• A6VM160 / A6VM170: up to 2600 rpm

• Rotation feature: Bi-directional rotation (clockwise & counterclockwise) by switching oil supply ports.

• Note: Avoid long-term operation exceeding the maximum continuous speed to extend service life.



8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A6VM85 A6VM107 A6VM115 A6VM160 A6VM170 Axial Piston Variable Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
