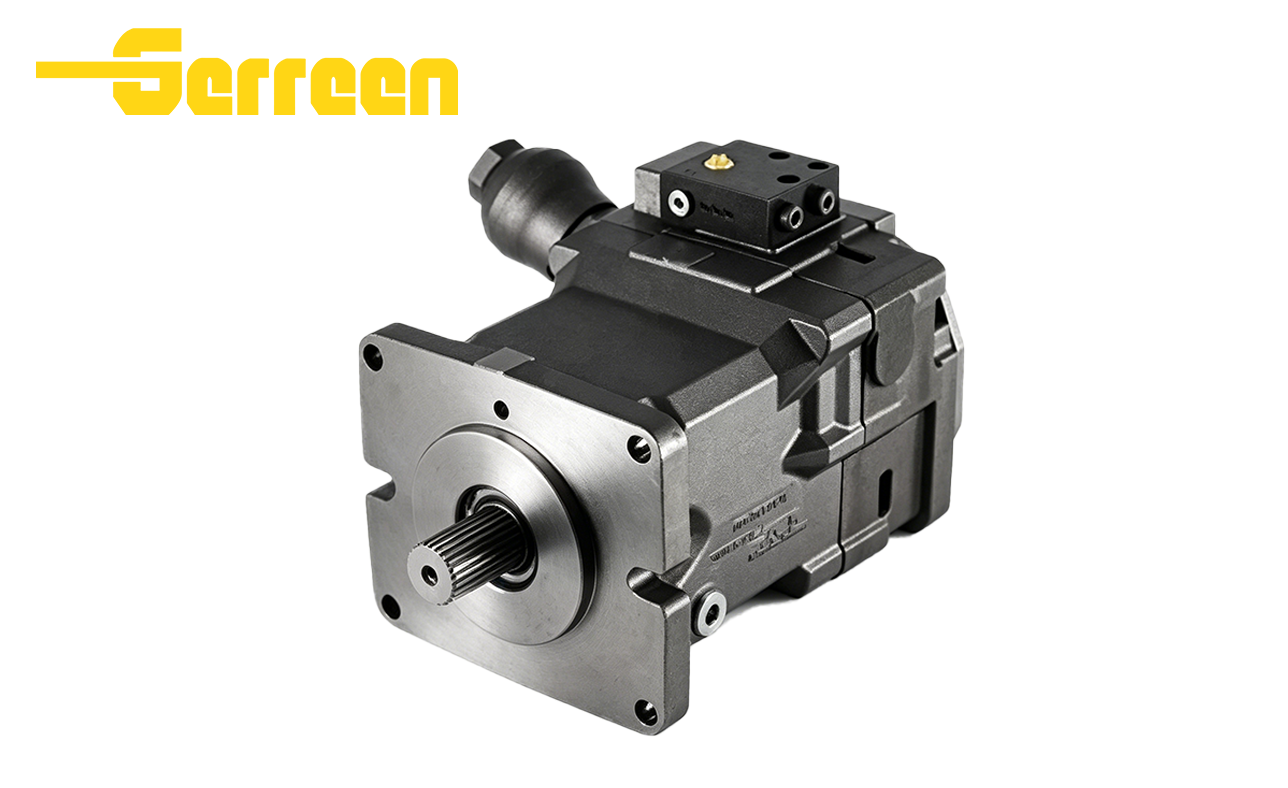

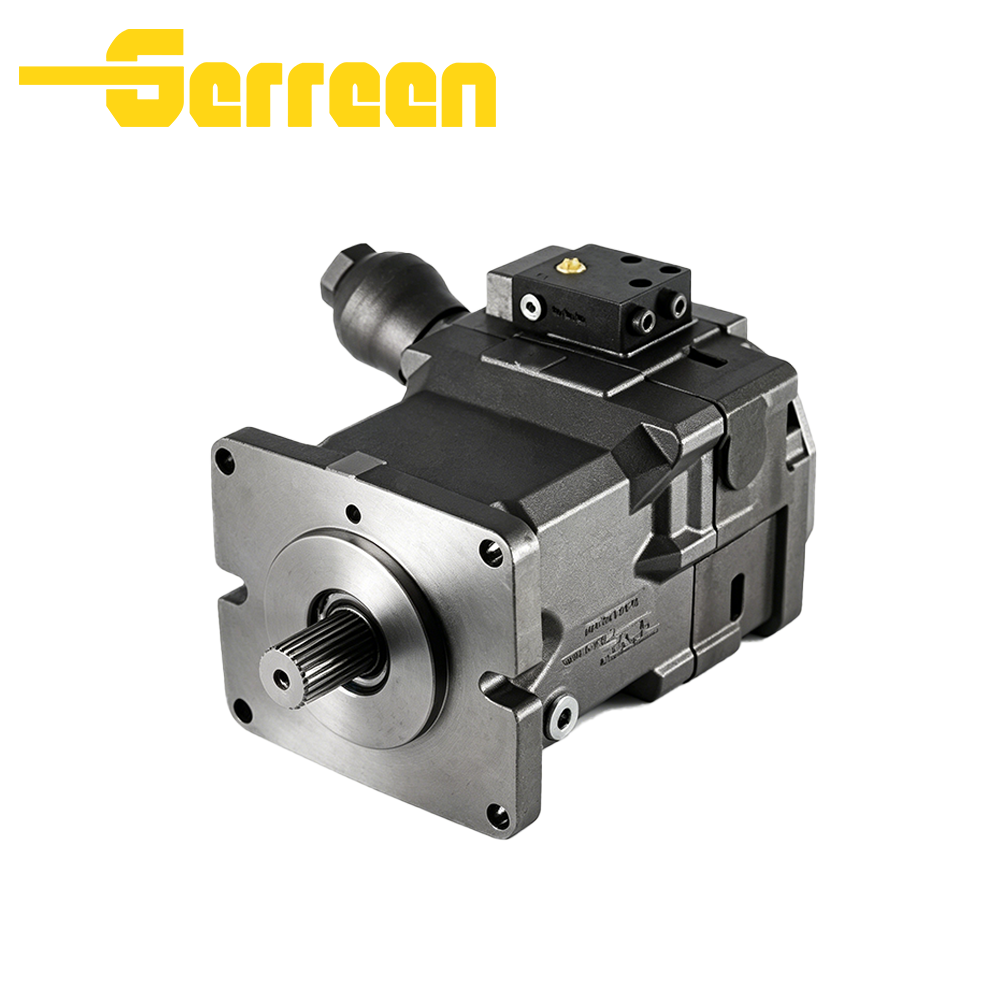

HPV055 HPV075 High Pressure Piston Pump OVERVIEW

Features and Benefits

• Heavy cast iron housing improves high-pressure resistance and shock resistance.

• Variable displacement design allows flexible flow adjustment to save energy.

• Precision matching components reduce internal leakage and raise working efficiency.

• Multiple control options fit different walking transmission systems.

• Low vibration and low noise for long continuous operation.

• Standard installation dimensions enable direct replacement of original pumps.

• Two displacement models: HPV055 and HPV075 to meet different power demands.

Specifications HPV055 HPV075 High Pressure Piston Pump

• Product Type: Variable Displacement Axial Piston Pump

  Design: Swashplate design for closed-loop high-pressure hydrostatic systems

  Rotation: Bi-directional (clockwise / counter-clockwise)
• Displacement

  HPV055: 55 cm³/rev

  HPV075: 75 cm³/rev
• Pressure

  Rated Continuous Pressure: 420 bar (6090 PSI)

  Peak Intermittent Pressure: 480 bar (6960 PSI)

  Charge Pressure: 20–30 bar
• Speed

  HPV055 Max Continuous Speed: 3500 rpm

  HPV075 Max Continuous Speed: 3200 rpm
• Control Options

  Mechanical control, hydraulic servo control, electro-hydraulic proportional control

  With pressure cut-off and torque limiting functions
• Structure & Installation

  Housing: High-strength cast iron

  Mounting: Standard SAE flange

  Shaft: SAE spline shaft

  Integrated charge pump, relief valves and replaceable filter cartridge

  Through shaft design available for tandem pump assembly
• Net Weight

  HPV055: 39 kg

  HPV075: 44.5 kg
• Recommended Hydraulic Oil: ISO VG 46 anti-wear hydraulic fluid

  Working Temperature: -20℃ ~ +85℃

Applications

Packaging & Delivery

HPV055 HPV075 High Pressure Piston Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

HPV055 HPV075 High Pressure Piston Pump FAQ:

1. What is the HPV055 HPV075 High Pressure Piston Pump ?

• It adopts swashplate axial piston structure with heavy-duty cast iron housing, supporting stable high-pressure operation with low internal leakage.

• It has load-independent control, including mechanical, hydraulic and electro-hydraulic proportional options, with fast response and accurate flow regulation.

• Built-in charge pump, high-pressure relief valves and replaceable filter ensure reliable protection for closed-loop hydrostatic systems.

• Compact layout and high power density make it fit well on harvesters, road rollers and crawler loaders.

• Identical mounting dimensions allow direct replacement of original Linde pumps without system modification.



3. What is the working pressure range of HPV055 HPV075 High Pressure Piston Pump ?

• Continuous rated working pressure: 420 bar (6090 PSI)

• Peak transient pressure: 480 bar (6960 PSI)

• Charge pump loop pressure: 20 ~ 30 bar (290 ~ 435 PSI)

4. Can HPV055 HPV075 High Pressure Piston Pump replace other brands?

• We recommend ISO VG 46 anti-wear hydraulic oil (L-HM46) for HPV055 and HPV075 piston pumps, which meets the requirements of closed-loop high-pressure hydrostatic systems.

• Operating viscosity range: 10 ~ 160 mm²/s; the optimal working viscosity is 30 mm²/s at operating temperature.

• The oil must contain anti-wear, anti-rust, anti-oxidation, anti-foam and air release additives. Water-glycol fluids are not allowed.

• System oil cleanliness should reach ISO 18/16/13 with a 10-micron return filter to extend pump service life.

6. What is the typical speed range of HPV055 HPV075 High Pressure Piston Pump ?

• HPV055:Continuous operating speed: up to 3500 rpmMaximum intermittent speed: 3900 rpmMinimum stable working speed: 500 rpm
• HPV075:Continuous operating speed: up to 3200 rpmMaximum intermittent speed: 3400 rpmMinimum stable working speed: 500 rpm
• Recommended economic working range: 1800 ~ 2600 rpm for long service life.

7. Do you provide OEM or customized services?

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

HPV055 HPV075 High Pressure Piston Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
