90R075 90L075 Series Hydraulic Pump And Parts OVERVIEW

The 90R075 and 90L075 are 75cc swash plate variable axial piston pumps specially designed for closed hydrostatic drive systems. Built with an integrated charge pump, they deliver makeup oil, cooling flow and control pressure for displacement adjustment, supporting stable bidirectional operation.

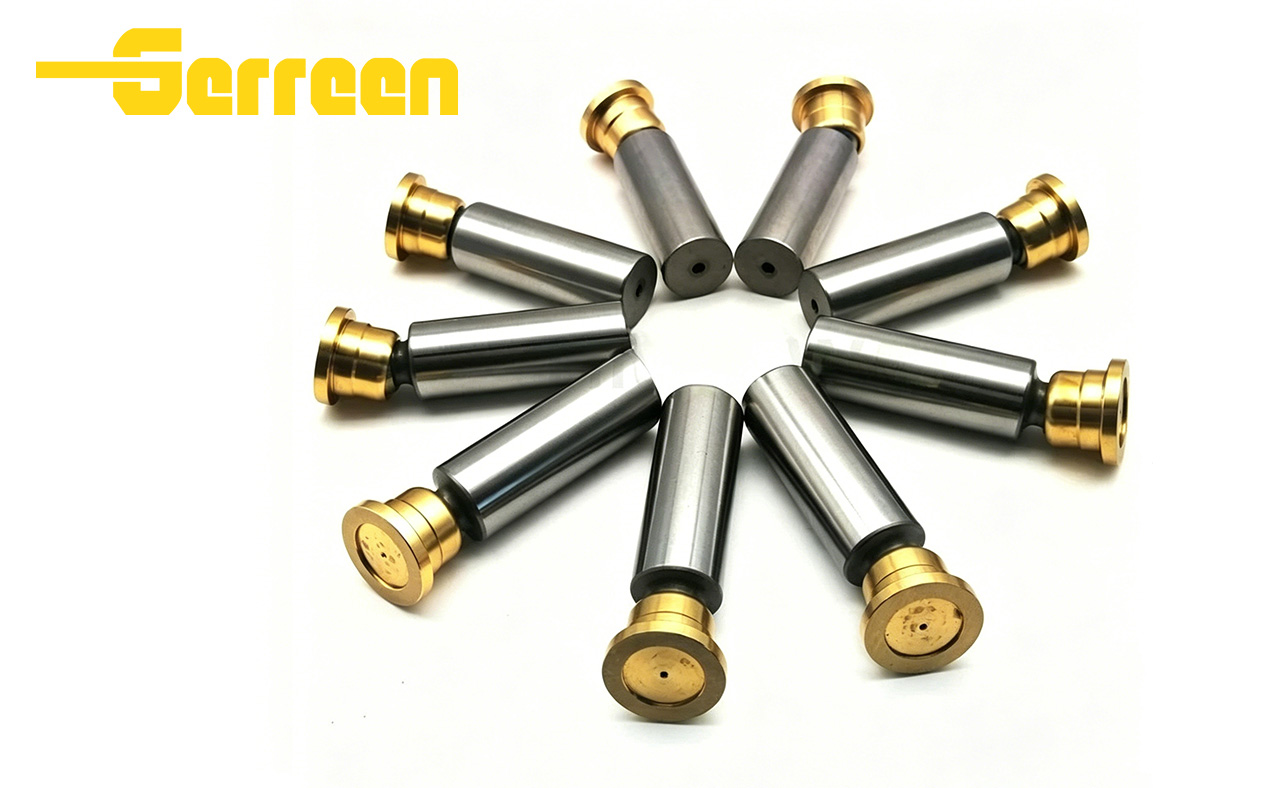

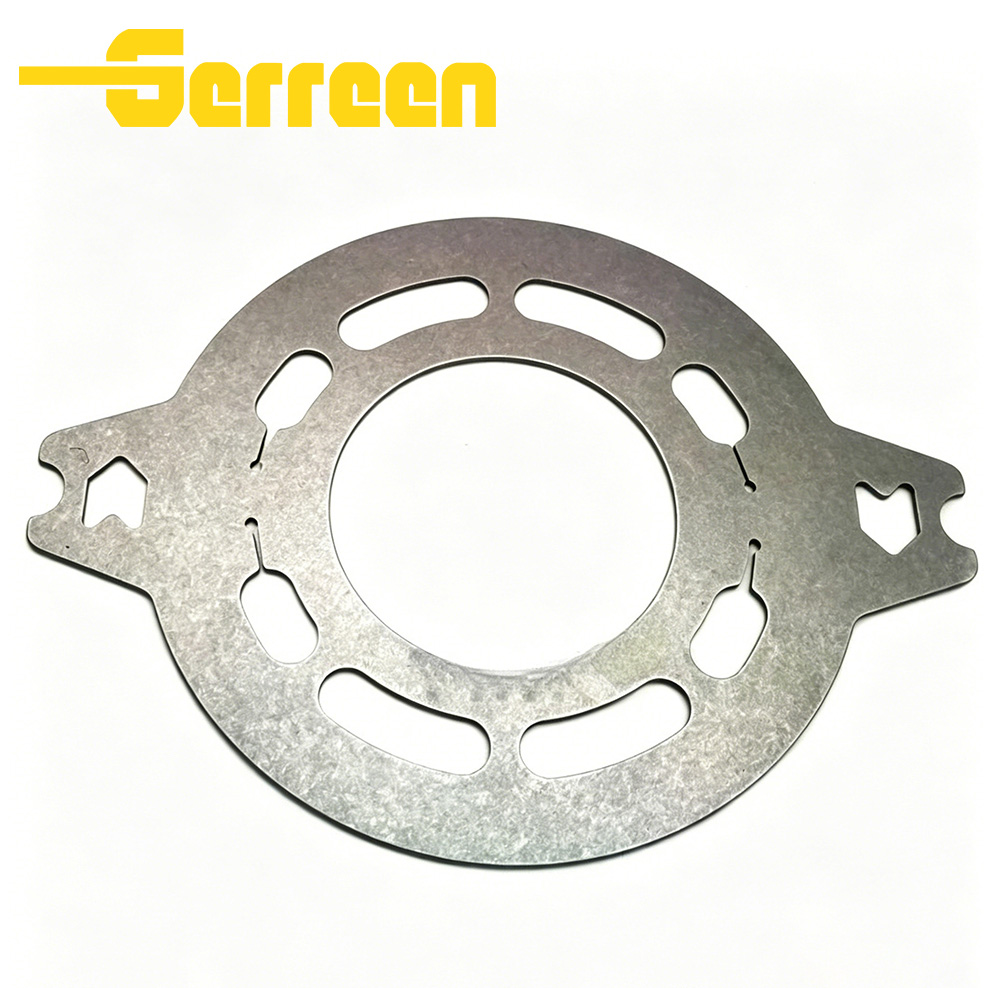

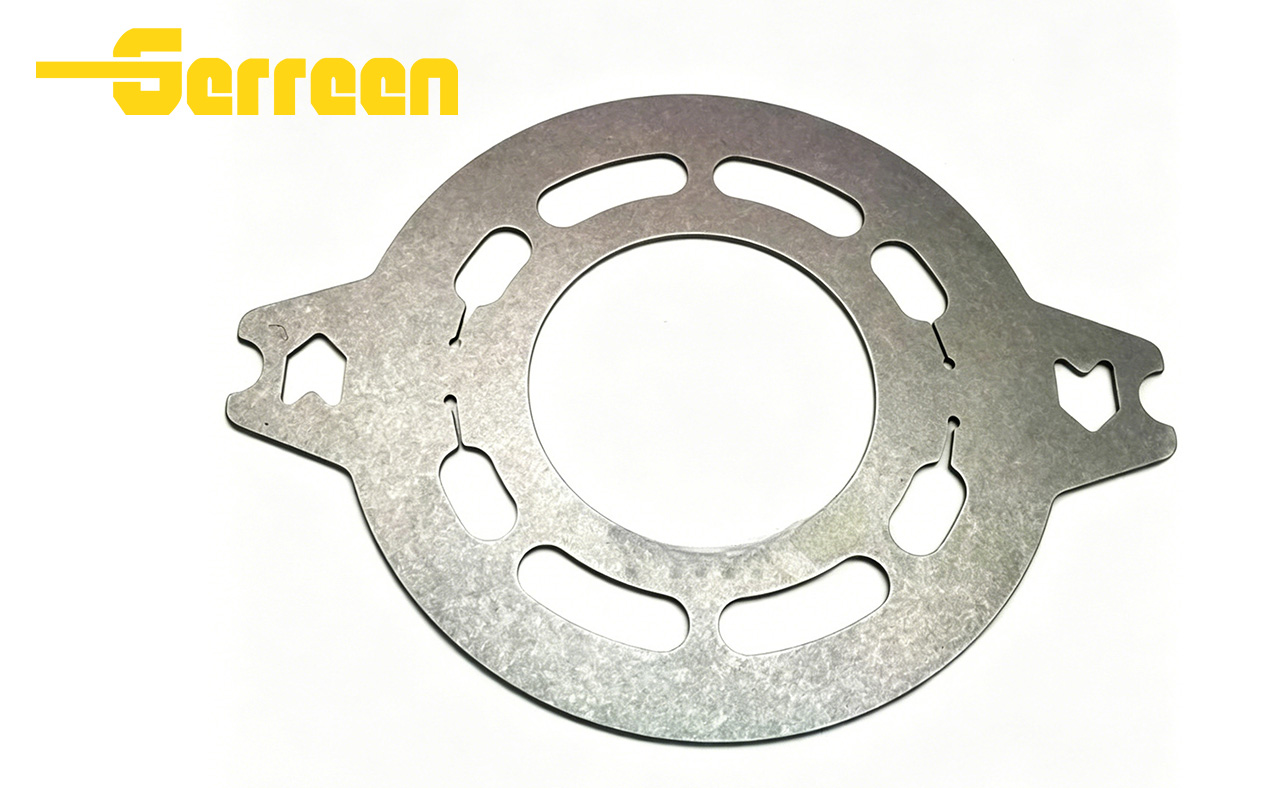

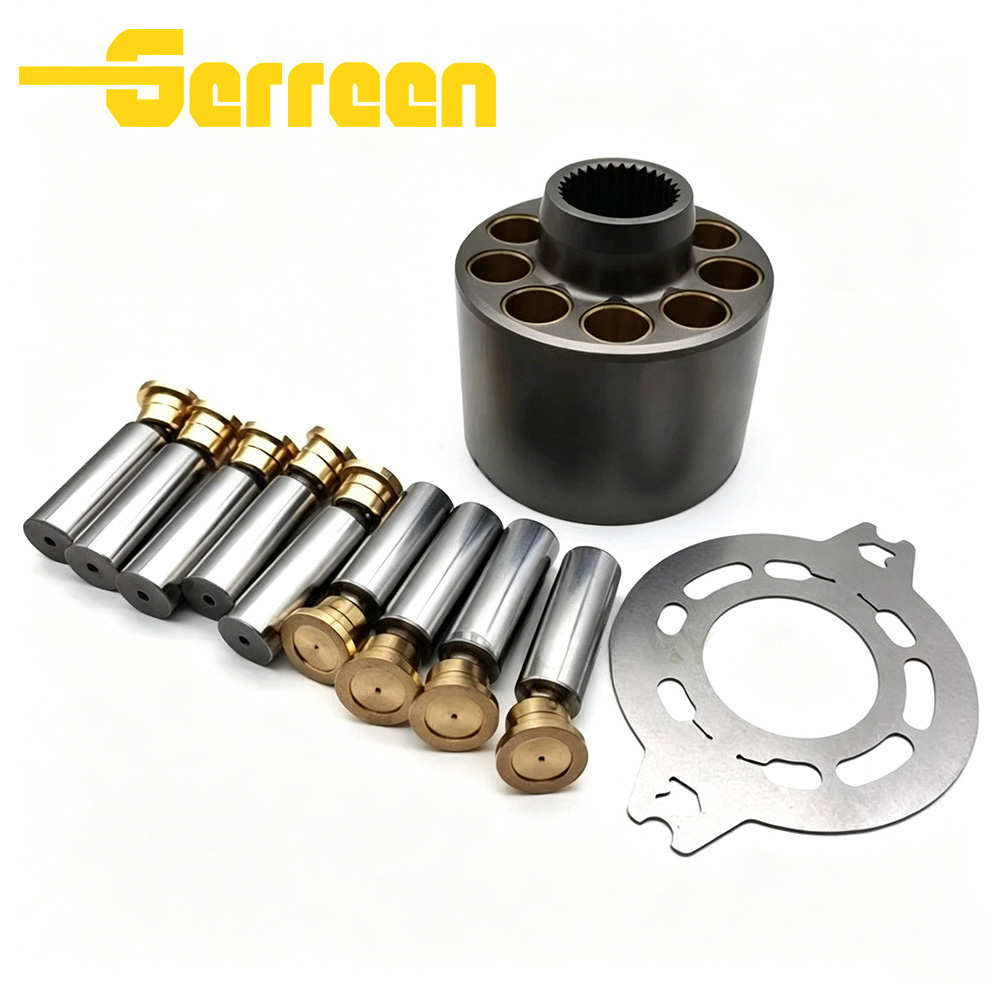

With high power density and excellent pressure resistance, these pumps run reliably under heavy loads. We supply a full range of interchangeable replacement parts, including cylinder blocks, piston sets, swash plates, retainer plates, drive shafts and seal kits, to extend pump service life. Widely applied in concrete mixers, agricultural tractors, loaders and other construction machinery.

Features and Benefits

• Integrated charge pump for system replenishment, cooling and control pressure supply

• Adjustable swash plate design for stepless variable displacement

• High-strength wear-resistant internal components for long service life

• Complete matching spare parts for quick maintenance and replacement

• Compact structure, stable performance under continuous heavy-duty working conditions

Specifications of 90R075 90L075 Series Hydraulic Pump And Parts

Basic Pump Parameters

Applications

Packaging & Delivery

90R075 90L075 Series Hydraulic Pump And Partsare typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

90R075 90L075 Series Hydraulic Pump And Parts FAQ:

1. What is the 90R075 90L075 Series Hydraulic Pump And Parts ?

• Reliable swash plate variable displacement structure with built-in integrated charge pump for oil replenishment, cooling and hydraulic control.

• High-hardness wear-resistant core parts (piston sets, swash plates, cylinder blocks) for long service life under heavy loads.

• Two rotation options: 90R075 right rotation & 90L075 left rotation to fit diverse equipment layouts.

• Complete matching interchangeable spare parts support full pump overhaul and quick on-site maintenance.

• Compact high-power design, stable performance for agricultural, construction and sanitation machinery closed hydraulic circuits.



3. What is the working pressure range of 90R075 90L075 Series Hydraulic Pump And Parts ?

• The high-pressure side rated working pressure of 90R075 and 90L075 pumps can reach up to 42 MPa.

• The built-in charge pump maintains a low control pressure of around 1.8–2.5 MPa to supply displacement adjustment, system oil makeup and cooling flow.

• All matching spare parts are manufactured to withstand this full pressure range for stable heavy-duty operation.

4. Can 90R075 90L075 Series Hydraulic Pump And Parts replace other brands?

Yes, our 90R075 & 90L075 hydraulic pumps and matching spare parts are fully interchangeable with the original 75cc closed-circuit piston pumps of the same model specification.They adopt identical installation dimensions, internal structure and pressure parameters, which can directly replace mainstream original brand pumps without modifying equipment.All core replacement parts like cylinder blocks, piston sets and swash plates perfectly fit the original pump housing for easy overhaul.

5. What hydraulic oil is recommended for 90R075 90L075 Series Hydraulic Pump And Parts ?

• The standard rated input speed of the 90R075 and 90L075 hydraulic pumps is 2200 rpm.
  The continuous working speed range is 500–2400 rpm.
  Short-time peak speed can reach 2600 rpm, but long-term operation over 2400 rpm will accelerate wear of internal parts like piston sets and swash plates.

7. Do you provide OEM or customized services?

• Yes, we support OEM and customized services for the 90R075 & 90L075 series hydraulic pumps and spare parts.
• OEM service: We can print your brand logo, mark custom part numbers and outer packaging according to your requirements.

• Customization service: We offer customized packaging, tailored technical labels, and special order batch production. If you have special demands on parameters or appearance, our technical team can also discuss feasible personalized solutions with you.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

90R075 90L075 Series Hydraulic Pump And Parts are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
