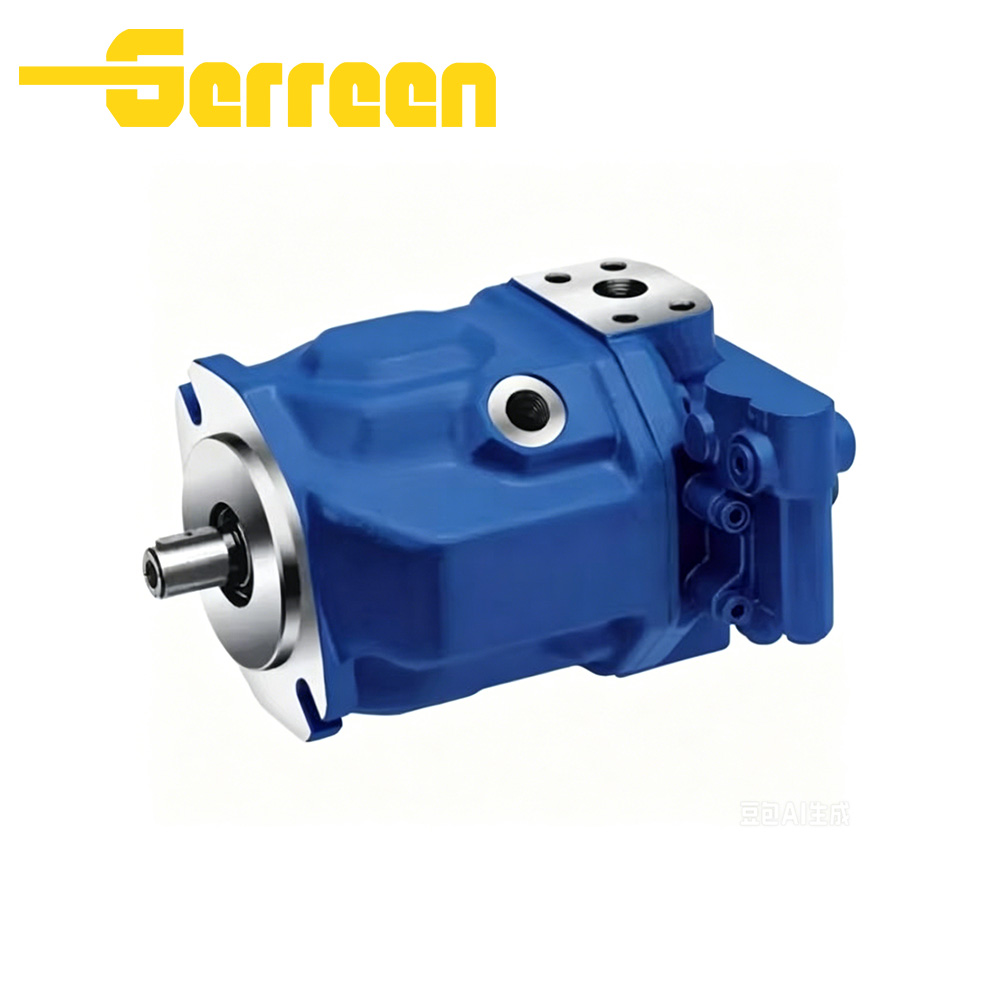

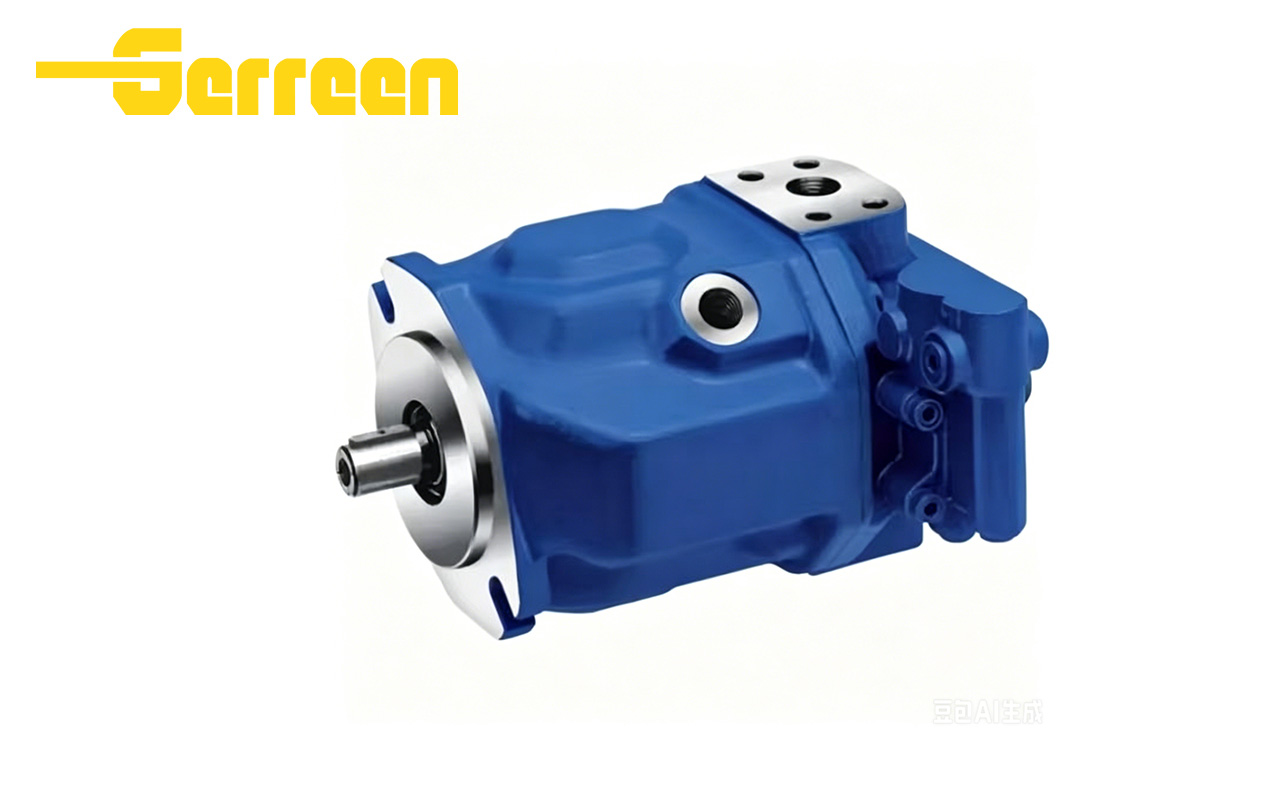

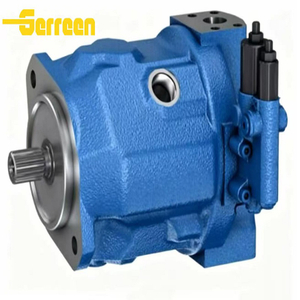

A10VNO45/63/85 Hydraulic Axial Piston Pump OVERVIEW

Our replacement A10VNO series axial piston pumps cover 45, 63, 85 displacement models, fully interchangeable with original Rexroth A10VNO pumps for open circuit hydraulic systems.Adopting swashplate variable displacement structure, the pump realizes stepless flow regulation. It delivers stable high pressure, low vibration and low running noise. Compact lightweight body simplifies installation on limited-space equipment.Multiple control options and customizable shafts, ports and seals are available, widely matched for excavators, loaders, tractors and other construction & agricultural machinery. Direct replacement reduces your maintenance downtime and spare part costs.

Features and Benefits

• 1:1 identical installation dimension as genuine Rexroth A10VNO pumps, plug-and-play replacement

• Swashplate variable design, stepless adjustable output flow

• Continuous working pressure up to 210bar, peak pressure 250bar for heavy-duty loads

• Low pulsation, low noise and high volumetric efficiency

• Multiple control modes: DR, DFR, DFR1, LR etc. optional

• Wear-resistant valve plate and piston assembly for long service life

• Customizable shaft, oil port, seal material and rotation direction

Specifications of A10VNO45/63/85 Hydraulic Axial Piston Pump

• Displacement: 45/63/85 cc/r

• Pressure: 210bar continuous, 250bar peak

• Speed: 600–2900 rpm

  Medium

• Anti-wear hydraulic oil, -20℃~80℃

• FKM seals, NBR optional

  Structure

• Spline/key shaft available

• Interchangeable with original Rexroth pumps

• Custom rotation direction

  Control Types

• DR, DFR, ED proportional control

  Custom Service

• Custom ports, shafts, logos & packages; small orders supported

Applications

Farm tractors, combine harvesters

Cooling fan drive systems for farm vehicles

Medium & mini excavators, skid steer loaders

Road rollers, concrete transport vehicles

Small road maintenance equipment

Sanitation trucks, aerial work platforms

Forklifts and material handling carriers

Hydraulic power units for light-duty open circuits

Auxiliary hydraulic systems of light engineering machines

Packaging & Delivery

A10VNO45/63/85 Hydraulic Axial Piston Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A10VNO45/63/85 Hydraulic Axial Piston Pump FAQ:

1. What is the A10VNO45/63/85 Hydraulic Axial Piston Pump ?

• 1:1 mounting size matches original Rexroth A10VNO pumps for direct replacement.

• Swashplate variable design delivers stepless adjustable flow.

• Stable high pressure with low noise and small flow pulsation.

• Multiple control types (DR, DFR, ED) for diverse working conditions.

• Wear-resistant internal components extend service life.

• Customizable shafts, ports, rotation directions and OEM logos.

• Perfect fit for construction and agricultural machinery.



3. What is the working pressure range of A10VNO45/63/85 Hydraulic Axial Piston Pump ?

The A10VNO45/63/85 Hydraulic Axial Piston Pump is designed for medium and high-pressure hydraulic systems:

• Continuous working pressure: up to 210 bar (3045.80 PSI)

• Short-term peak pressure: up to 250 bar (3625.95 PSI)

• Stable high-pressure output for heavy-duty machinery



4. Can A10VNO45/63/85 Hydraulic Axial Piston Pump replace other brands?

• It can perfectly replace original Rexroth A10VNO series pumps.

• It cannot universally substitute pumps of all other brands.

• Replacement is feasible if other brands share identical mounting, shaft and port parameters.

• Custom modification is required for pumps with different dimensional structures.



5. What hydraulic oil is recommended for A10VNO45/63/85 Hydraulic Axial Piston Pump ?

• Standard operating speed range: 600 – 2900 rpm

• Optimal working speed: 1000 – 2200 rpm

• Continuous operation over 2900 rpm is forbidden

• Speed below 600 rpm will reduce volumetric efficiency

7. Do you provide OEM or customized services?

• We offer full OEM and customization services for this axial piston pump.

• Customizable items: displacement, control valves, shaft, port size and rotation direction.

• NBR/FKM seals can be selected for special temperature environments.

• Custom pump marking, logos and outer packaging are available for bulk orders.

• Flexible MOQ to support small trial orders.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A10VNO45/63/85 Hydraulic Axial Piston Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
