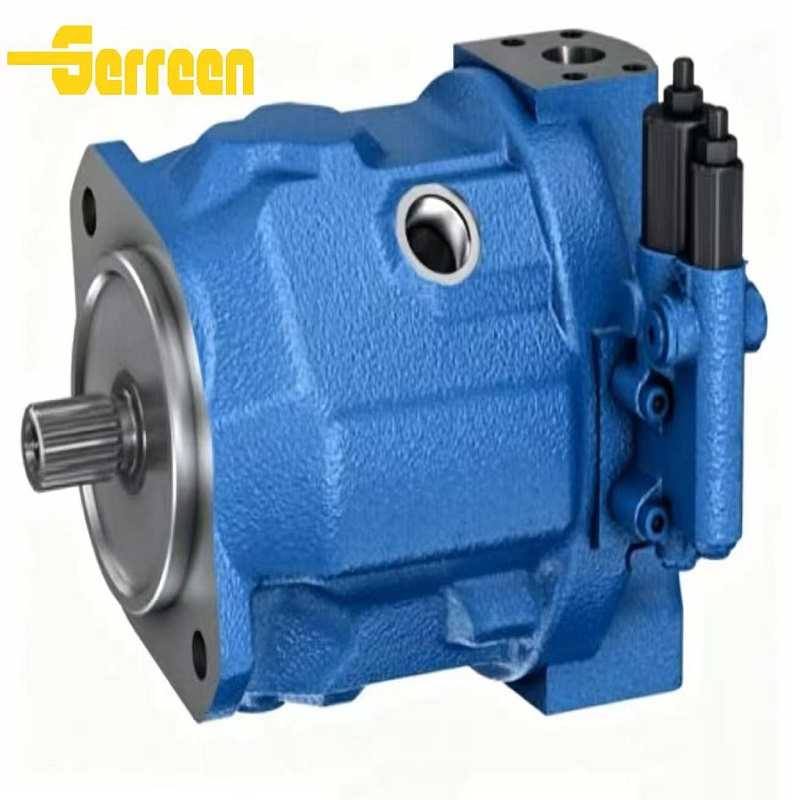

A10VNO45 Axial Piston Variable Pump Overview

The A10VNO45 swashplate axial piston variable pump is developed for open-circuit hydrostatic drive systems, widely matched with agricultural tractors and light construction machinery. With 45 cm³/rev maximum displacement, it achieves stepless flow regulation by adjusting the swashplate angle, balancing high efficiency and compact layout.

Features and Benefits

• Stable medium-pressure performance: 210 bar rated continuous pressure, 250 bar instantaneous peak pressure.

• Optimized internal friction pairs reduce running noise and maintain high volumetric efficiency long-term.

• Multiple control options including pressure control DR, remote pressure DRG and load sensing DFR for diverse system demands.

• Standard SAE spline shaft and mounting flange, easy direct replacement of original OEM pumps without modification.

• FKM fluororubber seals provide great resistance to high temperature and hydraulic oil corrosion.

• Lightweight, high power density design saves installation space for compact equipment.

Specifications of A10VNO45 Axial Piston Variable Pump

• Model: A10VNO45 (Series 52)

• Maximum displacement: 45 cm³/rev

• Rated continuous pressure: 210 bar (3050 PSI)

• Intermittent peak pressure: 250 bar (3600 PSI)

• Max allowable speed: 3000 RPM

• Rotation direction: Clockwise / Counter-clockwise optional

• Mounting standard: SAE 2-hole flange, SAE spline shaft

• Oil port thread: ISO 6149-1 metric thread

• Sealing material: FKM fluororubber

• Recommended hydraulic oil: ISO VG32 / VG46 / VG68 anti-wear hydraulic oil

• Operating oil temperature: -20℃ ~ +80℃

• Applicable hydraulic circuit: Open circuit only

• Optional control types: DR pressure control, DRG remote pressure control, DFR load sensing control

Applications

• Construction Machinery: Wheel loaders, graders, concrete mixers, drill rigs, excavators

• Commercial Vehicles: Dump trucks, sanitation trucks, heavy transport vehicles

• Agricultural Equipment: Large tractors, harvesters, farm hydraulic drive systems

• Mining & Natural Resources: Underground haulers, mining drilling machinery

• Industrial & Mobile Equipment: Hydraulic power units, lifting machinery, mobile industrial devices



Packaging & Delivery

A10VNO45 Axial Piston Variable Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A10VNO45 Axial Piston Variable Pump FAQ:

1. What is the A10VNO45 Axial Piston Variable Pump ?

• Stepless adjustable flow with 45cc/rev displacement for open hydraulic circuits.

• Stable medium-pressure performance, low noise and high volumetric efficiency.

• Multiple control options: DR, DRG, DFR to fit different equipment.

• Standard SAE interface for easy direct replacement of original pumps.

• Compact lightweight design, widely used on tractors and light construction machinery.



3. What is the working pressure range of A10VNO45 Axial Piston Variable Pump ?

The A10VNO45 Axial Piston Variable Pump is designed for medium and high-pressure hydraulic systems:

• This pump runs at a continuous rated pressure of 210 bar, equivalent to 3045.8 PSI.
  Its short-term peak pressure can hit 250 bar, which equals 3626 PSI.


4. Can A10VNO45 Axial Piston Variable Pump replace other brands?

• Yes, it supports cross-brand replacement.

• It adopts standard SAE mounting and spline shaft.

• Same displacement, pressure and control structure as counterparts.

• No equipment modification needed for direct installation.



5. What hydraulic oil is recommended for A10VNO45 Axial Piston Variable Pump？

• Its normal operating speed ranges from 600 rpm to 2600 rpm.

• Avoid running the pump continuously at the maximum speed for long hours.

7. Do you provide OEM or customized services?

• Yes, we support OEM and customized services for this pump.

• Customizable items include logo, packaging and control valve types.

• We can adjust parameters to match your special equipment demands.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A10VNO45 Axial Piston Variable Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
