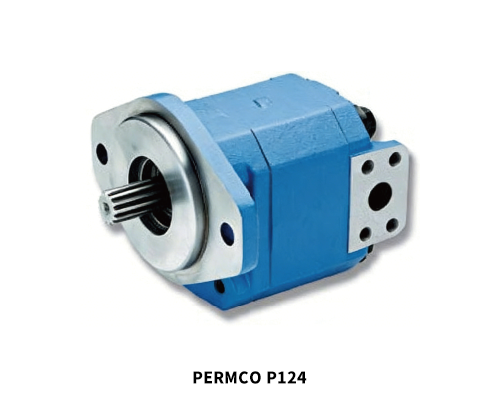

Permco P124  P424 Hydraulic gear pump replacement Overview

Our aftermarket hydraulic gear pumps are fully interchangeable with original Permco P124 and P424 series, serving as direct bolt-on replacement without equipment modification. Built with heavy-duty cast iron housing, carburized alloy steel gears, DU sliding bearings and floating pressure-balanced wear plates, they deliver stable volumetric efficiency under long-term high-pressure operation and strong resistance to hydraulic shock.

Single pump and tandem dual pump configurations are available, with customizable drive splines, port layouts, mounting flanges and rotation directions. A full range of displacements covers light to heavy load demands. Every pump undergoes strict factory pressure and leakage testing before delivery, offering reliable performance for commercial vehicles, construction machinery, mining equipment and industrial hydraulic systems.

Features and Benefits

• Full dimensional interchangeable with original Permco P124 & P424, direct bolt-on mounting without equipment modification

  Benefit: Shorten installation time, cut labor and refitting costs

• Heavy-duty high-tensile cast iron housing with excellent shock resistance

  Benefit: Adapt to harsh construction, mining and farm environments for long service life

• Carburized nickel alloy steel gears matched with DU sliding bearings & floating bronze pressure balance wear plates

  Benefit: Low internal leakage, stable volumetric efficiency under continuous high pressure, strong resistance to hydraulic shock

• Support single pump and tandem dual pump structures, customizable spline shafts, port layout, mounting flange and rotation direction

  Benefit: Full displacement range covers light to heavy load demands, fits multiple machinery models and simplifies inventory management

• Every pump passes strict factory pressure and leakage performance testing before delivery

  Benefit: Low failure rate, effectively reduce equipment downtime losses

• Complete matching repair kits including gears, bearings, seals and wear plates are available

  Benefit: Convenient daily maintenance and lower long-term upkeep cost

• Cost-effective aftermarket replacement for expensive OEM original pumps

  Benefit: Greatly reduce overall procurement expenses while maintaining equivalent working performance

Specifications of P124  P424 - Hydraulic gear pump

• Structure: Single / tandem double pump; Cast iron housing, carburized alloy gears, DU sleeve bearings, floating bronze wear plates

• Pressure: Continuous up to 310 bar (4500 PSI), peak 350 bar (5000 PSI)

• Speed: 500–3000 RPM

• Displacement: P124: 8–80 mL/rev; P424: 80–160 mL/rev

• Shaft & Rotation: Spline / flat key shaft, CW / CCW rotation optional

• Mount & Port: OEM-standard flange, customizable SAE ports and port orientation

• Medium & Temp: ISO VG32/46/68 anti-wear hydraulic oil; -20℃ ~ 80℃

• Quality & Warranty: Full pressure & leakage test for all pumps; 12-month factory warranty

Applications

• Construction Machinery: Wheel loaders, graders, concrete mixers, drill rigs, excavators

• Commercial Vehicles: Dump trucks, sanitation trucks, heavy transport vehicles

• Agricultural Equipment: Large tractors, harvesters, farm hydraulic drive systems

• Mining & Natural Resources: Underground haulers, mining drilling machinery

• Industrial & Mobile Equipment: Hydraulic power units, lifting machinery, mobile industrial devices



Packaging & Delivery

Permco P124  P424 Hydraulic gear pump replacement are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Permco P124  P424 Hydraulic gear pump replacement FAQ:

1. What is the P124 P424 Hydraulic gear pump ?

• It adopts thick heavy-duty cast iron pump housing with outstanding impact resistance.

• It is fitted with carburized nickel alloy steel gears for excellent wear resistance.

• It equips DU sleeve bearings and floating bronze balance wear plates to reduce internal leakage.

• It is 1:1 dimensionally interchangeable with original Permco P124 & P424 pumps.

• It supports single pump and tandem double pump structures with customizable displacement.

• Splined shafts, port layouts, mounting flanges and rotation directions are all optional.

• Every finished pump passes strict factory pressure and leakage performance inspection.

• It works stably under harsh construction, mining and agricultural heavy-load conditions.

• It comes with matching complete repair kits and a 12-month factory warranty.

• It serves as a cost-effective aftermarket substitute for expensive OEM original pumps.



3. What is the working pressure range of P124  P424 Hydraulic gear pump ?

The P124  P424 Hydraulic gear pump is designed for medium and high-pressure hydraulic systems:

• The continuous working pressure of P124 & P424 hydraulic gear pumps reaches up to 310 bar (4500 PSI).

• The maximum intermittent peak pressure can hit 350 bar (5000 PSI).

• It maintains stable volumetric efficiency under long-term high continuous pressure.

• Its floating bronze pressure balance wear plates support reliable performance under frequent pressure surges.



4. Can P124  P424 Hydraulic gear pump replace other brands?

• Our P124 & P424 hydraulic gear pumps are fully interchangeable with original Permco brand pumps.

• They can directly replace Permco P124 and P424 series pumps without machine modification.

• The installation dimensions, shaft splines and port positions keep consistent with OEM Permco standards.

• It cannot perfectly match gear pumps of other different brand series with distinct mounting structures.

• Customized adapters are available if you need to adapt it to partial non-Permco equipment.



5. What hydraulic oil is recommended for P124  P424 Hydraulic gear pump ?

• The rated operating speed range of P124 & P424 hydraulic gear pumps is 500 RPM to 3000 RPM.

• 500 RPM is the minimum stable idle speed to avoid insufficient oil supply.

• Do not run the pump continuously above 3000 RPM to prevent premature component wear.

• Stable speed within the standard range keeps low noise and long service life.

7. Do you provide OEM or customized services?

• We support OEM and customized services for P124 & P424 hydraulic gear pumps.

• Customizable items include spline shafts, port orientations, mounting flanges and rotation directions.

• We can produce exclusive logo, packaging and labels according to your OEM requirements.

• Custom tandem displacement combinations are available for special flow demands.

• Our technical team can design special adapters for unique machine matching needs.

• Contact us to confirm drawings, parameters and MOQ for customized orders.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

P124  P424 Hydraulic gear pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
