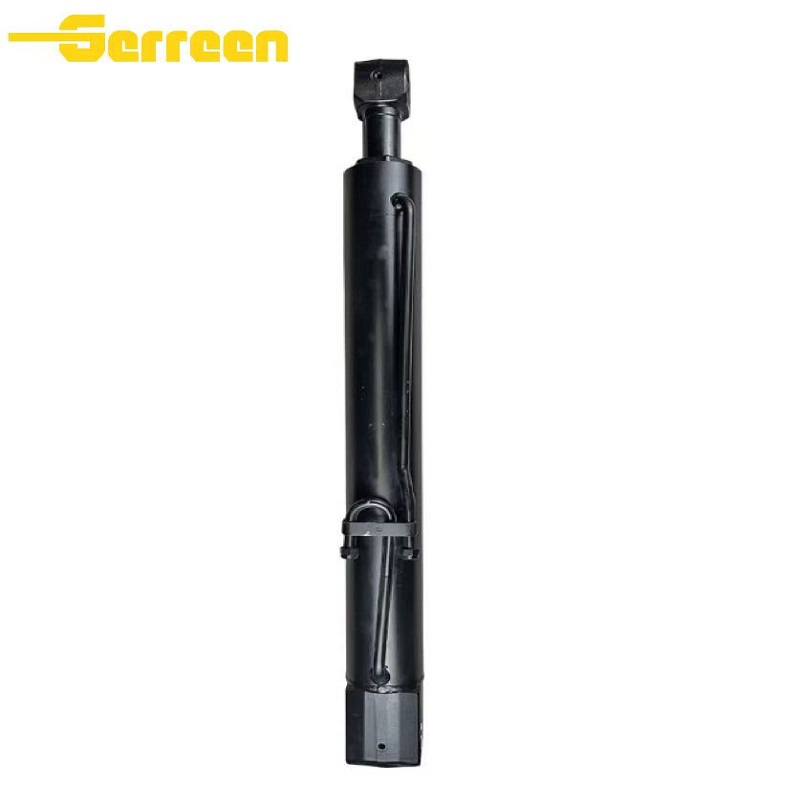

JCB 3CX 4CX Front Bucket Lift Ram 557/60078 90*50 Overview

557/60078 front bucket lift ram is OEM replacement cylinder for JCB 3CX & 4CX backhoe loaders, interchangeable with 557/60141,557/60237,576/60124. Bore 90mm, rod 50mm, installed on front loader arm to lift and lower front bucket.

Features and Benefits

• Precision honed cylinder barrel improves surface finish, reduces friction and extends service life.

• Hard chrome plated piston rod features strong wear and corrosion resistance for harsh construction working conditions.

• High-performance combined seal kit effectively stops internal and external oil leakage under rated pressure.

• OEM overall dimension allows direct mounting without cutting or modification during replacement.

• Strict factory hydraulic pressure testing ensures stable lifting performance at 210–250 bar working pressure.

• Multiple part number interchangeability lowers spare parts stock cost for distributors.

Specifications of 557/60078 - Hydraulic Cylinder

• Cross Reference: 557/60141, 557/60237, 576/60124

• Application: JCB 3CX / 4CX Backhoe Loader, Front Bucket Lift

• Bore × Rod: 90 mm × 50 mm

• Rated Working Pressure: 210 bar (3045 PSI)

• Max Peak Pressure: 250 bar (3625 PSI)

• Cylinder Type: Double Acting

• Recommended Hydraulic Oil: ISO VG46 anti-wear hydraulic oil

• Surface Finish: Honed barrel, hard chrome plated piston rod

Applications

• Designed for JCB 3CX.4CX backhoe loaders

• Mainly used as lift cylinder for loader lifting mechanism

• Suitable for construction sites, farm yards, road maintenance and material handling work

• Ideal for various heavy-load lifting and operating scenarios

Packaging & Delivery

557/60078 Hydraulic Cylinder are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

557/60078 Hydraulic Cylinder FAQ:

1. What is the 557/60078 Hydraulic Cylinder ?

• It adopts precision honed seamless steel for cylinder barrel.

• Piston rod is alloy steel with thick hard chrome plating.

• Premium combined seals prevent oil leak under high pressure.

• Forged end caps enhance structural strength and load capacity.

• All components are processed strictly to OEM drawing standards.



3. What is the working pressure range of 557/60078 Hydraulic Cylinder ?

The 557/60078 Hydraulic Cylinder is designed for medium and high-pressure hydraulic systems:

• Rated continuous working pressure: 210 bar (3045 PSI)

• Maximum intermittent peak pressure: 250 bar (3625 PSI)



4. Can 557/60078 Hydraulic Cylinder replace other brands?

• Full interchange with original JCB OEM numbers: 557/60141, 557/60237, 576/60124, same mounting dimension, bore/rod size 90×50mm, port position and stroke as genuine JCB parts.

• It replaces mainstream aftermarket brand cylinders made for JCB 3CX/4CX front bucket lift ram from European, Turkey and Chinese spare part manufacturers, matching 210bar rated working pressure standard.

• Cannot fit or replace cylinders of other equipment brands (Case, Cat, Komatsu etc.), as their installation spacing, pin size and overall length differ entirely.



5. What hydraulic oil is recommended for 557/60078 Hydraulic Cylinder ?

• Extension speed (bucket lifting): 0.12 ~ 0.22 m/s (7.2 ~13.2 m/min) under normal loaded working condition

• Retraction speed (bucket lowering): 0.19 ~0.32 m/s (11.4 ~19.2 m/min); retraction is ~1.6× faster than extension due to rod area reduction

• Max allowable limit speed: ≤0.35 m/s to avoid seal wear and end impact; no-load transient speed may hit 0.38 m/s temporarily



7. Do you provide OEM or customized services?

• We support OEM service to print customer’s brand logo and part numbers on products.

• Custom hydraulic cylinders can be manufactured according to clients’ technical drawings.

• Seal materials and surface treatments are adjustable for special working conditions.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

557/60078 Hydraulic Cylinder are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
