559/60192 Ram Slew 100*60 Overview

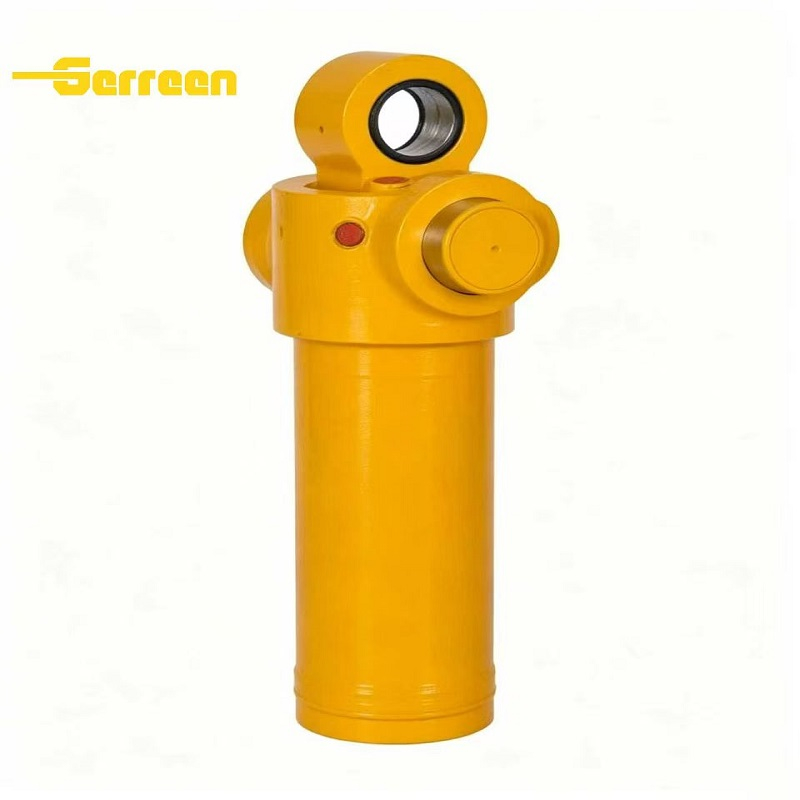

This 559/60192 slew ram (100×60 bore/rod size) is aftermarket replacement hydraulic cylinder specially designed for JCB backhoe loaders, used to control arm swing movement. The cylinder tube adopts precision honing treatment while piston rod goes through induction hardening, improving abrasion resistance and extending service life. Equipped with built-in buffer structure to ease swing impact and protect internal sealing parts. High-performance sealing components effectively stop oil leakage under frequent heavy-duty construction work. Strictly produced per original OEM dimension standards for trouble-free direct installation without any modification.

Features and Benefits

• OEM dimensional design for 559/60192, bore 100mm × rod 60mm, direct bolt-on replacement without modification, saving installation time.

• Precision honed cylinder tube & induction-hardened piston rod, high wear resistance for long service life in tough construction sites.

• Built-in cushion structure absorbs swing impact, reduces internal part damage and lowers equipment failure rate.

• Premium multi-combination sealing kit, stable sealing performance to avoid oil leakage under continuous heavy-load operation.

• Strict pressure test up to max 320bar, stable performance matching original JCB backhoe working conditions.

Specifications of 559/60192- Hydraulic Cylinder

• Part Number: 559/60192

• Type: Swing / Slew Hydraulic Cylinder

• Bore Size: 100 mm

• Rod Diameter: 60 mm

• Rated Working Pressure: 250 bar (3625 PSI)

• Max Test Pressure: 320 bar (4640 PSI)

• Recommended Hydraulic Oil: ISO VG46 anti-wear hydraulic oil

• Applicable Equipment: JCB Backhoe Loader

• Structure: Built-in cushion design

• Installation: Direct OEM replacement, no modification required

Applications

• Designed for JCB 3CX.4CX backhoe loaders

• Mainly used as lift cylinder for loader lifting mechanism

• Suitable for construction sites, farm yards, road maintenance and material handling work

• Ideal for various heavy-load lifting and operating scenarios

Packaging & Delivery

559/60192 Hydraulic Cylinder are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

559/60192 Hydraulic Cylinder FAQ:

1. What is the 559/60192 Hydraulic Cylinder ?

• Precision honed cylinder tube and induction-hardened 60mm piston rod improve wear resistance and extend service life.

• Built-in cushion effectively absorbs swing impact to protect internal seals and components.

• High-quality composite sealing kit prevents oil leakage under continuous heavy-load working conditions.

• Strictly made to OEM 100×60mm dimension, direct replacement for original JCB slew ram without alteration.

• Each unit passes 320bar pressure testing to guarantee stable hydraulic performance.



3. What is the working pressure range of 559/60192 Hydraulic Cylinder ?

The 559/60192 Hydraulic Cylinder is designed for medium and high-pressure hydraulic systems:

• Normal working pressure: 180–250 bar (2610–3625 PSI)

• rated pressure 250 bar (3625 PSI)

• maximum permissible pressure up to 320 bar (4640 PSI)



4. Can 559/60192 Hydraulic Cylinder replace other brands?

• This 559/60192 slew ram can replace other brand hydraulic cylinders only when their installation dimensions, bore & rod specifications and working pressure parameters are fully consistent; it is a direct drop-in replacement for original JCB parts yet cannot substitute mismatched-spec cylinders without structural modification.



5. What hydraulic oil is recommended for 559/60192 Hydraulic Cylinder ?

• For the 559/60192 (100×60mm) JCB slew cylinder, the typical working speed range is 0.1–0.3 m/s (6–18 m/min).

• Max safe speed: ≤0.5 m/s (30 m/min) to protect seals and cushion.

• Min stable speed: ≥0.1 m/s (6 m/min) to avoid creeping.

• Retraction speed is ~30% faster than extension due to area difference.


7. Do you provide OEM or customized services?

We supply both OEM and customized hydraulic cylinder services. We can produce items based on customer’s part numbers, drawings, required bore/rod sizes and special technical parameters to meet diverse application demands.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.
