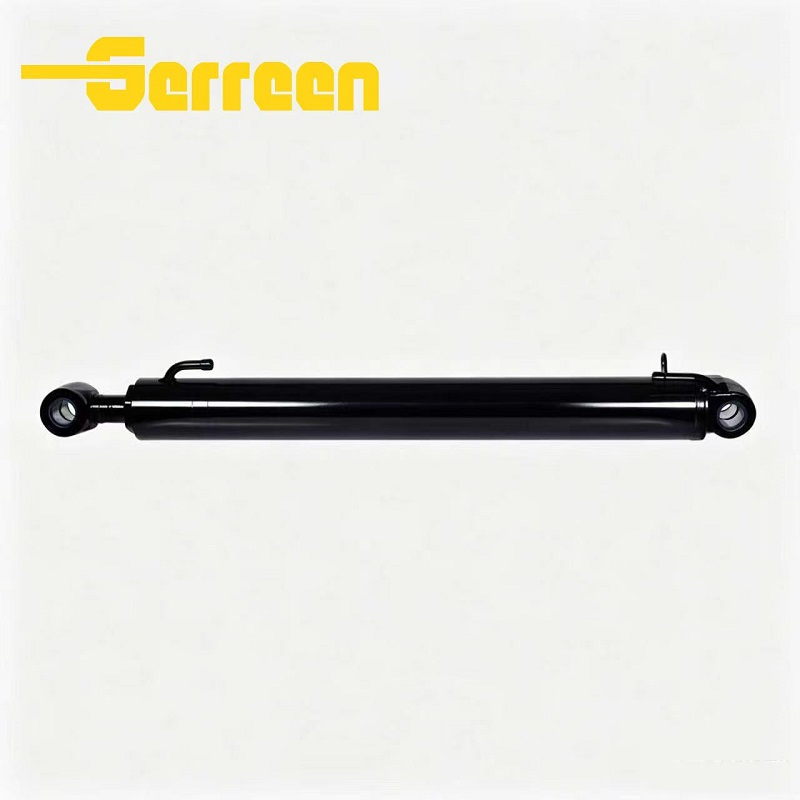

Hydraulic Ram 563/60103 120*65 Overview

Model 563/60103 (Bore 120mm, Rod 65mm) is a high-performance double-acting hydraulic ram specially engineered as a direct OEM replacement for JCB backhoe loaders and construction machinery. Strictly manufactured in line with original dimensional and performance standards, it delivers stable linear power output and perfectly matches the installation structure of original equipment. This ram is built to withstand harsh construction environments and long-term heavy-load operation, serving as a reliable core hydraulic component for your machines.

Features and Benefits

• Made of high-strength steel cylinder with precision honing.

• Piston rod with hard chrome plating for anti-corrosion and anti-scratch.

• Equipped with high-quality seals to avoid oil leakage.

• High pressure resistance, stable performance under heavy loads.

• Standard OEM size for direct installation and replacement.

• Optimized structure ensures smooth and low-noise operation.

• Strict quality inspection guarantees long-term reliable use.

Specifications of 563/60103- Hydraulic Cylinder

• Model: 563/60103

• Bore × Rod: 120 mm × 65 mm

• Rated working pressure: 210 bar

• Maximum working pressure: 250 bar

• Operating speed: 0.1 m/s ~ 0.5 m/s

• Recommended hydraulic oil: ISO VG 46 / ISO VG 68 anti-wear hydraulic oil

• Application: JCB construction machinery

Applications

• Designed for JCB 3CX.4CX backhoe loaders

• Mainly used as lift cylinder for loader lifting mechanism

• Suitable for construction sites, farm yards, road maintenance and material handling work

• Ideal for various heavy-load lifting and operating scenarios

Packaging & Delivery

563/60103 Hydraulic Cylinder are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

563/60103 Hydraulic Cylinder FAQ:

1. What is the 563/60103 Hydraulic Cylinder ?

• It adopts high-strength steel body and hard chrome-plated rod for outstanding durability.

• Premium sealing parts effectively prevent leakage under long-term heavy loads.

• Strictly manufactured to OEM sizes for easy installation and perfect compatibility.

• Excellent pressure resistance ensures stable performance in harsh working conditions.

3. What is the working pressure range of 563/60103 Hydraulic Cylinder ?

• The 563/60103 Hydraulic Cylinder is designed for medium and high-pressure hydraulic systems:

  rated working pressure： 210 bar (3045.80 PSI)

  maximum working pressure reaches： 250 bar (3625.95 PSI).



4. Can 563/60103 Hydraulic Cylinder replace other brands?

• Yes, the 563/60103 hydraulic cylinder can replace equivalent cylinders from other brands, provided they meet the same dimensions, pressure ratings, and mounting standards.

• It is a direct OEM replacement for JCB (fits models like 3CX/4CX/5CX).

• Matches 120 mm bore / 65 mm rod and 210 bar (3046 PSI) rated pressure.

• Built to ISO/JCB specs, so it can replace third-party cylinders with identical specs.

• For non-JCB brands, cross-reference part numbers and verify mounting, ports, and stroke.



5. What hydraulic oil is recommended for 563/60103 Hydraulic Cylinder ?

•


  The typical operating speed of this hydraulic cylinder is between 0.1 m/s and 0.5 m/s. It runs smoothly within this range and maintains stable working performance.




7. Do you provide OEM or customized services?

•


  Yes, we offer reliable OEM and customized services. We can produce products strictly according to your drawings, technical parameters and special requirements to meet different application demands.




8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

563/60103 Hydraulic Cylinder are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
