PTO489
Green Hydraulic
PTO489
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
Key Shaft and Spline shaft
1 set
Product Description

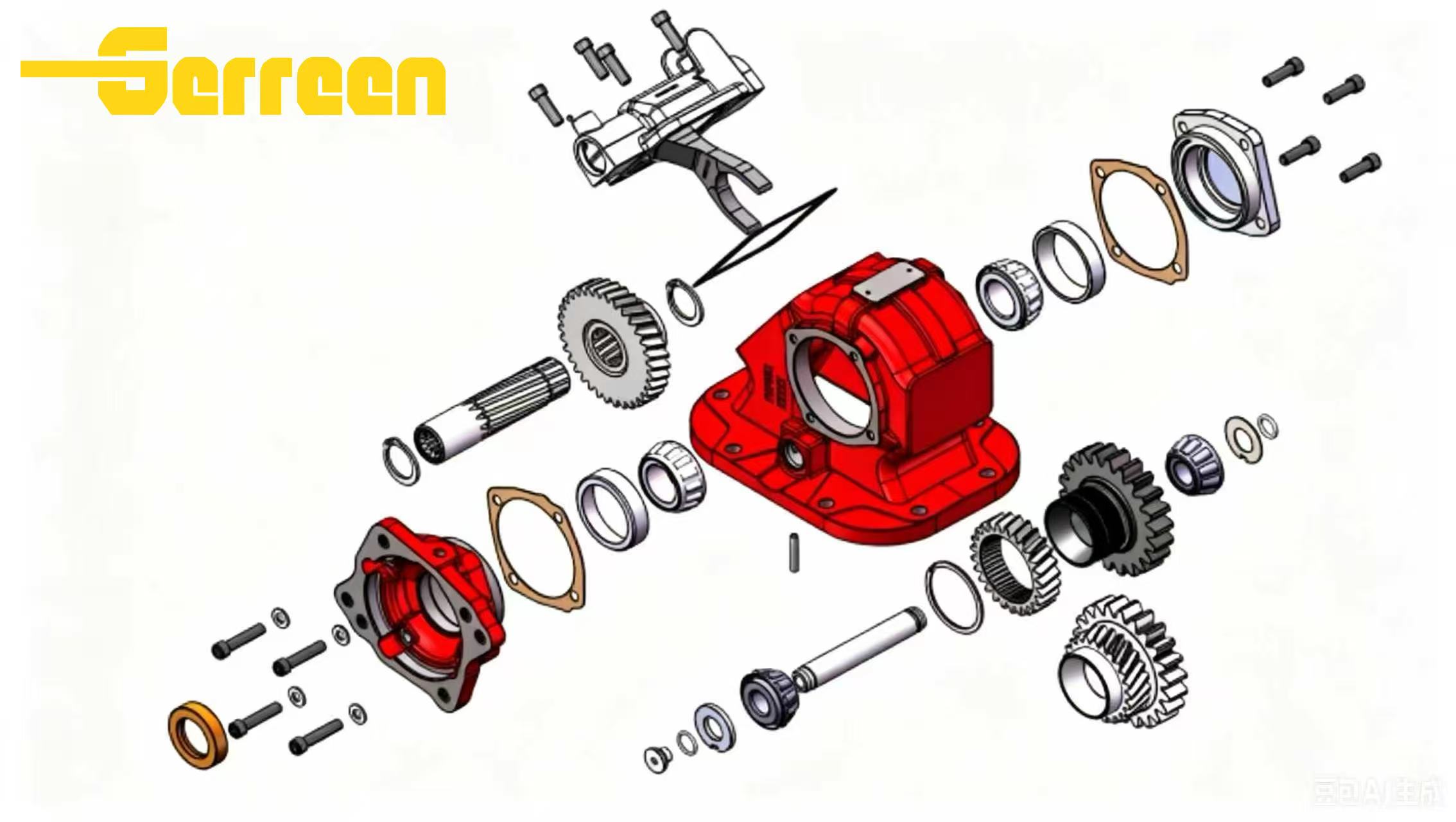

Reinforced Structure: Equipped with heavy-duty tapered bearings instead of standard needle bearings, offering superior load capacity and longer service life.
Diverse Configurations: Provides 36 output selections including the widely-used 360° rotatable flange. The greaseable output shaft prevents spline fretting and corrosion.

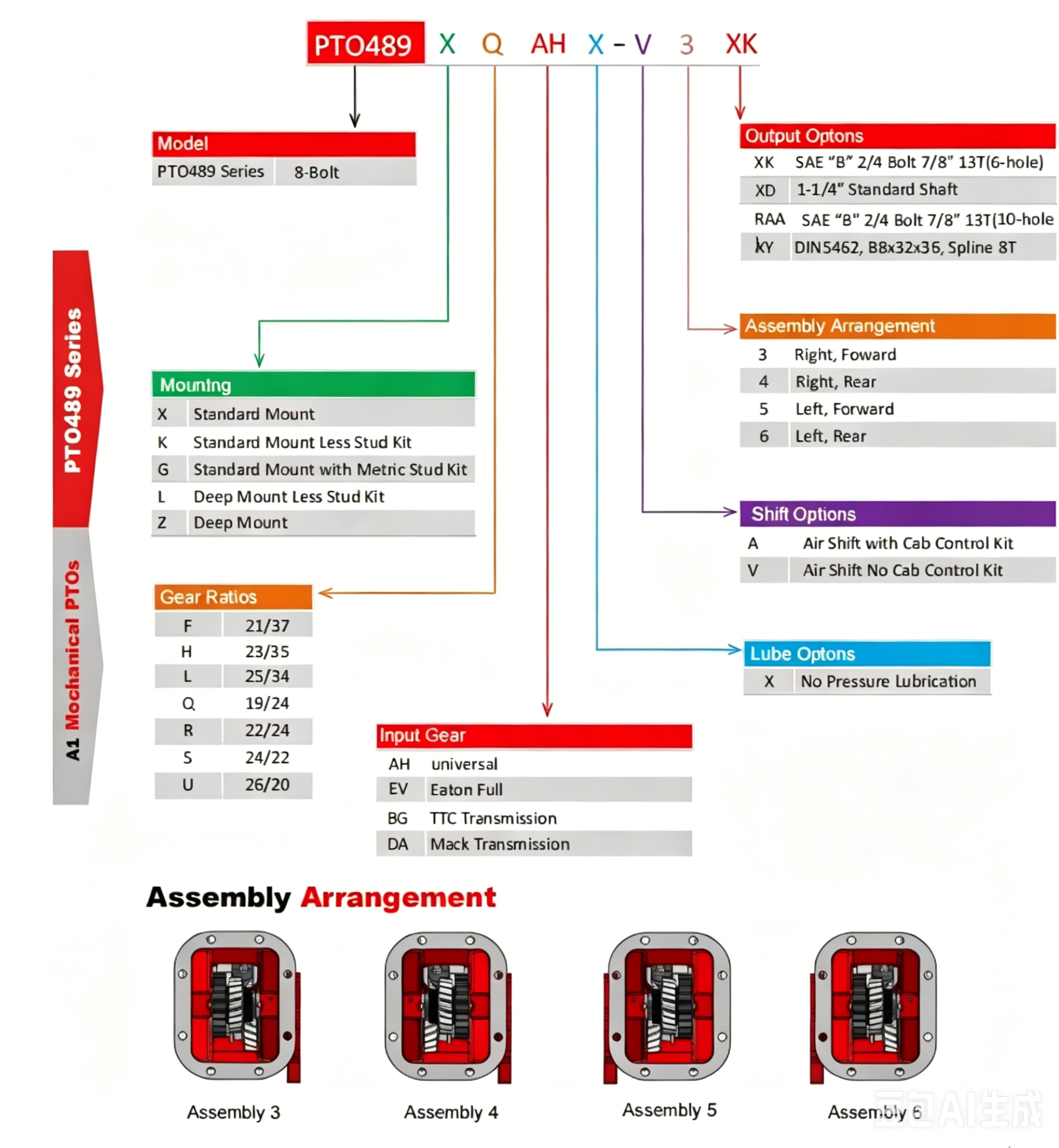

Flexible Performance: Features 11 internal speed ratios and 10 shift options. The built-in self-lubrication system solves insufficient lubrication for PTO units.
Wide Compatibility: Fits most mainstream manual transmissions like Eaton Endurant, Mack and Tremec.
Proven Technology: Backed by over 65 years of professional PTO R&D experience, balancing reliable performance and low operating costs.
Specifications
Applications
PTO489 provides stable and high-efficiency dual-flow hydraulic performance for industrial and mobile hydraulic systems requiring compact structure, reliable pressure, and continuous operation:
Fire and Rescue Trucks: Delivers consistent dual hydraulic flow for emergency equipment, rescue tools, and auxiliary systems to ensure reliable performance during critical operations.
Truck Cranes: Powers both lifting and slewing functions simultaneously, offering steady pressure and smooth oil flow for precise crane control.
Pumper Cleaner Trucks: Supports both water pumping and high-pressure cleaning circuits, meeting the demand for continuous, efficient dual hydraulic output.
Refuse Trucks: Provides independent hydraulic power for compaction, lifting, and dumping systems, ensuring dependable operation in waste collection and disposal tasks.
Factory&FAQ
PTO489 are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pumps from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 1-30days from the order date.
1. What is the PTO489 ?

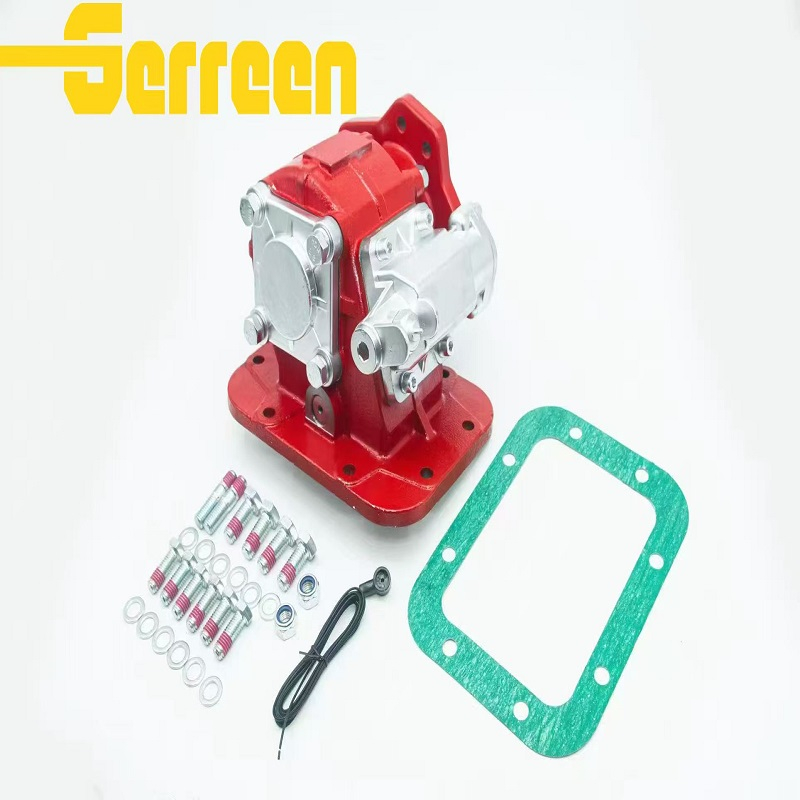

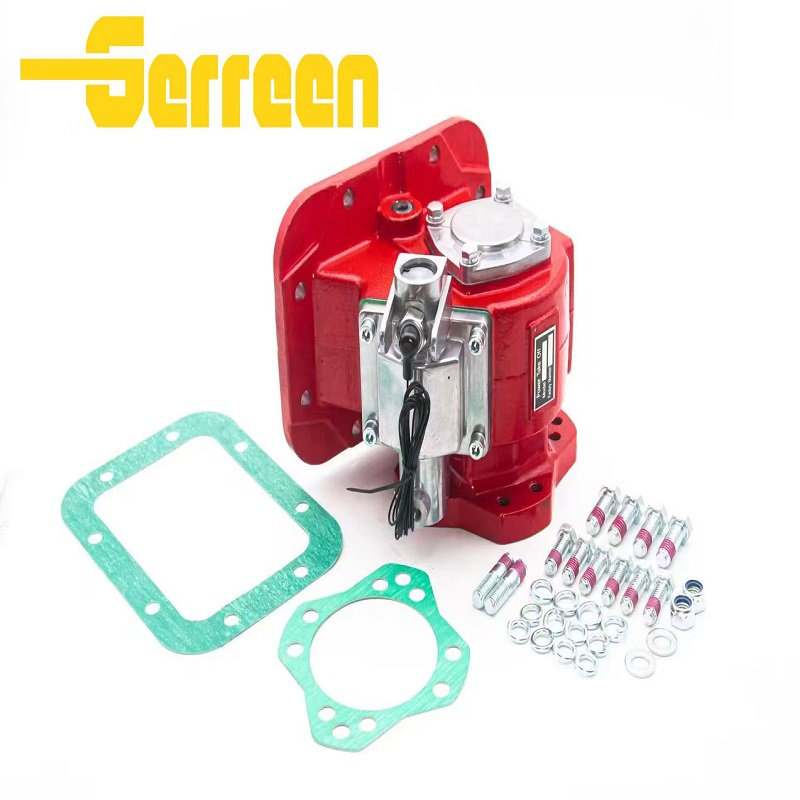

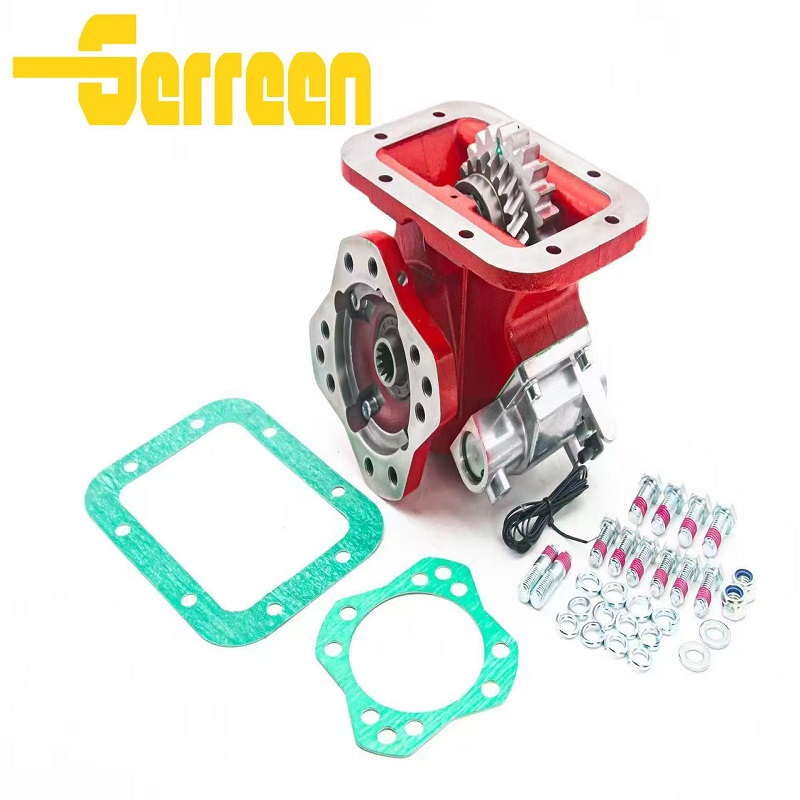

PTO489 is a mechanical power take-off unit designed for manual transmissions. It features one-piece cast iron housing, 8-bolt direct mounting and heavy-duty tapered bearings, delivering 250 Lbs-ft torque. With rich configurations, it fits most mainstream manual transmissions for heavy-duty vehicles.
2. What makes the PTO489 different from standard Hydraulic PTO?
PTO489 adopts mechanical shift structure, different from regular hydraulic PTOs.
It uses one-piece cast iron housing and tapered bearings for larger load capacity.
8-bolt direct mounting cuts extra parts and lowers leakage risks.
It provides various speed ratios, output and shift options for wider compatibility.
3. What is the working pressure range of PTO489 mechanical PTO ?
The PTO489 is a mechanical PTO, not a hydraulic PTO.
It does not have a hydraulic working pressure range.
Its air shift control pressure is typically 90–120 psi (6.2–8.3 bar).
It delivers intermittent torque 250 lb-ft (339 Nm) for hydraulic pump driving.
4. Can PTO489 Hydraulic PTO replace other brands?
PTO489 is a mechanical PTO, not a hydraulic one.
It can replace most 8‑bolt mechanical PTOs (e.g., Chelsea 442/489, Muncie, Bezares) for Eaton Fuller, Mack, Tremec 8‑bolt transmissions.
Direct 8‑bolt mounting matches common SAE 8‑bolt openings; no adapter plate needed.
Interchangeability requires matching torque rating (250 lb‑ft), gear ratio, rotation, and output interface.
It is 100% interchangeable with original Chelsea 489/442 series in key dimensions and performance.
5. What hydraulic oil is recommended for PTO489 Hydraulic PTO?
PTO489 is a mechanical PTO, not hydraulic; it uses gear lubricant rather than hydraulic oil.
For its pneumatic shift control circuit: Use ISO VG 32–46 anti‑wear hydraulic oil (L‑HM).
Common grades: ISO VG 32 (cold climates) or ISO VG 46 (standard conditions).
Recommended specs: API GL‑4, meeting Parker HF‑1 / Eaton‑Vickers anti‑wear requirements.
For the PTO gear housing: Use SAE 80W‑90 gear oil.
6. What is the typical speed range of PTO489 Hydraulic PTO?
PTO489 is a mechanical PTO instead of a hydraulic unit.
Its applicable operating speed ranges from 500 RPM to 1000 RPM.
Stable power output is guaranteed within this speed range.
Yes, we support OEM and customized services for PTO489.
We can adjust output interfaces, gear ratios and logos as required.
Custom solutions are available to match different installation needs.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
PTO489 Hydraulic PTO are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
