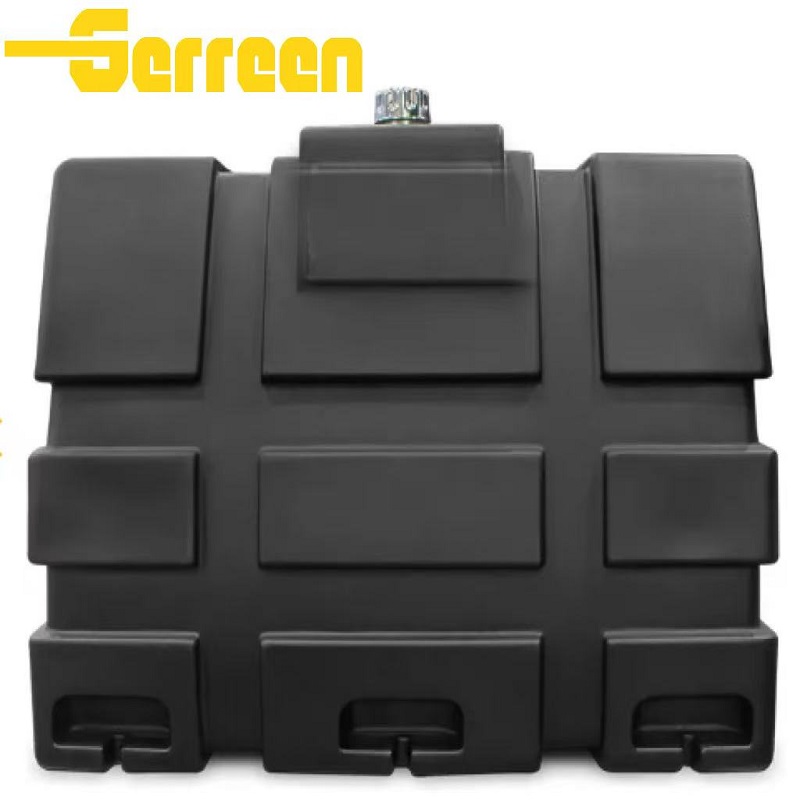

URP50 Hydraulic Tanks Overview

The URP50 hydraulic tank has a capacity of 50 gallons, made of high-density polyethylene material. It features light weight, excellent corrosion and rust resistance, far better than traditional metal tanks.

Equipped with standard oil level gauge, breather cap and complete mounting accessories for easy installation and daily inspection. The optimized internal structure ensures stable oil circulation, effectively protecting hydraulic components.

Widely used for dump trucks, engineering machinery and various hydraulic systems. Sturdy structure, long service life and low maintenance cost.

Features and Benefits

• Made of HDPE material, lightweight and anti-rust, no corrosion for long-term use.

• 50-gallon large capacity, meets oil storage demand for various hydraulic systems.

• Equipped with level gauge and breather cap for easy observation and ventilation.

• Complete mounting parts included, simple and quick to install.

• Solid structure, shock-resistant and durable, low maintenance cost.

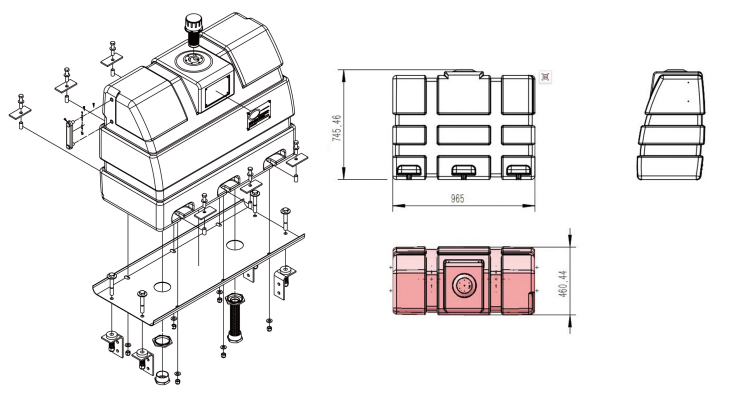

Specifications of URP50 - Hydraulic Tanks

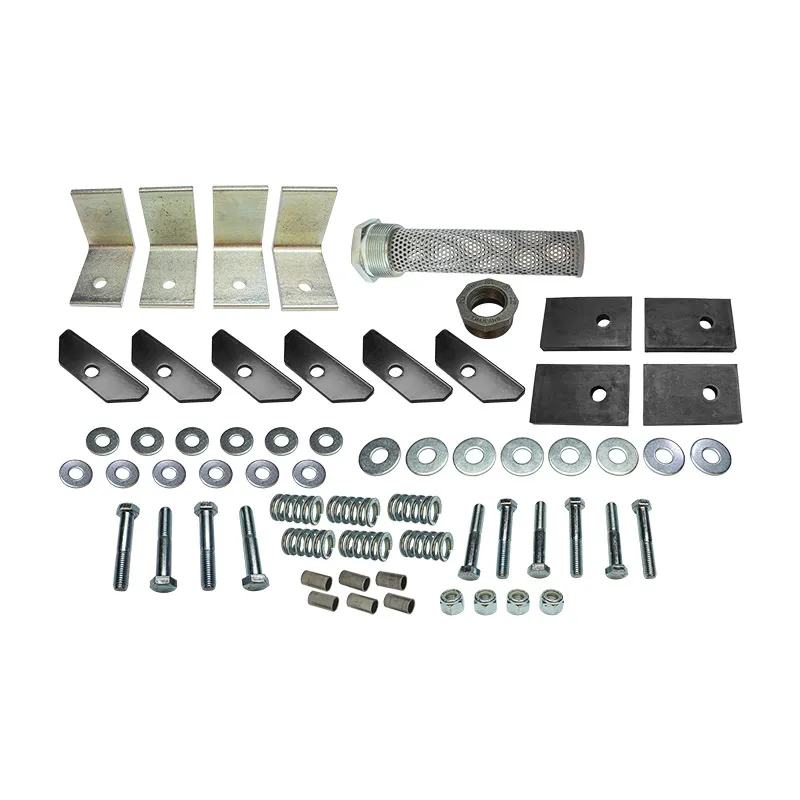

Features

• Reservoirs are made of polyethylene

• Mounting base with strap assembly

• Screw-in diffuser

• One (1) reducer bushing 2" to 1%" NPT

• 40 micron filler breather cap

• Two (2) screw-in 2" NPT bottom ports

• Four (4) pre-drilled chassis mounting angles

• Four (4) rubber mounting pads

• Four (4) 2" plated compression springs

• Four (4) cap screws, lock nuts and flat washers

Applications

• Dump trucks and cargo vehicles

• Various construction machinery

• Mobile hydraulic power units

• Agricultural machinery equipment

• Industrial hydraulic systems




Packaging & Delivery

URP50 Hydraulic Tanks are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

URP50 Hydraulic Tanks FAQ:

1. What is the URP50 Hydraulic Tanks ?

3. What is the working pressure range of URP50 Hydraulic Tanks ?

URP50 hydraulic tanks are atmospheric pressure reservoirs, not pressure vessels. They operate at 0 bar (atmospheric pressure), designed for low-pressure oil storage in open or vented hydraulic systems.

4. Can URP50 Hydraulic Tanks replace other brands?

• Yes, the URP50 hydraulic tank can directly replace most 50‑gallon upright hydraulic tanks from other brands. It matches standard dimensions, port sizes and mounting points for easy swap‑out.



5. What hydraulic oil is recommended for URP50 Hydraulic Tanks ?

7. Do you provide OEM or customized services?

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

URP50 Hydraulic Tanks are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
