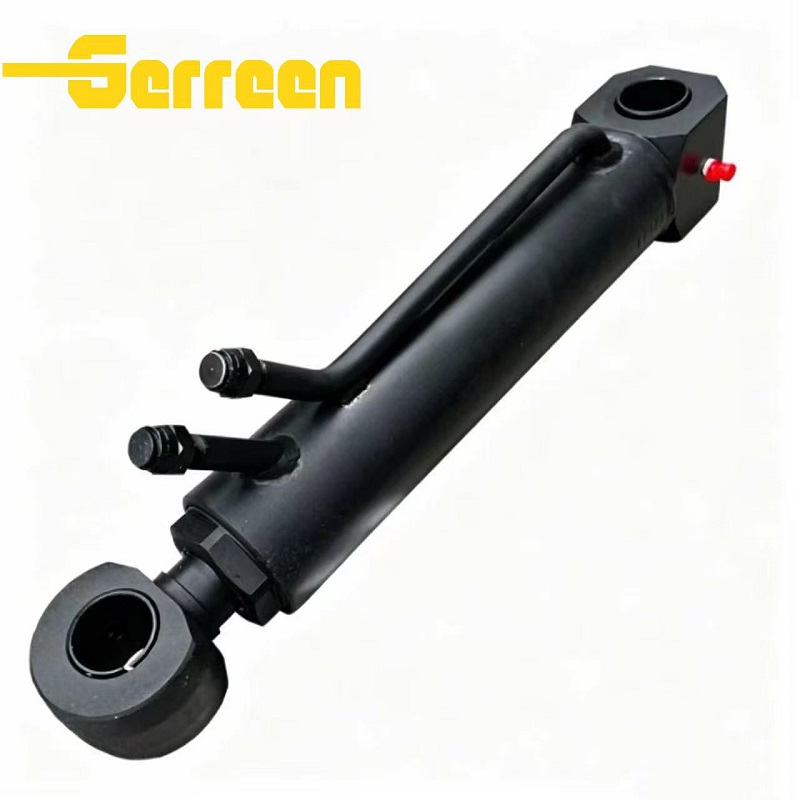

Ram Clamshovl,470mm Closed Centered 70*40 556/60459 Overview

556/60459 clamshovel cylinder is OEM replacement hydraulic ram for JCB 3CX,4CX backhoe loader 4-in-1 clam bucket system. Spec with 70mm bore & 40mm rod, closed center mounting distance 470mm, double-acting structure for stable clam opening/closing control during bulk material loading, earthmoving and waste handling work. Strictly produced per original JCB dimension standard, direct bolt-on installation without modification.

Features and Benefits

• Strict OEM dimensional compliance (70×40, 470mm closed center), direct plug-and-play replacement without modification, saving installation cost and downtime.

• Honed seamless cylinder tube plus hard-chrome plated rod, outstanding impact & wear resistance for harsh construction conditions.

• Premium multi-layer seal kits deliver stable leak-proof performance, lowering frequent maintenance and oil consumption.

• Double-acting design enables smooth, responsive clam bucket opening/closing, improving loading efficiency on JCB 3CX/4CX.

• Full factory pressure testing before shipment with reliable quality, extending service life and reducing breakdown losses.

Specifications of 556/60459- Hydraulic Cylinder

• Part Number: 556/60459

• Bore × Rod: 70 mm × 40 mm

• Closed Center Length: 470 mm

• Construction: Double acting hydraulic cylinder

• Applicable Model: JCB 3CX / 4CX backhoe loader, 4-in-1 clamshovel bucket

• Rated Working Pressure: 210–250 bar

• Recommended Hydraulic Oil: ISO VG46 anti-wear hydraulic oil

• Surface Treatment: Hard chrome plated piston rod, precision honed barrel

Applications

• Designed for JCB 3CX.4CX backhoe loaders

• Mainly used as lift cylinder for loader lifting mechanism

• Suitable for construction sites, farm yards, road maintenance and material handling work

• Ideal for various heavy-load lifting and operating scenarios

Packaging & Delivery

556/60459 Hydraulic Cylinder are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

556/60459 Hydraulic Cylinder FAQ:

1. What is the 556/60459 Hydraulic Cylinder ?

• Honed seamless steel barrel improves pressure resistance and deformation resistance.

• Hard chrome plated piston rod resists abrasion and corrosion.

• High-quality integrated seal kits effectively prevent internal and external oil leakage.

• Strict full-pressure inspection before delivery guarantees stable performance.

• OEM accurate size fits JCB 3CX/4CX perfectly for long service life.



3. What is the working pressure range of 556/60459 Hydraulic Cylinder ?

The 556/60459 Hydraulic Cylinder is designed for medium and high-pressure hydraulic systems:

• Rated continuous working pressure: 210 bar (3045 PSI)

• Max intermittent peak pressure: 250 bar (3625 PSI)



4. Can 556/60459 Hydraulic Cylinder replace other brands?

• Fully matched mounting size: 70×40 bore/rod and 470mm closed center, no modification required during installation.

• Same working pressure rating (210–250bar continuous, 250bar peak) as original factory cylinders, consistent with machine hydraulic system parameters.

• It can replace worn-out original JCB ram and alternative aftermarket brand cylinders with identical part specification for the clamshovel bucket assembly.



5. What hydraulic oil is recommended for 556/60459 Hydraulic Cylinder ?

• Extension speed: 80 ~ 180 mm/s

• Retraction speed: 120 ~ 250 mm/s

• Do not exceed 300 mm/s to protect seals from premature damage.

7. Do you provide OEM or customized services?

• We accept OEM orders based on customer part numbers.

• Custom-made hydraulic cylinders with special sizes are available.

• Our factory develops tailor-made products for unique working needs.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

556/60459 Hydraulic Cylinder are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
