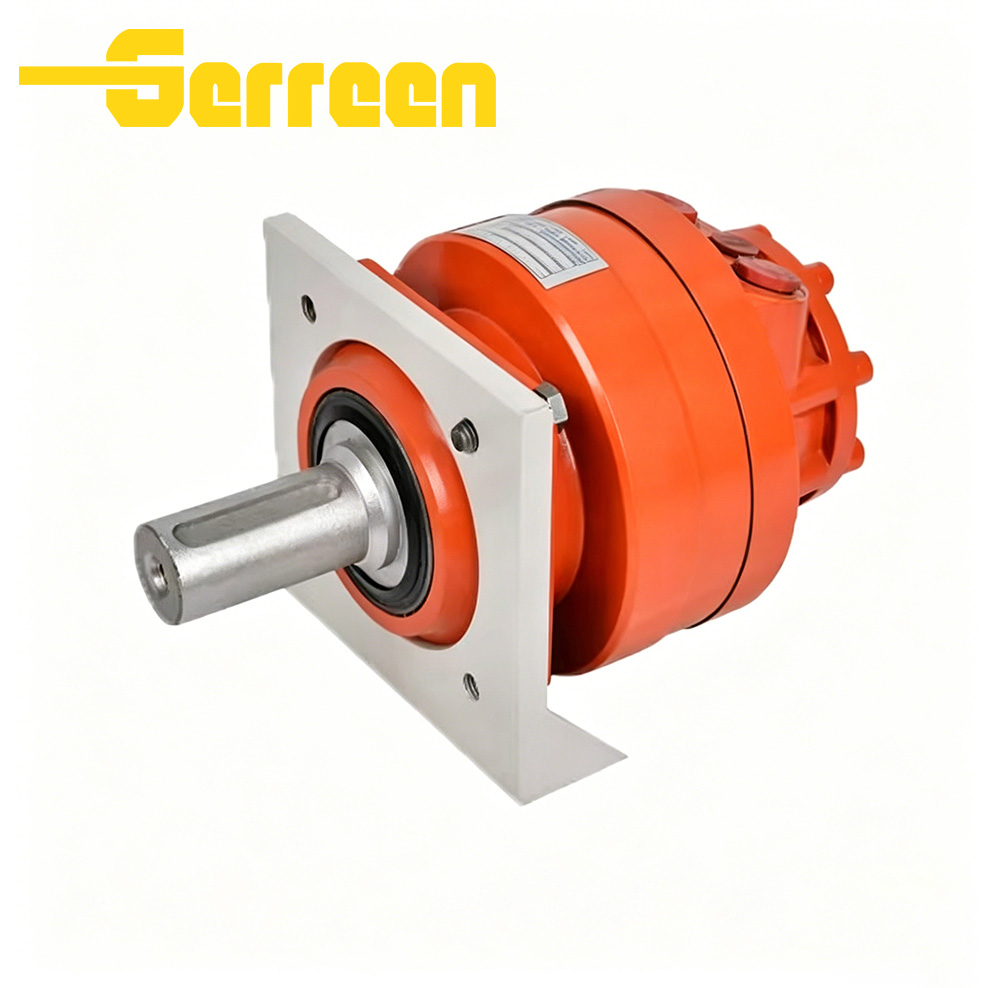

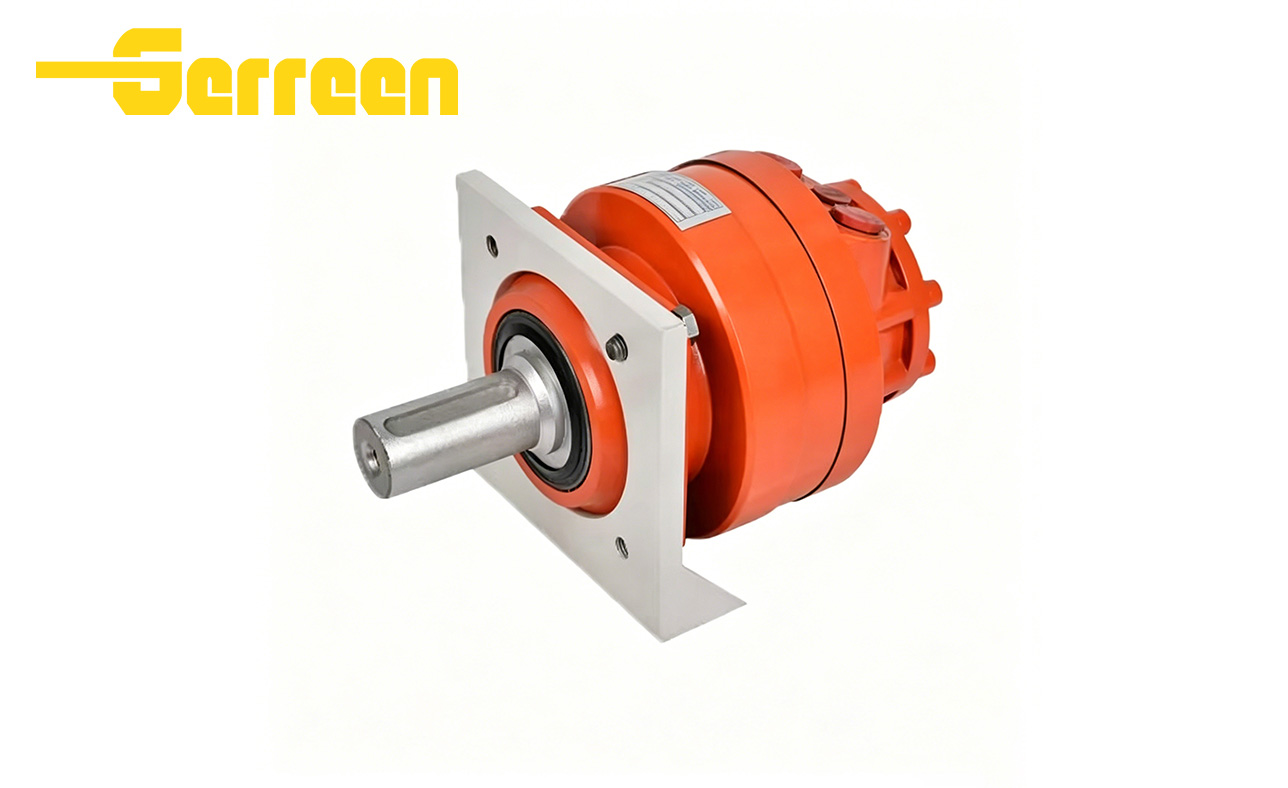

MCRO3/MCR05 Hydraulic Motor OVERVIEW

MCR03 and MCR05 are multi-stroke radial piston low-speed high-torque hydraulic motors, fully interchangeable with Bosch Rexroth original series. Adopting roller-cam and disc valve distribution structure, they feature high pressure resistance, strong load capacity and stable ultra-low speed operation. Optional integrated brake and two-speed displacement structure make them widely used as wheel drive and rotary drive for heavy mobile machinery. Our aftermarket motors support OEM customization to meet diverse equipment matching demands.

Features and Benefits

• High pressure performance: continuous pressure 250 bar, peak pressure up to 315 bar, powerful torque output for heavy loads

• Reinforced tapered roller bearings, bear huge radial and axial force, suitable for direct wheel mounting

• Smooth rotation at low speed, low vibration, low noise and high starting efficiency

• Rigid cast housing with excellent shock and dust resistance, long service life under harsh construction and mining conditions

• Reversible rotation; single-speed and two-speed variable displacement versions optional

• Optional integrated multi-disc holding brake or dynamic travel brake

• Compatible with open and closed hydraulic circuits, freewheeling function optional

• Multiple spline flanges, output shafts and port sizes customizable; speed sensor available as an option

Specifications of MCRO3/MCR05 Hydraulic Motor

• MCR03 Series

Displacement range: 160–320 ml/r

Continuous working pressure: 250 bar (3626 PSI)

Peak pressure: 315 bar (4568 PSI)

Max rated speed: 600 rpm

Max output torque: 2300 N·m

• MCR05 Series

Displacement range: 380–820 ml/r

Continuous working pressure: 250 bar (3626 PSI)

Peak pressure: 315 bar (4568 PSI)

Max rated speed: 450 rpm

Max output torque: 4844 N·m

• General Universal Parameters

Structure: Multi-stroke radial piston, disc valve distribution

Bearing: Reinforced tapered roller bearings

Rotation: Bidirectional (clockwise / counter-clockwise)

Optional function: Single speed / two-speed variable displacement, integrated holding brake, freewheeling, speed sensor

Recommended hydraulic oil: Anti-wear hydraulic oil, kinematic viscosity 10–100 mm²/s

Operating temperature: -20 ℃ ~ +80 ℃

Interchangeability: Fully compatible with original Rexroth MCR03 / MCR05 motors

Applications

Packaging & Delivery

MCRO3/MCR05 Hydraulic Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

MCRO3/MCR05 Hydraulic Motor FAQ:

1. What is the MCRO3/MCR05 Hydraulic Motor ?

•


  MCR03/MCR05 motors adopt multi-stroke radial piston and disc valve distribution structure, equipped with reinforced tapered roller bearings to bear heavy radial and axial loads. The thick cast housing offers excellent shock resistance. They support bidirectional rotation, optional two-speed variable displacement and integrated holding brake. All dimensions match original Rexroth motors for direct replacement.






3. What is the working pressure range of MCRO3/MCR05 Hydraulic Motor ?

The MCRO3/MCR05 Hydraulic Motor is designed for medium and high-pressure hydraulic systems:

• Continuous working pressure: 250 bar (3625.95 PSI)

• Max peak pressure: 315 bar (4568.70 PSI)



4. Can MCRO3/MCR05 Hydraulic Motor replace other brands?

• Yes, our MCR03/MCR05 hydraulic motors are fully interchangeable with Bosch Rexroth original motors. The installation flange, output shaft, oil port layout and performance parameters are completely consistent. They can be directly installed without modifying equipment. We also support customized shafts, brakes and logos to match other brand models.



5. What hydraulic oil is recommended for MCRO3/MCR05 Hydraulic Motor ?

• MCR03 series: Max rated speed 600 rpm

• MCR05 series: Max rated speed 450 rpm

  Both can run stably at ultra-low speed close to 0 rpm without obvious jitter.

7. Do you provide OEM or customized services?

• Yes, we offer full OEM and customization services for MCR03/MCR05 hydraulic motors.We can customize spline shafts, straight shafts, mounting flanges, oil port sizes, seal materials, integrated brakes, two-speed variable structures, product logos and outer packaging as your demands. All customized motors keep full interchangeability with original Rexroth motors.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

MCRO3/MCR05 Hydraulic Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
