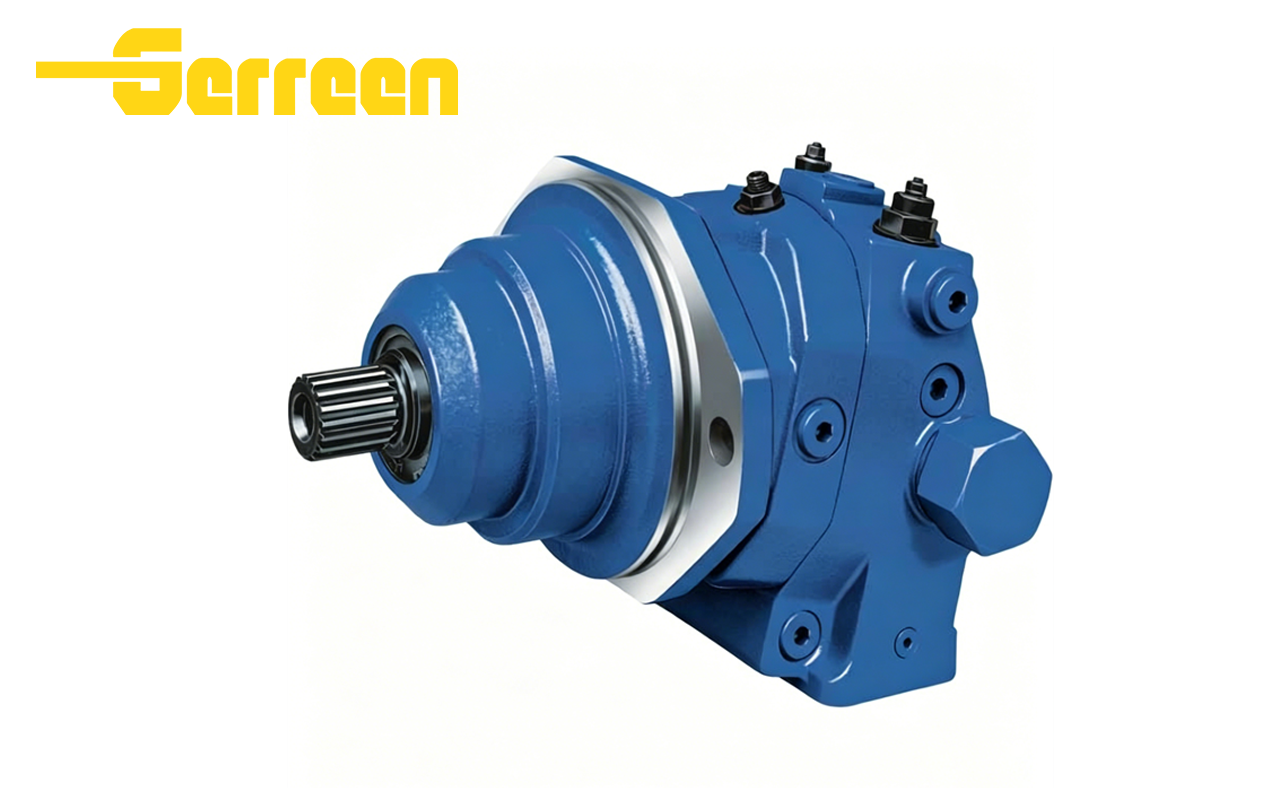

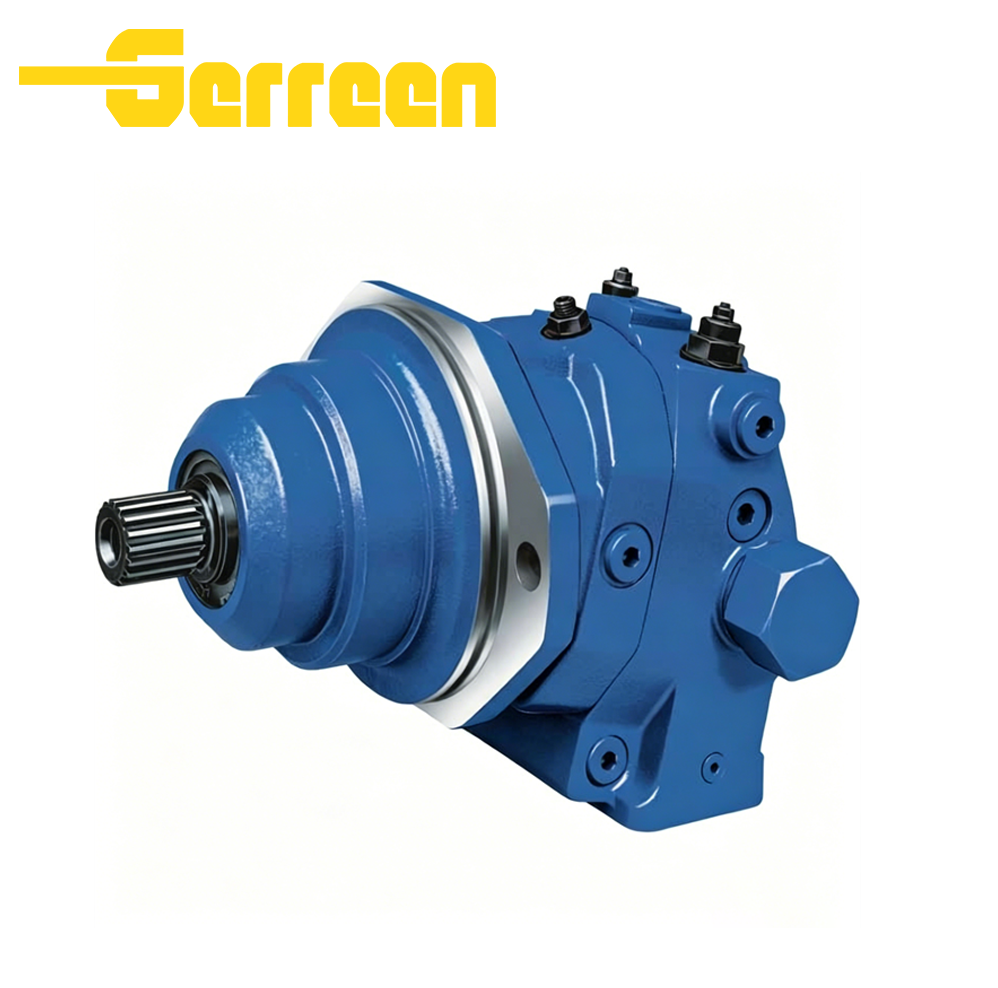

A6VE55 Axial Piston Motor OVERVIEW

Features and Benefits

• Bent-axis tapered piston structure, high power density and high efficiency

• Infinitely variable displacement from Vg max to Vg min = 0

• Plug-in integrated installation, easy assembly into gear reducer

• Heavy-duty cast iron housing and reinforced bearing system for long service life

• Multiple control options: EP, DA, HZ hydraulic two-point control

• Reversible rotation, fits closed-loop walking drive systems

• FKM high-temperature seals, stable performance under continuous heavy load

Specifications of A6VE55 Axial Piston Motor

Applications

Packaging & Delivery

A6VE55 Axial Piston Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A6VE55 Axial Piston Motor FAQ:

1. What is the A6VE55 Axial Piston Motor ?

• Bent-axis piston structure provides high torque and high efficiency under heavy load.

• Infinitely variable displacement from full flow down to zero for stepless speed control.

• Compact plug-in design for direct installation inside gearboxes to save space.

• Heavy-duty cast iron housing and reinforced bearings extend service life.

• Multiple control modes: hydraulic two-point, electric proportional and automatic pressure control.

• High pressure resistance up to 400 bar rated and 450 bar peak pressure.

• FKM high-temperature seals work reliably in closed-loop hydrostatic drive systems.

3. What is the working pressure range of A6VE55 Axial Piston Motor ?

• The short-term peak pressure is 450 bar (6525 PSI) (limited to 10 seconds per cycle).
  The nominal continuous working pressure of the A6VE55 motor is 400 bar (5800 PSI).

• The minimum inlet pressure on the high-pressure side must stay above 25 bar to avoid internal damage.




4. Can A6VE55 Axial Piston Motor replace other brands?

5. What hydraulic oil is recommended for A6VE55 Axial Piston Motor ?

We recommend anti-wear hydraulic oil ISO VG 46 or ISO VG 68.

Use mineral-based AW hydraulic oil with anti-oxidation and anti-wear additives.

Working oil temperature should be kept between -20°C and +90°C.

6. What is the typical speed range of A6VE55 Axial Piston Motor ?

• Rated speed (Vg max, full displacement): 4450 rpm for continuous long-term operation.

• Maximum no-load speed (displacement reduced): up to 7000 rpm.

• Normal operating range: 500 ~ 4450 rpm for mixer trucks, harvesters and construction machinery.

• Low-temperature cold start: keep speed below 1000 rpm without heavy load to protect internal components.

7. Do you provide OEM or customized services?

Yes, we support OEM and customization services for the A6VE55 Axial Piston Motor. We can change shaft types, port positions, control modes, and mark your brand logo. We also offer customized paint color and packaging according to your requirements.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A6VE55 Axial Piston Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
