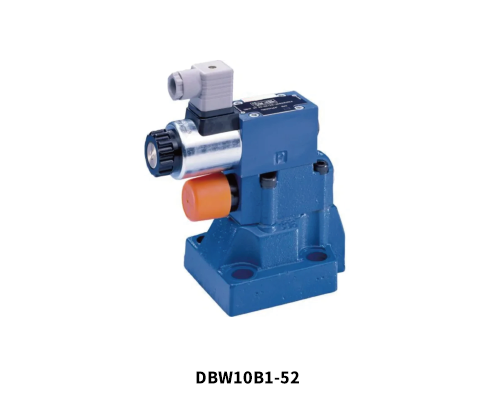

DBW10B1 Series Valves OVERVIEW

DBW10B1 is an NG10 two-stage pilot-operated electromagnetic relief valve, fully compatible with Rexroth standard DBW series. It integrates system pressure limiting, pressure regulation and electromagnetic remote unloading functions. With stable pressure holding and low noise, it serves as core pressure control components for open hydraulic circuits.

Our valves adopt standard ISO subplate installation, supporting multiple control oil forms. All internal parts are precisely machined, interchangeable with original brands, and complete repair kits are available for after-sales maintenance. Widely matched with hydraulic power units, machine tools, injection molding machines, construction and agricultural machinery.

Features and Benefits

• Two-stage concentric poppet structure, small pressure fluctuation and low operation noise

• Built-in solenoid valve for automatic unloading to reduce system energy consumption

• Max working pressure 315bar, maximum flow capacity up to 200L/min

• Multiple voltage options: standard DC24V, customized AC220V

• NBR seals as standard, FKM high-temperature seals optional

• Fully interchangeable with Rexroth DBW10B1, no modification needed during replacement

• Compact casting valve body, long service life under continuous heavy load

Specifications of DBW10B1 Series Valves

Applications

Packaging & Delivery

DBW10B1 Series Valves are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

DBW10B1 Series Valves FAQ:

1. What is the DBW10B1 Series Valves ?

• Two-stage concentric poppet structure delivers precise pressure control, small pressure fluctuation and low running noise, with fast dynamic response and minor pressure impact during unloading.

• Integrated solenoid valve realizes automatic remote unloading to cut system energy loss, supporting multi-stage pressure regulation for different working cycles.

• It bears max 315 bar pressure and handles flow up to 200 L/min, with cast internal flow channels for strong flow capacity.

• Multiple configurable options: DC24V/AC220V solenoids, NBR/FKM seals, internal/external control & drain modes, lockable pressure adjustment knobs.

• Fully interchangeable with original Rexroth DBW10B1; all internal spare parts are supplied for easy overhaul.

• Compact heavy-duty valve body fits ISO standard subplate mounting, reliable for long-term heavy-load use in industrial, construction and agricultural machinery.



3. What is the working pressure range of DBW10B1 Series Valves ?

• Adjustable pressure range: 5 ~ 315 bar (0.5 ~ 31.5 MPa) for system pressure regulation.

• Max working pressure of main oil ports (P, A, B, X): 315 bar (31.5 MPa), peak withstand pressure up to 350 bar.

• Drain port back pressure limit: Max 200 bar for DC solenoid; max 160 bar for AC solenoid.

4. Can DBW10B1 Series Valves replace other brands?

5. What hydraulic oil is recommended for DBW10B1 Series Valves ?

• DBW10B1 is a pressure control valve without rotating components, so there is no rated input speed like hydraulic pumps or motors.Its applicable flow range is 0 ~ 200 L/min. It can work stably under the matching flow of the hydraulic system, and is not limited by rotational speed.

7. Do you provide OEM or customized services?

• Yes, we support full OEM and customized services for DBW10B1 series valves.
• OEM service: Print your brand logo, custom part numbers and outer packaging as required.

• Customization options:

• Optional coil voltage: DC24V / AC220V
• Seal material: Standard NBR, customized FKM for high temperature
• Control form: Internal/external control, internal/external drain

• Custom packaging, technical labels and special batch production.

  Our technical team can also develop personalized solutions for special system demands.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

DBW10B1 Series Valves are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
