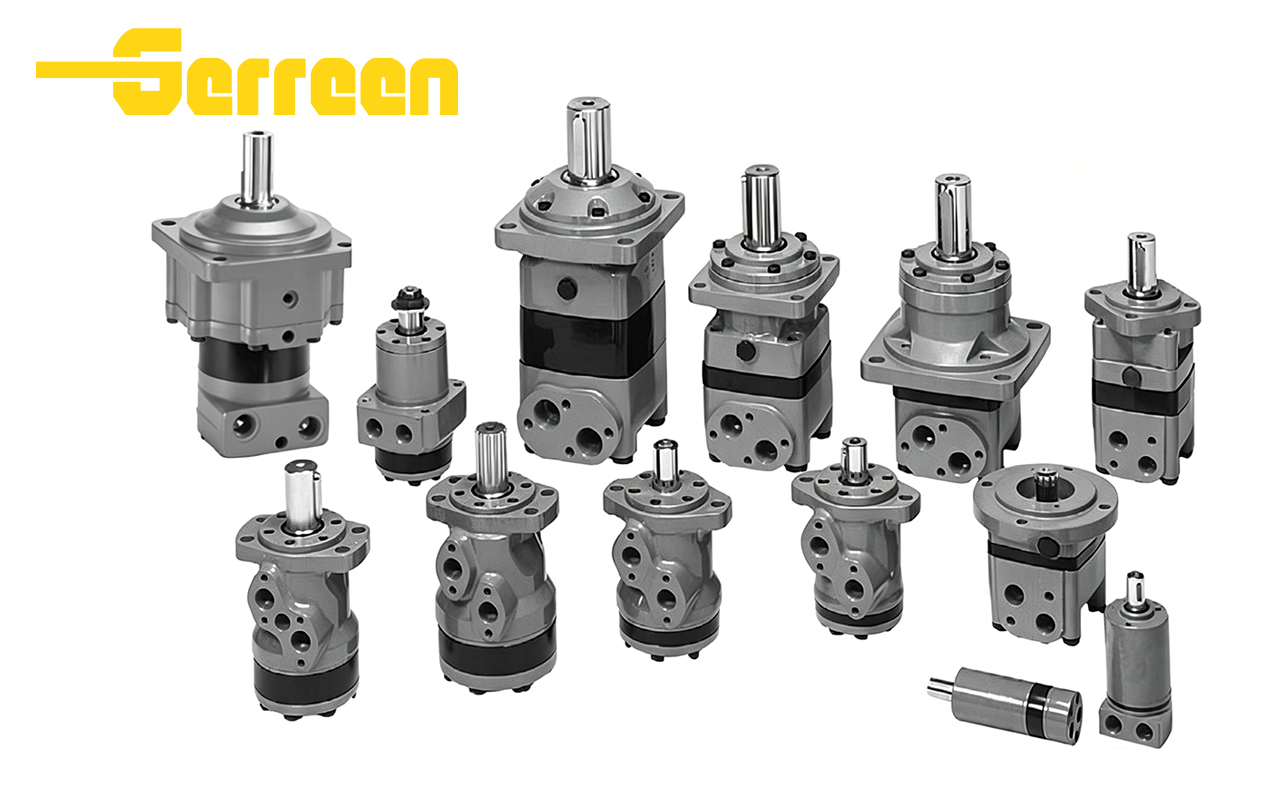

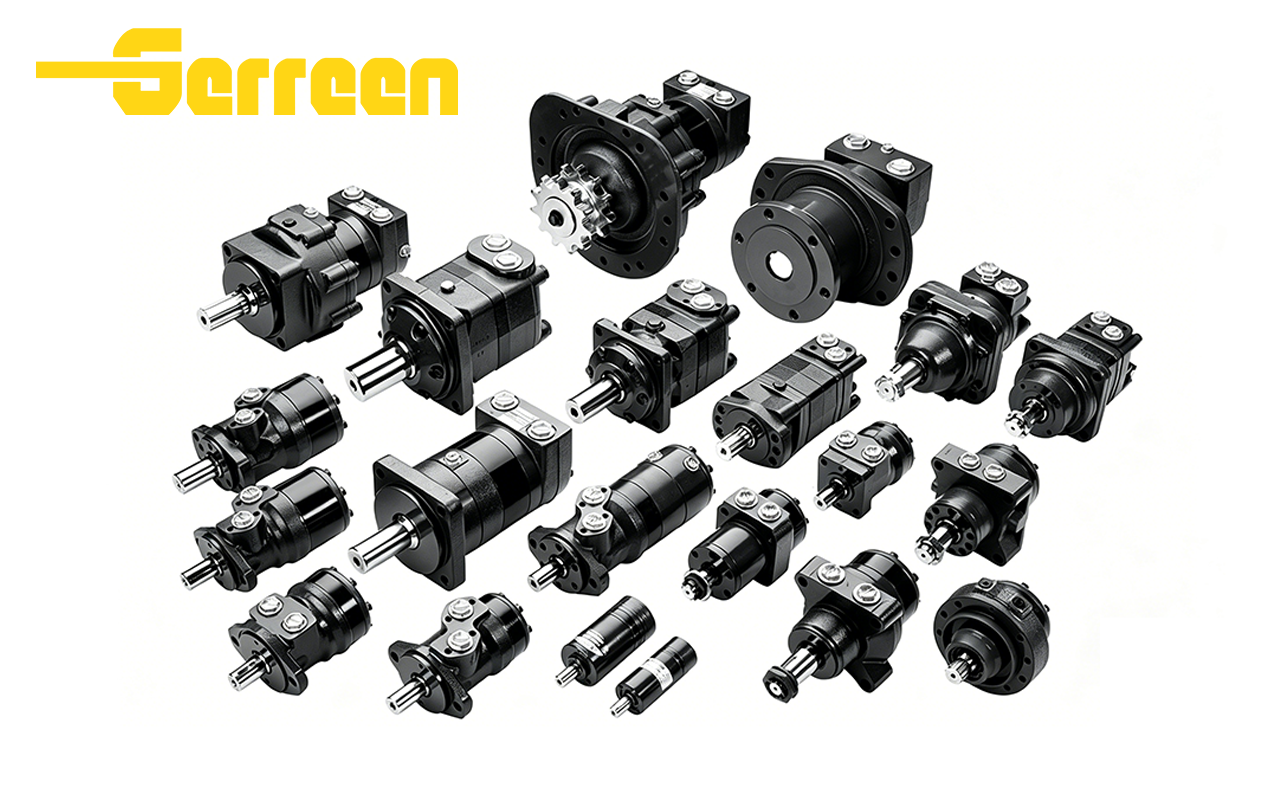

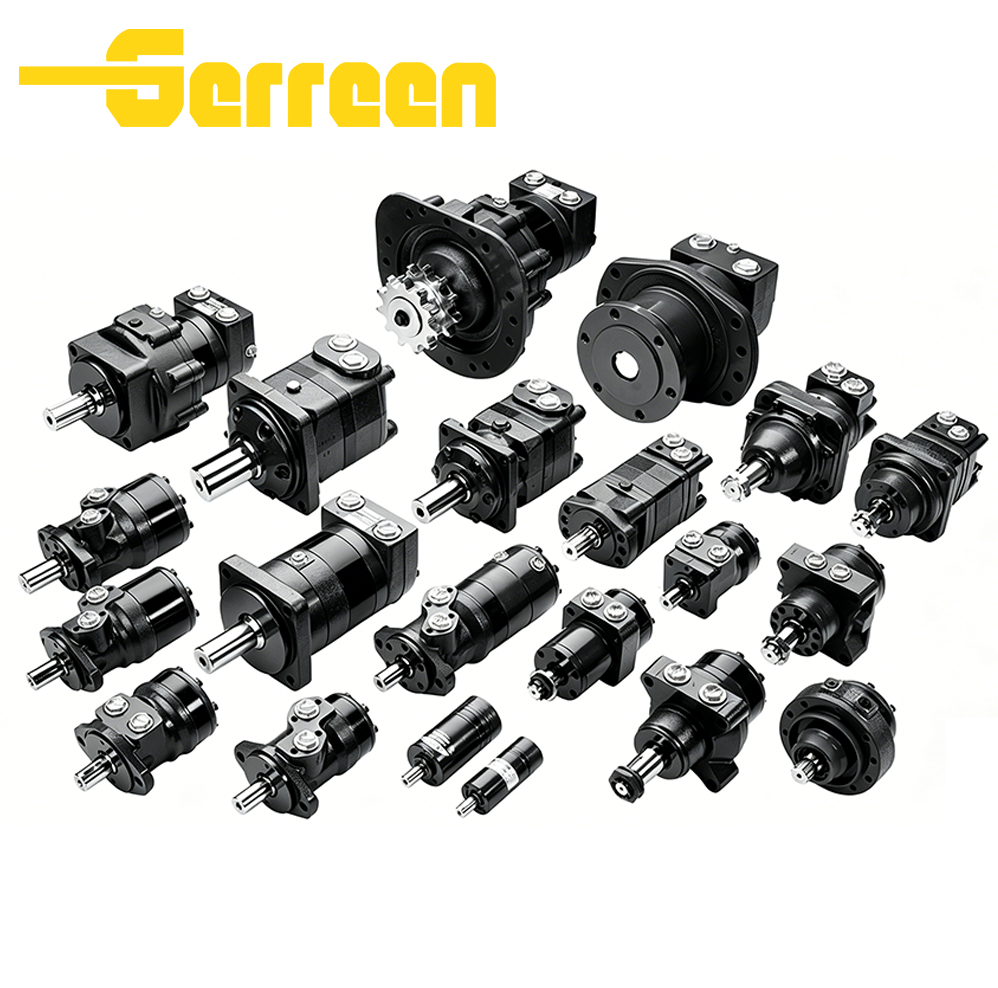

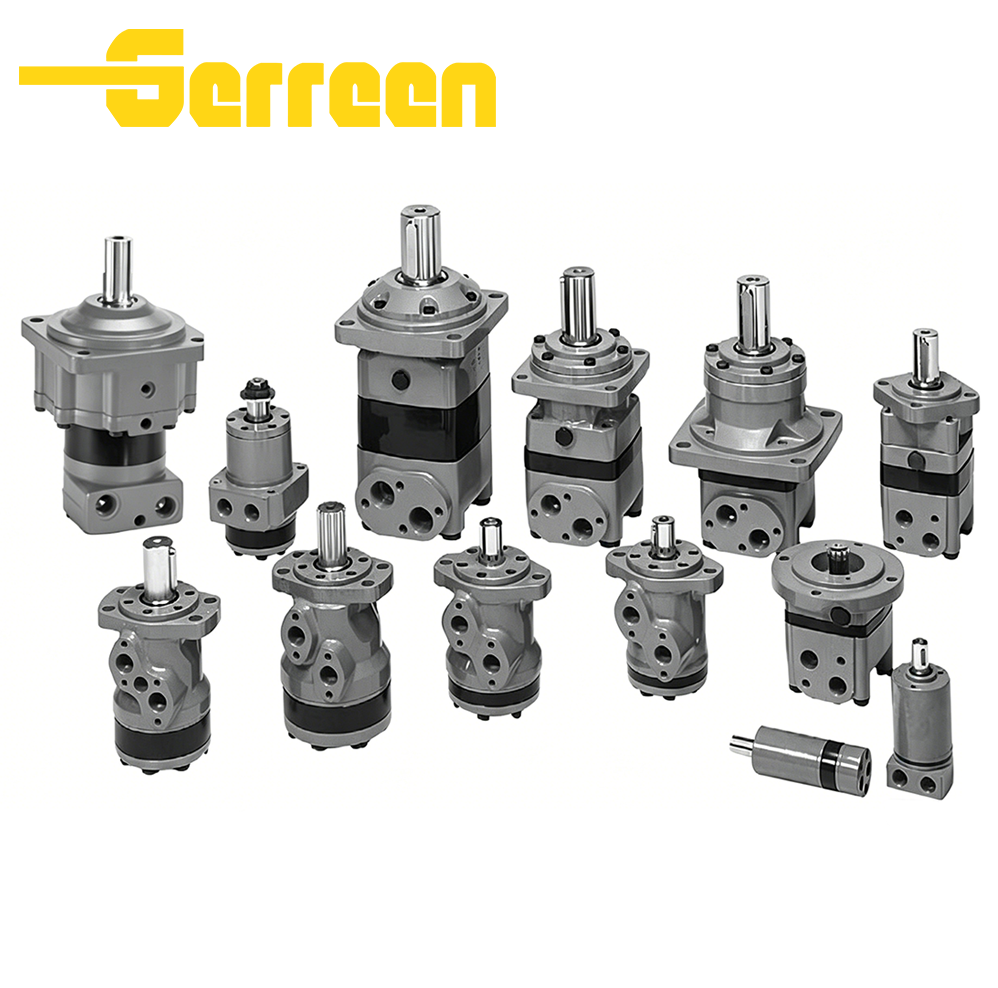

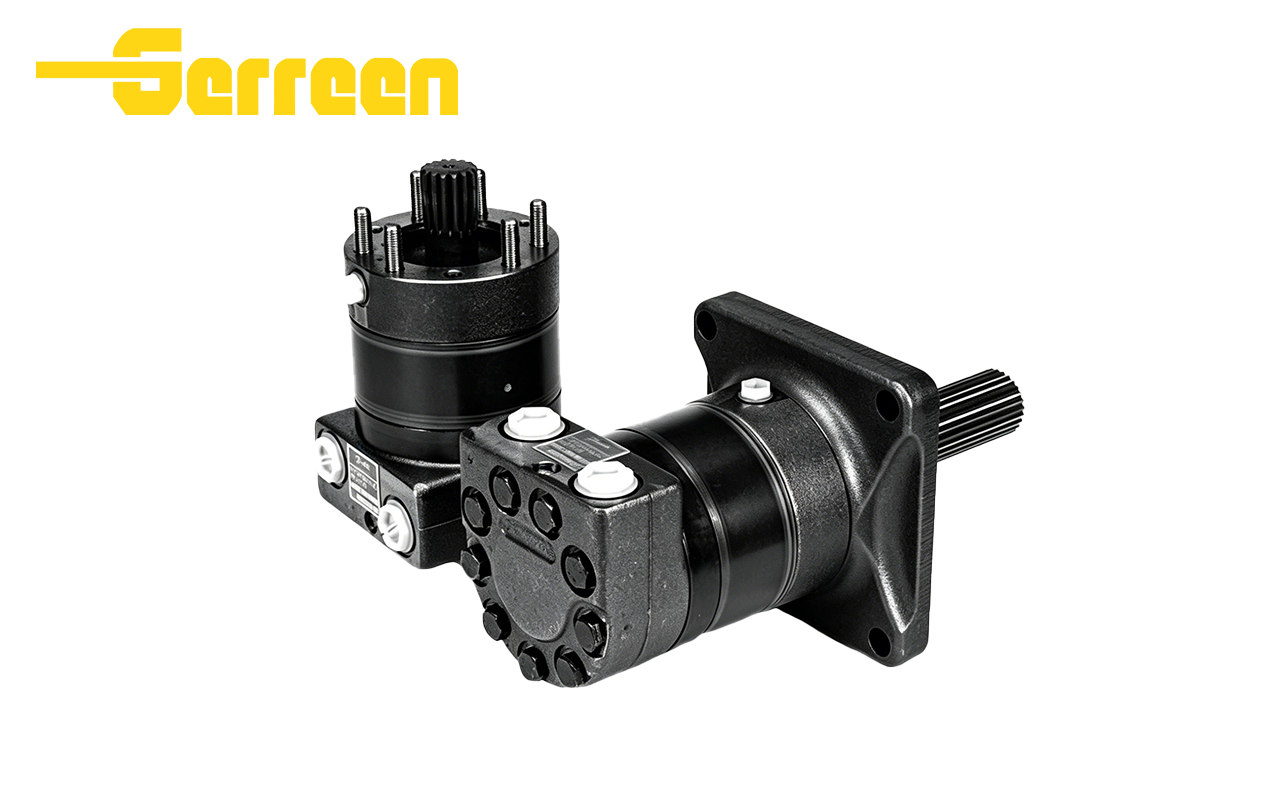

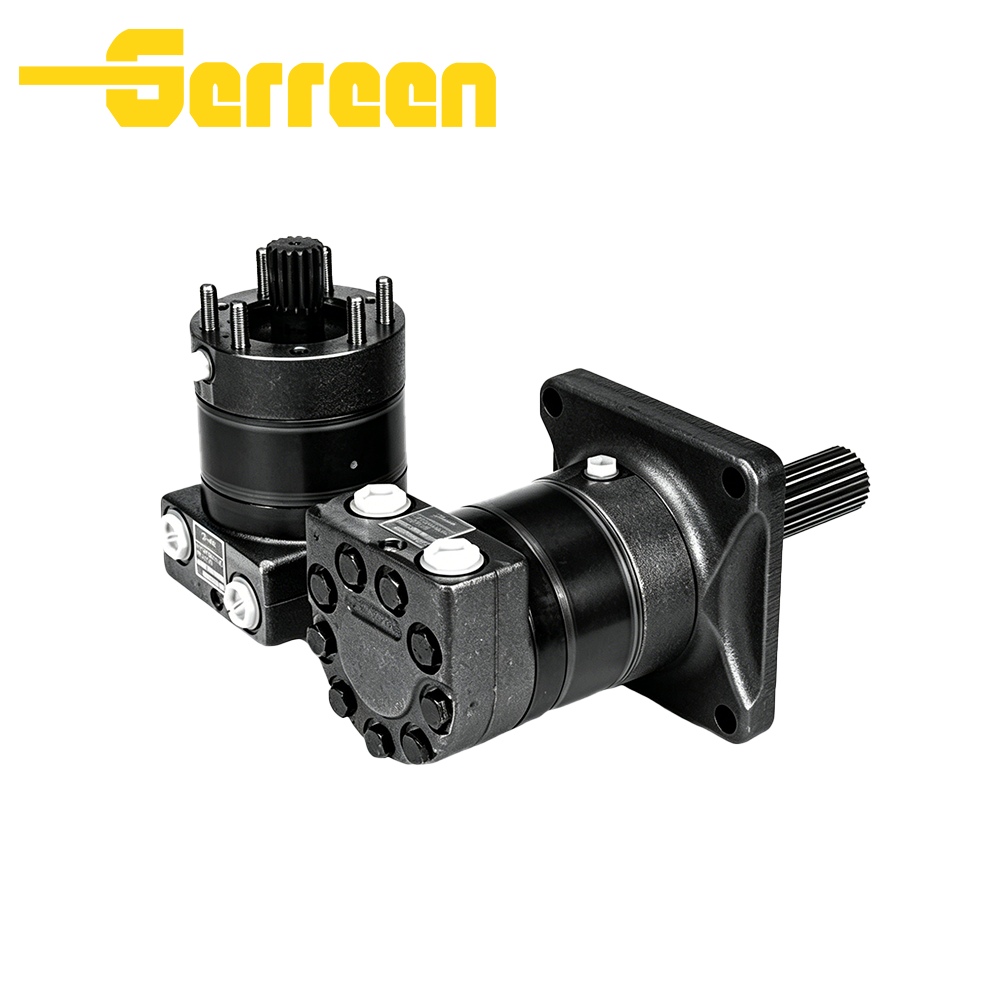

TMT OMT TMTU TMTW Series Hydraulic Orbit Motor OVERVIEW

TMT, OMT, TMTU and TMTW orbit motors are low-speed high-torque hydraulic gerotor motors, engineered for reliable heavy-load drive. With advanced geroller gear design, they deliver high starting torque and smooth steady rotation at ultra-low speeds. Compact integrated structure cuts installation space while bearing heavy radial & axial shaft loads. Multiple displacement, shaft, port and brake versions are available to match diverse working demands, widely adopted in agricultural, construction, forestry and sanitation machinery.

Features and Benefits

• Optimized geroller stator-rotor pair, low internal leakage, high volumetric efficiency

• Large startup torque, stable operation without creeping at low rotation

• Reinforced output shaft, strong resistance to impact and side load

• Broad pressure range, peak intermittent pressure reaches 350 bar

• Compact monolithic housing, easy mounting and maintenance

• Optional built-in multi-disc brake for load holding and safety stop

• Various oil port layouts and shaft types for direct equipment replacement

Specifications of TMT OMT TMTU TMTW Series Hydraulic Orbit Motor

Applications

Packaging & Delivery

TMT OMT TMTU TMTW Series Hydraulic Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

TMT OMT TMTU TMTW Series Hydraulic Orbit Motor FAQ:

1. What is the TMT OMT TMTU TMTW Series Hydraulic Orbit Motor ?

• Optimized geroller stator & rotor corePrecision machined internal gear pair brings high volumetric efficiency, low leakage, powerful startup torque and smooth low-speed running without creeping.

  Differentiated series design for diverse loads

• OMT: Cost-effective standard model for light-medium loads

  TMT: Thickened reinforced shaft to withstand bigger radial & axial side loads

  TMTU: Upgraded high-pressure seals & heavy-duty housing, peak pressure up to 350 bar

  TMTW: Large-displacement structure for extra high torque under low speed
  Flexible customizable configurations

• Multiple shaft types (keyed/splined/tapered), side/rear oil ports, plus optional spring-applied hydraulic release parking brake for safety holding.

  Robust integrated housingCompact one-piece casing reduces installation space, resists impact and extends service life under harsh construction & farm working environments.

  Wide compatibilityStandard interchangeable mounting dimensions, able to directly replace mainstream brand orbit motors for agricultural, construction, forestry and sanitation machinery.



3. What is the working pressure range of TMT OMT TMTU TMTW Series Hydraulic Orbit Motor ?

• Universal continuous working pressure (all models)210 bar = 3045.80 PSI

  Intermittent peak pressure by series

• OMT Series: 310 bar = 4496.18 PSI

• TMT Series: 330 bar = 4786.25 PSI

• TMTU / TMTW Series: 350 bar = 5076.33 PSI

4. Can TMT OMT TMTU TMTW Series Hydraulic Orbit Motor replace other brands?

5. What hydraulic oil is recommended for TMT OMT TMTU TMTW Series Hydraulic Orbit Motor ?

• Recommended hydraulic oil: Anti-wear hydraulic oil meeting ISO standard ISO VG32 or ISO VG46.

• Suitable oil temperature range: -20℃ ~ +80℃.
  Additional requirements: The oil cleanliness should be controlled below 25μm, and install an inlet filter to block solid impurities, avoiding abrasion of the geroller stator and rotor inside the motor.

• For high-temperature continuous working environments, high-temperature resistant FKM seals and ISO VG68 hydraulic oil can be selected as alternatives.

6. What is the typical speed range of TMT OMT TMTU TMTW Series Hydraulic Orbit Motor ?

• The typical operating speed range of TMT / OMT / TMTU / TMTW hydraulic orbit motors is 5 rpm to 400 rpm.

• Low speed: Stable operation at 5–50 rpm without creeping, delivers large torque for heavy loads.

• High speed limit: Max continuous rated speed 400 rpm, applicable for light-load high-speed rotary drive.

• Rotation mode: Bidirectional reversible rotation by switching inlet and outlet oil pipelines.

7. Do you provide OEM or customized services?

• Yes, we support full OEM and customized services for TMT, OMT, TMTU and TMTW series hydraulic orbit motors.

• OEM Service: We can print your brand logo, part numbers and custom labels on motor housings, packaging and manuals. Neutral unbranded products are also available.

  • Customized Options:

• Different output shafts: keyed shaft, splined shaft, tapered shaft

  Various oil port layouts: side ports, rear ports, SAE threaded ports

  Optional built-in multi-disc parking brake

  Custom seal materials: standard NBR, high temp FKM

  Special displacement adjustment upon request

• Customized packaging and user manuals with your company information are acceptable.

  Our technical team can adjust configurations according to your machine’s working conditions to match your exact demands.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

TMT OMT TMTU TMTW Series Hydraulic Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
