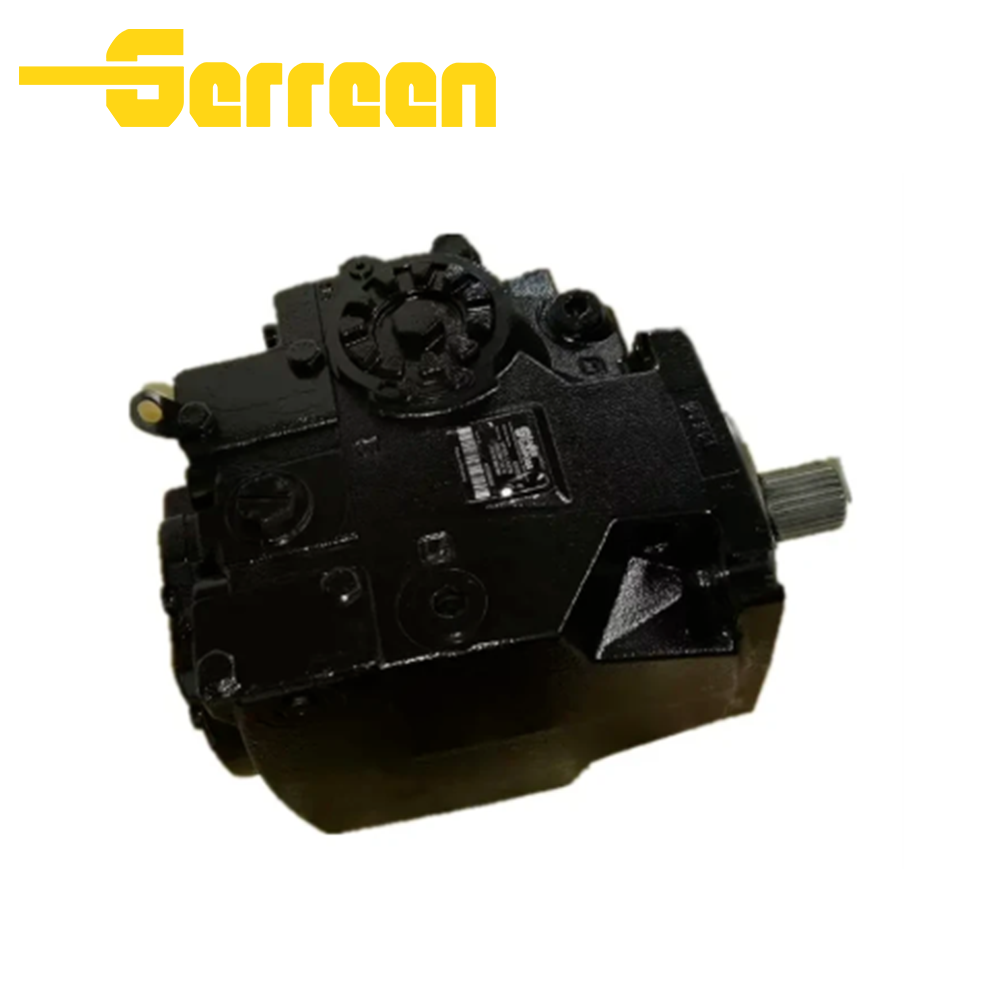

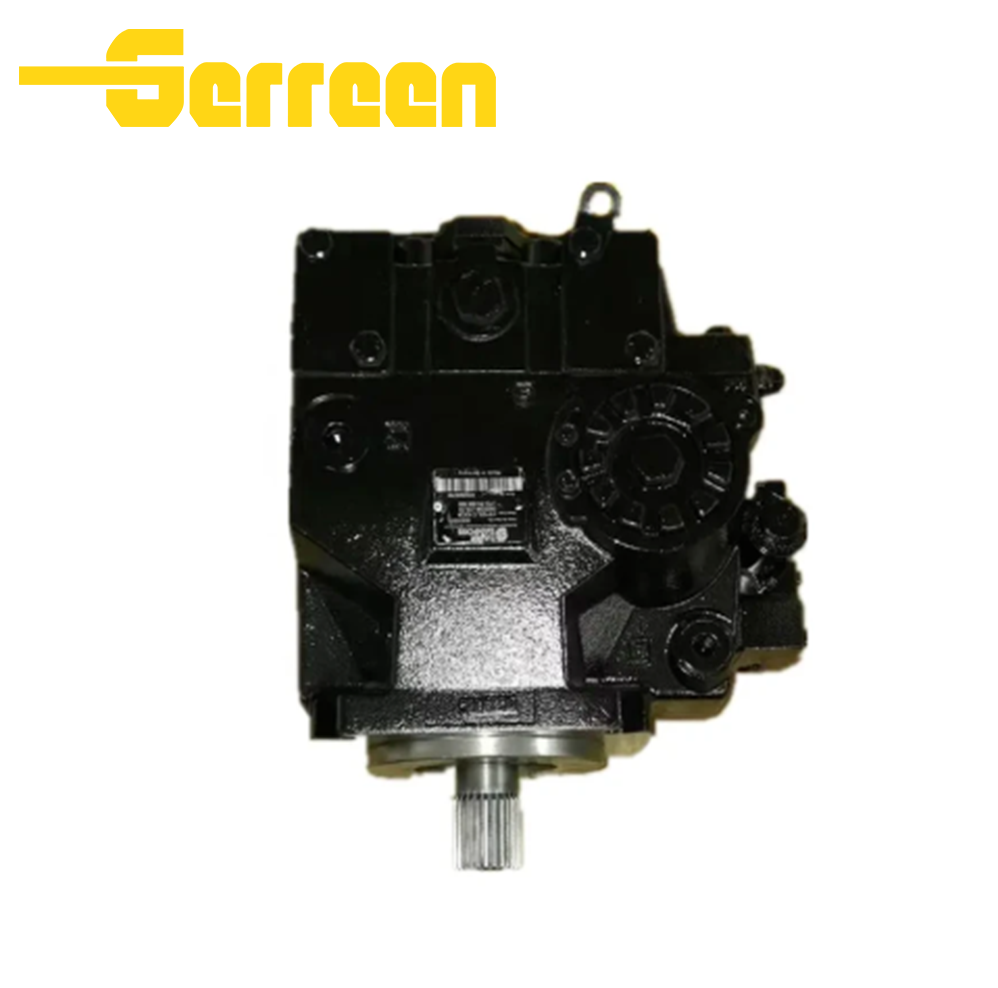

H1P053,H1P060,H1P0078,H1P0089 Piston Motor OVERVIEW

Features and Benefits

• Variable displacement design, flexible speed and torque adjustment

• High pressure resistance, long service life under harsh working conditions

• Low noise and small vibration during continuous operation

• Multiple displacement options: H1P053, H1P060, H1P0078, H1P0089

• Standard mounting flange and shaft, easy direct replacement

Specifications H1P053,H1P060,H1P0078,H1P0089 Piston Motor

• Product Type: Variable Displacement Axial Piston Motor

  Circuit: Closed-circuit hydrostatic drive

  Rotation: Bi-directional
• Displacement

  H1P053: 53.8 cm³/rev (3.28 cu.in)

  H1P060: 60.4 cm³/rev (3.69 cu.in)

  H1P0078: 78.0 cm³/rev (4.76 cu.in)

  H1P0089: 89.2 cm³/rev (5.44 cu.in)
• Pressure

  Rated Working Pressure: 420 bar (6090 PSI)

  Peak Pressure: 480 bar (6960 PSI)
• Speed

  Max Continuous Speed: 3400 rpm

  Min Stable Speed: 100 rpm
• Structure & Installation

  Housing: High-strength cast iron

  Mounting Flange: SAE standard flange

  Control Options: MDC, EDC, FNR proportional control

  Dry Weight: 41–50 kg according to model
• Operating Oil

  Recommended Fluid: ISO VG 46 anti-wear hydraulic oil

  Operating Temperature: -20℃ ~ +85℃

Applications

Packaging & Delivery

H1P053,H1P060,H1P0078,H1P0089 Piston Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

H1P053,H1P060,H1P0078,H1P0089 Piston Motor FAQ:

1. What is the H1P053,H1P060,H1P0078,H1P0089 Piston Motor ?

• Heavy-duty cast iron housing improves pressure resistance and durability.

• Variable displacement structure allows flexible adjustment of speed and torque.

• Bidirectional rotation meets forward and reverse travel requirements.

• Precision internal components reduce leakage and extend service life.

• Standard SAE mounting size supports direct OEM replacement.



3. What is the working pressure range of H1P053,H1P060,H1P0078,H1P0089 Piston Motor ?

• Rated continuous working pressure: 420 bar (6090 PSI)

• Intermittent peak pressure: 480 bar (6960 PSI)

• Stable operation under high-pressure heavy-load conditions

4. Can H1P053,H1P060,H1P0078,H1P0089 Piston Motor replace other brands?

• We recommend anti-wear hydraulic oil with grade ISO VG 46.

• The oil must keep good viscosity within -20℃ to +85℃ working temperature.

• Clean hydraulic fluid with high oxidation resistance will extend motor service life.

6. What is the typical speed range of H1P053,H1P060,H1P0078,H1P0089 Piston Motor ?

• Maximum continuous speed: 3400 rpm

• Minimum stable working speed: 100 rpm

• Steady speed performance in variable working conditions

7. Do you provide OEM or customized services?

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

H1P053,H1P060,H1P0078,H1P0089 Piston Motor  are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
