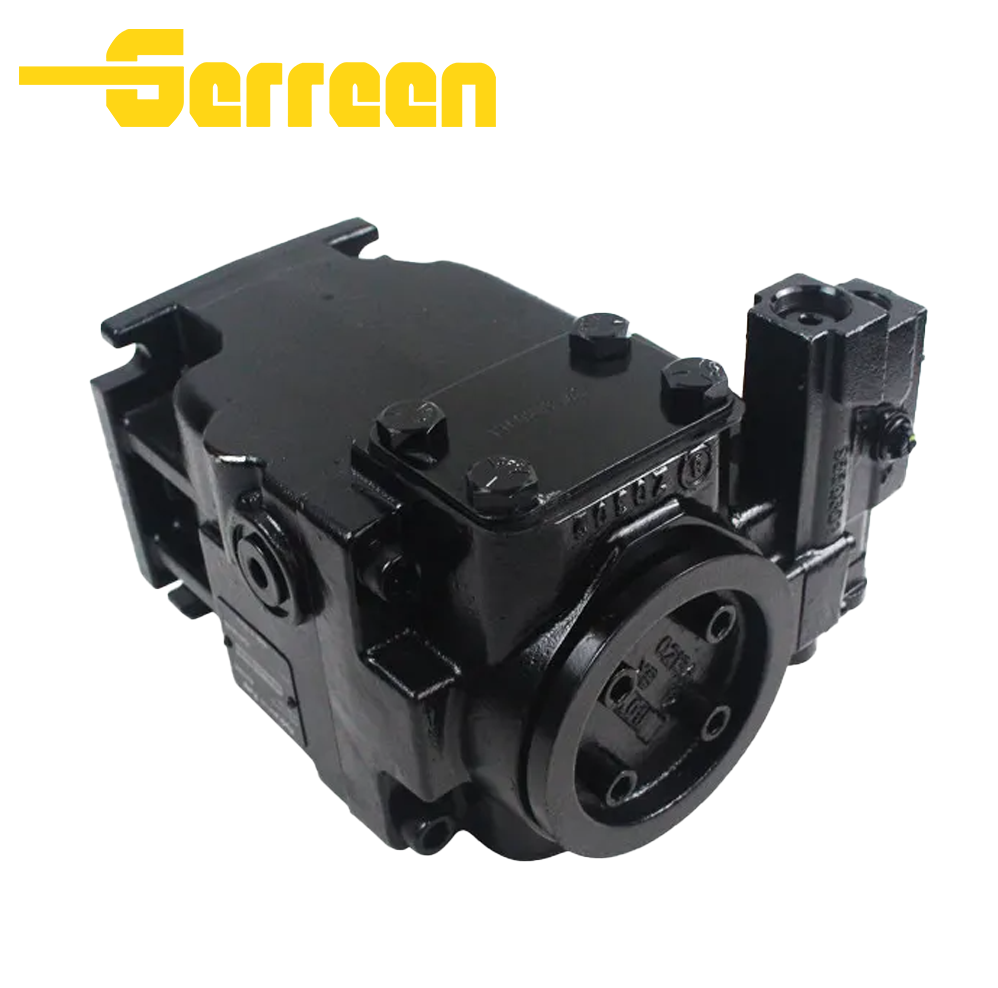

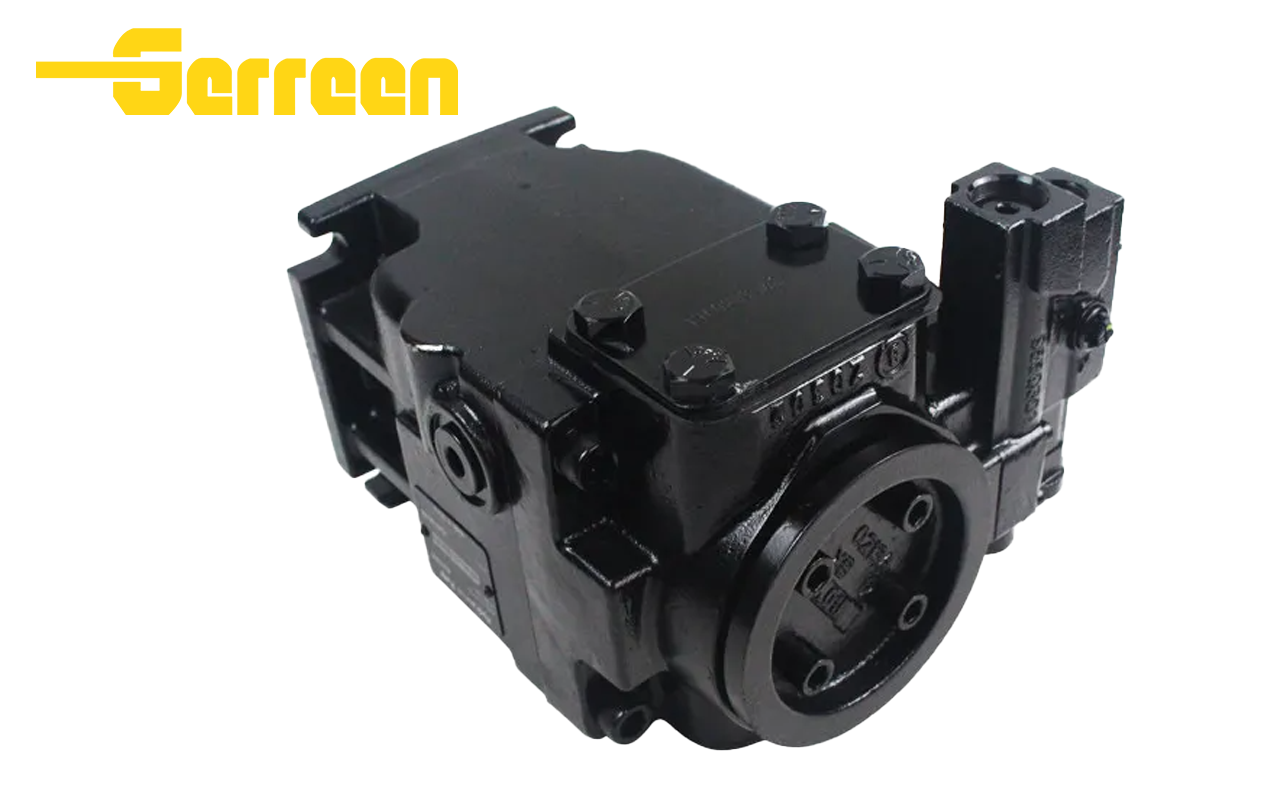

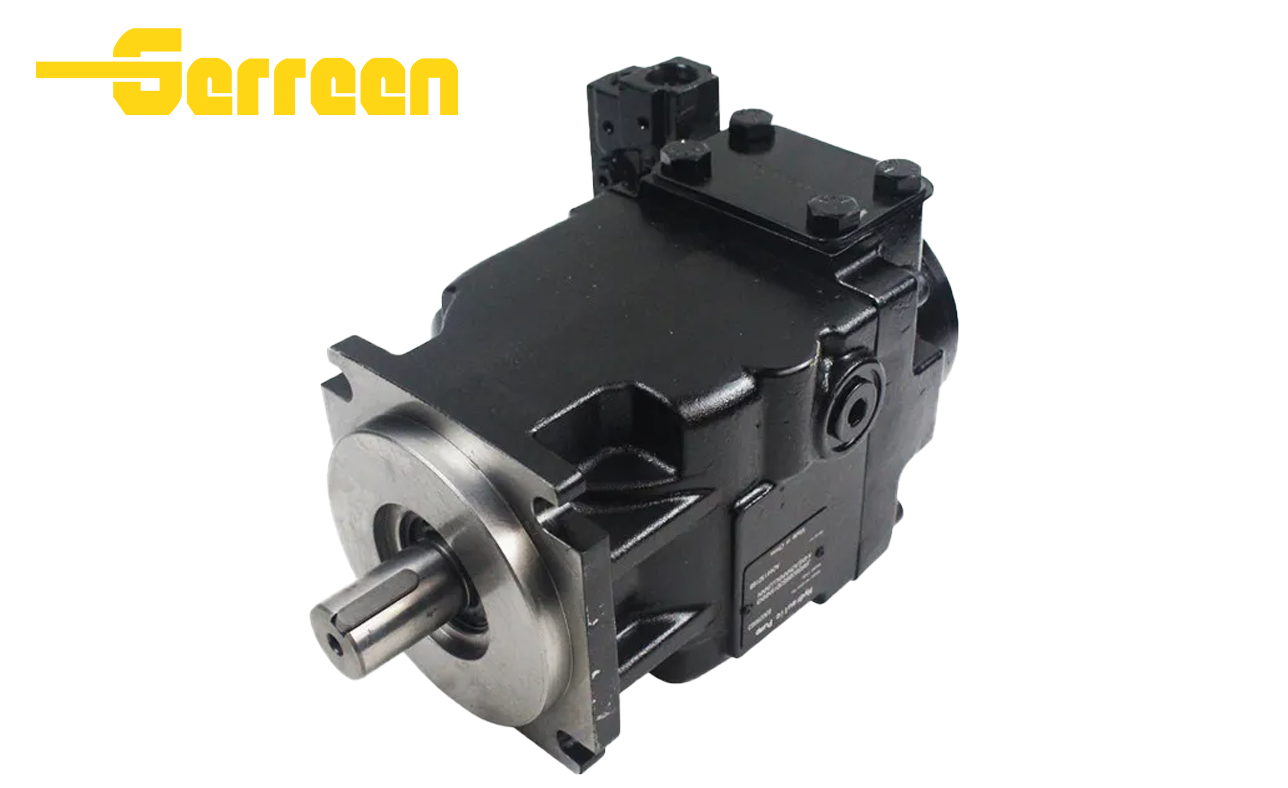

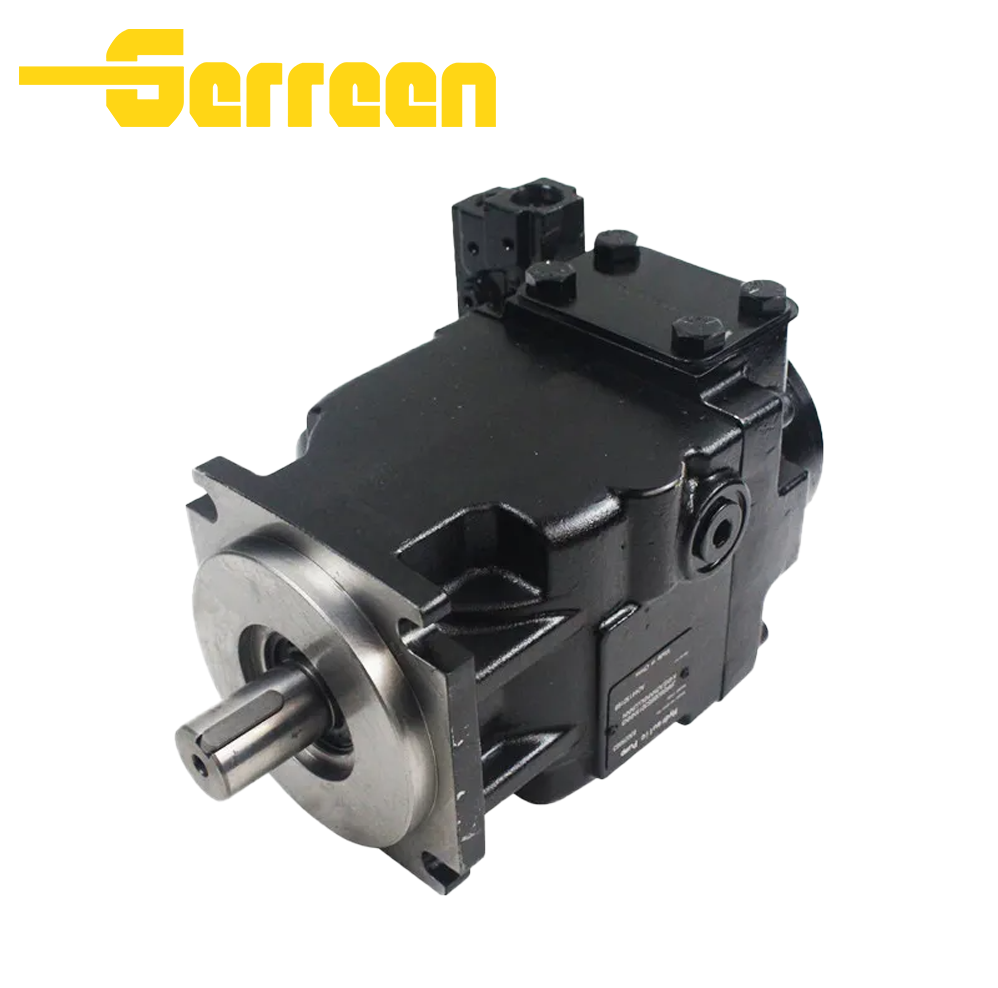

JRR Series Hydraulic Pump Replacement JRR075 JRR060 JRR045 OVERVIEW

Features and Benefits

• Perfect Interchangeability

  Fully consistent with original mounting flange, shaft splines, port layout and control interface. No modification is needed during replacement.
• Energy-saving Load Sensing Control

  LS load-sensitive structure automatically adjusts displacement. It reduces unnecessary power consumption and lowers system heat generation under partial load.
• Heavy-duty High Pressure Design

  Reinforced cylinder block, pistons and bearing components. Continuous working pressure reaches 310 bar, peak pressure up to 400 bar, suitable for long-term harsh construction site operation.
• High Volumetric Efficiency

  Precision ground friction pairs keep volumetric efficiency above 95%. Low internal leakage ensures steady flow output under continuous high pressure.
• Modular Easy Maintenance

  Integrated compact structure. Core spare parts such as pump core, valve plate and pistons are universal, greatly shortening downtime for overhaul.

Specifications JRR Series Hydraulic Pump Replacement JRR075 JRR060 JRR045

• Model: JRR045Displacement: 45 cc/rev


• Model: JRR060Displacement: 60 cc/rev


• Model: JRR075Displacement: 75 cc/rev


• Control Mode: LS Load Sensing Pressure CompensationRated Continuous Pressure: 310 bar (4495 PSI)Max Intermittent Pressure: 400 bar (5800 PSI)Speed Range: 500 ~ 3360 rpmRotation Direction: Clockwise / Counter-clockwise optionalCircuit Type: Open circuitRecommended Oil: ISO VG46 anti-wear mineral hydraulic oilOil Cleanliness Requirement: ISO 4406 20/18/15Mounting: SAE standard flangeShaft: SAE spline shaftInterchangeable: Direct replacement for Sauer Danfoss 45 series pump



• Below are some hydraulic pump models you can get from us. If you need more models. Please also send us the model of the hydraulic pump you need.Please share the nameplate or part number with us for confirmation.

• LRR025	JRR045	FRR074	ERR100	90R042	MPV046	90M055
  LRR030	JRR051	FRR090	ERR130	90R055	MPT046	90M075
  KRR038	JRR060	MPV046	ERR147	90R075		90M100
  KRR045	JRR065	MPT046		90R100	90R180	90M075
  	JRR075			90R130	90R250	90M0100

Applications

Packaging & Delivery

HPV055 HPV075 High Pressure Piston Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

HPV055 HPV075 High Pressure Piston Pump FAQ:

1. What is the HPV055 HPV075 High Pressure Piston Pump ?

• It adopts swashplate axial piston structure with heavy-duty cast iron housing, supporting stable high-pressure operation with low internal leakage.

• It has load-independent control, including mechanical, hydraulic and electro-hydraulic proportional options, with fast response and accurate flow regulation.

• Built-in charge pump, high-pressure relief valves and replaceable filter ensure reliable protection for closed-loop hydrostatic systems.

• Compact layout and high power density make it fit well on harvesters, road rollers and crawler loaders.

• Identical mounting dimensions allow direct replacement of original Linde pumps without system modification.



3. What is the working pressure range of HPV055 HPV075 High Pressure Piston Pump ?

• Continuous rated working pressure: 420 bar (6090 PSI)

• Peak transient pressure: 480 bar (6960 PSI)

• Charge pump loop pressure: 20 ~ 30 bar (290 ~ 435 PSI)

4. Can HPV055 HPV075 High Pressure Piston Pump replace other brands?

• We recommend ISO VG 46 anti-wear hydraulic oil (L-HM46) for HPV055 and HPV075 piston pumps, which meets the requirements of closed-loop high-pressure hydrostatic systems.

• Operating viscosity range: 10 ~ 160 mm²/s; the optimal working viscosity is 30 mm²/s at operating temperature.

• The oil must contain anti-wear, anti-rust, anti-oxidation, anti-foam and air release additives. Water-glycol fluids are not allowed.

• System oil cleanliness should reach ISO 18/16/13 with a 10-micron return filter to extend pump service life.

6. What is the typical speed range of HPV055 HPV075 High Pressure Piston Pump ?

• HPV055:Continuous operating speed: up to 3500 rpmMaximum intermittent speed: 3900 rpmMinimum stable working speed: 500 rpm

• HPV075:Continuous operating speed: up to 3200 rpmMaximum intermittent speed: 3400 rpmMinimum stable working speed: 500 rpm

• Recommended economic working range: 1800 ~ 2600 rpm for long service life.

7. Do you provide OEM or customized services?

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

HPV055 HPV075 High Pressure Piston Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
