OMR/OMP/OMH
Green Hydraulic
OMR/OMP/OMH
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description

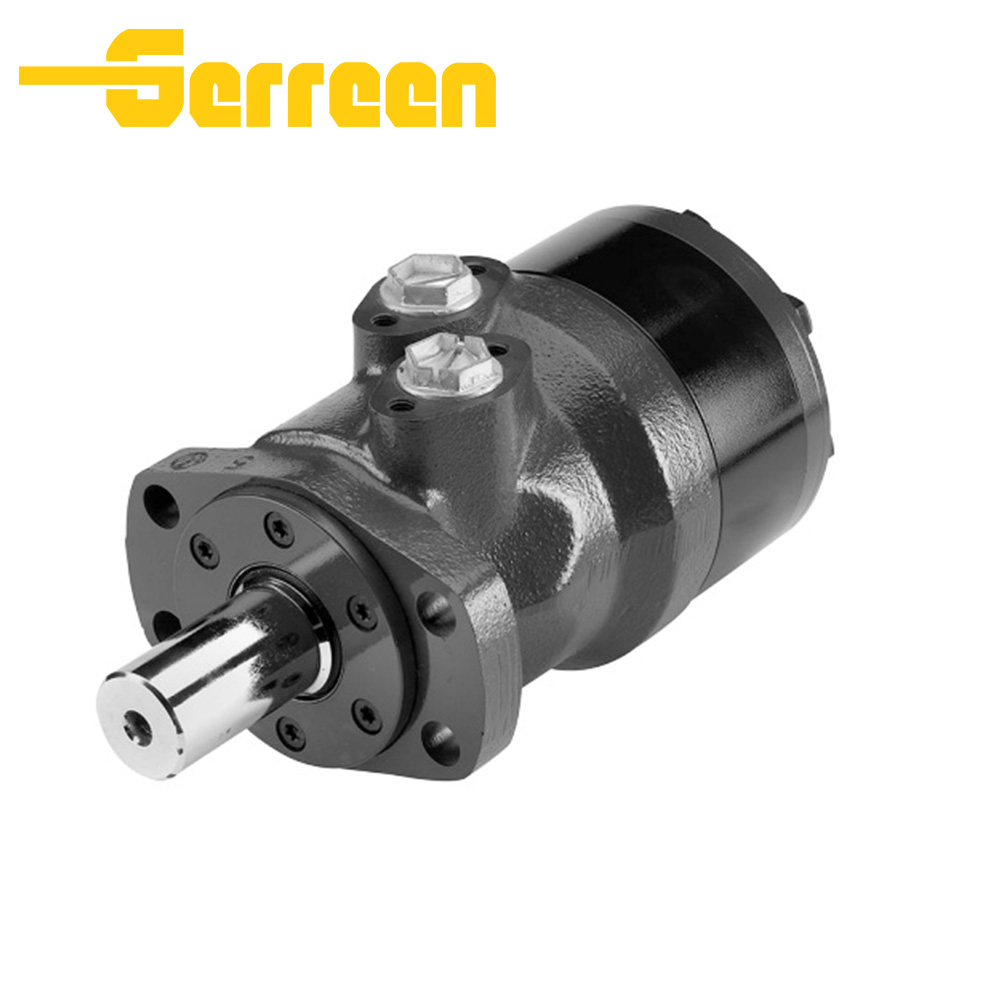

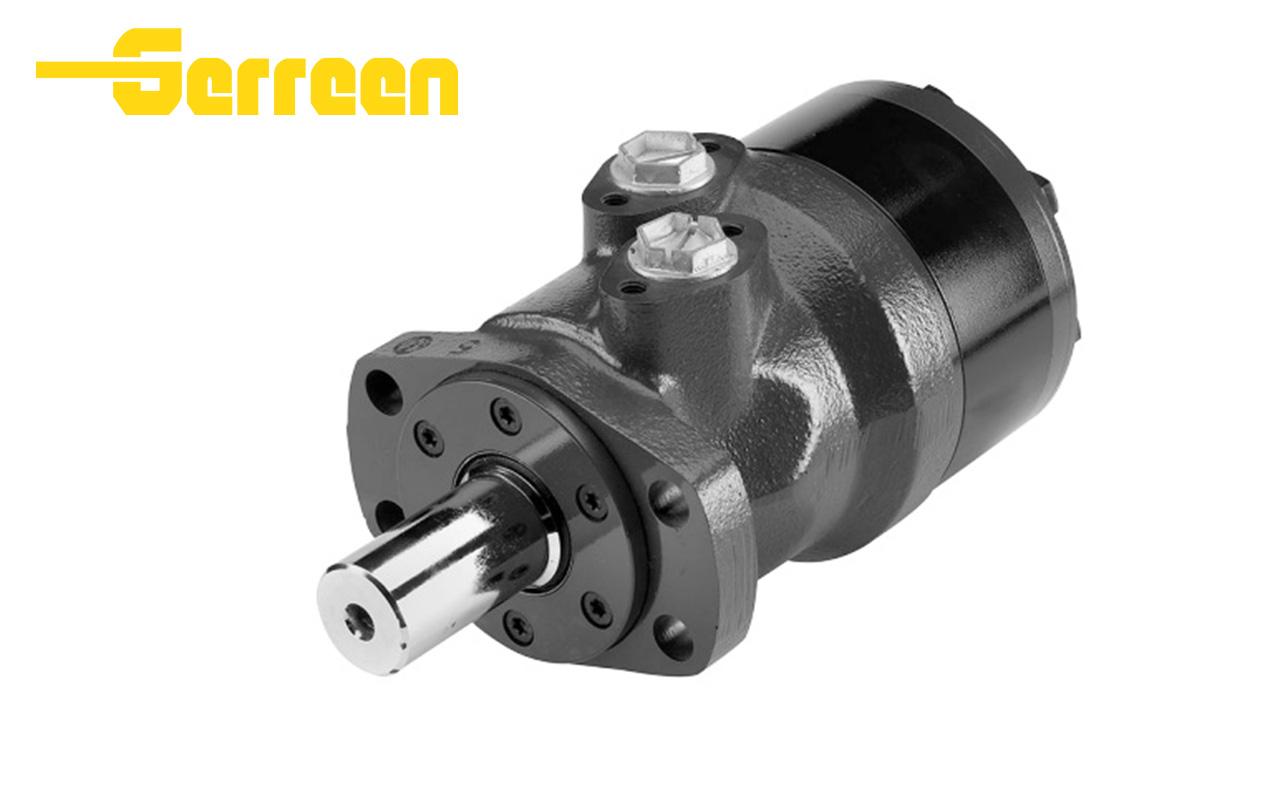

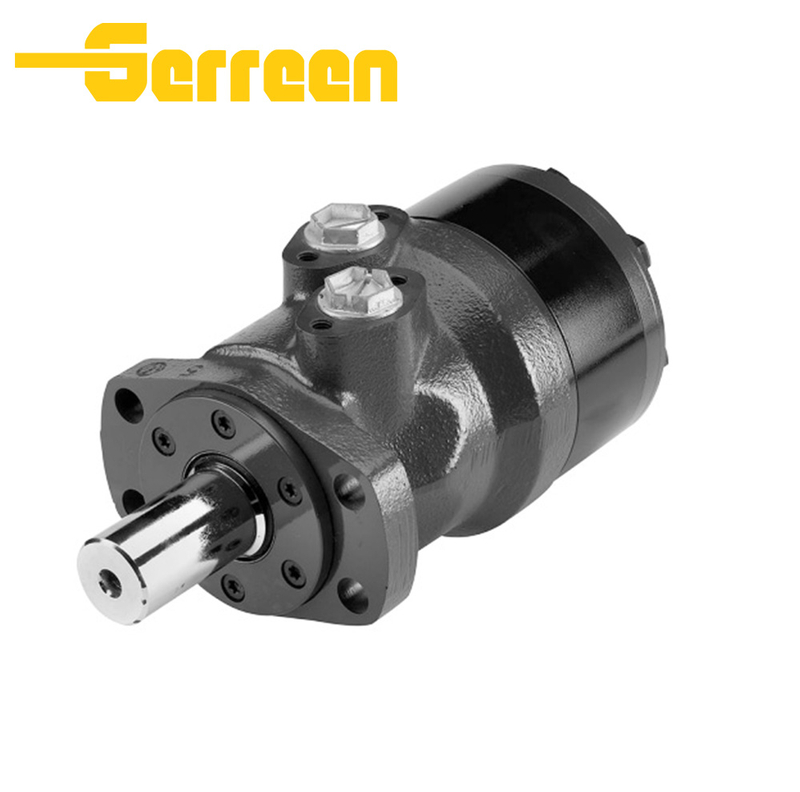

OMR, OMP and OMH series are fixed-displacement gerotor orbital hydraulic motors, also known as low-speed high-torque (LSHT) motors. The three models cover light, medium and heavy load grades respectively. With compact geroler internal structure, stable low-speed output and high efficiency, they are fully interchangeable with Danfoss original orbital motors for agricultural and construction machinery hydraulic drive overhaul & new assembly.
Superior Low-speed Performance: Maintain stable high torque at ultra-low speed without extra reduction gearbox.
Complete Interchangeability: Dimensional & mounting parameters match Danfoss OMP/OMR/OMH, direct replacement without modification.
Durable Gerotor Core: Alloy steel stator-rotor pair with surface quenching, low internal leakage and long service life.
Diversified Customization: Optional shaft types, brake valve, speed sensor, two-way oil ports for different installation demands.
Cost-saving Domestic Alternative: Fast delivery, sufficient stock, lower cost than genuine imported motors with equal working performance.
Specifications
Type: Fixed displacement gerotor orbital hydraulic motor (LSHT low speed high torque)
Flow direction: Bi-directional rotation
Distribution structure: OMP – end port distribution; OMR / OMH – side port pin gear distribution
Core component: Hardened alloy steel geroler stator & rotor set with wear compensation
Sealing: Standard NBR seals; Viton high-temperature seals optional
OMP: 25, 32, 40, 50, 63, 80, 100, 125, 160 cc/rev
OMR: 50, 80, 100, 125, 160, 200, 250, 315, 400 cc/rev
OMH: 200, 250, 315, 400, 500 cc/rev
Continuous working pressure: 140–175 bar
Intermittent peak pressure: 200 bar
Continuous working pressure: 175–200 bar
Intermittent peak pressure: 210–240 bar
Continuous working pressure: 200 bar
Intermittent peak pressure: 240 bar
Min stable speed: 5–10 rpm (no stall)
Max rated speed:
OMP: 1000 rpm; OMR: 800 rpm; OMH: 600 rpm
Starting torque efficiency: ≥90% at low speed
Mount flanges: 2-hole / 4-hole standard SAE / European flange
Output shafts: Straight key shaft, spline shaft, tapered shaft
Optional built-in counterbalance valve / parking brake / speed sensor
Recommended oil: ISO VG32 / VG46 anti-wear hydraulic oil
Operating temperature: -20℃ ~ +80℃
Viscosity range: 10–100 mm²/s
Applications
Tractor auxiliary drives: fertilizer spreaders, seeders, rotary tillers, front loader
Combine harvesters: reel drive, auger unloading motor, straw chopper
Self-propelled sprayers, mowers, balers, irrigation equipment wheel drive
Mini skid steer loaders, small excavators, road rollers
Asphalt paver conveyors, road sweepers, small drilling rigs
Concrete mixers, curb cutting machines, small winch drives
Street sweepers, garbage compactors, waste transport vehicles
Green maintenance machines: lawn mowers, hedge trimmers, leaf collectors
Conveyor rollers, material mixers, agitators
Small slewing turntables, winding machines, lifting winches
Woodworking machinery, feed processing equipment
Small fishing boat propeller drives, ship deck winches
Forklift auxiliary drive, airport baggage transfer trolleys
OMP (Light-duty): Small lawn equipment, mini sweepers, miniature conveyor rollers
OMR (Universal Medium-load): Tractors, harvesters, pavers, most general mobile machinery
OMH (Heavy-duty): Large harvesters, mixing drums, heavy-duty loader auxiliary drives
Factory&FAQ
OMR OMP OMH Series Orbital Motors are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the OMR OMP OMH Series Orbital Motors ?
OMP: Compact lightweight type, lower pressure, higher speed, small torque, for light-duty equipment.
OMR: Reinforced structure, higher pressure & bigger torque, same mounting size as OMP, interchangeable with OMP.
OMH: Heavy-duty heavy-load model, largest torque and highest pressure resistance among the three, for heavy working conditions.
All feature compact body, high starting torque, bidirectional rotation, automatic wear clearance compensation, fit both open and closed hydraulic circuits
Complete spare parts and overhaul kits available, OEM customization supported.
3. What is the working pressure range of OMR OMP OMH Series Orbital Motors ?
OMP: Continuous 140–175 bar, peak 200 bar
OMR: Continuous 175–200 bar, peak 240 bar
OMH: Continuous 200 bar, peak 240 bar
4. Can OMR OMP OMH Series Orbital Motors replace other brands?
Our OMR, OMP, OMH series orbital motors are fully interchangeable with original Danfoss motors of the same model and displacement without modification.
Compatible equivalent replacement: It can replace M+S MP/MR/MH series, domestic BM series orbital motors with matching flange, shaft, displacement and pressure parameters.
Not directly interchangeable: Cannot fit piston motors, bent-axis motors, or orbital motors with different mounting sizes, port positions and internal gerotor structures (such as Eaton 2K/6K series, Rexroth MCR series) directly.
If you provide the original part number, we can confirm matching specifications to realize seamless replacement.
5. What hydraulic oil is recommended for OMR OMP OMH Series Orbital Motors ?
Operating temperature: -20℃ ~ +80℃
Standard motors are equipped with NBR seals; Viton fluorine rubber seals are optional for high-temperature working conditions. Avoid hydraulic oil with excessive impurity content to extend service life of gerotor components.
6. What is the typical speed range of OMR OMP OMH Series Orbital Motors ?
OMP: 5 ~ 1000 rpm
OMR: 5 ~ 800 rpm
OMH: 5 ~ 600 rpm
5 rpm is the minimum stable non-stall speed for all three models.
7. Do you provide OEM or customized services?
OEM: Custom logo, neutral packing, private carton printing;
Customization: Special output shafts, brake valve assemblies, high-temperature Viton sealing kits, and special displacement parts upon request.
We can adjust parts dimensions according to your drawings or samples.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
OMR OMP OMH Series Orbital Motors are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
